Jinko 490W Solar Panel Overview
The Jinko 490W Solar Panel (JKM490M-7RL3) offers superior energy output with its P-type monocrystalline cells and advanced Tiling Ribbon (TR) technology. Delivering a maximum power output of 490W and a module efficiency of 21.82%, this panel is designed to meet the energy demands of residential, commercial, and utility-scale installations. Built with durability in mind, it features robust weather resistance, enhanced mechanical load capacity, and advanced 9BB technology for superior energy performance.
Jinko 490 Watt Solar Panel Key Features
- TR Technology + Half Cell Design: Eliminates cell gaps, improving module efficiency to up to 21.82%.
- 9BB Technology: Increases power output by reducing the distance between busbars and improving electrical performance.
- Higher Lifetime Power Yield: Ensures minimal power degradation with only 2% in the first year and a maximum of 0.55% annual degradation thereafter.
- Enhanced Mechanical Load: Certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal).
- Durability in Harsh Environments: Resistant to salt mist, ammonia, and other environmental stresses for long-term reliability.
- Best Warranty: Backed by a 12-year product warranty and a 25-year linear performance warranty.
Jinko 490W Datasheet
Mechanical Characteristics
- Cell Type: P-type Monocrystalline
- Number of Cells: 156 (2×78)
- Dimensions: 2182 × 1029 × 35 mm (85.91 × 40.51 × 1.38 inches)
- Weight: 25.0 kg (55.12 lbs)
- Front Glass: 3.2 mm anti-reflection coated, high-transmission tempered glass
- Frame: Anodized aluminum alloy for structural durability
- Junction Box: IP68 rated for enhanced water and dust protection
- Output Cables: TUV 1×4.0 mm², customizable lengths (+290 mm default)
Jinko Solar 490W Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 490W |
| Module Efficiency (STC) | 21.82% |
| Maximum Power Voltage (Vmp) | 43.84V |
| Maximum Power Current (Imp) | 11.18A |
| Open-Circuit Voltage (Voc) | 52.49V |
| Short-Circuit Current (Isc) | 11.95A |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000/1500VDC |
| Power Tolerance | 0~+3% |
Packaging
- Configuration: Two pallets per stack; 31 panels per pallet, 62 panels per stack, 620 panels per 40HQ container.
- Weight Per Panel: 25.0 kg (55.12 lbs)
Certifications
- IEC61215(2016), IEC61730(2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management System)
- CE Certified
- PV Cycle Member
- Positive Quality Assurance
Warranty
- Product Warranty: 12 years
- Linear Performance Warranty: 25 years with an annual power degradation of 0.55%, guaranteeing 84.8% of the rated power at the end of 25 years.
Applications
The Jinko 490W Solar Panel is versatile and ideal for:
- Residential rooftop systems
- Commercial and industrial solar installations
- Utility-scale solar farms
- Hybrid and off-grid energy solutions
With advanced performance features and robust durability, the JKM490M-7RL3 is an excellent choice for maximizing energy output in diverse conditions.

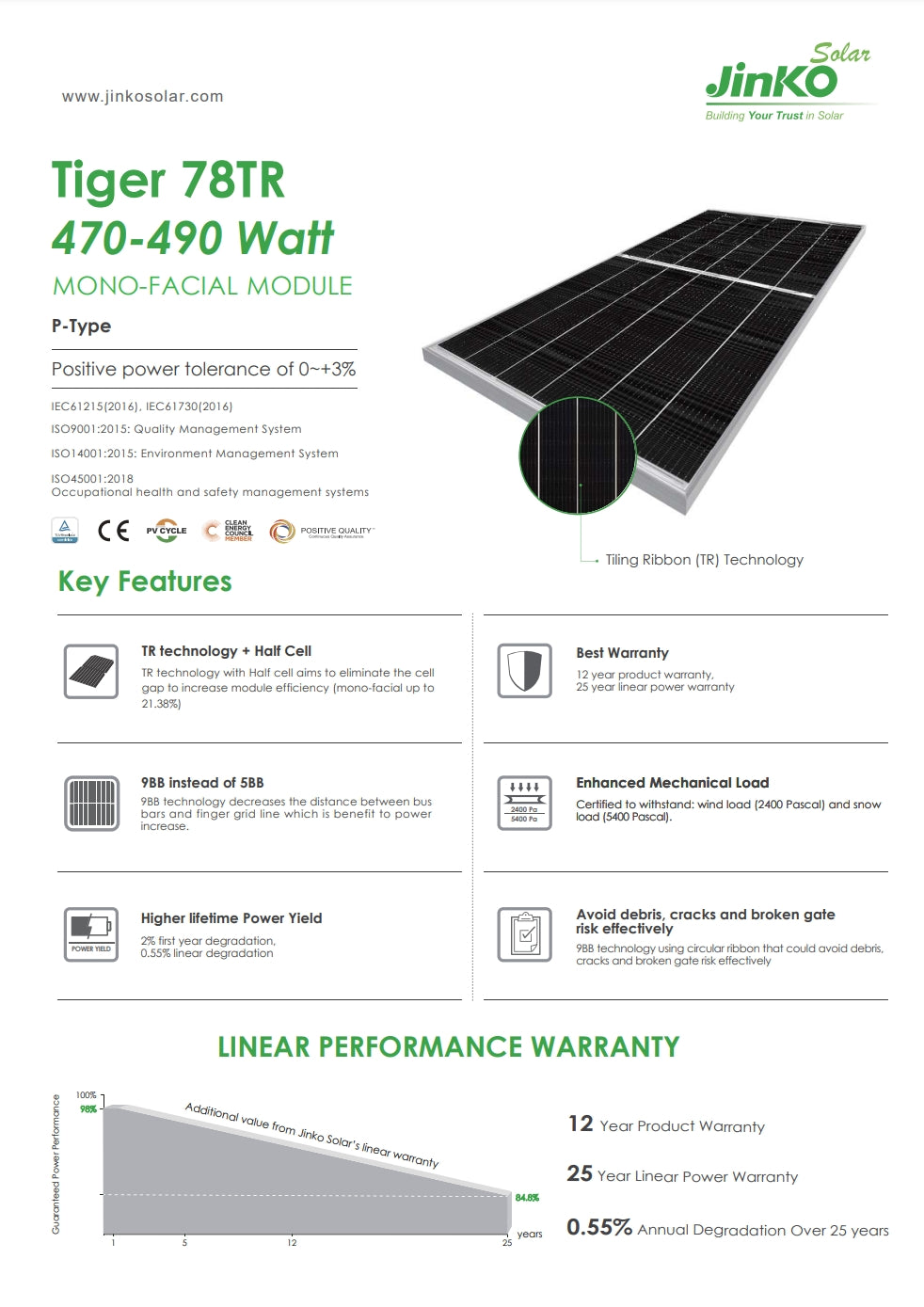

Jinko Solar: Building Your Trust in Solar Technology 78TR, 470-490 Watt Mono-Facial Module, P-Type Positive Power Tolerance of 0~+3%, IEC61215/2016 and IEC61730 (2016). ISO9001:2015 (Quality Management System), ISO14001:2015 (Environmental Management System), ISO45001:2018 (Occupational Health and Safety Management Systems). PV Cycle Positive Quality, Tiling Ribbon (TR) Technology Features. TR technology with Half-Cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 25 years linear power warranty). Enhanced Mechanical Load 9BB technology decreases the distance between busbars, reducing the risk of debris, cracks, and broken glass effectively.

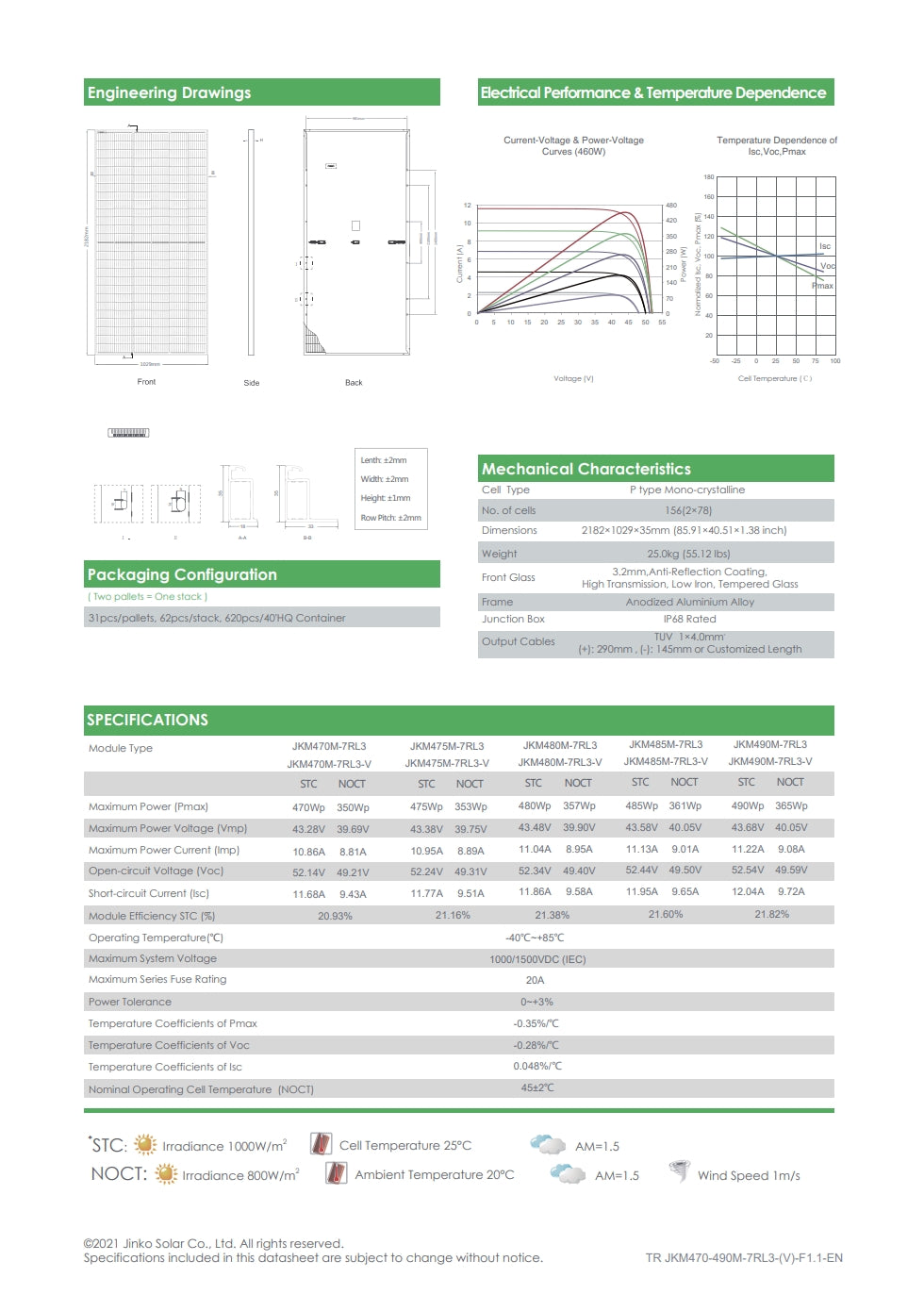

Jinko Solar Panel 490W (JKM490M-7RL3) Product Description. Mono-crystalline solar panel with anodized aluminum frame, high transmission low iron tempered glass, and anti-reflection coating. Dimensions: 2182mm x 2929mm x 38inch. Weight: 25.5kg (55.12 lbs). Maximum power output: 490W. Open-circuit voltage: 52-14V. Short-circuit current: 11.684A. Efficiency: 20.9396%. Operating temperature range: -40°C to +85°C. Maximum system voltage: 1000V DC (IEC). Maximum series fuse rating: 20A. Power tolerance: ±3%. Temperature coefficients of Pmax, Voc, and Isc are provided.
