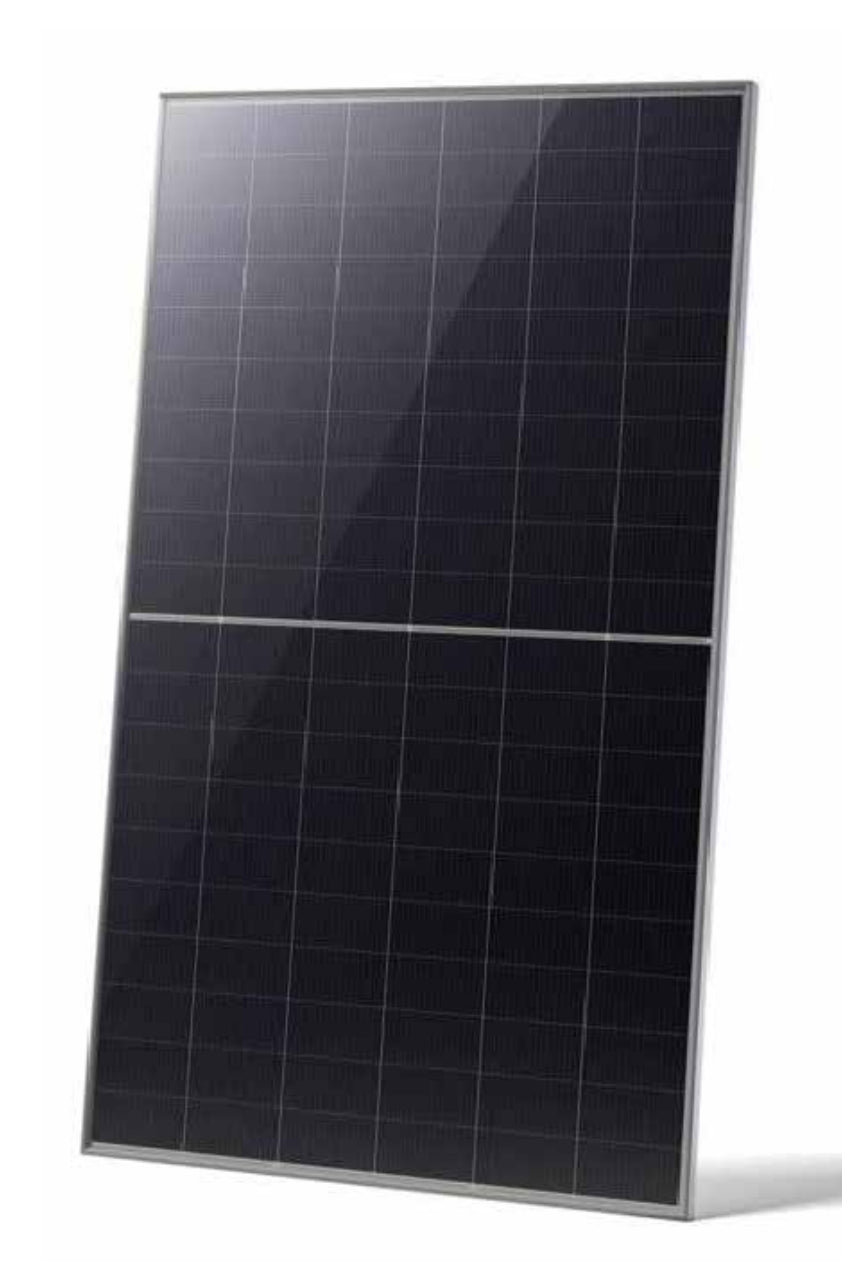

Jinko 495W Solar Panel Overview
The Jinko 495W Solar Panel (JKM495N-60HL4) combines cutting-edge N-type technology with a maximum power output of 495W and an exceptional efficiency of 22.26%. With advanced Tunnel Oxide Passivating Contacts (TOPCon) and HOT 3.0 technology, this mono-facial module minimizes light-induced degradation (LID) and performs excellently under low-light conditions. Built to last, the panel is engineered for durability in extreme environments, offering unparalleled reliability for residential, commercial, and utility-scale applications.
Jinko 495 Watt Solar Panel Key Features
- N-Type Technology: Enhanced performance with lower LID/LeTID degradation and optimized low-light performance.
- HOT 3.0 Technology: Improved reliability and efficiency for long-term performance.
- Durability Against Harsh Environments: High resistance to salt mist and ammonia ensures reliability in coastal and industrial regions.
- Mechanical Load Enhancement: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa.
- SMBB Technology: Multiple busbar design increases light trapping and improves current collection, boosting efficiency and reliability.
- Anti-PID Guarantee: Optimized cell production and material control to minimize power degradation caused by PID phenomena.
Jinko Solar 495W Specs
Mechanical Characteristics
- Cell Type: N-Type Monocrystalline
- Number of Cells: 120 (6×20)
- Dimensions: 1906 × 1134 × 30 mm
- Weight: 22.5 kg (49.60 lbs)
- Front Glass: 3.2 mm Anti-Reflection Coated, High-Transmission Tempered Glass
- Frame: Anodized Aluminum Alloy
- Junction Box: IP68 Rated
- Output Cables: 4.0 mm², length (+400 mm, customizable)
Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 495W |
| Module Efficiency (STC) | 22.26% |
| Maximum Power Voltage (Vmp) | 46.34V |
| Maximum Power Current (Imp) | 13.35A |
| Open-Circuit Voltage (Voc) | 44.91V |
| Short-Circuit Current (Isc) | 14.17A |
| Operating Temperature | -40°C to +70°C |
| Power Tolerance | 0 ~ +3% |
| Maximum System Voltage | 1000/1500 VDC (IEC) |
| Temperature Coefficients (Pmax) | -0.29%/°C |
Packaging
- Pallet Dimensions: 1936 × 1140 × 1249 mm
- Configuration: 37 panels per pallet, 74 panels per stack, 888 panels per 40HQ container.
Certifications
- IEC61215:2021 / IEC61730:2023
- ISO9001:2015 (Quality Management)
- ISO14001:2015 (Environmental Management)
- ISO45001:2018 (Occupational Health and Safety Management)
- Certified by CE, TÜV, and PV Cycle
- Member of the Clean Energy Council
Warranty
- Product Warranty: 12 years
- Linear Performance Warranty: 30 years with an annual power degradation of just 0.40%, guaranteeing 87.4% output at the end of the warranty period.
Applications
- Residential Rooftops: High efficiency ensures optimal energy generation in limited spaces.
- Commercial and Industrial Installations: Suitable for large-scale deployments with robust weatherproofing.
- Utility-Scale Projects: Advanced reliability and low degradation rates support long-term operations.
This premium panel combines state-of-the-art N-type technology with superior environmental resistance and industry-leading warranties, making the Jinko 495W Solar Panel (JKM495N-60HL4) an excellent choice for diverse solar power needs.

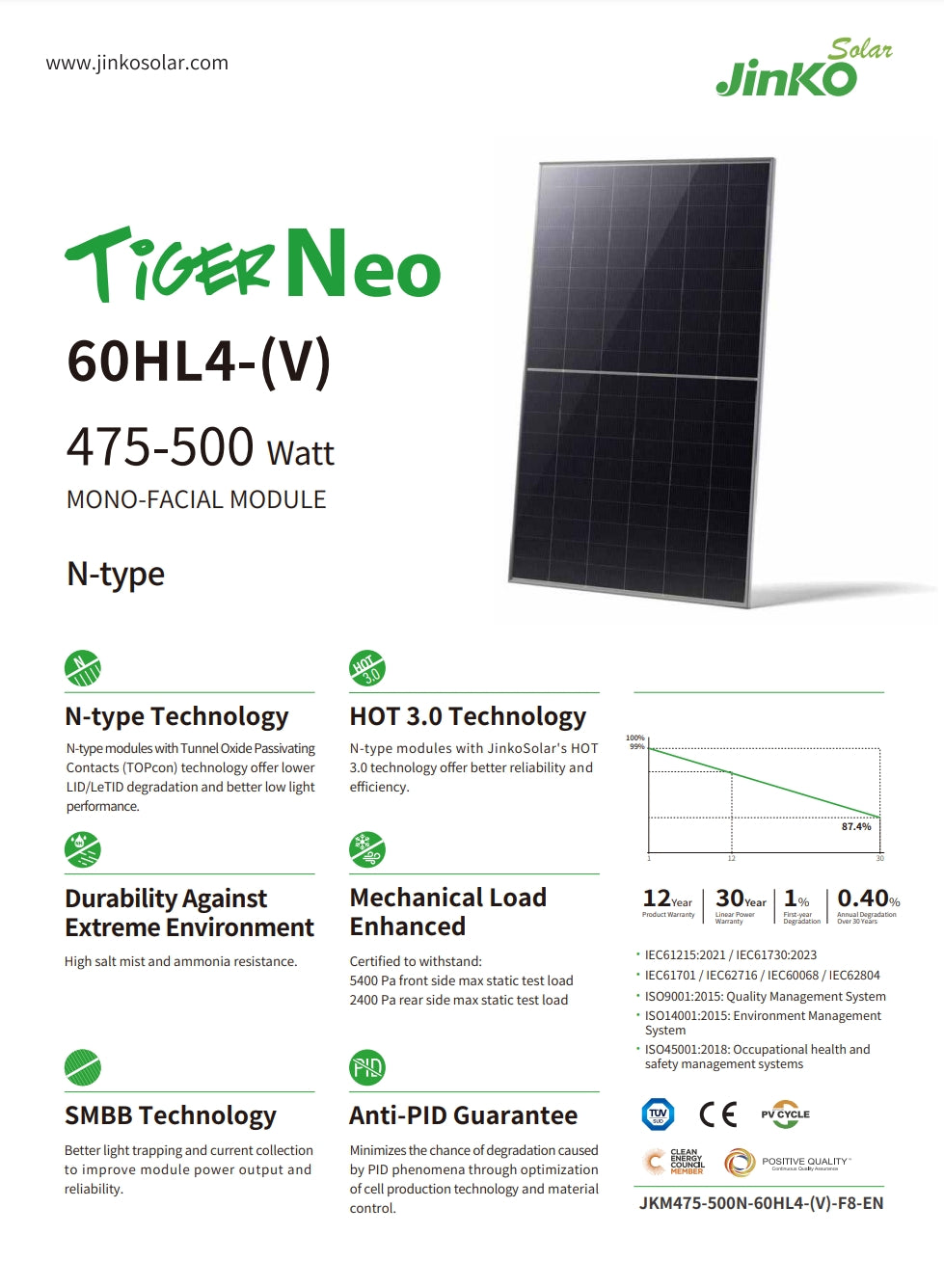

Jinko 495W Datasheet
JinkoSolar Tiger Neo 60HL4-(V) module features a 475-500 watt monofacial design with N-type technology. The HOT 3.0 Technology and Tunnel Oxide Passivating layers provide improved reliability, reduced light-induced degradation, and enhanced low-light performance. The module boasts a durability rating of 12 years for mechanical load and 30 years for power output. It also features enhanced resistance to extreme environments, including high salt mist and ammonia exposure. The product is certified to withstand various tests, including IEC standards. JinkoSolar SMBB Technology and Anti-PID Guarantee ensure optimized module performance and minimized degradation.

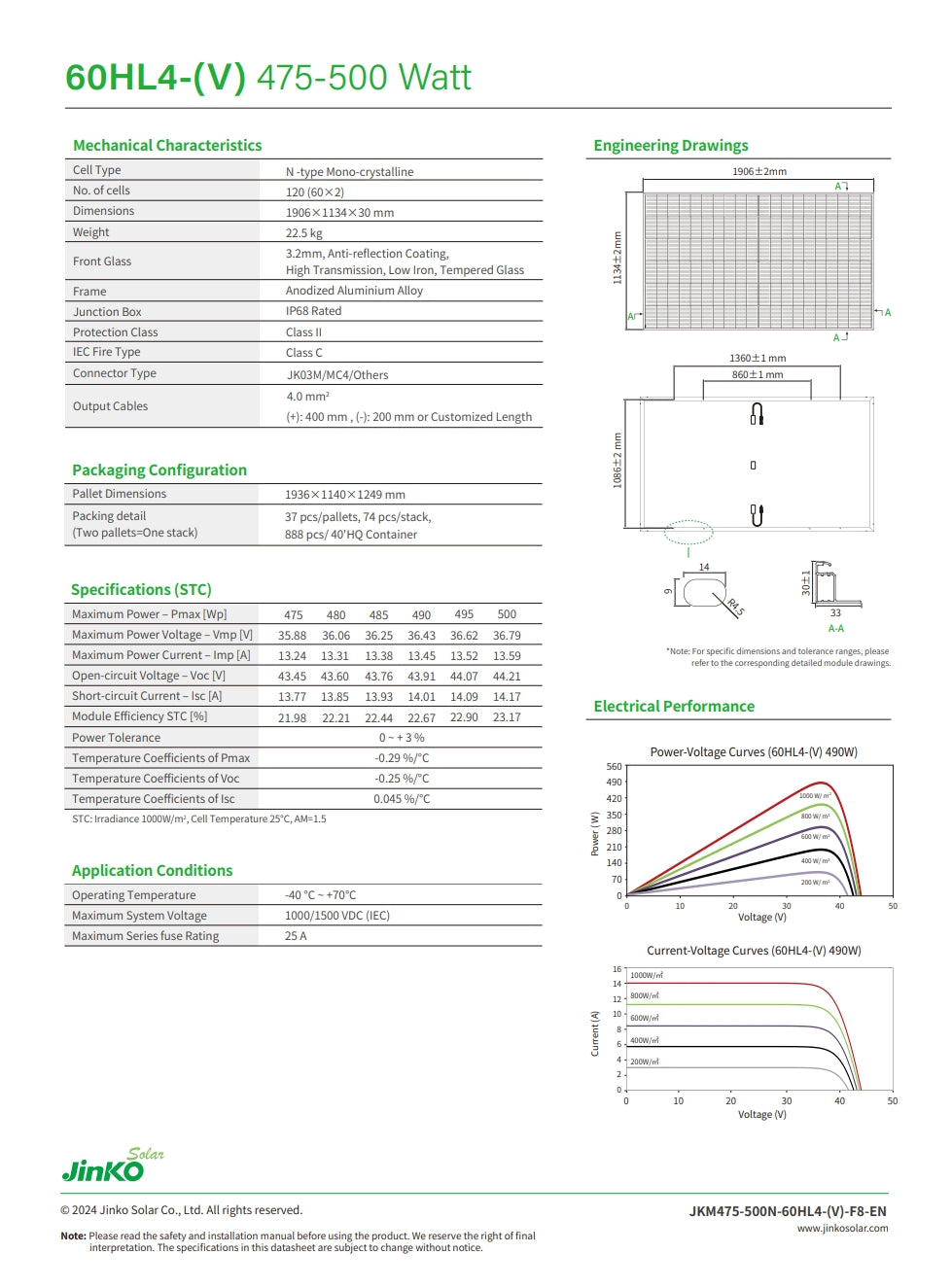

Jinko 495W Solar Panel (JKM495N-60HL4) Product Specifications: Mechanical Characteristics: Engineering Drawings Cell Type: N-type Mono-crystalline Number of Cells: 120 Dimensions: 1906mm x 1134mm x 30mm Weight: 22.5kg Anti-reflection Coating: Front Glass with High Transmission, Low Iron, Tempered Glass Frame Anodized Aluminium Alloy Junction Box: P68 Rated Protection Class IEC Fire Type Class II Electrical Performance: Maximum Power (Pmax): 475-500W Maximum Power Voltage (Vmp): 35.88-36.62V Maximum Power Current (Imp): 13.24-13.59A Open-circuit Voltage (Voc): 43.45-44.21V Short-circuit Current (Isc): 13.77-14.17A Module Efficiency: 21.98-23.17% Power Tolerance: ±3% Temperature Coefficients: Pmax: -0.29%/°C Voc: -0.25%/°C Isc: +0.045%/°C Low Voltage Start-up (STC): Irradiance 1000W/m², Cell Temperature 25°C, AM 1.5 Application Conditions: Operating Temperature: 40-70°C Maximum System Voltage: 1000/1500VDC (IEC) Voltage: Maximum Series Fuse Rating: 25A
