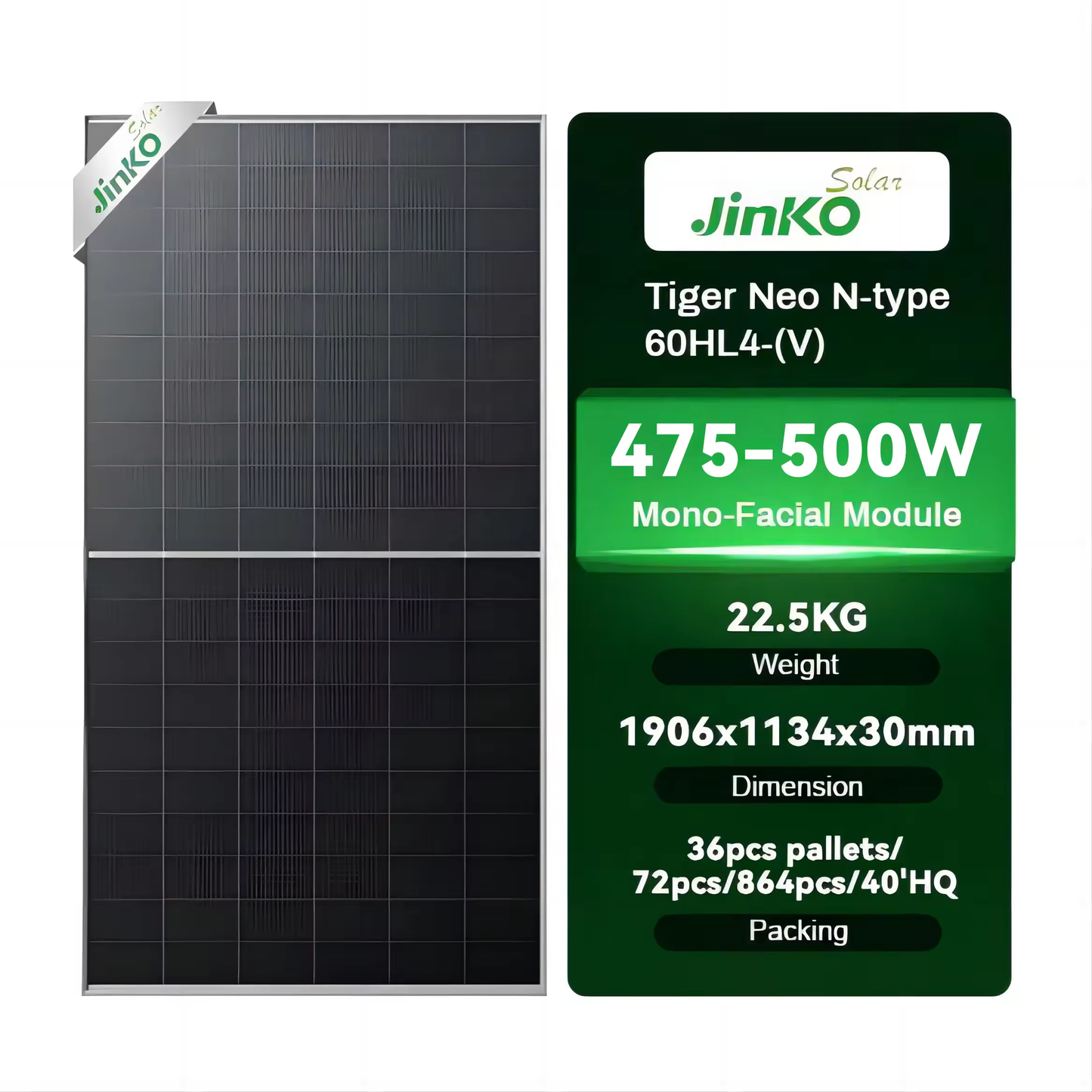

Jinko 500W Solar Panel (475-500W Mono-Facial Module)
The Jinko 500W Solar Panel from the Tiger Neo 60HL4-V series combines advanced N-type monocrystalline technology with high efficiency and durability. Offering power outputs between 475W and 500W, this panel achieves up to 23.17% module efficiency, making it ideal for both residential and commercial solar installations. Featuring 120 cells in a compact form factor of 1906 x 1134 x 30 mm and a weight of 22.5 kg, the Jinko 500W Solar Panel ensures easy handling and installation. With IP68-rated junction boxes and an impressive mechanical load capacity of 5400 Pa on the front and 2400 Pa on the rear, it is built to withstand harsh environmental conditions. Furthermore, the integration of HOT 3.0 technology enhances low-light performance and reliability over the long term.
Jinko 500 Watt Solar Panel Key Features:
- High Power Output: Produces between 475W to 500W, with a maximum efficiency of 23.17%.
- Compact and Lightweight: Dimensions of 1906 x 1134 x 30 mm and weight of 22.5 kg.
- N-type Technology: Tunnel Oxide Passivating Contacts (TOPCon) minimize degradation and improve low-light performance.
- Durability: Certified to withstand high salt mist and ammonia resistance, ensuring longevity in extreme environments.
- Mechanical Load Enhanced: Rated for 5400 Pa on the front and 2400 Pa on the rear, ensuring resistance to wind and snow loads.

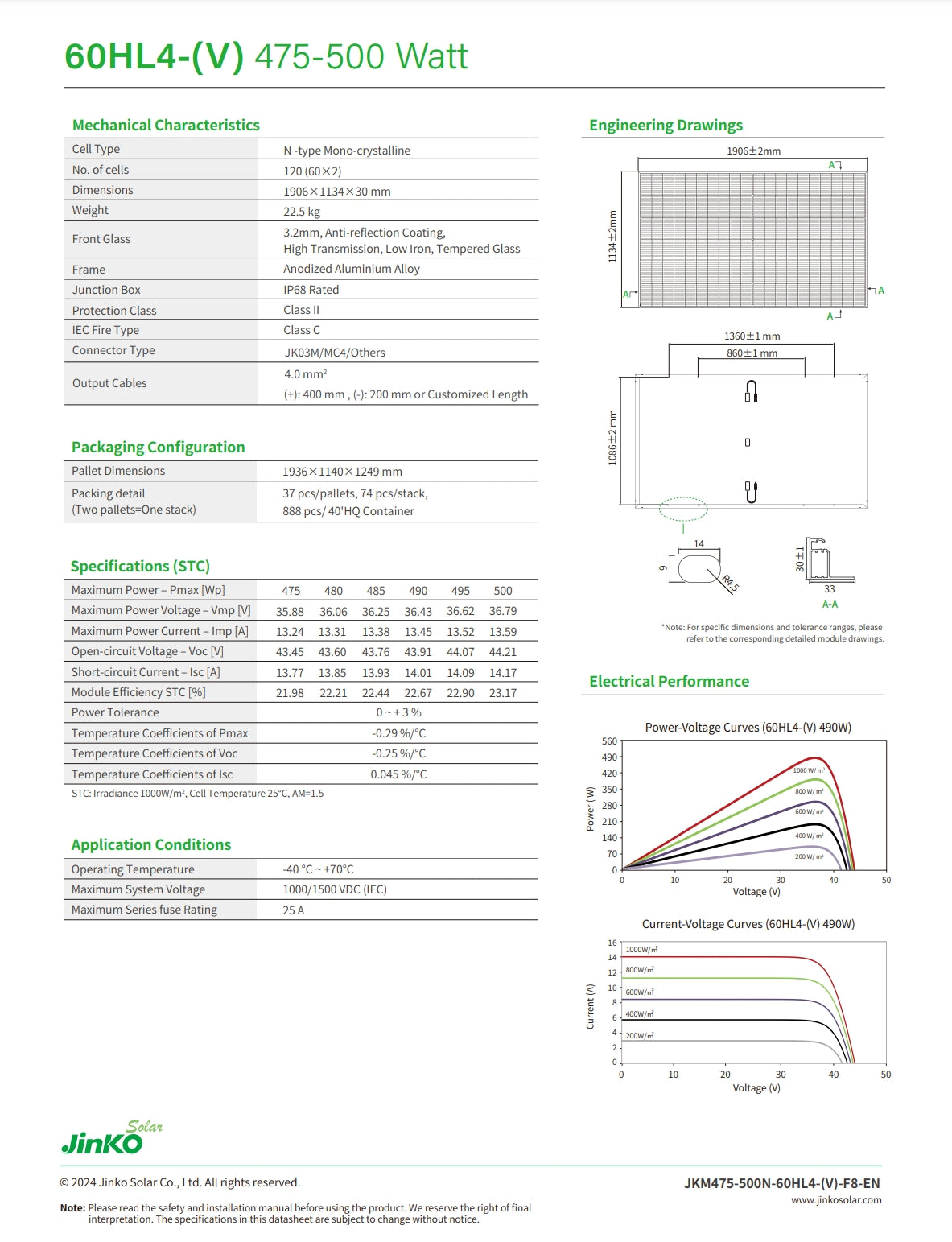

Jinko 500W Datasheet
Specifications Table:
| Category | Details |
|---|---|
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 120 (60 x 2) |
| Dimensions | 1906 x 1134 x 30 mm |
| Weight | 22.5 kg |
| Front Glass | 3.2 mm, Anti-reflection Coating, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | MC4 / Others |
| Output Cables | 4.0 mm² (±400 mm, customizable length) |
Performance Metrics (STC):
| Parameter | 475W | 480W | 485W | 490W | 495W | 500W |
|---|---|---|---|---|---|---|
| Maximum Power Current (Imp) | 13.24 A | 13.31 A | 13.38 A | 13.45 A | 13.52 A | 13.59 A |
| Open-circuit Voltage (Voc) | 43.45 V | 43.60 V | 43.76 V | 43.91 V | 44.07 V | 44.21 V |
| Short-circuit Current (Isc) | 13.77 A | 13.85 A | 13.93 A | 14.01 A | 14.09 A | 14.17 A |
| Module Efficiency | 21.98 % | 22.21 % | 22.44 % | 22.67 % | 22.90 % | 23.17 % |
| Power Tolerance | 0 ~ +3% |
Temperature Coefficients:
- Pmax: -0.29% / °C
- Voc: -0.25% / °C
- Isc: 0.045% / °C
Application Conditions:
| Parameter | Details |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1000 / 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 25 A |
Mechanical Load:
- Front Load: 5400 Pa
- Rear Load: 2400 Pa
Packaging Configuration:
| Parameter | Details |
|---|---|
| Pallet Dimensions | 1936 x 1140 x 1249 mm |
| Pallet Packing | 37 pcs/pallets, 74 pcs/stack |
| Container Capacity | 888 pcs/40'HQ Container |
Certifications & Warranty:
- 12-Year Product Warranty
- 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation Over 30 Years: 0.40%
- Certifications: IEC61215:2021, IEC61730:2023, IEC61701, IEC62716, IEC60068, IEC62804, ISO9001:2015 (Quality Management System), ISO14001:2015 (Environmental Management System), ISO45001:2018 (Occupational Health and Safety Management Systems)
The Jinko 500W Solar Panel is an ideal choice for maximizing energy production in a variety of environments. Whether used in residential rooftops or commercial installations, the Jinko 500W Solar Panel provides a balance of high efficiency, reliability, and durability. With certifications from multiple international standards such as IEC and ISO, this module offers long-term security for solar energy investments.

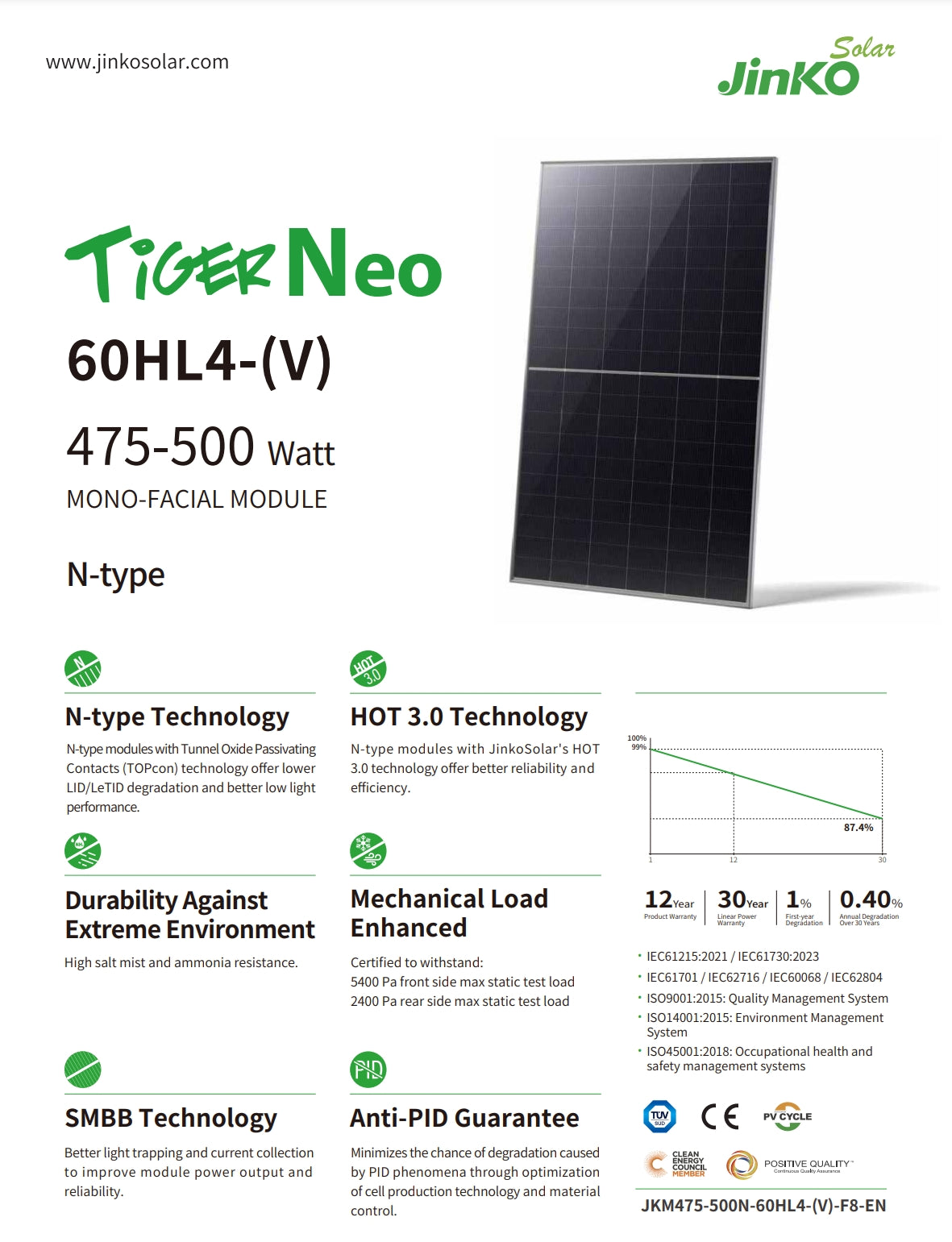

JinkoSolar TioerNeo 60HL4-(V) 475-500W Mono-Facial Module features N-type technology with HOT 3.0 technology, offering better reliability and performance. The module has a high efficiency of 87.4% and durability against mechanical load for up to 30 years. It is certified to withstand extreme environments, including high salt mist and ammonia resistance. The module also features enhanced anti-PID guarantee, minimizing degradation caused by PID phenomena. With optimized cell production technology and material control, this module ensures better light trapping and current collection. JinkoSolar TioerNeo 60HL4-(V) 475-500W Mono-Facial Module is a reliable choice for solar power systems.
Jinko 500W Solar Panel (475-500 Watt) Mechanical Characteristics: Cell Type: N-type Mono-crystalline Dimensions: 1906x1134x30 mm Weight: 22.5kg Front Glass: 3mm, Anti-reflection High Transmission, Low Iron Tempered Glass Frame: Anodized Aluminium Alloy Electrical Performance: Maximum Power (Pmax): 475-500 Wp Maximum Power Voltage (Vmp): 35.88-36.79 V Maximum Power Current (Imp): 13.24-13.59 A Open Circuit Voltage (Voc): 43.45-44.21 V Short-circuit Current (Isc): 13.77-14.17 A
