Jinko 505W Solar Panel Overview
The Jinko TR Bifacial 72M 505W-525W Solar Panel (Model: JKM505M-7TL4-TV) is a high-performance solar panel equipped with advanced Tiling Ribbon (TR) technology and half-cell design. It offers a maximum power output of 505W with a positive power tolerance of 0~+3%. Built with P-type monocrystalline cells and supported by MBB (multi-busbar) technology, this panel ensures superior efficiency and reliability. It is certified under IEC61215 and IEC61730 standards, making it suitable for a wide range of applications, including residential, commercial, and utility-scale projects.
Jinko 505 Watt Solar Panel Key Features
- TR Technology with Half Cell: Reduces cell gaps to enhance module efficiency, achieving up to 21.21% bi-facial performance.
- MBB Technology: Incorporates more busbars to reduce resistance and improve power output.
- Higher Lifetime Power Yield: Features a low degradation rate of 2% in the first year and 0.45% annually, ensuring reliable performance for 30 years.
- Robust Warranty: Comes with a 12-year product warranty and a 30-year linear power output warranty.
- Strengthened Mechanical Support: Designed to withstand up to 5400 Pa snow load and 2400 Pa wind load.
- Bifacial Output Gain: Achieves up to 25% additional power gain from the rear side under optimal conditions.
Jinko Solar 505W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM505M-7TL4-TV |
| Maximum Power (Pmax, STC) | 505W |
| Module Efficiency (STC) | 20.40% |
| Open-Circuit Voltage (Voc) | 49.04V |
| Short-Circuit Current (Isc) | 12.89A |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Cell Type | P-type Monocrystalline |
| Number of Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2206 x 1122 x 35 mm |
| Weight | 28.2 kg (62.17 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP67 Rated |
| Output Cables | 290 mm (Customizable) |
Package
-

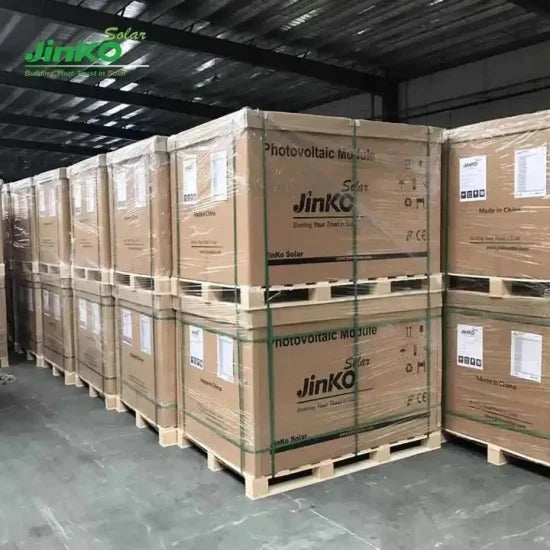

Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 30 years with a maximum annual degradation rate of 0.45%.
Certifications
- ISO9001:2015
- ISO14001:2015
- ISO45001:2018
- IEC61215, IEC61730 Certified
- PV Cycle and CE Certified
- Clean Energy Council Member
Applications
The Jinko TR Bifacial 72M 505W Solar Panel is ideal for diverse installations, including:
- Residential Projects: Enhances energy independence for households.
- Commercial Use: Supports energy-efficient industrial facilities.
- Utility-Scale Projects: Maximizes energy generation in solar farms.
- Bifacial Installations: Suitable for ground-mount systems with reflective surfaces to capitalize on rear-side power gain.
This high-efficiency panel delivers superior performance, durability, and a robust warranty, making it an excellent choice for modern solar energy systems.
Note: Please do not place an order directly. Before placing an order, send an email to service@tsolar.top for consultation. We will give you an accurate quotation and delivery time.

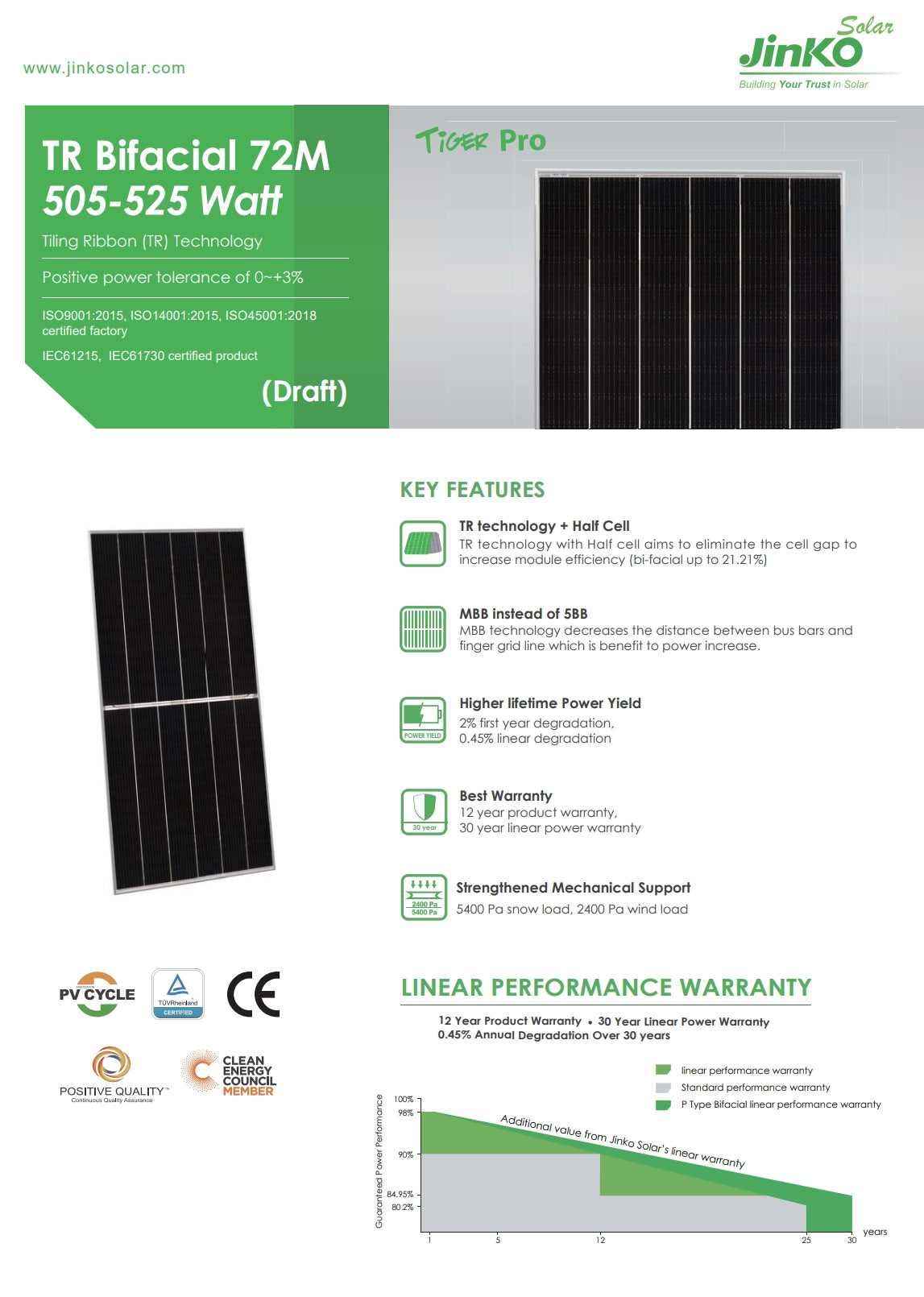

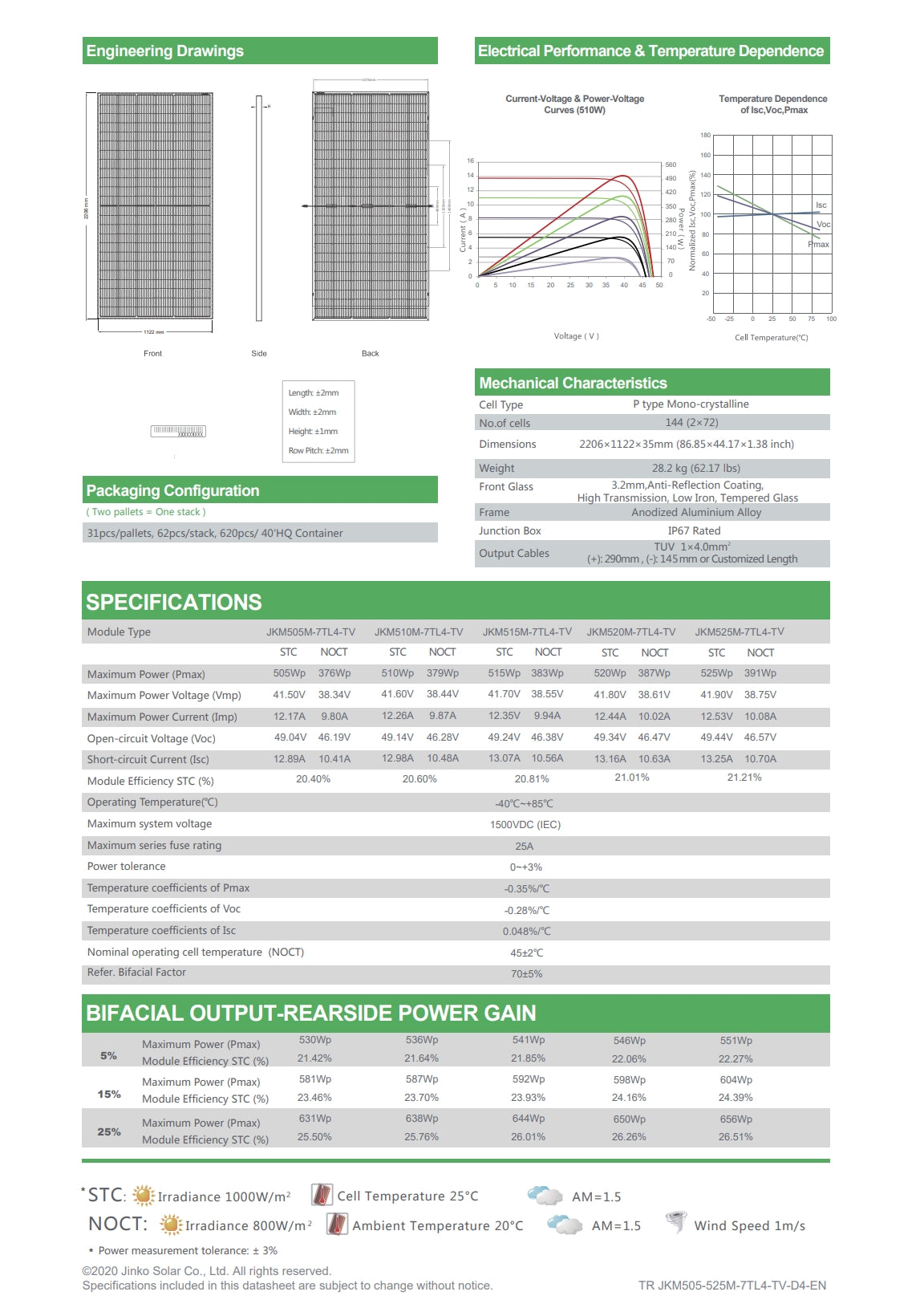

Jinko 505W Datasheet

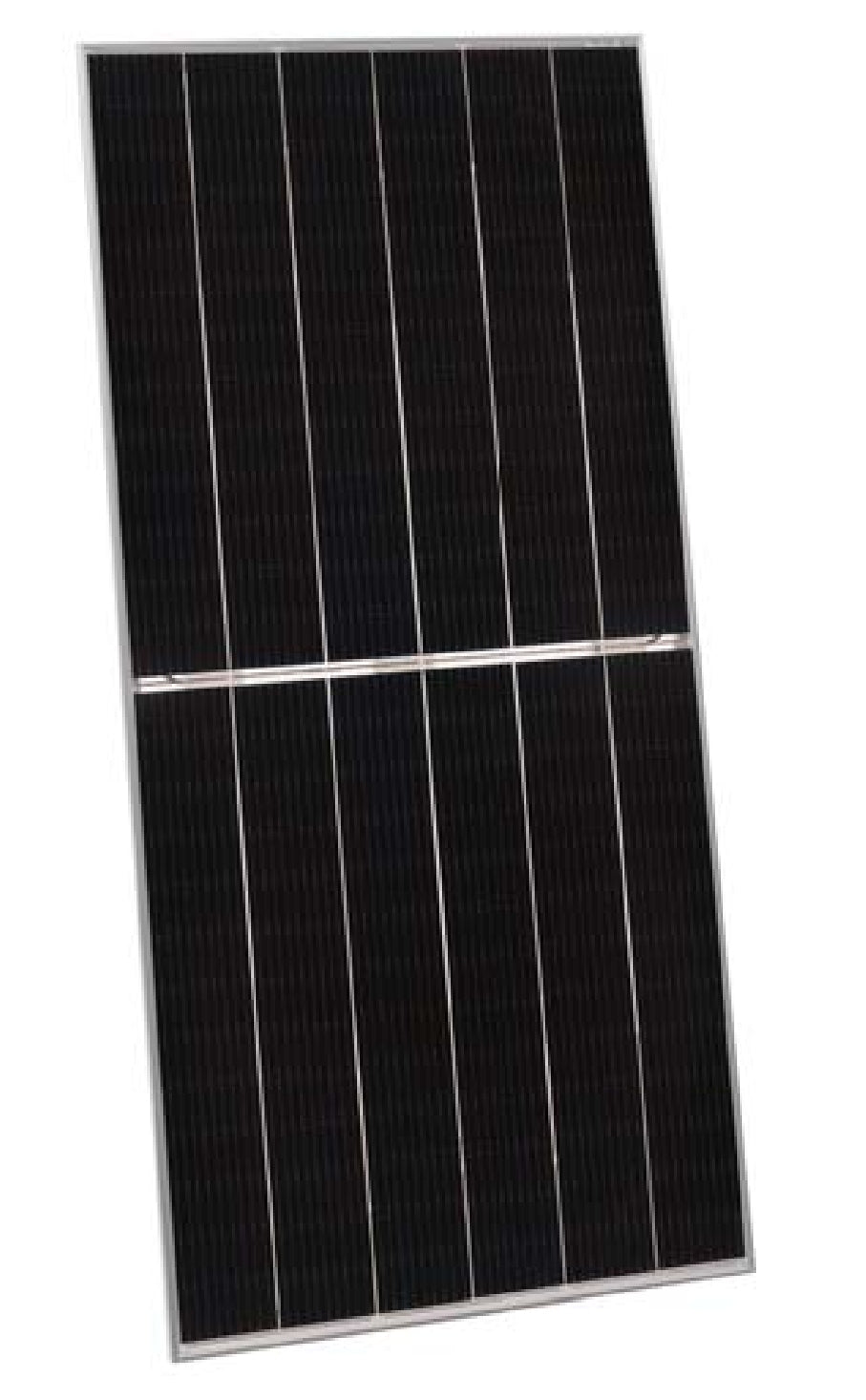

Jinko high-efficiency 505W solar panel JKM505M-7TL4-TV offers superior power conversion and durability for residential and commercial applications.
The Jinko 505W Solar Panel (JKM505M-7TL4-TV) features advanced technology. The TR technology with Half Cell eliminates cell gaps, increasing module efficiency up to 21.219% when used bi-facially. MBB technology reduces bus bar and finger line distance for improved power output. The panel offers high lifetime power yield with 29% first-year degradation and linear degradation of 0.459%. A comprehensive warranty package includes a 12-year product warranty and 30-year linear power warranty with an annual degradation rate of 0.459%. Additional features include strengthened mechanical support, withstanding snow loads up to 5400 Pa and wind loads up to 2400 Pa.
The Jinko 505W Solar Panel (JKM505M-7TL4-TV) features a monocrystalline cell type with 144 cells. Its dimensions are 2206mm x 1122mm x 35mm, and it weighs 28.2kg. The panel has a front glass thickness of 3.2mm with anti-reflection coating and high transmission. The frame is made of anodized aluminum alloy. The junction box is IP67 rated and has a customized length output cable.

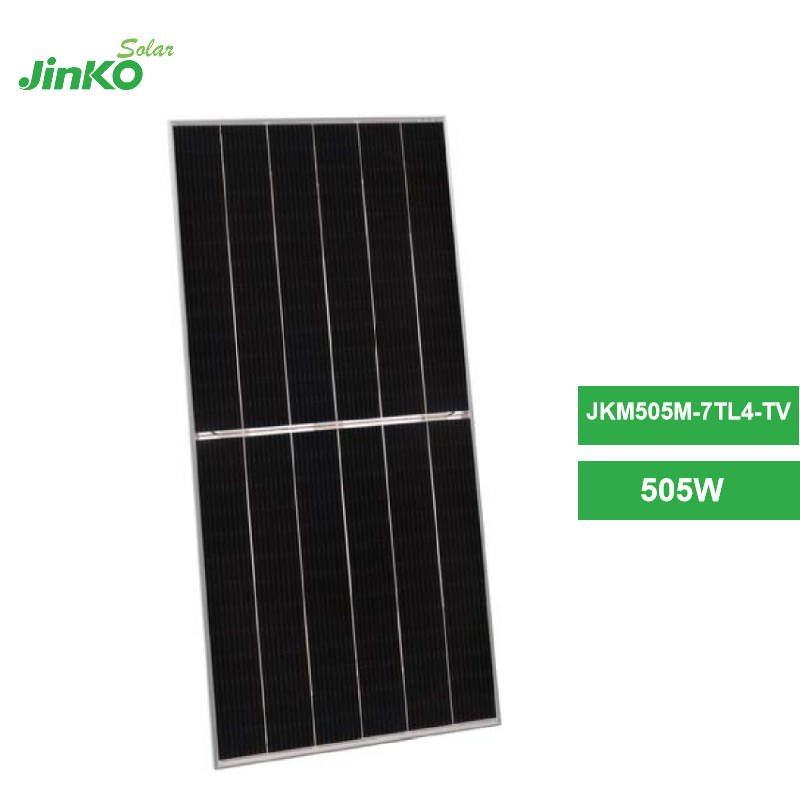

Jinko 505W Solar Panel (JKM505M-7TL4-TV): High-efficiency photovoltaic module with 505 watts output, ideal for residential and commercial applications.
