Jinko

Jinko 510W Solar Panel (JKM510M-7TL4-V)

Jinko 510W Solar Panel (JKM510M-7TL4-V)

Regular price $6,100.00 USD
Regular price Sale price $6,100.00 USD
Sale Sold out
Shipping calculated at checkout.

2 orders in last 30 days

Quantity
View full details

Jinko 510W Solar Panel Overview

The Jinko 510W Solar Panel (Model: JKM510M-7TL4-V) is a high-efficiency mono-facial solar panel designed for optimal energy generation. Utilizing advanced Tiling Ribbon (TR) technology and a half-cell configuration, this panel minimizes cell gaps, achieving up to 21.41% efficiency under STC. With a maximum power output of 510W and a robust build to withstand challenging environmental conditions, it is an ideal choice for residential, commercial, and utility-scale installations.


Jinko 510 Watt Solar Panel Key Features

  • TR Technology with Half Cell: Enhances module efficiency by eliminating cell gaps, reaching up to 21.41% efficiency under mono-facial performance.
  • MBB (Multi-Busbar) Technology: Reduces resistance and improves energy output compared to traditional 5-busbar designs.
  • Higher Lifetime Power Yield: Exhibits a low degradation rate of 2% in the first year and 0.55% annually over 25 years.
  • Enhanced Warranty: Backed by a 12-year product warranty and a 25-year linear power output warranty.
  • Robust Mechanical Support: Engineered to endure heavy snow loads (5400 Pa) and wind pressures (2400 Pa).

Jinko 510W Solar Panel Specifications

Electrical Characteristics

Parameter Value
Module Type JKM510M-7TL4-V
Maximum Power (Pmax, STC) 510W
Module Efficiency (STC) 20.60%
Open-Circuit Voltage (Voc) 48.94V
Short-Circuit Current (Isc) 13.05A
Temperature Coefficient (Pmax) -0.35%/°C
Operating Temperature -40°C to +85°C
Maximum System Voltage 1500V (IEC)
Nominal Operating Cell Temp. 45±2°C

Mechanical Characteristics

Parameter Value
Cell Type P-type Monocrystalline
Number of Cells 144 (72 x 2)
Dimensions (L x W x H) 2206 x 1122 x 35 mm
Weight 28.2 kg (62.17 lbs)
Front Glass 3.2 mm Tempered Glass
Frame Anodized Aluminum Alloy
Junction Box IP67 Rated
Output Cables 290 mm (Customizable)

Jinko Solar 510W Package

  • Packaging Configuration:
    • 31 panels per pallet
    • 62 panels per stack
    • 620 panels per 40’ HQ container

Warranty

  • Product Warranty: 12 years
  • Linear Power Output Warranty: 25 years with a maximum annual degradation rate of 0.55%.

Certifications

  • ISO9001:2015
  • ISO14001:2015
  • ISO45001:2018
  • IEC61215, IEC61730 Certified
  • PV Cycle and CE Certified
  • Clean Energy Council Member

Applications

The Jinko 510W Solar Panel is suitable for a variety of installations:

  • Residential Projects: Delivers reliable energy for homes and small properties.
  • Commercial Installations: Supports large-scale industrial energy requirements.
  • Utility-Scale Systems: Maximizes energy yield for solar farms.
  • Harsh Environments: Designed to perform in challenging conditions with high durability.

The Jinko 510W Solar Panel is a powerful and efficient solar solution, backed by robust features, certifications, and warranties, making it a versatile choice for diverse energy applications.

Jinko 510W DataSheet

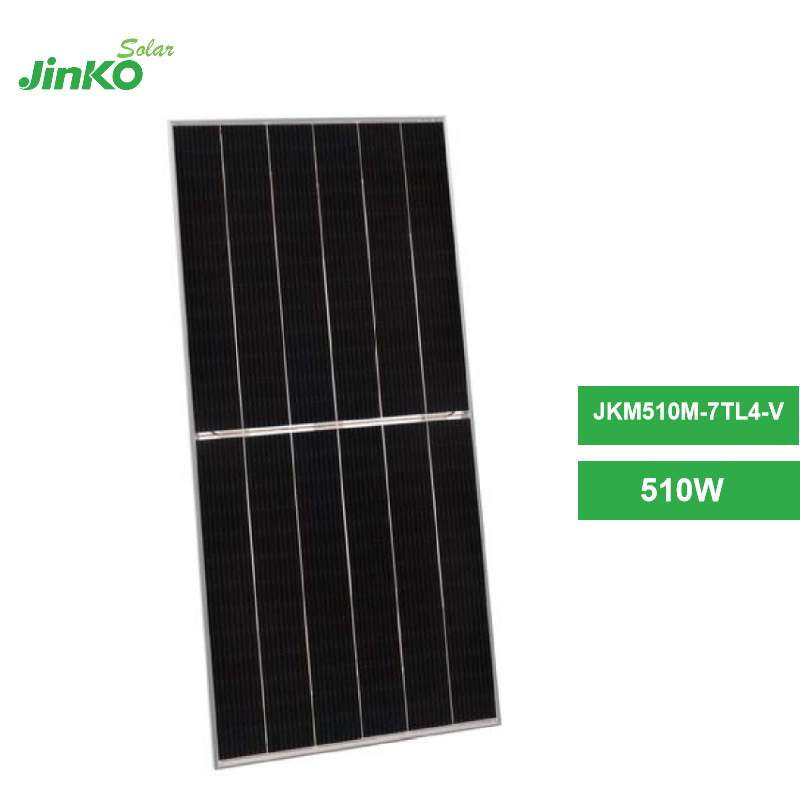

Jinko 510W Solar Panel, Jinko solar panel features high-efficiency monocrystalline silicon and excellent temperature coefficient.

Jinko 510W Solar Panel (JKM510M-7TL4-V) features a high-efficiency monocrystalline silicon photovoltaic module with excellent temperature coefficient.

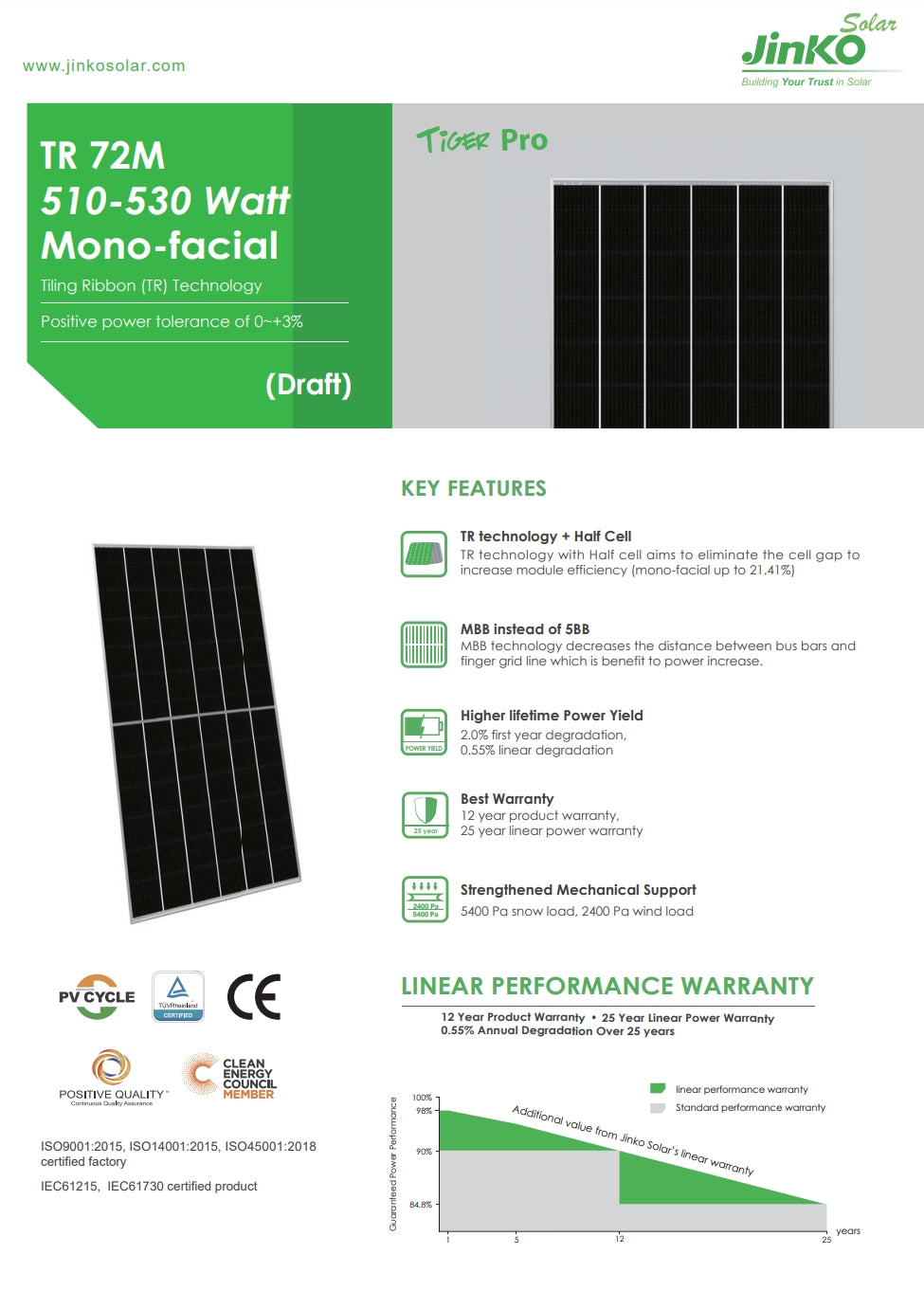

Jinko 510W Solar Panel, Jinko Solar introduces T6rr Pro TR72M-510 module with improved efficiency, lifetime power yield, and strengthened mechanical support.

Jinko Building Your Trust I) Jinko Buvlding Your Trust I, JinKo Solar, introduces the JinKo Solar T6rr Pro TR72M-510-530 Watt Mono-facial Tiling Ribbon (TR) Technology with a positive power tolerance of 0/+3%. The key features include: * Half Cell TR technology to eliminate cell gaps and increase module efficiency * Mono-facial design with up to 21.4% efficiency * Higher lifetime Power Yield: 2.0% first-year degradation, 0.55%/year linear degradation * Best Warranty: 12-year product warranty, 25-year linear power warranty * Strengthened Mechanical Support: Fe p S4COPI 5400 Pa snow load; 2400 Pa wind load

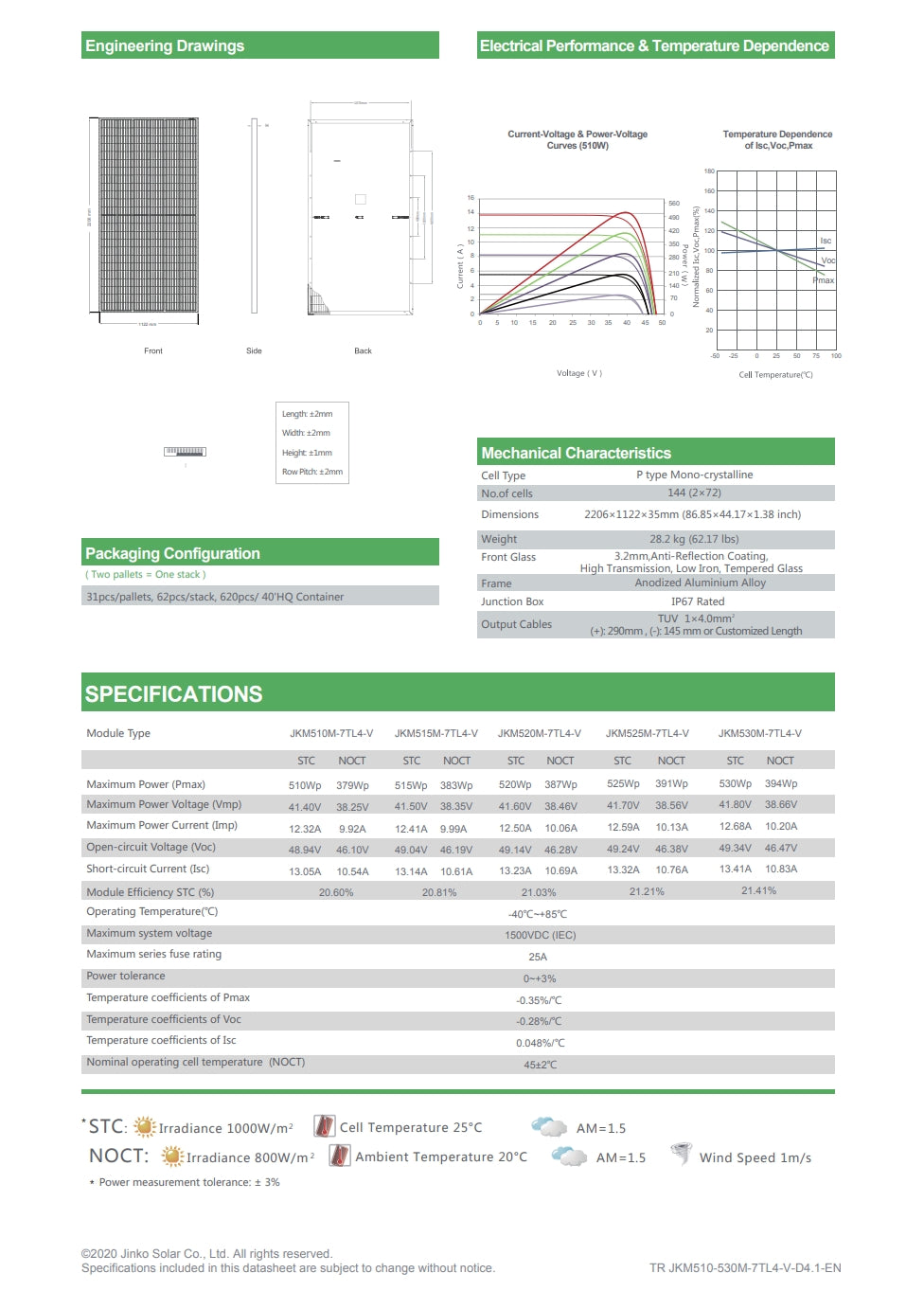

The Jinko 510W Solar Panel features crystalline cells, dimensions, weight, power output, voltage, current, temperature range, system voltage, efficiency, and packaging configuration.

The Jinko 510W Solar Panel (JKM510M-7TL4-V) features a crystalline cell type with 144 cells, dimensions of 2206mm x 1122mm x 35mm, and a weight of 28.2kg. The module has a maximum power output of 510Wp, an open-circuit voltage of 48.94V, and a short-circuit current of 13.054A. The operating temperature range is -40°C to +85°C, and the maximum system voltage is IEC 600VDC. The module efficiency at STC is 20.81%. The packaging configuration includes a tempered glass front with an anti-reflection coating and an anodized aluminum alloy frame.
