Jinko 515W Solar Panel Overview
The Jinko 515W Solar Panel (Model: JKM515M-7TL4-V) is a high-efficiency mono-facial solar panel designed for optimal performance in a variety of solar energy applications. Built with advanced Tiling Ribbon (TR) technology and half-cell design, this panel achieves a maximum module efficiency of up to 21.16% and delivers reliable power output with minimal degradation over time. With a robust frame and superior mechanical strength, it is suitable for residential, commercial, and utility-scale installations.
Jinko 515 Watt Solar Panel Key Features
- TR Technology + Half Cell: Eliminates cell gaps, boosting efficiency and enabling up to 21.16% module efficiency under mono-facial operation.
- MBB Technology: Utilizes multi-busbar design to reduce resistance and improve power output compared to traditional 5-busbar configurations.
- Enhanced Power Yield: Features a low first-year degradation rate of 2.0% and an annual degradation rate of 0.55% over 25 years, ensuring long-term energy reliability.
- Comprehensive Warranty: Includes a 12-year product warranty and a 25-year linear power output warranty.
- Robust Mechanical Design: Withstands snow loads of up to 5400 Pa and wind loads of 2400 Pa, ensuring durability in various weather conditions.
Jinko Solar 515W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM515M-7TL4-V |
| Maximum Power (Pmax, STC) | 515W |
| Module Efficiency (STC) | 20.37% |
| Open-Circuit Voltage (Voc) | 49.06V |
| Short-Circuit Current (Isc) | 13.14A |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Cell Type | P-type Monocrystalline |
| Number of Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2230 x 1134 x 35 mm |
| Weight | 28.79 kg (62.47 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | 290 mm (Customizable) |
Package
-
Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 25 years with a maximum annual degradation rate of 0.55%.
Certifications
- ISO9001:2015
- ISO14001:2015
- ISO45001:2018
- IEC61215, IEC61730 Certified
- PV Cycle and CE Certified
- Clean Energy Council Member
Applications
The Jinko 515W Solar Panel is designed for a wide range of applications, including:
- Residential Systems: Ideal for rooftop installations to enhance energy independence.
- Commercial Projects: Supports large-scale energy needs for industrial and commercial facilities.
- Utility-Scale Installations: Delivers efficient power generation for solar farms.
- Challenging Environments: Built to endure harsh conditions, ensuring long-term reliability.
The Jinko 515W Solar Panel combines advanced technology, exceptional efficiency, and robust durability, making it a versatile and reliable choice for modern solar energy systems.

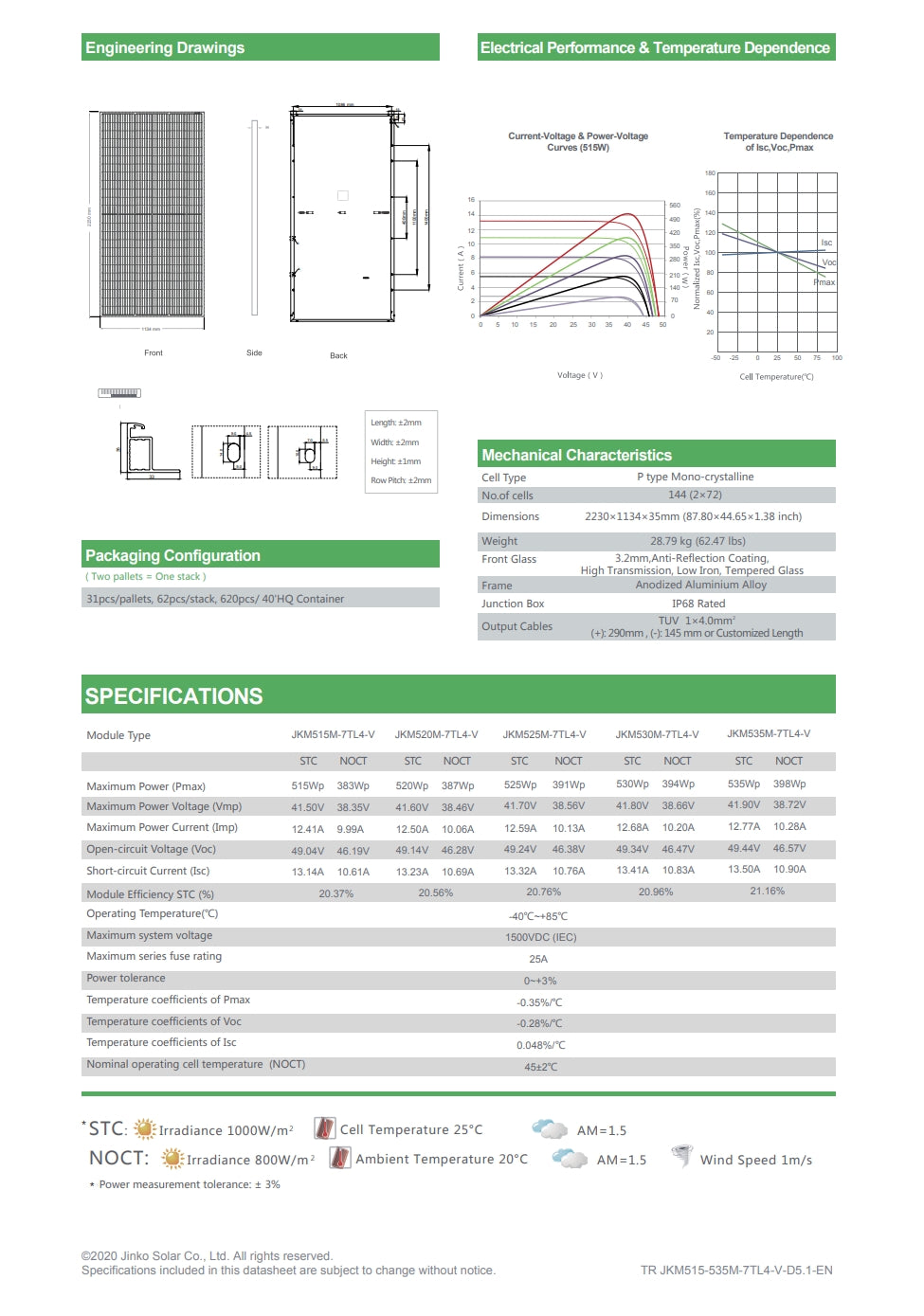

Jinko 515W Datasheet

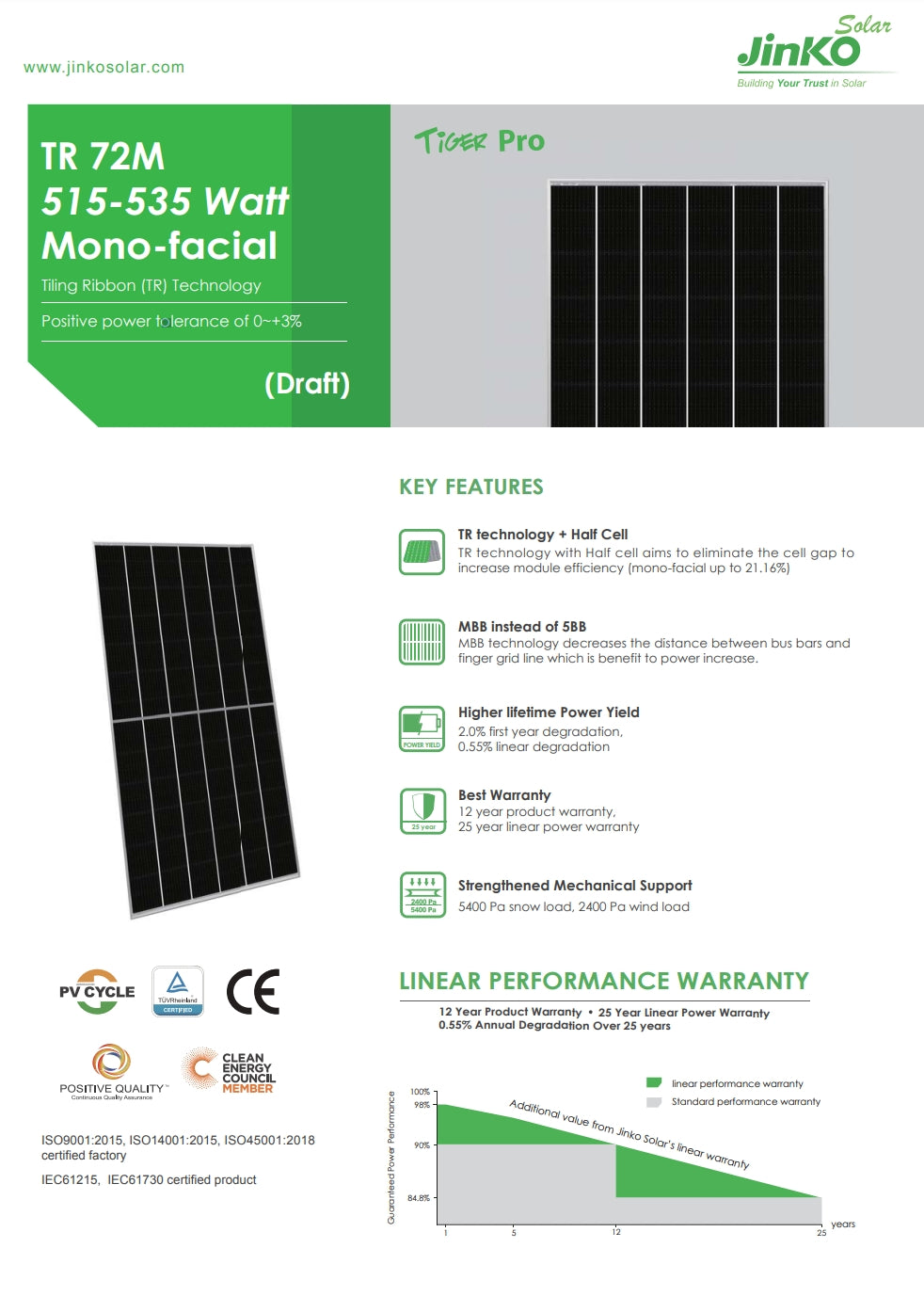

Jinko 515W Solar Panel (JKM515M-7TL4-V) Product Image: Building Your Trust, I Present You with Jinko Top-Tier Solution. Sclar Tiorr Pro TR 72M 515-535 Watt Mono-Facial Tiling Ribbon (TR) Technology. Key Features: TR technology: Half-cell TR technology eliminates cell gaps to increase module efficiency. Positive power tolerance of 0/+3%. KEY FEATURES: TR technology with Half-cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.1698). MBB instead of SBB MBB technology decreases distance between bus bars and finger grid line, benefiting power increase. Higher lifetime Power Yield: 2.0% first-year degradation; 0.55% linear degradation. Best Warranty: 12-year product warranty; 25-year linear power warranty. Strengthened Mechanical Support: Aue? 5400 Pa snow load; 2400 Pa wind load. PVCycle Linear Performance Warranty: Huttinlate Energetic Ernrici 12 Year Product Warranty; 25 Year Linear Power Warranty; 5.7% Annual Degradation Over 25 Years. Additional Value from Jinko Solar: Positive Quality Member ISO9001:2015, ISO14001:2015, ISO45001:2018 certified factory. IEC61215, IEC61730 certified product. 84.63 % Coils Additional value
