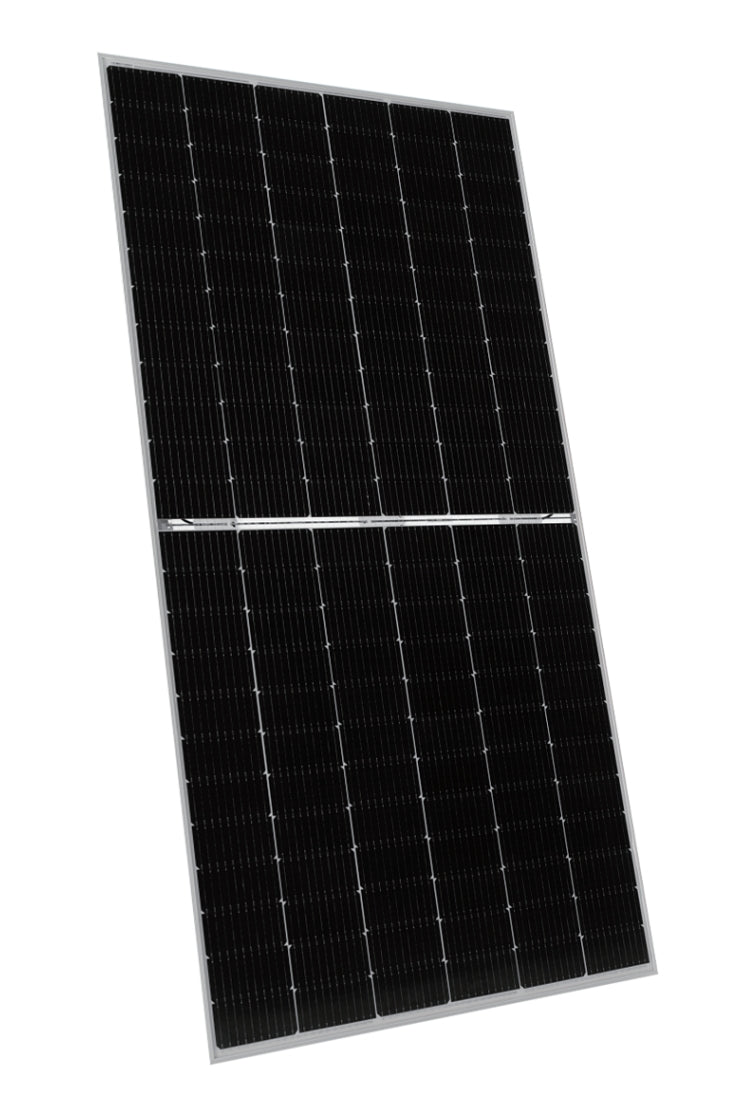

Jinko 520W Solar Panel Overview
The Jinko 520W Solar Panel (Model: JKM520M-72HL4-BDVP) is a premium bifacial HC monocrystalline module designed for maximum efficiency and durability. Featuring advanced MBB (Multi-Busbar) technology and excellent low-light performance, this panel is optimized for rooftop and utility-scale solar installations. With a power tolerance of 0~+3%, a robust design, and 30-year linear power warranty, the Jinko 520W Solar Panel ensures reliable energy production across diverse conditions.
Jinko 520 Watt Solar Panel Key Features
- Multi-Busbar (MBB) Technology: Increases efficiency by improving current collection and reducing resistance. Its aesthetic design also enhances visual appeal for rooftop installations.
- Higher Lifetime Power Yield: Low degradation of 0.45% annually ensures consistent performance over 30 years.
- Higher Power Output: Achieves up to 5-25% higher power gain under reflective conditions, delivering lower LCOE (Levelized Cost of Energy) and higher IRR (Internal Rate of Return).
- Superior Low-Light Performance: Performs efficiently under challenging conditions like dawn, dusk, or cloudy weather.
- Robust Design: Engineered for durability with advanced materials, capable of withstanding extreme environmental stress.
Jinko Solar 520W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM520M-72HL4-BDVP |
| Maximum Power (Pmax, STC) | 520W |
| Module Efficiency (STC) | 20.56% |
| Open-Circuit Voltage (Voc) | 49.80V |
| Short-Circuit Current (Isc) | 13.20A |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Cell Type | P-type Monocrystalline |
| Number of Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2230 x 1134 x 35 mm |
| Weight | 28.7 kg (63.3 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | 290 mm (Customizable) |
Package
-
Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 30 years, with maximum degradation of 0.45% per year.
Certifications
- ISO9001:2015
- ISO14001:2015
- ISO45001:2018
- IEC61215:2016, IEC61730:2016 Certified
- PV Cycle and CE Certified
- Clean Energy Council Member
Applications
The Jinko 520W Solar Panel is a versatile module suitable for various energy solutions, including:
- Residential Solar Systems: Optimized for rooftop installations with enhanced visual appeal and durability.
- Commercial Applications: Delivers high efficiency for large-scale energy demands in industrial settings.
- Utility-Scale Installations: Provides consistent energy yield for solar farms.
- Extreme Environments: Withstands harsh weather, including snow, wind, and low-light conditions.
The Jinko 520W Solar Panel is a reliable, high-performing solution that combines innovative technology with industry-leading durability, making it an ideal choice for diverse solar energy applications.
Jinko 520W Datasheet

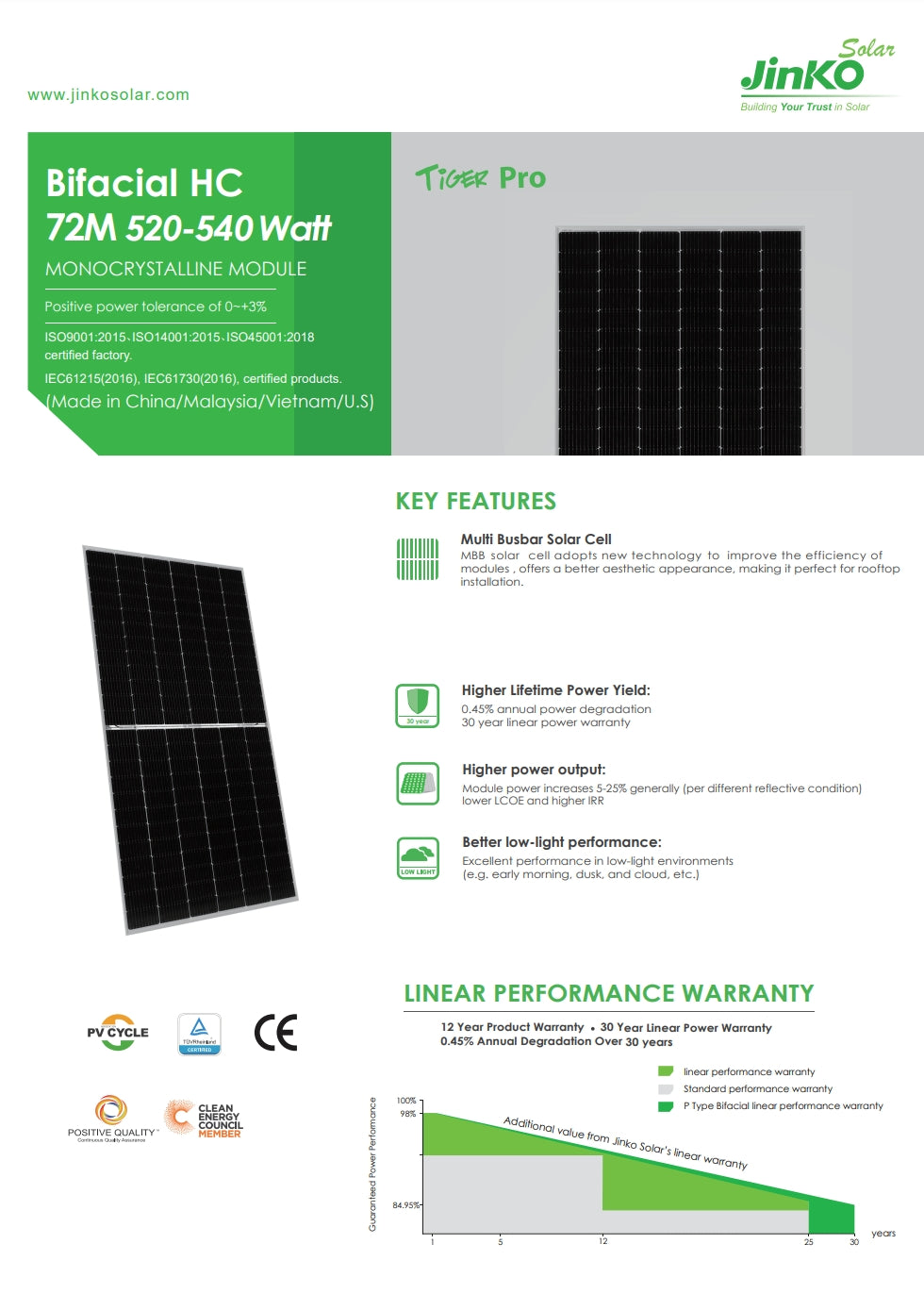

Jinko Solar Panel, Building Your Trust in Solar, Bifacial HC Tiger Pro, 72M, 520-540 Watt Monocrystalline Module. Positive power tolerance of 0+37. Certified factory ISO9001:2015, IEC61215/2016), and IEC61730(2016). (Made in China/Malaysia/Vietnam/US) KEY FEATURES: * Multi-Busbar Solar Cell technology for improved efficiency and aesthetic appearance * Higher lifetime power yield with 0.457 annual power degradation and 30-year linear power warranty * Increased module power output by up to 2.598% (dependent on reflective conditions) * Lower LCOE and higher IRR * Excellent low-light performance, including early morning, dusk, and cloudy conditions LINEAR PERFORMANCE WARRANTY: * 12-year product warranty * 30-year linear power warranty with 0.457 annual degradation over 30 years * Standard performance warrantly POSITIVE QUALITY FEATURES: * Positive power tolerance of 0+37 * Certified factory ISO9001:2015, IEC61215/2016), and IEC61730(2016) * Made in China/Malaysia/Vietnam/US

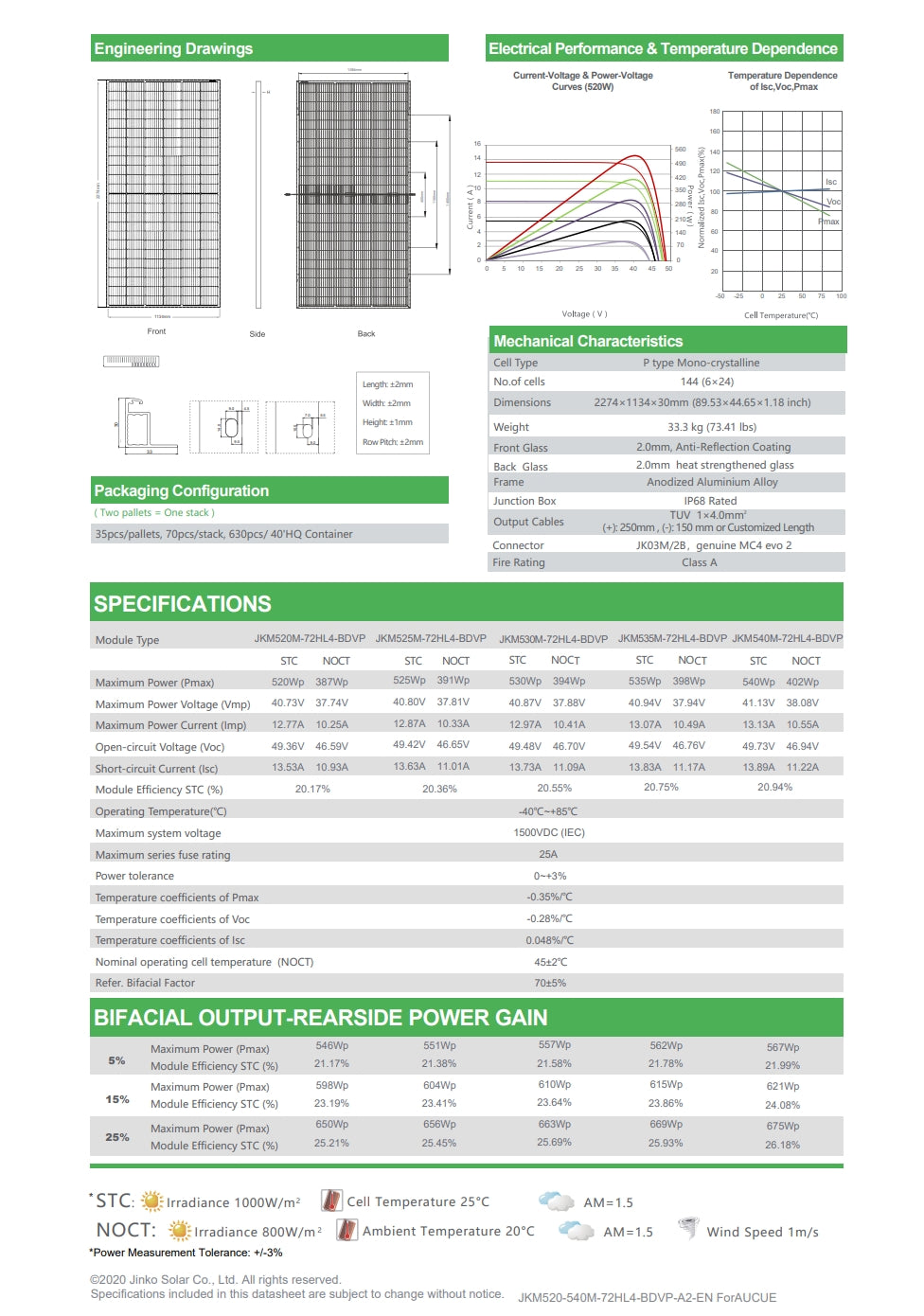

Jinko 520W Solar Panel (JKM520M-72HL4-BDVP) product image features engineering drawings, electrical performance, and temperature dependence curves. The specifications include maximum power (Pmax), voltage, current, and efficiency. The module type is JKMS2OM-T2HLA-BDVP, with a maximum power output of 520Wp at an STC of 20.1790%. The operating temperature range is -440°C to +85°C, with a maximum system voltage of 1000VDC (IEC). The module efficiency decreases as the temperature increases.
