Jinko 525W Solar Panel Overview
The Jinko 525W Solar Panel (Model: JKM525M-72HL4-TV) is a high-efficiency bifacial module with a transparent backsheet, designed to maximize energy generation in diverse conditions. Utilizing advanced Multi-Busbar (MBB) technology and a lightweight, robust design, this panel delivers superior performance with up to 21.13% module efficiency. With a power tolerance of 0~+3% and a 30-year linear power warranty, it is ideal for residential, commercial, and utility-scale solar installations.
Jinko 525 Watt Solar Panel Key Features
- Multi-Busbar Technology: Enhances current collection and improves light trapping for better module efficiency and power reliability.
- Lightweight Design: Transparent backsheet reduces weight, facilitating easier installation and lowering balance-of-system (BOS) costs.
- Higher Power Output: Provides a 5-25% increase in power under bifacial conditions, reducing LCOE (Levelized Cost of Energy) and increasing IRR (Internal Rate of Return).
- Longer Lifetime Power Yield: Features an annual degradation rate of 0.45%, ensuring reliable performance over 30 years.
- Enhanced Mechanical Load: Certified to withstand 5400 Pa snow loads and 2400 Pa wind loads, making it suitable for extreme environments.
Jinko Solar 525W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM525M-72HL4-TV |
| Maximum Power (Pmax, STC) | 525W |
| Module Efficiency (STC) | 20.36% |
| Open-Circuit Voltage (Voc) | 49.27V |
| Short-Circuit Current (Isc) | 13.34A |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Cell Type | P-type Monocrystalline |
| Number of Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2274 x 1134 x 35 mm |
| Weight | 28.9 kg (63.7 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | (+) 400 mm, (-) 200 mm (Customizable) |
Package
-
Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 30 years with a maximum annual degradation rate of 0.45%.
Certifications
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management System)
- IEC61215:2016, IEC61730:2016 Certified
- PV Cycle and CE Certified
- Clean Energy Council Member
Applications
The Jinko 525W Solar Panel is suitable for a wide range of energy solutions, including:
- Residential Installations: Lightweight design for easy rooftop mounting.
- Commercial Applications: Supports large-scale energy needs with high reliability.
- Utility-Scale Projects: Optimized for solar farms and large arrays.
- Challenging Conditions: Durable build ensures performance in harsh environments, including snow, wind, and low-light scenarios.
The Jinko 525W Solar Panel combines advanced technology, high efficiency, and long-term durability, making it an exceptional choice for modern solar energy systems.
Jinko 525W Datasheet

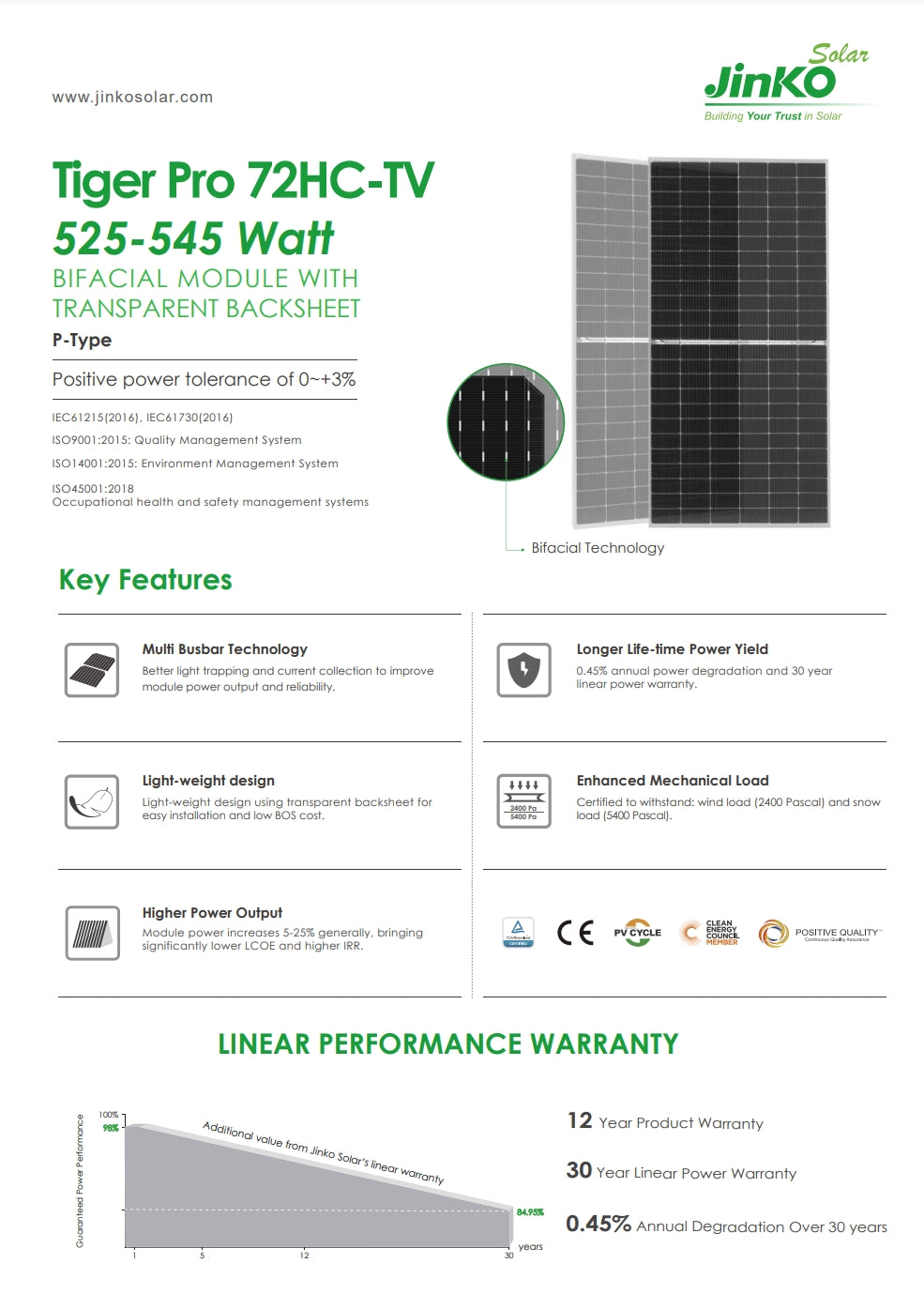

Jinko Solar: Building Trust in Solar Energy - Tiger Pro 72HC-TV, 525-545W Bifacial Module with Transparent Backsheet. P-Type Positive Power Tolerance of 0~+3%. Meets IEC61215/2016, IEC60730(2016), ISO 9001:2015, and ISO 45001:2018 standards. Features: * Multi-Busbar Technology * Longer Lifetime Power Yield * Better Light Trapping and Current Collection to Improve Annual Power Degradation (0.457%) and Module Power Output Reliability (30-year linear power warranty) * Lightweight Design with Transparent Backsheet for Enhanced Mechanical Load and Easy Installation * Wind Load (2400 Pa) and Snow Load (5400 Pa) Certification * Higher Power Output: Increased module power by 25% generally, leading to lower LCOE and higher IRR Warranty: * 12-Year Product Warranty * 30-Year Linear Power Warranty with annual degradation of 0.459%

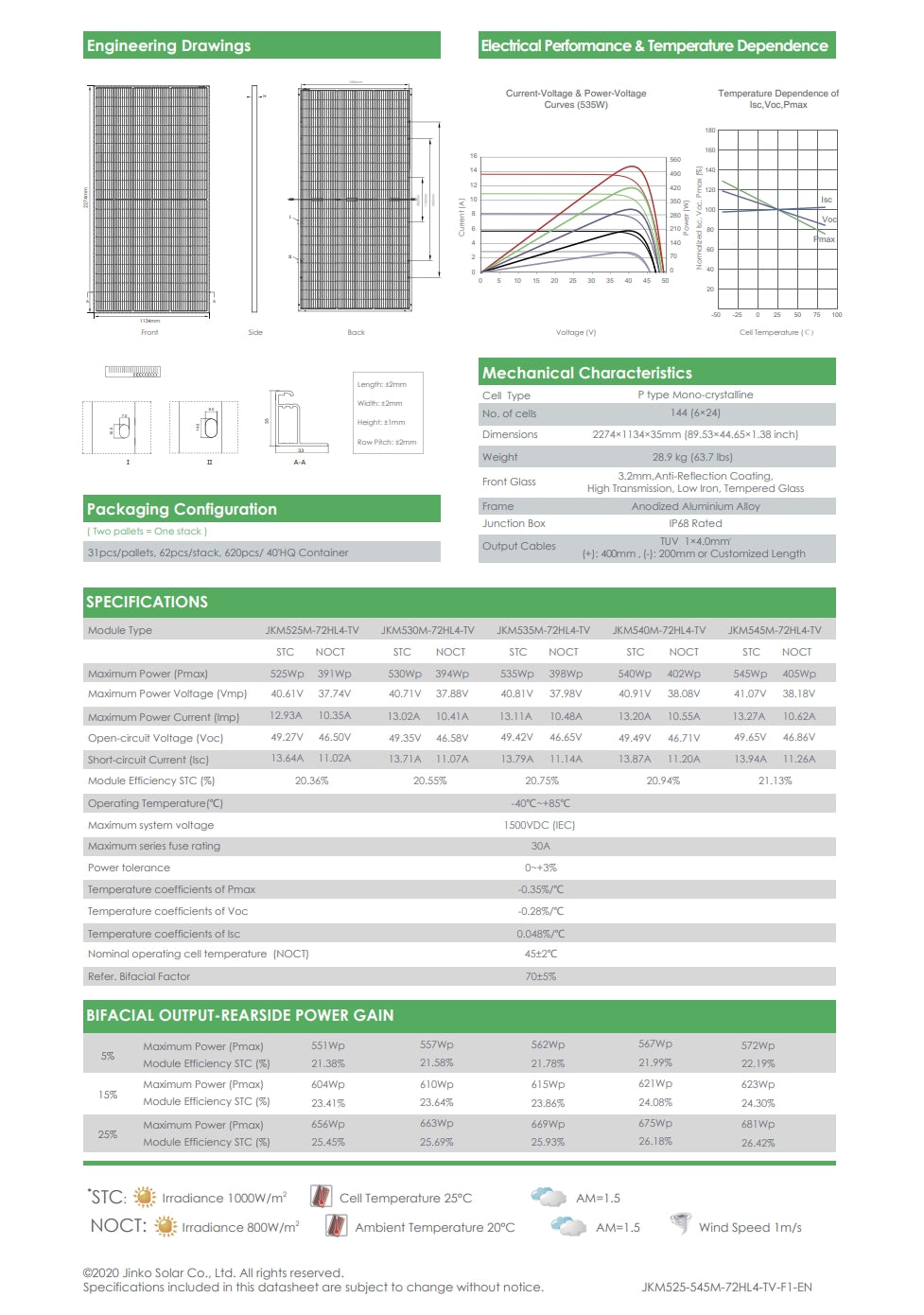

Jinko Solar Panel JKM525M-72HL4-TV Product Information Engineering Drawings: * Electrical Performance Temperature Dependence: Current-Voltage, Power-Voltage, and Voltage-Temperature * Mechanical Characteristics: Dimensions: 2274mm x 1134mm x 35mm (89.53" x 44.65" x 1.38") Weight: 28.9 kg (63.7 lbs) Anti-Reflection Coating: 3.2 mm thick * Packaging Configuration: Frame: Anodized Juminant Alloy Junction Box: IP68 Rated Specifications: * Module Type: JKM525M-72HL4-TV * Maximum Power (Pmax): 525 Wp * Open-Circuit Voltage (Voc): 49.27 V * Short-Circuit Current (Isc): 13.644 A * Module Efficiency (STC): 20.3693% * Operating Temperature Range: -40°C to +85°C * Maximum System Voltage: 1000 VDC (IEC) * Power Tolerance: ±3.76% * Temperature Coefficients of Pmax: 0.0355%/°C
