Jinko 530W Solar Panel Overview
The Jinko 530W Solar Panel (Model: JKM530M-72HL4) is a high-performance mono-facial module designed for reliability and efficiency. Utilizing advanced Multi-Busbar (MBB) technology and reduced hot spot loss, this module achieves a maximum efficiency of 20.55% under standard test conditions (STC). Built with durability in mind, it can withstand harsh environmental conditions while maintaining consistent power output. This makes it an ideal choice for residential, commercial, and utility-scale solar installations.
Jinko 530 Watt Solar Panel Key Features
- Multi-Busbar (MBB) Technology: Improves light trapping and current collection, enhancing power output and reliability.
- Reduced Hot Spot Loss: Optimized electrical design minimizes hot spots and reduces operating temperatures for long-term performance.
- Durability Against Extreme Conditions: High resistance to salt mist and ammonia ensures reliable performance in harsh environments.
- Enhanced Mechanical Load: Certified to endure snow loads of 5400 Pa and wind loads of 2400 Pa.
- Longer Lifetime Power Yield: Features a 0.55% annual power degradation rate, ensuring reliable output over 25 years.
Jinko Solar 530W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM530M-72HL4 |
| Maximum Power (Pmax, STC) | 530W |
| Module Efficiency (STC) | 20.55% |
| Open-Circuit Voltage (Voc) | 49.26V |
| Short-Circuit Current (Isc) | 13.11A |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Cell Type | P-type Monocrystalline |
| Number of Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2274 x 1134 x 35 mm |
| Weight | 28.9 kg (63.7 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | (+) 400 mm, (-) 200 mm (Customizable) |
Package
-
Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 25 years, with a maximum annual degradation rate of 0.55%.
Certifications
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management System)
- IEC61215:2016, IEC61730:2016 Certified
- PV Cycle and CE Certified
- Clean Energy Council Member
Applications
The Jinko 530W Solar Panel is an excellent choice for diverse energy solutions, including:
- Residential Installations: Provides efficient and reliable rooftop solar power.
- Commercial Applications: Meets large-scale energy needs with high output and durability.
- Utility-Scale Projects: Ideal for solar farms and large-scale installations.
- Extreme Weather Conditions: Engineered to perform under harsh environmental stress such as snow, wind, and high humidity.
The Jinko 530W Solar Panel delivers a blend of innovative technology, high efficiency, and robust reliability, making it a leading choice for modern solar energy systems.
Jinko 530W Datasheet

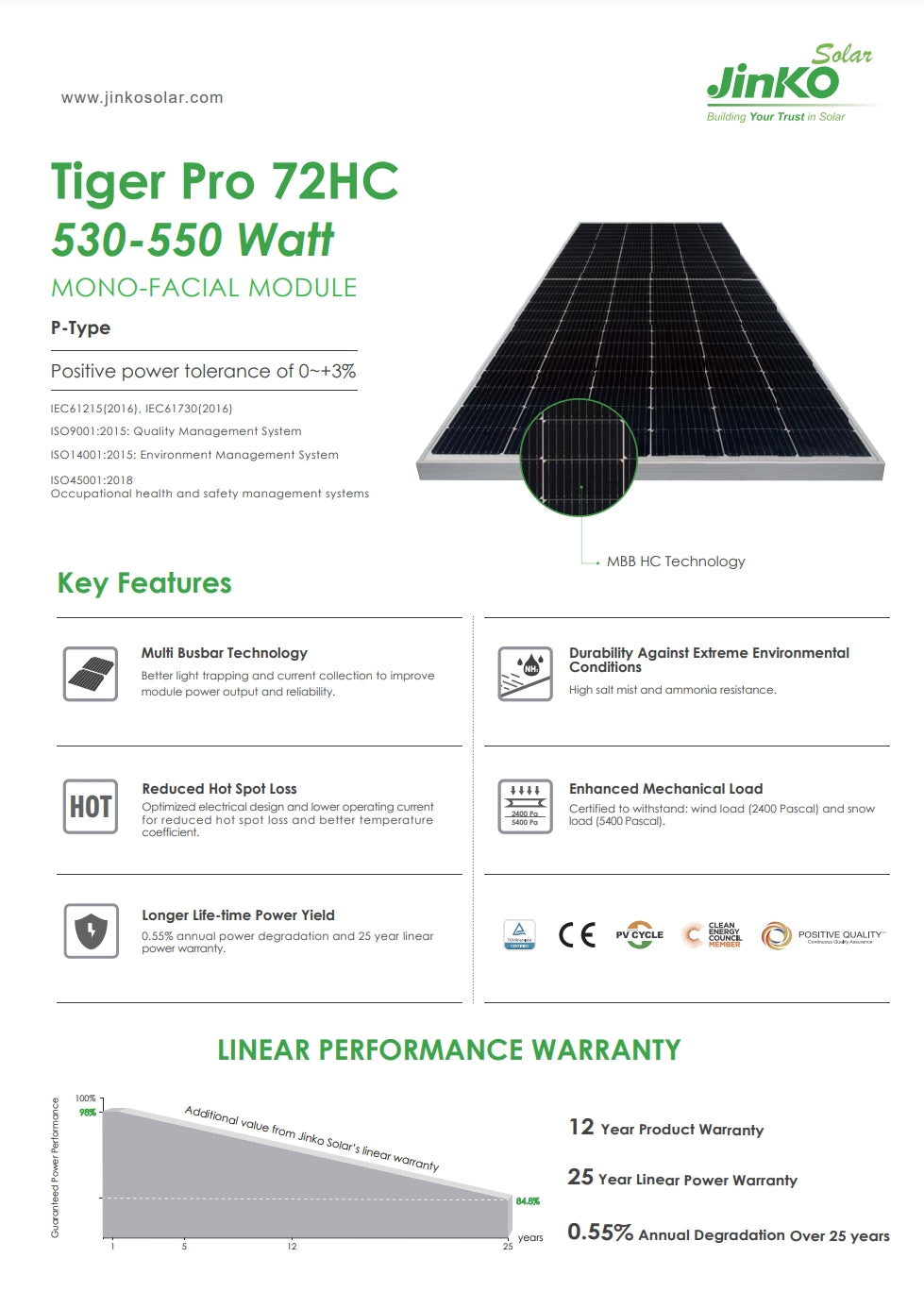

Jinko Solar: Building Trust in Your Solar Tiger Pro 72HC 530-550W Mono-Facial Module. P-Type Positive Power Tolerance of 0~+3% (IEC61215/2016, IEC61730/2016), ISO 9001:2015 (Quality Management System), ISO 14001:2018 (Environmental Management System), and OHSAS 18001:2007 (Occupational Health and Safety Management Systems). Technology Features: * Multi-Busbar Technology for Durability Against Extreme Environmental Conditions * Improved Module Power Output and Reliability through Light Trapping and Current Collection * High Salt Mist and Ammonia Resistance, Reduced Hot Spot Loss, and Enhanced Mechanical Load * Optimized Electrical Design and Lower Operating Current Certified to withstand: Wind Load (2400 Pa), Snow for Reduced Hot Spot Loss and Better Temperature EdoRon Location (5400 Pascal coefficient). Longer Life-Time Power Yield with 0.557 annual power degradation and 25-year linear C-Pv CYCLE @4 POSITIVE QUALITY Power Warranty.

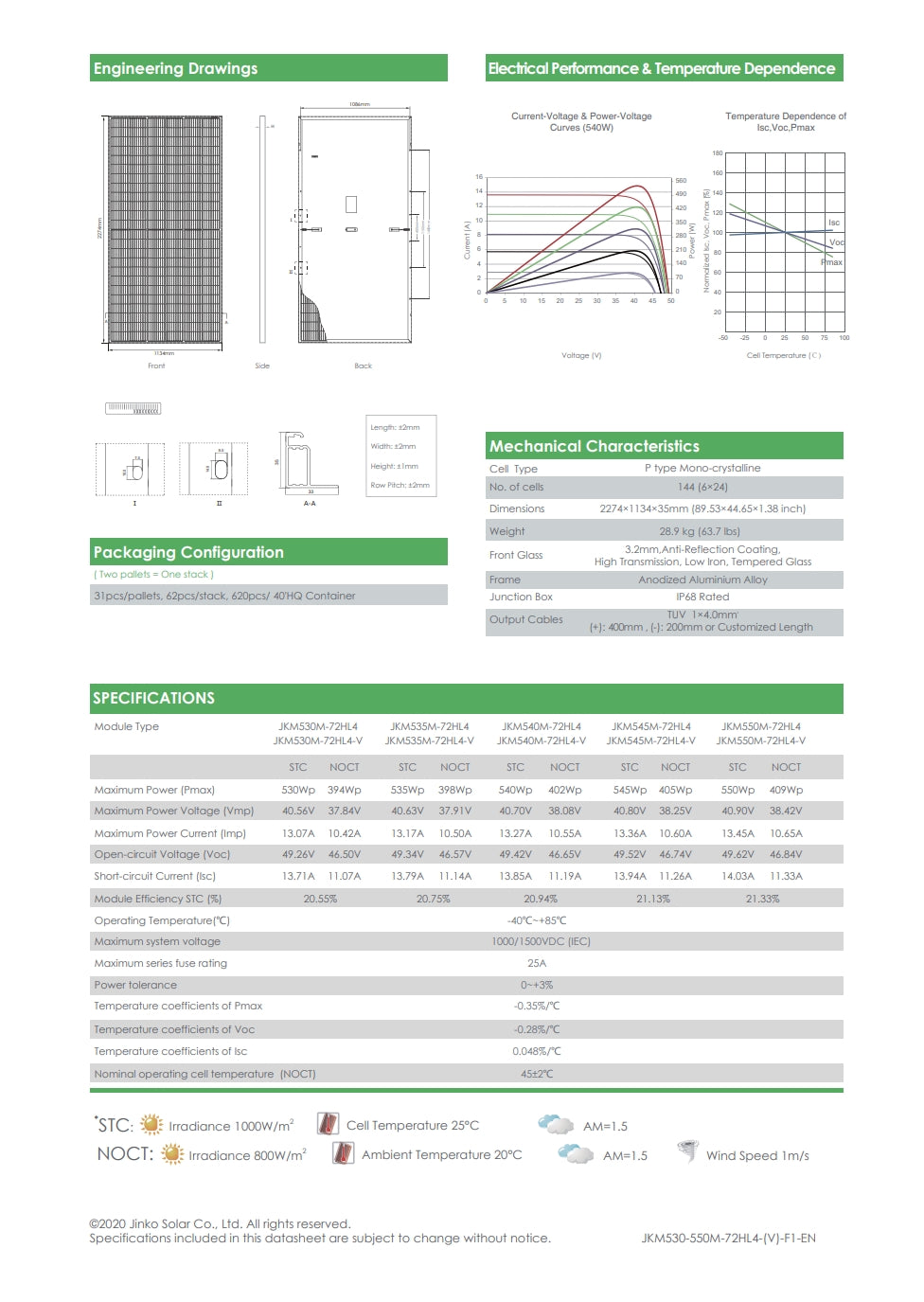

Jinko 530W Solar Panel (JKM530M-72HL4) Engineering Drawings: Electrical Performance & Temperature Dependence, Current-Voltage Power Temperature Dependence of Current-Area Efficiency Laminar Flow 7-Inch Mechanical Characteristics High Concentration Cell Type: Mono-crystalline Dimension: 2274*1134*35mm (89.53*44.65*1.38 inches) Weight: 28.9 kg (63.7 lbs) Packaging Configuration: Front Glass 3.2mm Anti-Reflection Coating; High Transmission Low Iron Tempered Glass Frame: Anodized Aluminum Alloy Specifications: Module Type: JKM530M-72HL4 Maximum Power (Pmax): 530Wp Maximum Power Voltage (Vmpp): 40.56V Maximum Power Current (Imp): 13.074A Open-Circuit Voltage (Voc): 49.26V Short-Circuit Current (Isc): 13.71A Module Efficiency: 20.5556% Operating Temperature Range: -40°C to +85°C Maximum System Voltage: 1000VDC Maximum Series Fuse Rating: 25A Power Tolerance: ±3.5% Temperature Coefficient of Pmax: 0.03556/°C Temperature Coefficient of Voc: 0.0285/°C Nominal Operating Cell Temperature (NOCT): 4522°C
