Jinko

Jinko 535W Solar Panel (JKM535M-72HL4-V)

Jinko 535W Solar Panel (JKM535M-72HL4-V)

Regular price $5,589.00 USD
Regular price Sale price $5,589.00 USD
Sale Sold out
Shipping calculated at checkout.

4 orders in last 30 days

Unit
View full details

Jinko 535W Solar Panel Overview

The Jinko 535W Solar Panel (Model: JKM535M-72HL4-V) is a high-performance half-cell module built with advanced Multi-Busbar (MBB) technology for superior efficiency and durability. With a maximum efficiency of 20.75% and positive power tolerance of 0~+3%, this module ensures reliable energy generation in diverse conditions. It is designed to withstand harsh weather, making it suitable for residential, commercial, and utility-scale solar installations.

Before placing an order, please contact service@tsolar.top for details on pricing, shipping, and lead time.


Jinko 535 Watt Solar Panel Key Features

  • Multi-Busbar Half-Cell Technology: Enhances power output and reliability by improving current collection and reducing resistance.
  • Thick and Tough Build: Features a Type 1 fire-rated module with a durable frame, 3.2 mm tempered glass, and thick backsheet for added strength.
  • Shade Tolerance: Twin-array design maintains performance even under shading conditions from trees or debris.
  • Boost in Cloudy Conditions: Includes a light-diffusing film to optimize performance in low-light scenarios like cloudy days.
  • Certified for All Environments: Withstands humidity, extreme temperatures, hailstones, and high wind speeds.

Jinko Solar 535W Specifications

Electrical Characteristics

Parameter Value
Module Type JKM535M-72HL4-V
Maximum Power (Pmax, STC) 535W
Module Efficiency (STC) 20.75%
Open-Circuit Voltage (Voc) 49.47V
Short-Circuit Current (Isc) 13.71A
Temperature Coefficient (Pmax) -0.35%/°C
Operating Temperature -40°C to +85°C
Maximum System Voltage 1500V (IEC & UL)
Nominal Operating Cell Temp. 45±2°C

Mechanical Characteristics

Parameter Value
Number of Half-Cells 144 (72 x 2)
Dimensions (L x W x H) 2274 x 1134 x 40 mm
Weight 29.4 kg (64.82 lbs)
Front Glass 3.2 mm Tempered Glass
Frame Anodized Aluminum Alloy
Junction Box IP68 Rated
Output Cables 1400 mm (Customizable)

Package

  • Packaging Configuration:
    • 27 panels per pallet
    • 54 panels per stack
    • 540 panels per 40’ HQ container

Warranty

  • Product Warranty: 12 years
  • Linear Power Output Warranty: 25 years with a maximum annual degradation rate of 0.55%.

Certifications

  • ISO9001:2015 (Quality Management System)
  • ISO14001:2015 (Environmental Standards)
  • ISO45001:2018 (Health and Safety Standards)
  • IEC61215 & IEC61730 Certified
  • UL61730 Certified
  • CE & PV Cycle Certified

Applications

The Jinko 535W Solar Panel is ideal for various energy applications, including:

  • Residential Systems: Reliable and efficient rooftop installations for homes.
  • Commercial Projects: Supports large-scale energy needs in industrial and commercial environments.
  • Utility-Scale Systems: Maximizes energy generation for solar farms.
  • Challenging Environments: Engineered to endure extreme weather, including heavy snow, high wind, and low-light conditions.

The Jinko 535W Solar Panel combines cutting-edge technology, robust design, and high efficiency, making it a versatile and reliable solution for modern solar energy projects.

Jinko 535W Datasheet

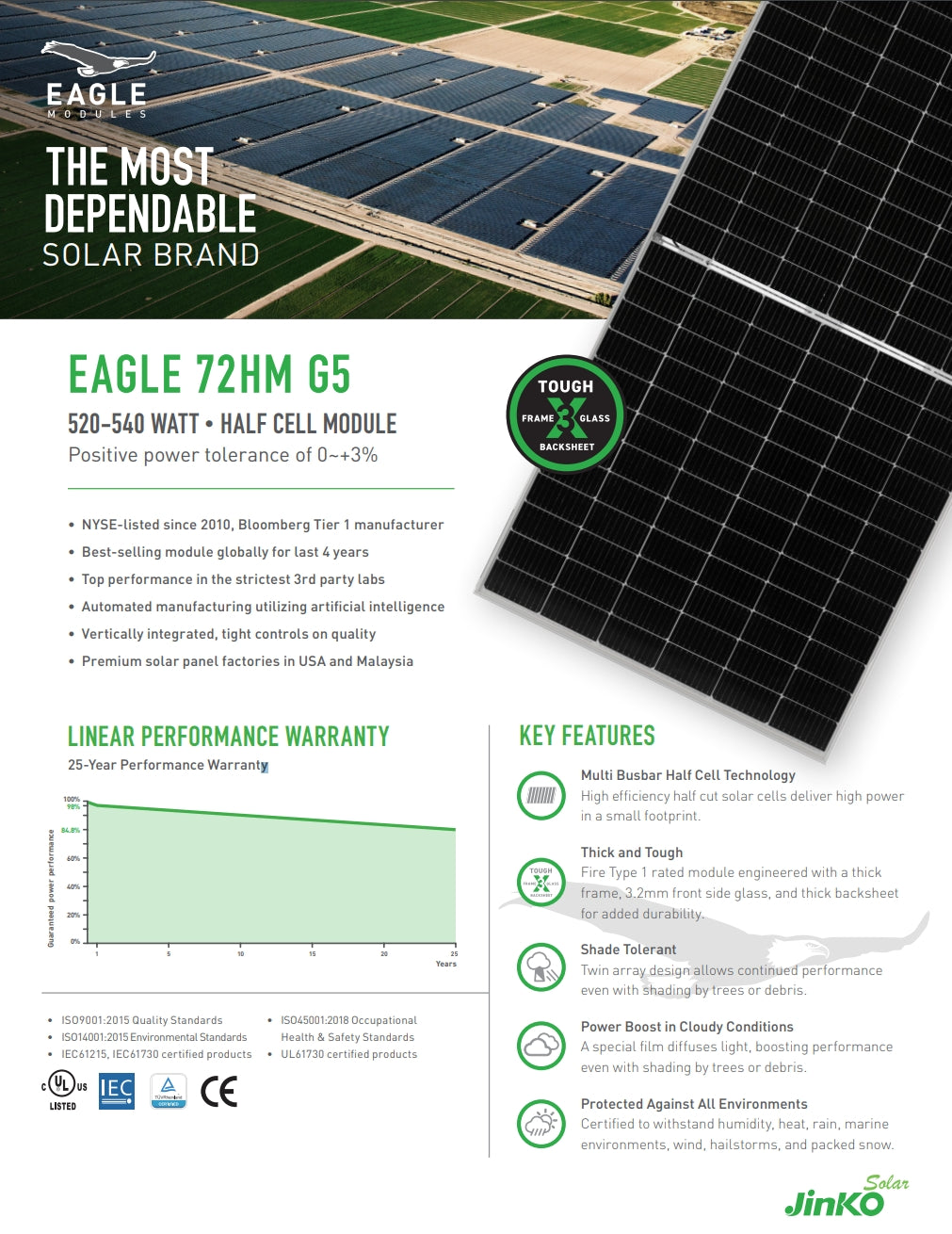

Jinko 535W Solar Panel, EAGLE presents 535W Solar Panel with tough frame and glass, 520-540 watts power output, positive power tolerance of 0~+3%

JinkoSolar 535W Solar Panel (JKM535M-72HL4-V) product image. EAGLE, the most dependable solar brand, presents the Jinko Eagle 72HM series, featuring a tough frame and glass with a power output of 520-540 watts. The module has a positive power tolerance of 0~+3%. As a NYSE-listed company since 2010, JinkoSolar is a Bloomberg Tier manufacturer. Our best-selling module globally for the last four years, it undergoes strict performance testing in third-party labs. We utilize artificial intelligence and automated manufacturing processes to ensure tight controls on quality.

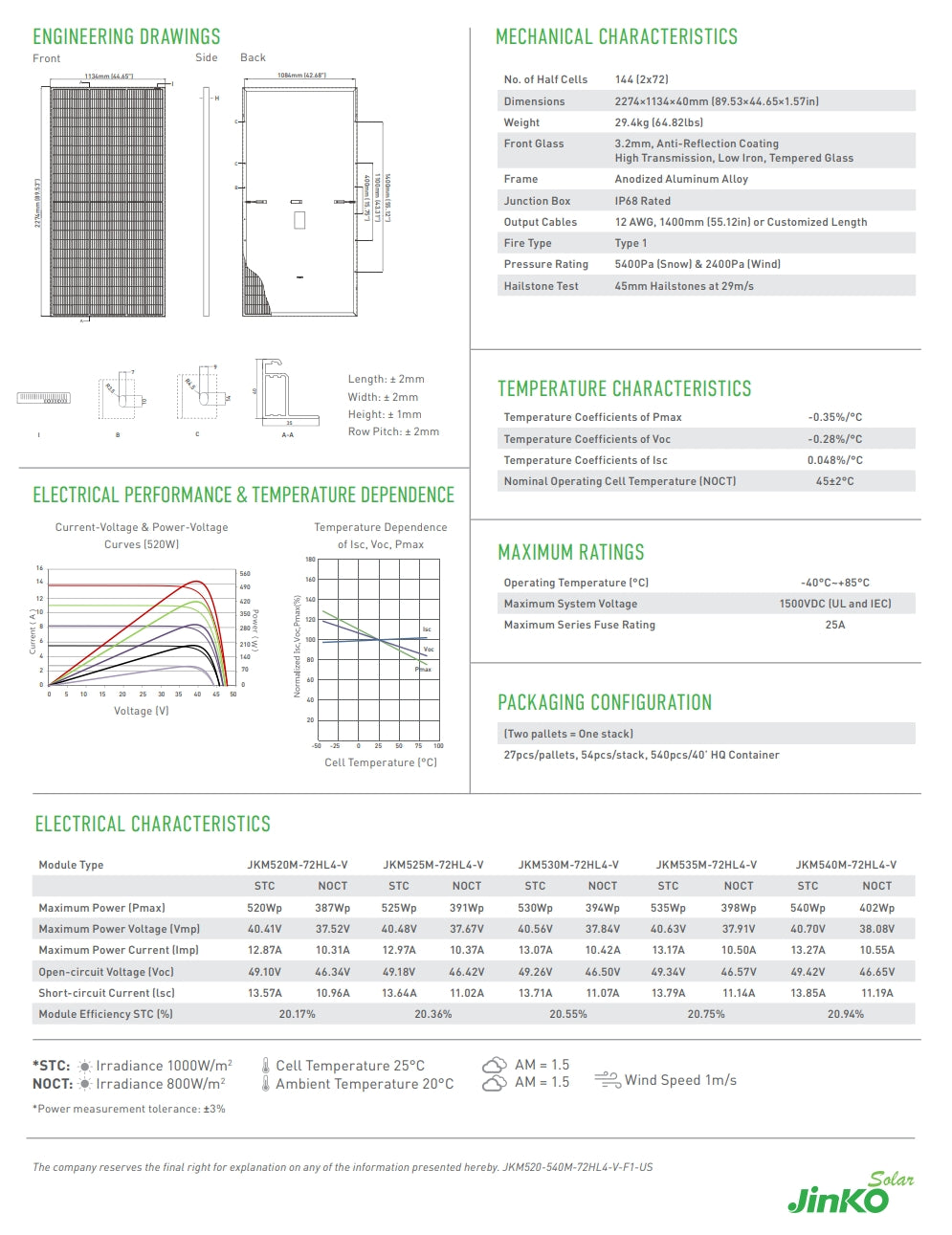

The Jinko 535W Solar Panel features a front side with half cells, dimensions, weight, anti-reflection coating, and temperature characteristics.

The Jinko 535W Solar Panel (JKM535M-72HL4-V) features a front side with no. of half cells, dimensions 2274*1134*L0mm, weight 6.82lbs, and anti-reflection coating. The frame is anodized aluminum alloy, and the junction box is IP68 rated. Output cables are 12 AWG, and customized lengths are available. Temperature characteristics include Pmax temperature coefficient 0.359%/*C, Voc temperature coefficient 0.28%/eC, and Isc temperature coefficient 0.048%/*C.
