Jinko 540W Solar Panel Overview
The Jinko 540W Solar Panel (Model: JKM540M-72HL4-TV) is a cutting-edge bifacial half-cell solar module designed for high efficiency and durability. It features Multi-Busbar (MBB) technology, a robust build, and excellent low-light performance. With a maximum efficiency of 21.13% and a power tolerance of 0~+3%, this panel delivers consistent energy output across various environmental conditions. Suitable for residential, commercial, and utility-scale installations, the Jinko 540W Solar Panel ensures long-term performance and reliability.
Jinko 540 Watt Solar Panel Key Features
- Multi-Busbar Half-Cell Technology: Increases energy efficiency by enhancing current collection and minimizing resistance losses.
- Bifacial Power Gain: Rear-side power generation delivers up to 25% more energy yield, improving LCOE (Levelized Cost of Energy).
- Robust and Durable Design: Engineered with 3.2 mm tempered glass, a tough aluminum frame, and a Type 1 fire rating for maximum strength.
- Shade Tolerance: Twin-array configuration ensures continued performance even under partial shading from trees or debris.
- Optimized for All Conditions: Performs exceptionally well in low-light scenarios and is certified to withstand harsh environmental conditions, including hail, snow, and strong winds.
Jinko Solar 540W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM540M-72HL4-TV |
| Maximum Power (Pmax, STC) | 540W |
| Module Efficiency (STC) | 21.13% |
| Open-Circuit Voltage (Voc) | 49.66V |
| Short-Circuit Current (Isc) | 13.79A |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (UL & IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Number of Half-Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2274 x 1134 x 40 mm |
| Weight | 28 kg (61.73 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | 1400 mm (Customizable) |
Package
-
Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 30 years with an annual degradation rate of 0.45%.
Certifications
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Standards)
- ISO45001:2018 (Health and Safety Standards)
- IEC61215 & IEC61730 Certified
- UL61730 Certified
- CE & PV Cycle Certified
Applications
The Jinko 540W Solar Panel is ideal for various energy applications, including:
- Residential Rooftops: Efficient energy production for homes and small-scale setups.
- Commercial Installations: Supports high energy demands for industrial and commercial properties.
- Utility-Scale Solar Farms: Maximizes power generation for large-scale solar installations.
- Extreme Weather Conditions: Durable construction ensures excellent performance in harsh climates, including high winds, heavy snow, and hailstorms.
The Jinko 540W Solar Panel combines advanced solar technology, robust materials, and high power efficiency, making it a top-tier choice for reliable solar energy solutions. For more information on pricing, shipping, and delivery times, please contact service@tsolar.top.
Jinko 540W Datasheet

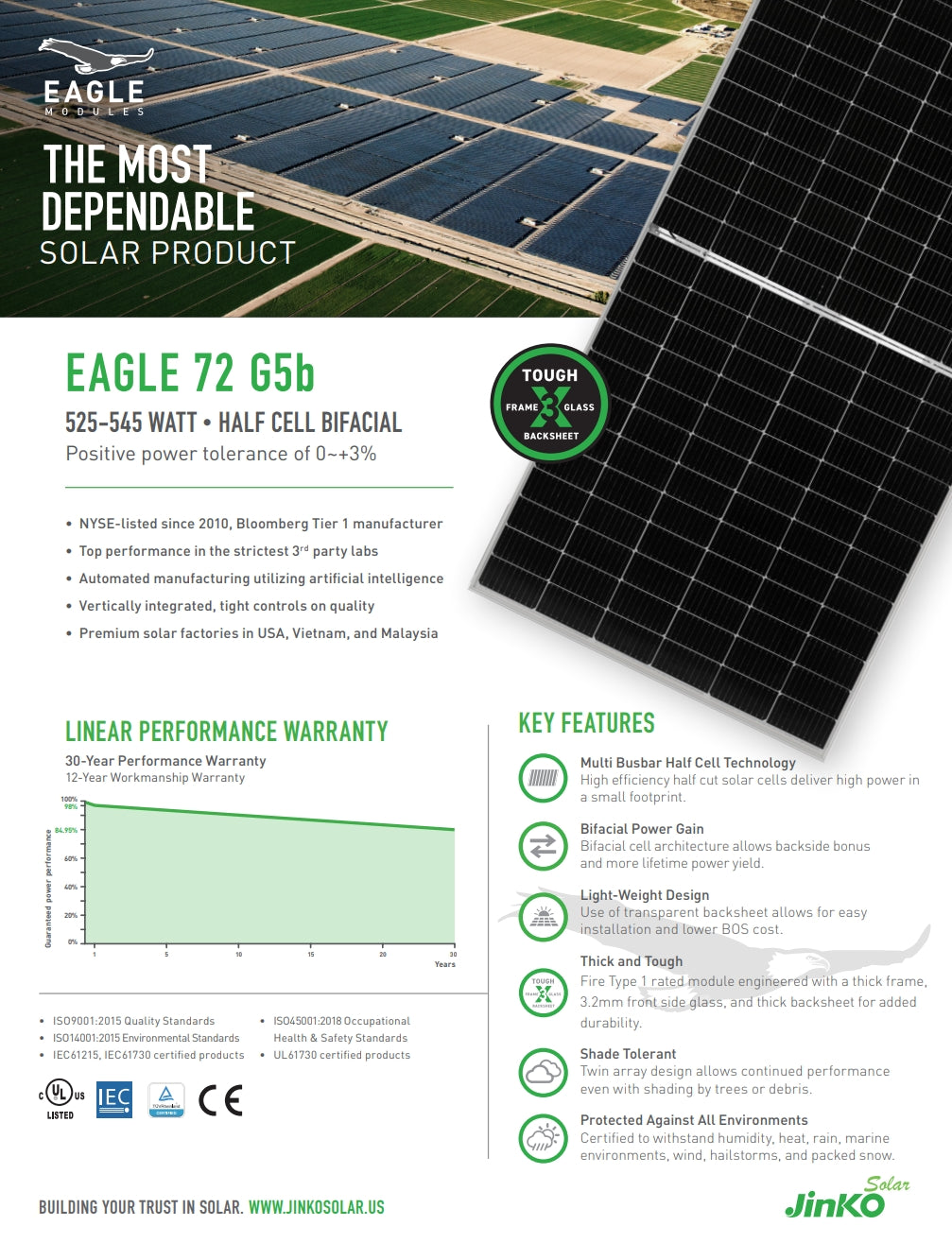

JinkoSolar is the most dependable solar product with a 72-cell module, featuring a tough frame and glass material. The product has a power range of 525-545 watts, with half-cell bifacial technology and a positive power tolerance of 0+3%. JinkoSolar is listed on the New York Stock Exchange (NYSE) since 2010 and is a Tier manufacturer, with top performance in strict third-party labs. The company utilizes automated manufacturing processes with artificial intelligence and has vertically integrated control over quality, operating premium solar factories in the USA, Vietnam, and Malaysia.

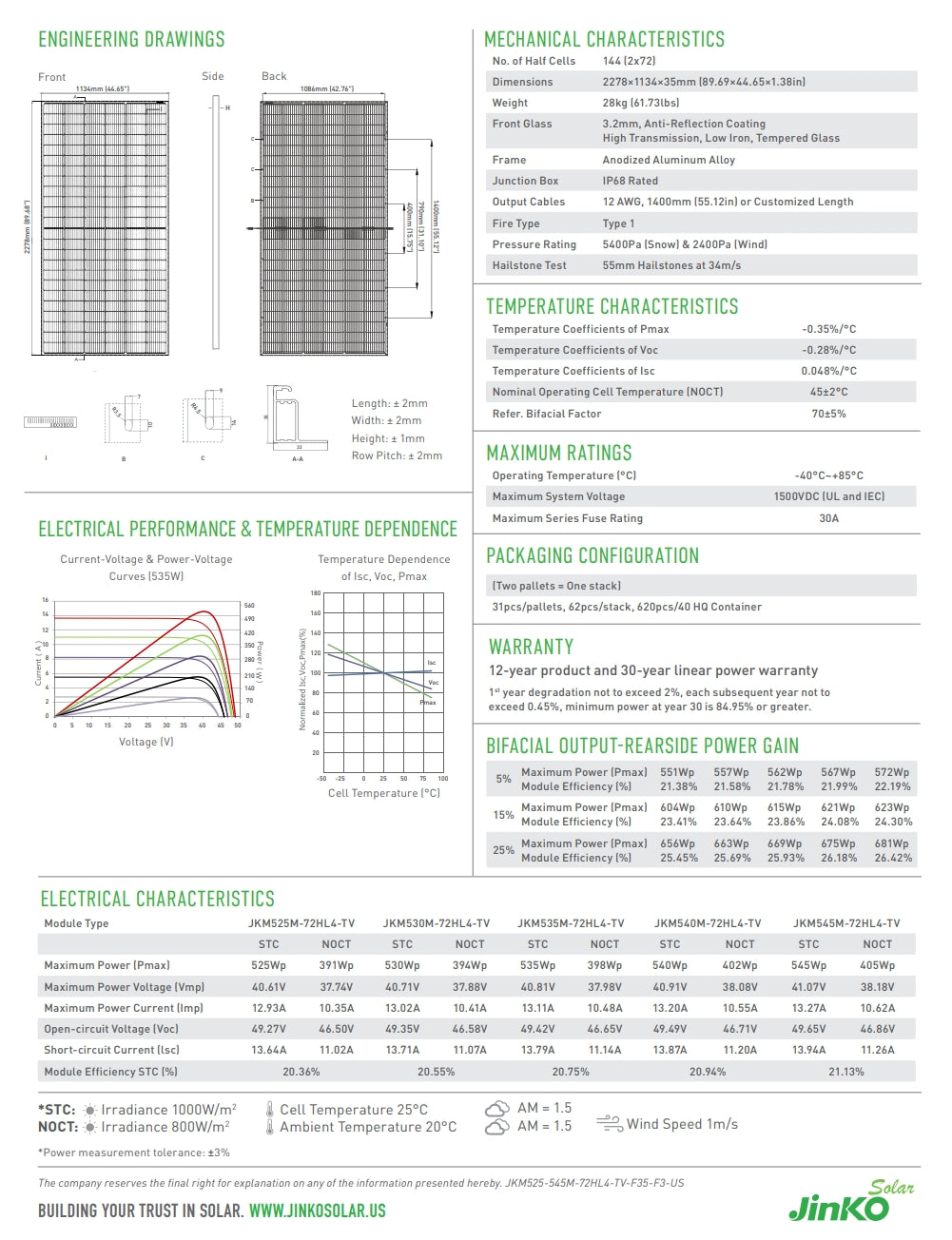

Engineering Drawings Mechanical Characteristics: Number of Hail Cells: 72 Front Side Dimensions: 2278*1134*35mm (89.69*44.65*1.38in) Weight: 61.73lbs Frame Material: Anodized Aluminum Junction Box: IP68 Rated Output Cables: 12 AWG, 1400mm (55.12in) or Customized Length Temperature Characteristics: Nominal Operating Cell Temperature (NOCT): 45±20°C Maximum Operating Temperature (POCT): -40°C to +85°C electrical Performance & Temperature Dependence: Packaging Configuration: Curves Isc, Voc, Pmax (Two pallets One stack) 31pcs/pallets, 62pcs/stack, 620pcs/40 HQ Container Warranty: 12-year product and 30-year linear power warranty, year degradation not exceeded 2% each subsequent year (not to exceed 0.45%), minimum power at year 30 is 84.959 or greater: bifacial Output-Rearside Power Gain: Maximum Power (Pmax): 540Wp Module Efficiency: 21.389% Cell Temperature: 60°C
