Jinko 545W Solar Panel Overview
The Jinko 545W Solar Panel (Model: JKM545M-72HL4) is a high-efficiency mono-facial module designed with advanced Multi-Busbar (MBB) technology for optimal energy output and durability. With a power tolerance of 0~+3% and module efficiency of 21.13%, it provides reliable performance under various conditions. Built for durability, it withstands extreme weather conditions, making it suitable for residential, commercial, and utility-scale applications.
Jinko 545 Watt Solar Panel Key Features
- Multi-Busbar Technology: Enhances current collection and reduces resistance for higher efficiency and reliability.
- Reduced Hot Spot Loss: Optimized design minimizes hot spots and improves temperature coefficients for better performance.
- Enhanced Mechanical Load: Withstands wind loads of 2400 Pa and snow loads of 5400 Pa, ensuring resilience in harsh weather.
- Durable Build: Designed with a strong aluminum frame, 3.2 mm tempered glass, and high resistance to salt mist and ammonia.
- Longer Power Yield: Annual power degradation of only 0.55%, ensuring steady performance over its 25-year warranty period.
Jinko Solar 545W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM545M-72HL4 |
| Maximum Power (Pmax, STC) | 545W |
| Module Efficiency (STC) | 21.13% |
| Open-Circuit Voltage (Voc) | 49.65V |
| Short-Circuit Current (Isc) | 13.79A |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Number of Half-Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2274 x 1134 x 40 mm |
| Weight | 28.9 kg (63.7 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | (+) 400 mm, (-) 200 mm (Customizable) |
Package
-
Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 25 years with a maximum annual degradation rate of 0.55%.
Certifications
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Standards)
- ISO45001:2018 (Health and Safety Standards)
- IEC61215 & IEC61730 Certified
- CE & PV Cycle Certified
Applications
The Jinko 545W Solar Panel is versatile and suitable for a wide range of applications, including:
- Residential Rooftops: Ensures reliable energy generation for homes.
- Commercial Installations: Ideal for industrial and commercial energy demands.
- Utility-Scale Projects: Designed for maximum power generation in solar farms.
- Extreme Environments: Performs well under challenging weather conditions such as snow, hail, and strong winds.
The Jinko 545W Solar Panel is a robust and efficient choice for solar energy systems. For more details about pricing, shipping, and delivery, please contact service@tsolar.top.
Jinko 545W Datasheet

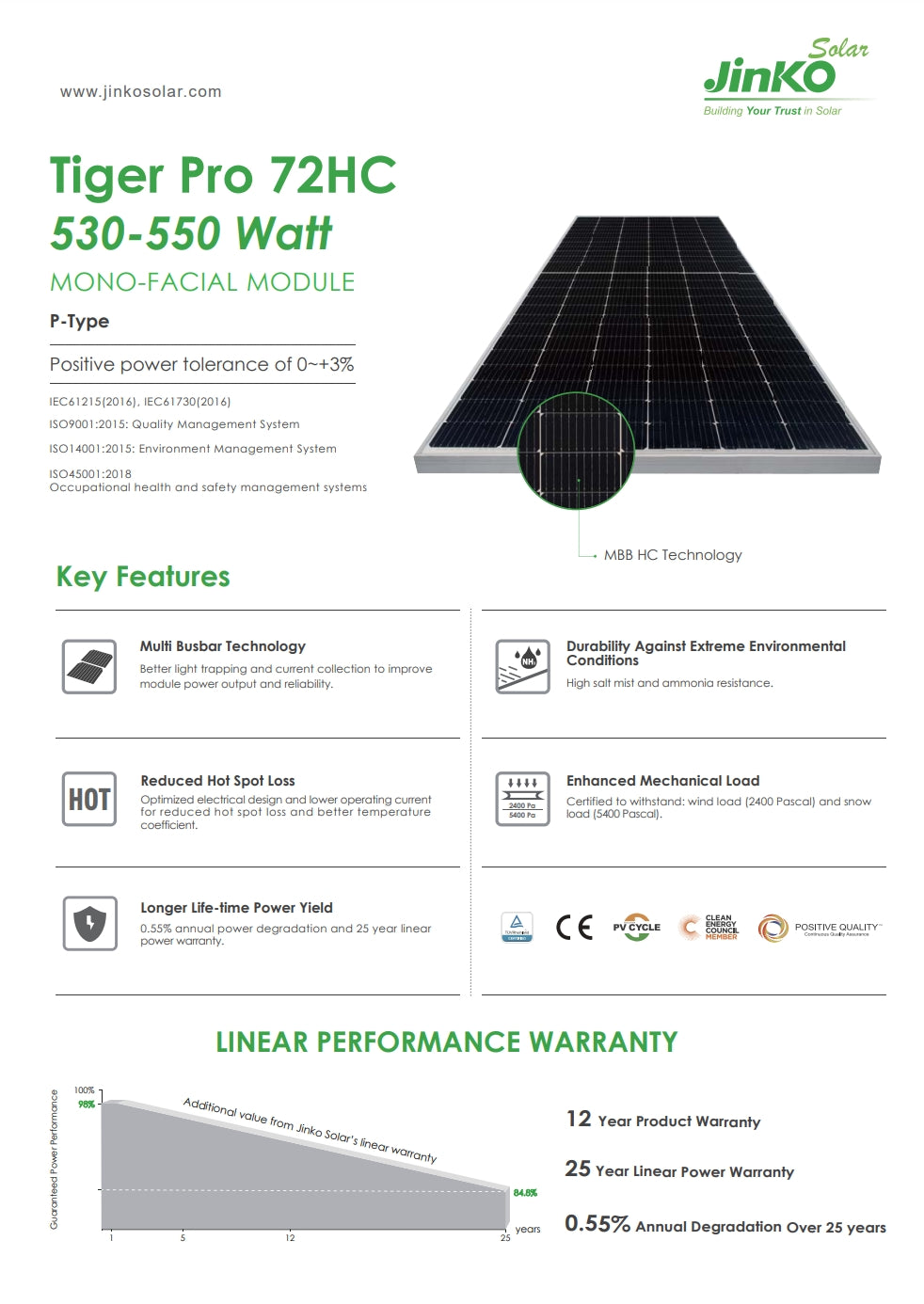

Jinko Tiger Pro Series: Building Your Trust in Solar 54.5W MONO-FACED MODULE P-Type Positive Power Tolerance of +/-3% IEC61215/2016, IEC61730 (2016), ISO9001:2015 Quality Management System ISO14001:2015 Environment Management System ISO45001:2018 Occupational Health and Safety Management Systems Key Features: * Multi-Busbar Technology for Durability Against Extreme Environmental Conditions * Better Light Trapping and Current Collection to Improve Module Power Output and Reliability * High Salt Mist and Ammonia Resistance, Reduced Hot Spot Loss * Enhanced Mechanical Load, Optimized Electrical Design, and Lower Operating Current Certified to Withstand: Wind Load (2400 Pa) and Snow Load (5400 Pa), Reducing Hot Spot Loss and Improving Temperature Coefficient Longer Lifetime Power Yield with 0.557 Annual Power Degradation and 25-Year Linear Power Warranty

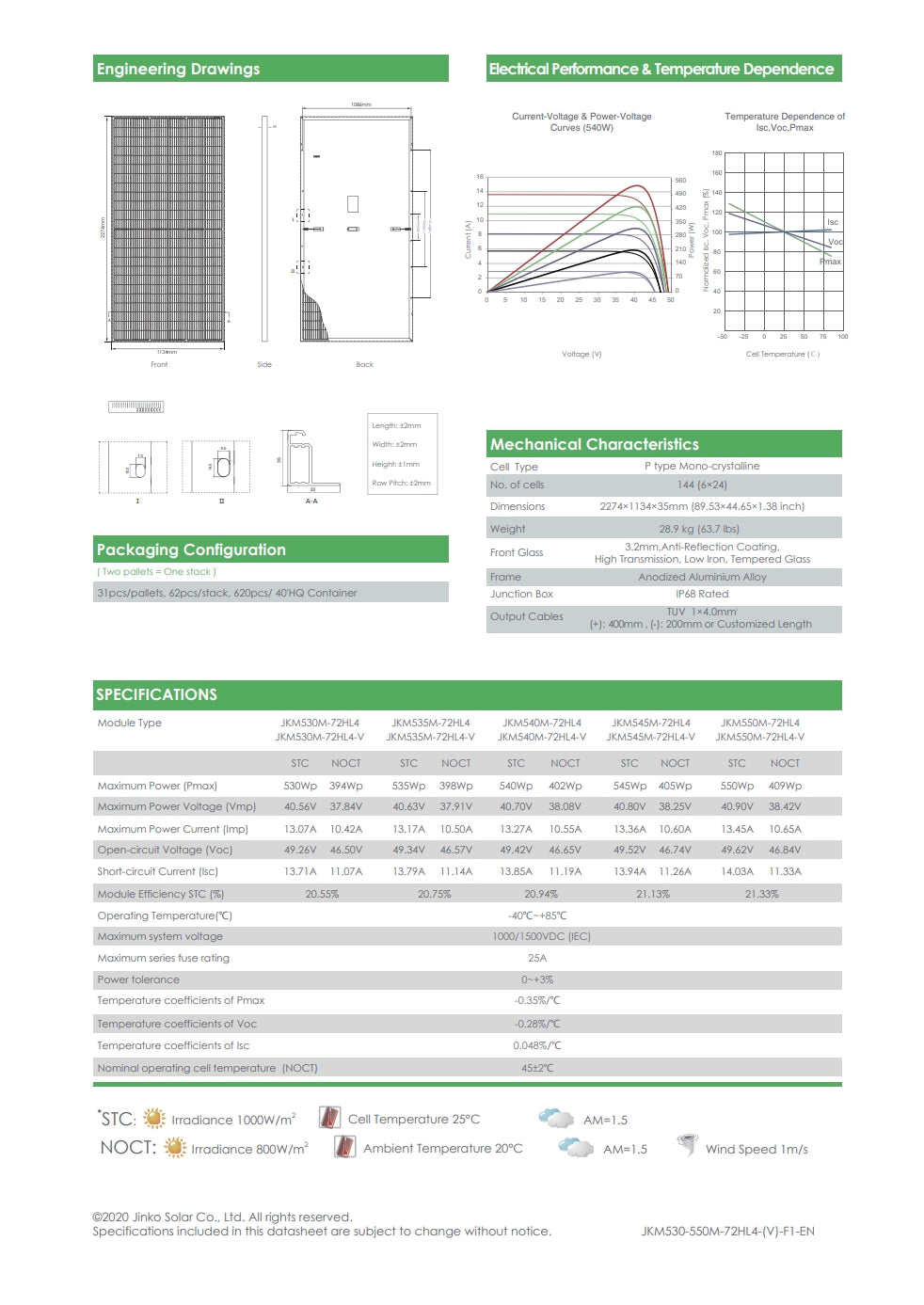

Jinko 545W Solar Panel (JKM545M-72HL4) product image. The module type is JKMS3OM-72HLA, and it features a mono-crystalline design with a maximum power output of 545Wp. The specifications include a maximum power voltage of 40.82V, maximum power current of 13.364A, open-circuit voltage of 49.52V, and short-circuit current of 13.944A. The operating temperature range is -20°C to +85°C, with a maximum system voltage of 1000VDC and a maximum series fuse rating of 25A. The power tolerance is ±3.5%, and the temperature coefficients are 0.3556%/°C for Pmax, 0.285%/°C for Voc, and 0.0485/°C for Isc.
