Jinko 550W Solar Panel Overview

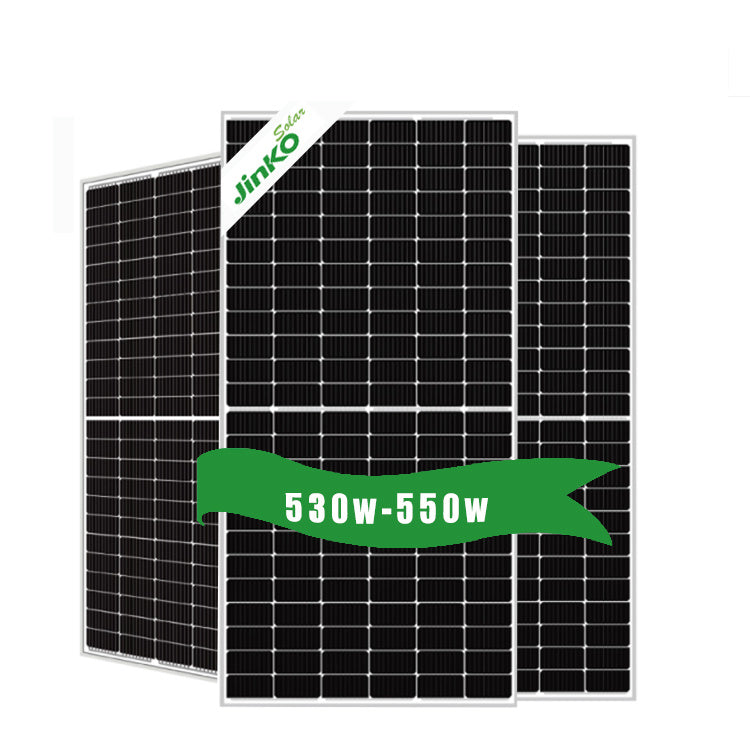

Jinko Solar Tiger Pro 72HC-BDVP 530-550 Watt Bifacial Module with Dual Glass
The Jinko 550W Solar Panel from the Tiger Pro 72HC-BDVP series is designed to deliver maximum efficiency and durability, making it a top choice for both commercial and residential solar installations. With a power output range of 530W to 550W and module efficiency up to 21.29%, this bifacial module utilizes P-Type Mono-crystalline cells and advanced Multi Busbar Technology to optimize light capture and current collection. The Jinko 550W Solar Panel is engineered with an IP68-rated junction box and robust construction, ensuring reliable performance even in harsh environmental conditions, making it ideal for utility-scale solar projects where long-term reliability is essential.
Jinko 550 Watt Solar Panel Key Features
- Multi Busbar Technology: The Jinko 550W Solar Panel features Multi Busbar Technology, which enhances light trapping and current collection, resulting in higher power output and greater reliability.
- PID Resistance: This solar panel offers excellent PID (Potential Induced Degradation) resistance, ensuring long-term stability and performance. The Jinko 550W Solar Panel guarantees anti-PID performance through an optimized production process and strict material control.
- Higher Power Output: The Jinko 550W Solar Panel achieves a 5-25% increase in power output, significantly lowering the Levelized Cost of Energy (LCOE) and increasing the Internal Rate of Return (IRR) for solar projects.
- Longer Lifetime Power Yield: With a low annual power degradation rate of 0.45%, the Jinko 550W Solar Panel is backed by a 30-year linear power warranty, ensuring sustained energy production over its lifespan.
- Enhanced Mechanical Load: The Jinko 550W Solar Panel is certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa, making it durable in environments with extreme weather conditions.
jinko 550w datasheet
Mechanical Characteristics
| Mechanical Characteristics | Description |
|---|---|
| Cell Type | P-Type Mono-crystalline |
| Number of Cells | 144 (6×24) |

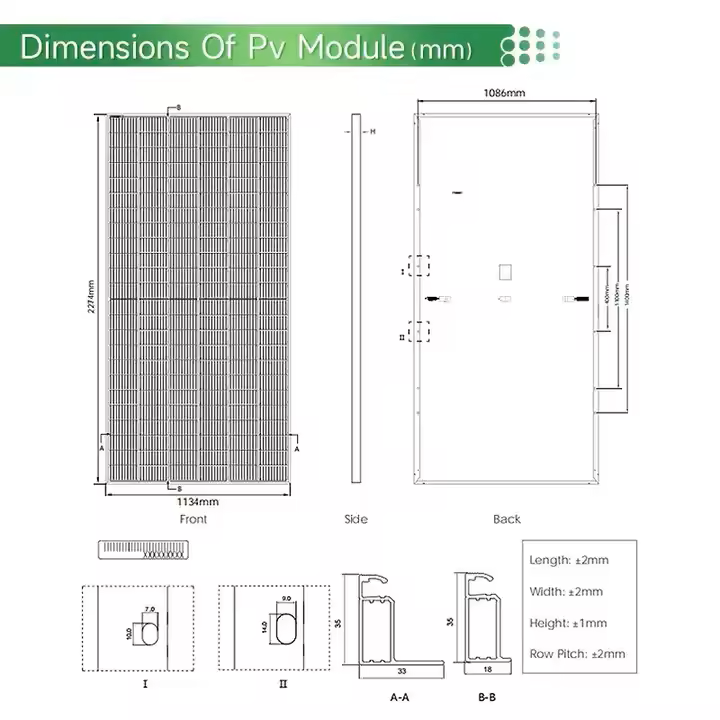

| Dimensions | 2278 mm × 1134 mm × 30 mm (89.65" × 44.65" × 1.18") |
| Weight | 32 kg (70.55 lbs) |
| Front Glass | 2.0 mm, Anti-Reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | (+): 400 mm; (-): 200 mm or Customized Length |
Specifications
| Module Type | JKM530M-72HL4-BDVP | JKM535M-72HL4-BDVP | JKM540M-72HL4-BDVP | JKM545M-72HL4-BDVP | JKM550M-72HL4-BDVP |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 530W | 535W | 540W | 545W | 550W |
| Maximum Power Voltage (Vmp) | 40.87V | 40.94V | 41.13V | 41.31V | 41.51V |
| Maximum Power Current (Imp) | 12.97A | 13.07A | 13.13A | 13.19A | 13.27A |
| Open Circuit Voltage (Voc) | 49.48V | 49.45V | 49.37V | 49.27V | 49.27V |
| Short Circuit Current (Isc) | 13.27A | 13.40A | 13.49A | 13.55A | 13.63A |
| Module Efficiency (STC) | 20.52% | 20.71% | 20.90% | 21.10% | 21.29% |
| Operating Temperature | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C |
| Maximum System Voltage | 1500VDC (IEC) | 1500VDC (IEC) | 1500VDC (IEC) | 1500VDC (IEC) | 1500VDC (IEC) |
| Maximum Series Fuse Rating | 30A | 30A | 30A | 30A | 30A |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| Temperature Coefficients of Pmax | -0.35%/°C | -0.35%/°C | -0.35%/°C | -0.35%/°C | -0.35%/°C |
| Temperature Coefficients of Voc | -0.28%/°C | -0.28%/°C | -0.28%/°C | -0.28%/°C | -0.28%/°C |
| Temperature Coefficients of Isc | +0.048%/°C | +0.048%/°C | +0.048%/°C | +0.048%/°C | +0.048%/°C |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C | 45 ± 2°C | 45 ± 2°C | 45 ± 2°C | 45 ± 2°C |
Bifacial Output-Rear Side Power Gain
| Rear Side Gain | Maximum Power (Pmax) | Module Efficiency (STC) |
|---|---|---|
| 5% | 557Wp | 21.56% |
| 15% | 610Wp | 23.61% |
| 25% | 663Wp | 25.67% |
Packaging Configuration
| Configuration | Details |
|---|---|
| Pallet Configuration | 36pcs/pallet, 72pcs/stack, 720pcs/40'HQ Container |
Warranty
- Product Warranty: 12 Years
- Linear Power Warranty: 30 Years (0.45% annual degradation over 30 years)
Certifications
- IEC61215(2016), IEC61730(2016)
- ISO9001:2015: Quality Management System
- ISO14001:2015: Environmental Management System
- ISO45001:2018: Occupational Health and Safety Management Systems
- CE: Certified for European Market
Jinko Solar 550W
Jinko's Solan JinKo Tiger Pro 72HC-BDVP module features a 530-550W bifacial design with dual glass, backed by a 12-year product warranty and a 30-year linear power warranty.
Dimensions: 1650mm x 990mm (front) + 20mm (width), 50mm (height); Back length: 1668mm. Includes 2mm black backing.
JinKo's 530-550W solar panel features bifacial technology with dual glass, P-type positive power tolerance of +3%, and meets international standards for quality and environment. It offers longer lifettime, better light trapping, and improved power output and reliability, backed by a 12-year product warranty and 30-year linear power guarantee.

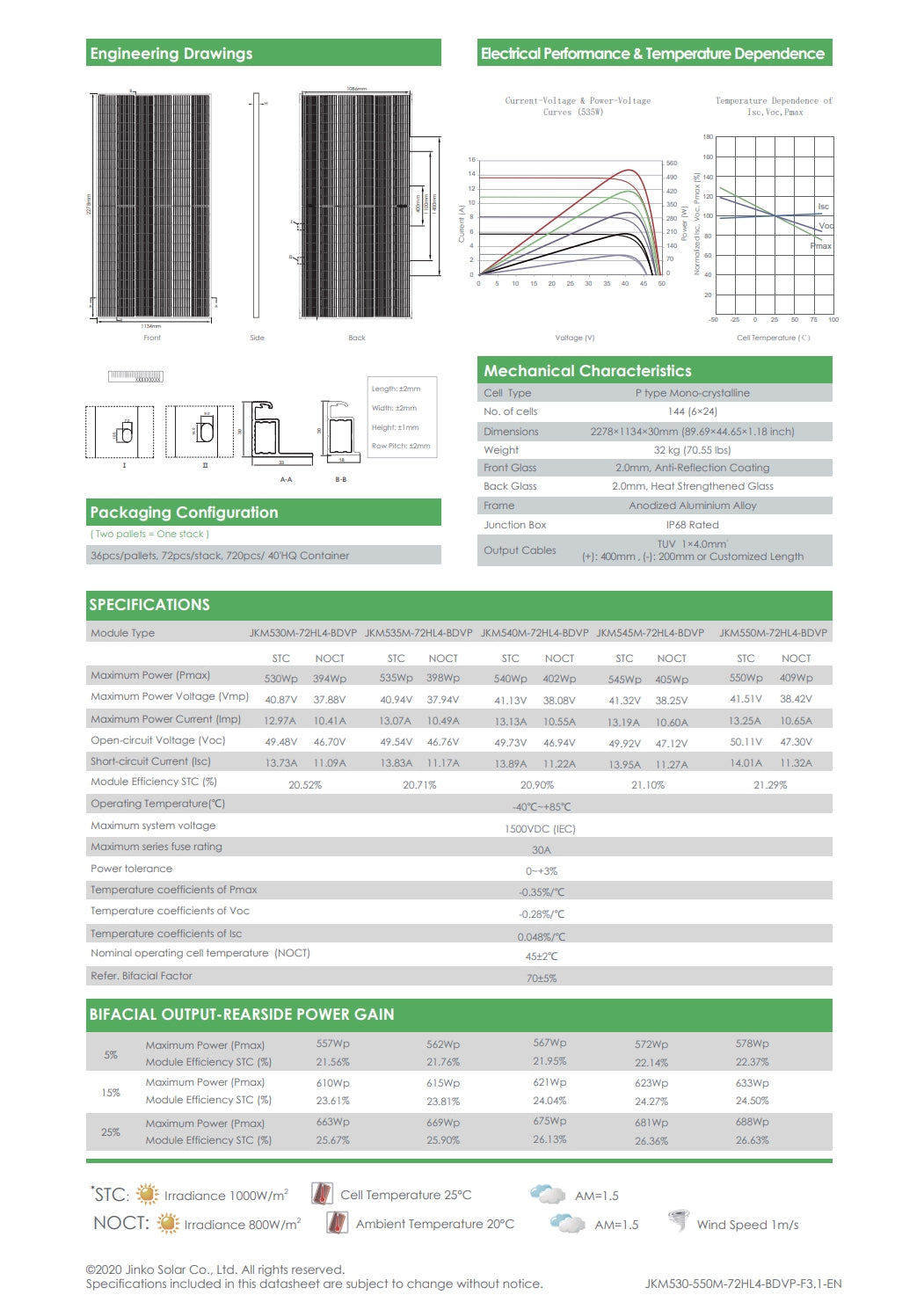

Jinko 550 Watt Solar Panel Specifications: Module Type: JKMSZOM-72HL4 BDVP Maximum Power (Pmax): 530Wp - 545Wp Maximum Power Voltage (Vmp): 37.54v - 41.51v Open-Circuit Voltage (Voc): 46.76V - 50.1V Short-Circuit Current (Isc): 13.734A - 14.01A Operating Temperature: ~40°C - +85°C Maximum System Voltage: 1000VDC (IEC) Power Tolerance: ±3% Temperature Coefficients: * Pmax: 0.3595%/°C * Voc: 0.287%/°C * Isc: 0.04893/°C Nominal Operating Cell Temperature (NOCT): 45°C Bifacial Factor: 70.2576% Output Rearside Power Gain: 557Wp - 633Wp
