Jinko 555W Solar Panel Overview
The Jinko 555W Solar Panel (Model: JKM555N-72HL4) is a high-performance, mono-facial N-Type solar module designed for superior efficiency, reliability, and durability. With an industry-leading efficiency of up to 21.48%, SMBB (Small Multi-Busbar) technology, and robust mechanical properties, this panel is ideal for large-scale utility, commercial, and residential applications. Its advanced Hot 2.0 Technology and Anti-PID (Potential Induced Degradation) resistance ensure reliable power output over decades.
Jinko 555 Watt Solar Panel Key Features
- SMBB Technology: Enhances current collection and reduces resistance losses, increasing module efficiency and reliability.
- Hot 2.0 Technology: Improves performance under low-light and adverse weather conditions with reduced LID (Light-Induced Degradation) and LEITID (Light and Elevated Temperature Induced Degradation).
- Anti-PID Resistance: Guaranteed high performance through optimized production processes and material controls.
- Durability Against Harsh Environments: Certified to withstand high salt mist and ammonia levels, ensuring long-lasting operation in coastal and industrial regions.
- Enhanced Mechanical Load: Withstands up to 2400 Pa wind load and 5400 Pa snow load, suitable for extreme weather conditions.
- Linear Power Warranty: Provides up to 87.4% guaranteed power output after 30 years, with an annual degradation rate as low as 0.40%.
Jinko Solar 555W Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Module Type | JKM555N-72HL4 |
| Maximum Power (Pmax, STC) | 555W |
| Module Efficiency (STC) | 21.48% |
| Open-Circuit Voltage (Voc) | 50.34V |
| Short-Circuit Current (Isc) | 13.36A |
| Maximum Power Voltage (Vmp) | 41.64V |
| Maximum Power Current (Imp) | 13.33A |
| Temperature Coefficient (Pmax) | -0.30%/°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Nominal Operating Cell Temp. | 45±2°C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Number of Half-Cells | 144 (72 x 2) |
| Dimensions (L x W x H) | 2278 x 1134 x 35 mm |
| Weight | 28 kg (61.73 lbs) |
| Front Glass | 3.2 mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | 1400 mm (Customizable) |
Package
-
Packaging Configuration:
- 31 panels per pallet
- 62 panels per stack
- 620 panels per 40’ HQ container
Warranty
- Product Warranty: 12 years
- Linear Power Output Warranty: 30 years with a maximum annual degradation rate of 0.40%.
Certifications
- IEC61215 & IEC61730 (Safety Standards)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Standards)
- ISO45001:2018 (Occupational Health and Safety)
- CE and PV Cycle Certified
Applications
The Jinko 555W Solar Panel is an excellent choice for various applications:
- Residential Rooftops: Perfect for high-efficiency energy generation at home.
- Commercial and Industrial Roofs: Provides reliable power for business operations.
- Utility-Scale Solar Farms: High-efficiency modules deliver maximum energy output.
- Coastal and Industrial Areas: Engineered to resist harsh environmental factors like salt mist and ammonia.
The Jinko 555W Solar Panel combines state-of-the-art technology with robust materials to deliver consistent, long-lasting energy output. Contact us at service@tsolar.top for pricing, shipping, and delivery details.
Jinko 555W Datasheet

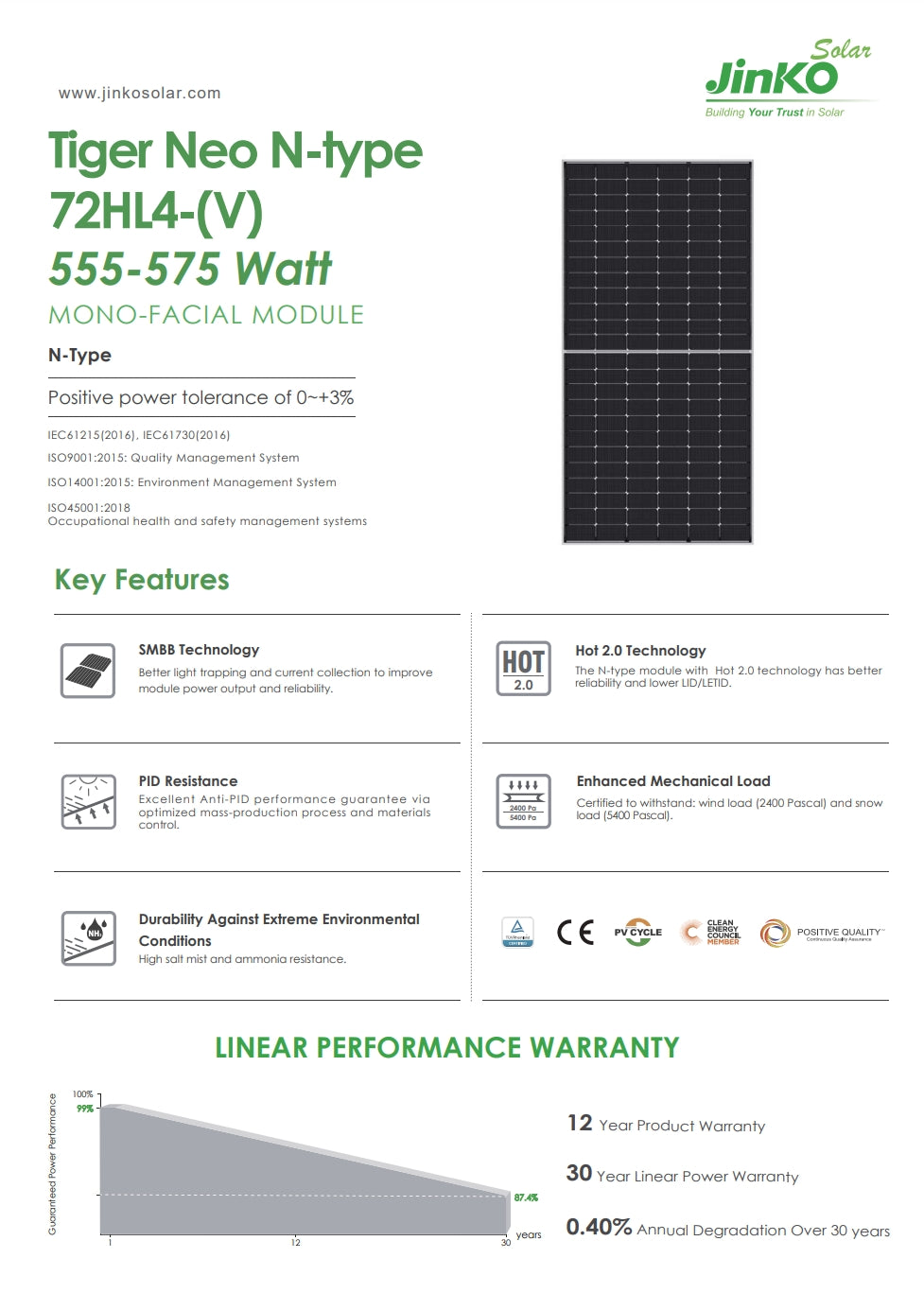

Jinko Solar presents JKM555N-72HL4, a high-performance solar panel with N-type technology and Hot 2.0 features. This module offers improved power output, reliability, and lower LID resistance. It also boasts enhanced mechanical load and anti-PID performance. The Hot 2.0 technology ensures better light trapping and current collection. The module is certified to withstand extreme environmental conditions, including wind loads (2400 Pa) and snow optimized mass-production process and materials. Jinko Solar offers a comprehensive warranty: 12 years product warranty and 30-year linear power warranty with 0.409% annual degradation over 30 years.

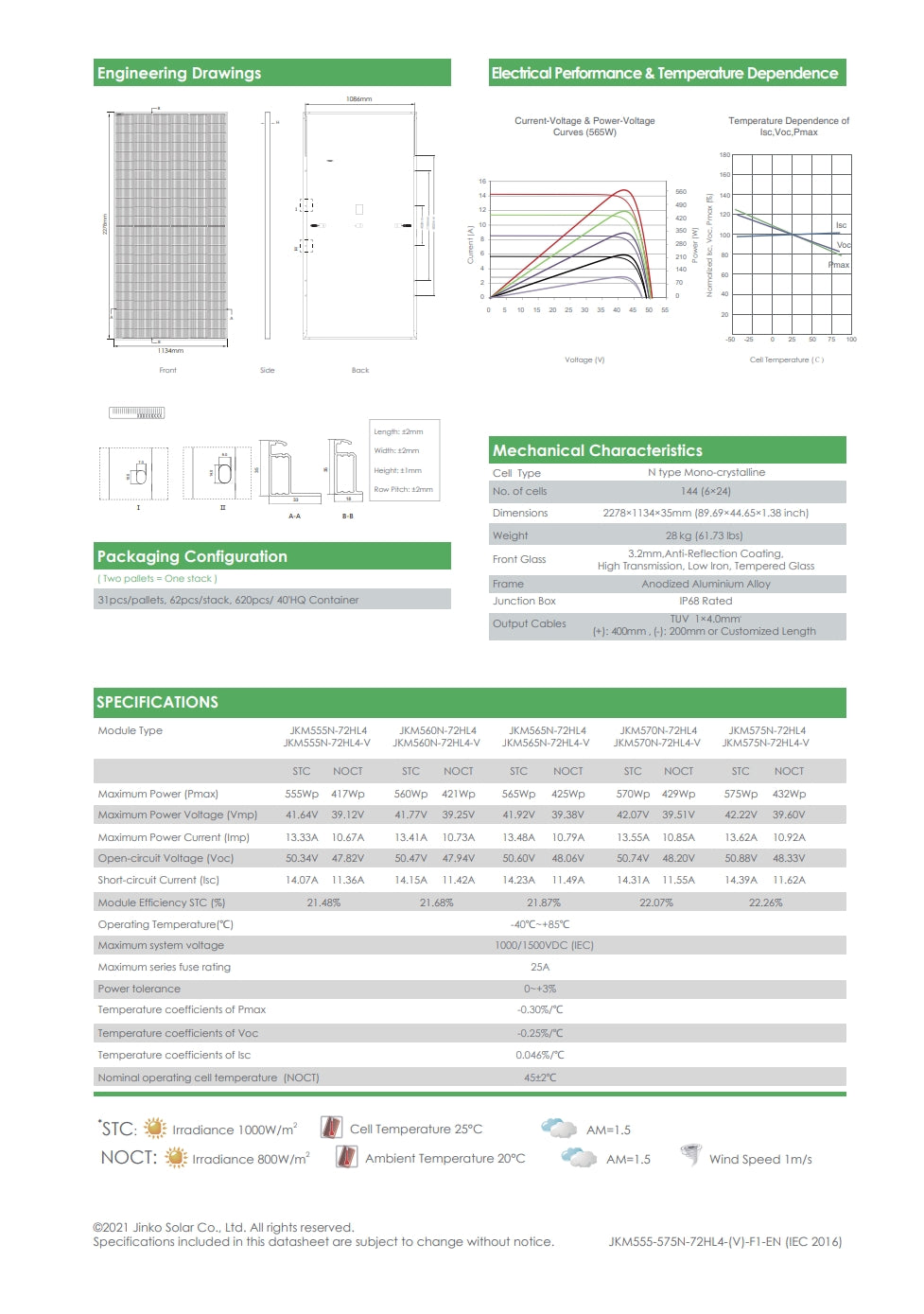

Engineering Drawings, Electrical Performance & Temperature Dependence Current-Voltage Power-Temperature Curves (SCs) Including ISC; OC-Pmax] Yield Curve. Cell Type: Mono-crystalline. No Anti-Reflection Coating; High Transmission; Low Iron. Tempered Glass with Low Reflective Coating on Both Sides. Frame Made of Anodized Aluminium Alloy. Junction Box IP67 Rated 1*4-Omm. Output Cables Customized Length. SPECIFICATIONS Module Type: JKM555N-72HL4. Maximum Power (Pmax): 555Wp. Maximum Power Voltage (Vmip): 64V. Maximum Power Current (Imp): 13.33A. Open-circuit Voltage (Voc): 50.34V. Short-circuit Current (Isc): 14.07A. Module Efficiency (STC): 21.4895%. Operating Temperature: -40"C to +85\"C. Maximum System Voltage: TOJO/IECOVDC IIECI. Maximum Series Fuse Rating: 254A. Power Tolerance: 0-+3.5%. Temperature Coefficient of Pmax: 0.305/%C. Temperature Coefficient of Voc: 0.255/%C. Temperature Coefficient of ISC: 0.0465/%C. Nominal Operating Cell Temperature (NOCT): 45.229\"C. STC: Irradiance 800W/m? Ambient Temperature: -20\"C AM-1.5. Wind Speed: Im/s.
