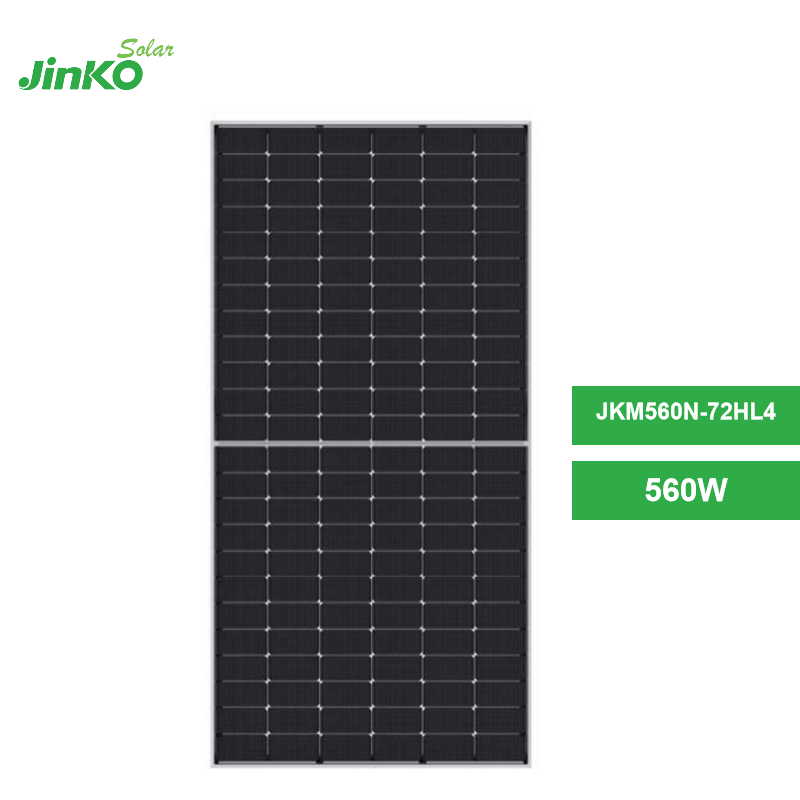

Jinko 560W Solar Panel Overview
The Jinko 560W Solar Panel, part of the Tiger Neo N-type series, is a high-performance bifacial module with advanced dual glass technology. With a positive power tolerance of 0~+3%, it ensures superior energy output and reliability, making it an ideal choice for large-scale solar installations.
Jinko Solar 560 Watt Key Features
- SMBB Technology: Advanced multi-busbar design enhances current collection, reducing resistance loss and improving efficiency.
- Hot 2.0 Technology: Enhanced reliability with lower Light Induced Degradation (LID) and Light and Elevated Temperature Induced Degradation (LETID).
- PID Resistance: Anti-Potential Induced Degradation guarantees long-term performance under various conditions.
- Higher Power Output: Offers 5-25% more energy yield compared to conventional panels, optimizing Levelized Cost of Energy (LCOE) and Internal Rate of Return (IRR).
- Enhanced Mechanical Load: Certified to withstand wind loads up to 2400 Pascal and snow loads up to 5400 Pascal.
Mechanical Characteristics
- Cell Type: N-type mono-crystalline
- Number of Cells: 144 (6×24)
- Dimensions: 2278×1134×30mm (89.69×44.65×1.18 inches)
- Weight: 32 kg (70.55 lbs)
- Glass: 2.0mm tempered, anti-reflection coating
- Frame: Anodized aluminum alloy
- Junction Box: IP68 rated for superior water and dust resistance
- Cable Length: 400mm (+), 200mm (-), customizable lengths available
Electrical Specifications
- Maximum Power (Pmax): 560W
- Module Efficiency (STC): 21.68%
- Open Circuit Voltage (Voc): 50.47V
- Short Circuit Current (Isc): 14.19A
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500VDC (IEC)
- Bifacial Output: 25% gain, achieving up to 700W under optimal conditions
Durability & Warranty
The JKM560N-72HL4-BDV is certified for 12-year product warranty and a 30-year linear power warranty, with an impressive annual degradation rate of just 0.40% over 30 years. This ensures long-term performance and value for your solar investment.
Applications
Designed for utility-scale and commercial projects, the Jinko 560W Solar Panel performs exceptionally in diverse environments. Its robust build and bifacial design maximize energy harvest, making it suitable for rooftop installations, ground-mounted arrays, and floating solar systems.
Invest in the Jinko 560W Solar Panel today to enjoy industry-leading efficiency, reliability, and sustainability.
Jinko 560W Datasheet

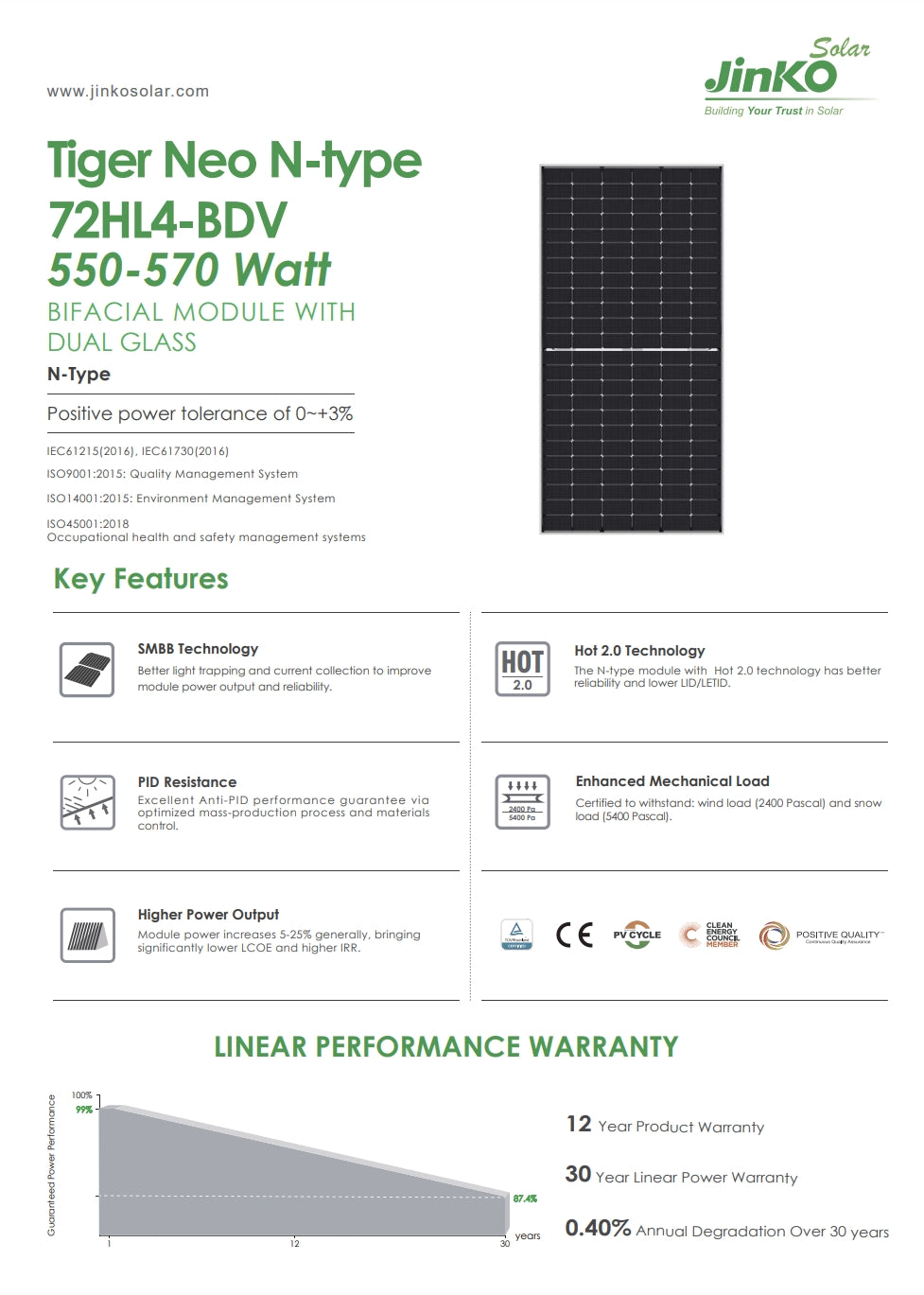

Jinko Tiger Neo N-type 560W Solar Panel (JKM560N-72HL4-BDV) - Building Trust in Solar. Features: Bifacial module with dual glass, n-type positive power tolerance of ±0% to ±39%. Meets IEC61215/2016 and IEC61730/2016 standards. Quality management system ISO9001:2015, environment management system ISO14001:2015, occupational health and safety management systems OHSAS 18001:2007.

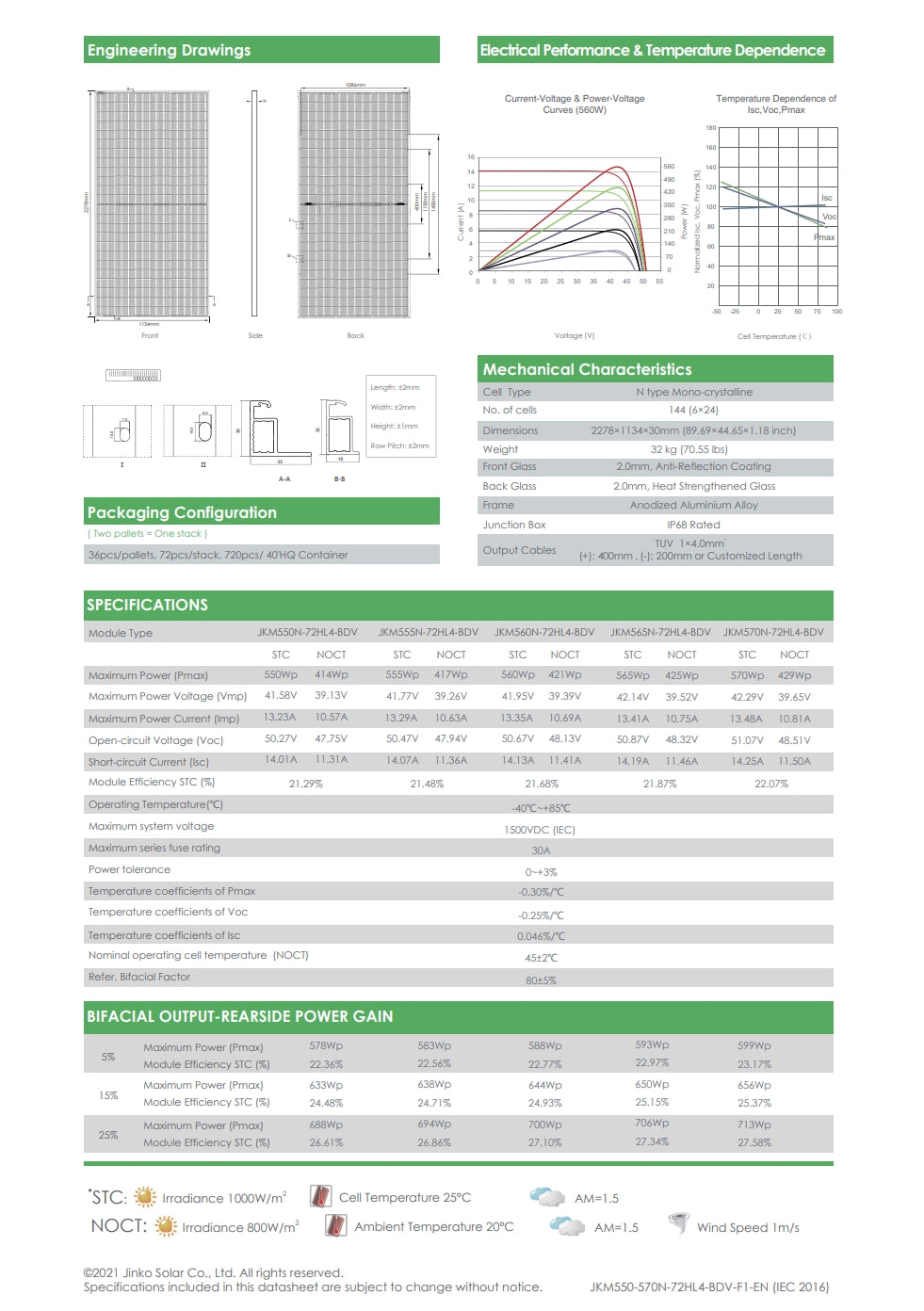

Jinko Solar Panel, Model: JKM560N-72HL4-BDV. Specifications: * Max Power (Pmax): 560W * Maximum Power Voltage (Vmp): 41.58V * Maximum Power Current (Imp): 13.23A * Open-circuit Voltage (Voc): 47.75V * Short-circuit Current (Isc): 14.13A * Module Efficiency STC: 21.30% * Operating Temperature: +45°C to +85°C * Maximum System Voltage: 1000VDC (IEC) * Maximum Series Fuse Rating: 30A * Power Tolerance: ±3% * Nominal Operating Cell Temperature (NOCT): +25°C Mechanical Characteristics: * Cell Type: Mono-crystalline * Number of Cells: 6x24 * Dimensions: 227.8mm x 34mm x 30mm * Frame Material: Anodized Aluminum Alloy * Packaging Configuration: Junction Box P68, Rated Power Output 36pcs/pallets
