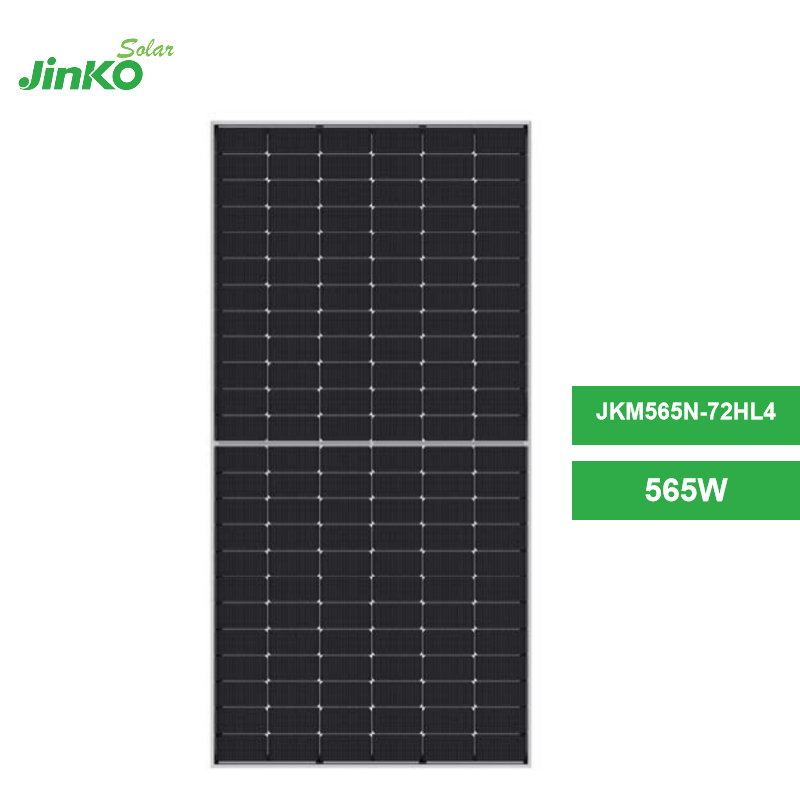

Jinko 565 Watt Solar Panel Overview
The Jinko 565W Solar Panel, part of the Tiger Neo N-type Mono-Facial Module series, combines advanced N-type mono-crystalline technology with cutting-edge design for exceptional performance, durability, and reliability. This module is optimized for both utility-scale and commercial applications.
Jinko Solar 565W Key Features
- SMBB Technology: Superior Multi-Busbar design ensures better light trapping and enhanced current collection, boosting module efficiency and reliability.
- Hot 2.0 Technology: Reduces Light-Induced Degradation (LID) and Light and Elevated Temperature-Induced Degradation (LETID), ensuring long-lasting performance.
- PID Resistance: Anti-Potential Induced Degradation ensures durability across diverse operating conditions.
- Durability Against Extreme Environmental Conditions: High resistance to salt mist and ammonia ensures reliable performance in coastal and agricultural regions.
- Enhanced Mechanical Load: Certified to withstand high wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring robust durability in harsh climates.
Mechanical Characteristics
- Cell Type: N-type Mono-crystalline
- Number of Cells: 144 (6×24)
- Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inches)
- Weight: 28 kg (61.73 lbs)
- Front Glass: 3.2mm tempered glass with anti-reflection coating
- Frame: Anodized aluminum alloy
- Junction Box: IP68 rated for excellent dust and water resistance
- Cable Length: (+) 400mm, (-) 200mm (customizable lengths available)
Electrical Specifications
- Maximum Power (Pmax): 565W
- Module Efficiency (STC): 21.87%
- Open Circuit Voltage (Voc): 50.60V
- Short Circuit Current (Isc): 14.23A
- Maximum Power Voltage (Vmp): 42.91V
- Maximum Power Current (Imp): 13.18A
- Power Tolerance: 0~+3%
-
Temperature Coefficients:
- Pmax: -0.30%/°C
- Voc: -0.25%/°C
- Isc: 0.044%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500VDC (IEC)
Certifications
The module meets international quality, safety, and environmental standards:
- IEC61215 (2016), IEC61730 (2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety)
Durability & Warranty
- 12-Year Product Warranty: Covers manufacturing defects.
- 30-Year Linear Power Warranty: Guarantees 87.4% of original performance at 30 years, with a low annual degradation rate of only 0.40%.
Applications
Designed for versatile applications, this mono-facial module excels in:
- Utility-Scale Projects: Perfect for large-scale solar farms.
- Commercial Installations: Suitable for high-demand rooftop systems.
Invest in the Jinko 565W Solar Panel to leverage its high efficiency, durability, and cutting-edge features for optimal energy generation and long-term sustainability.
Jinko 565W Solar Panel Datasheet

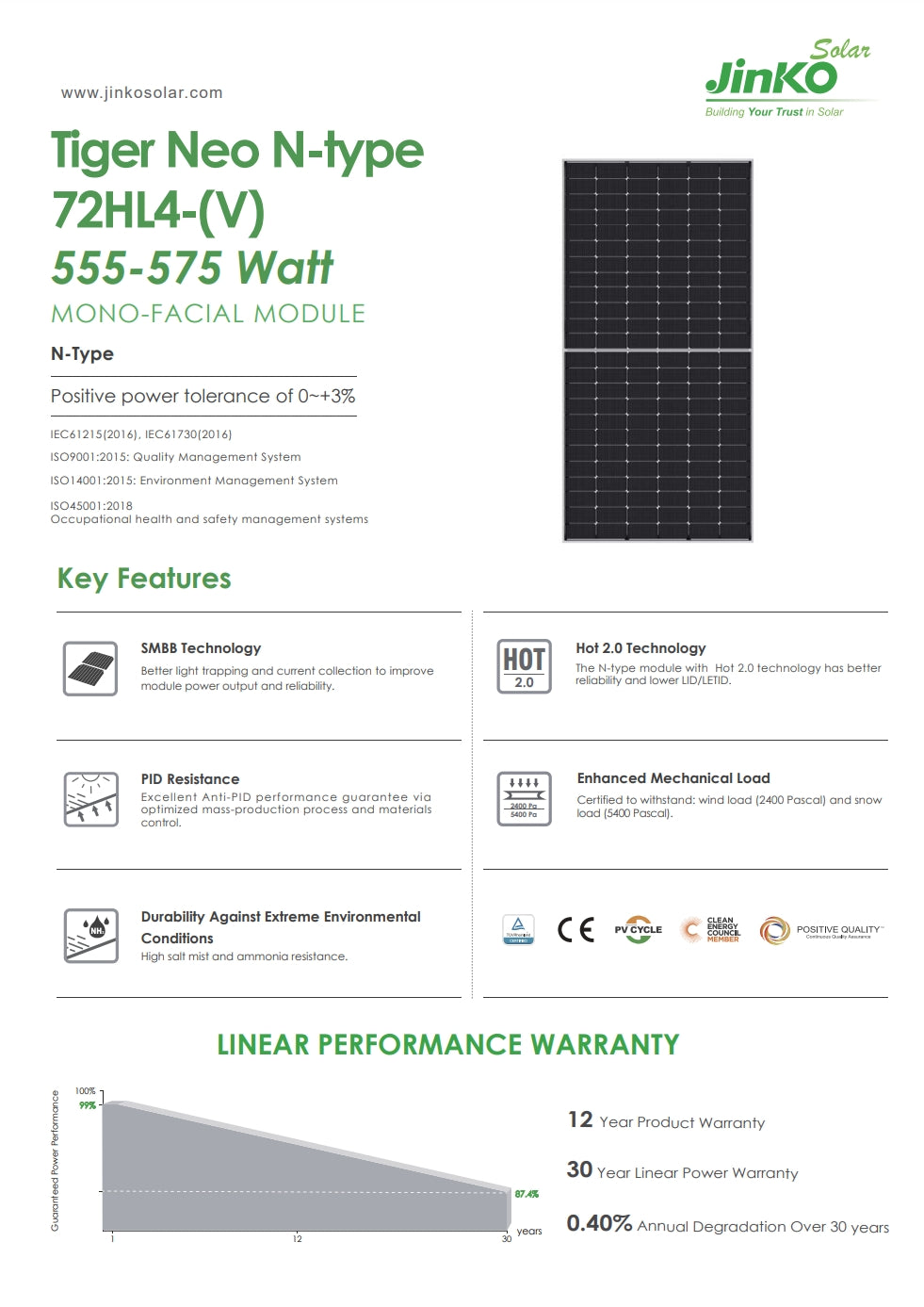

Jinko Solar: Building Your Trust in Solar. Tiger Neo N-type Mono-Facial Module (72HL4) - 555-575 Watt. Positive power tolerance of 0~+39% IEC61215/2016, IEC61730(2016), S09001.2015: Quality Management System, ISO14001.2015: Environment Management System, ISO45001.2018: Occupational Health and Safety Management Systems. Features include SMBB Technology, Hot 2.0 Technology for better light trapping and current collection to improve module power output and reliability.

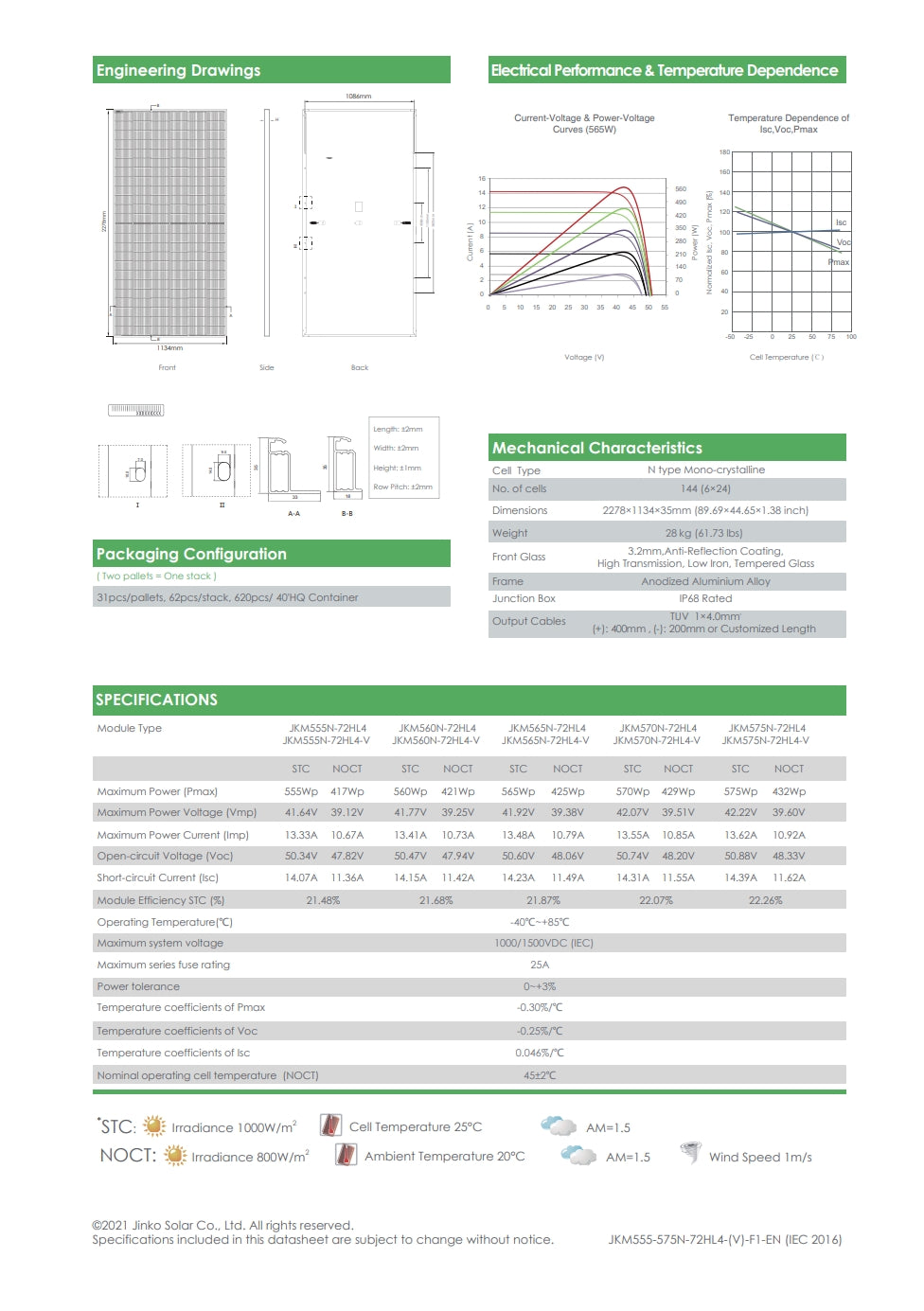

The Jinko 565 Watt Solar Panel (JKM565N-72HL4) features a Tiger Neo N-type Mono-facial Module. The module dimensions are 2278mm x 1134mm x 35mm, with a weight of 28kg (61.73 lbs). The packaging configuration includes front glass with anti-reflection coating and high transmission tempered glass. The frame is made of anodized aluminum, with 62 pieces per stack and 40HQ container capacity. The junction box has an IP68 rating and supports customized output cable lengths.
