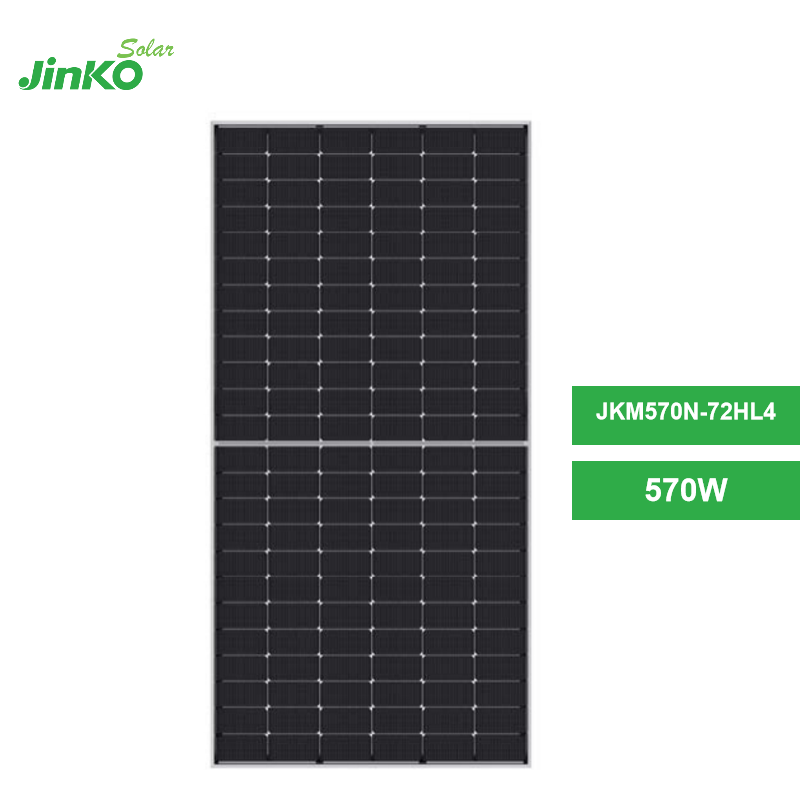

The Jinko 570W Solar Panel, part of the Tiger Neo N-type series, is a bifacial module with dual glass construction, delivering cutting-edge efficiency, durability, and enhanced energy output. With advanced N-type mono-crystalline technology, it is designed for large-scale solar projects demanding maximum performance and reliability.
Key Features
- SMBB Technology: Enhanced light trapping and current collection for improved module efficiency and output reliability.
- Hot 2.0 Technology: Delivers lower Light-Induced Degradation (LID) and Light and Elevated Temperature-Induced Degradation (LETID), ensuring long-lasting power performance.
- PID Resistance: Provides excellent Anti-Potential Induced Degradation performance through optimized production processes and materials.
- Higher Power Output: Generates 5-25% more energy than conventional panels, significantly reducing Levelized Cost of Energy (LCOE) and increasing Internal Rate of Return (IRR).
- Enhanced Mechanical Load: Certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring robustness under extreme environmental conditions.
Mechanical Characteristics
- Cell Type: N-type mono-crystalline
- Number of Cells: 144 (6×24)
- Dimensions: 2278×1134×30mm (89.69×44.65×1.18 inches)
- Weight: 32 kg (70.55 lbs)
- Front Glass: 2.0mm tempered, anti-reflection coating
- Back Glass: 2.0mm tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68 rated for superior water and dust resistance
- Cable Length: (+) 400mm, (-) 200mm (customizable lengths available)
Electrical Specifications
- Maximum Power (Pmax): 570W
- Module Efficiency (STC): 22.07%
- Open Circuit Voltage (Voc): 51.07V
- Short Circuit Current (Isc): 14.25A
- Maximum Power Voltage (Vmp): 48.52V
- Maximum Power Current (Imp): 11.50A
- Power Tolerance: 0~+3%
-
Temperature Coefficients:
- Pmax: -0.30%/°C
- Voc: -0.25%/°C
- Isc: 0.044%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500VDC (IEC)
Bifacial Output
The module features an 80±5% bifacial factor, with rear-side energy gains of up to 25% under optimal conditions. This can increase the effective power output to up to 713W, maximizing energy yield for projects with reflective surfaces.
Certifications
- IEC61215 (2016), IEC61730 (2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety)
Durability & Warranty
- 12-Year Product Warranty: Covers manufacturing defects.
- 30-Year Linear Power Warranty: Guarantees 87.4% of original performance after 30 years, with a low annual degradation rate of 0.40%.
Applications
Ideal for utility-scale and commercial installations, the Jinko 570W Solar Panel is perfect for:
- Ground-Mounted Solar Farms
- Rooftop Installations
- Floating Solar Systems
Experience premium energy efficiency, durability, and cutting-edge technology with the Jinko 570W Solar Panel. Maximize your solar potential today!

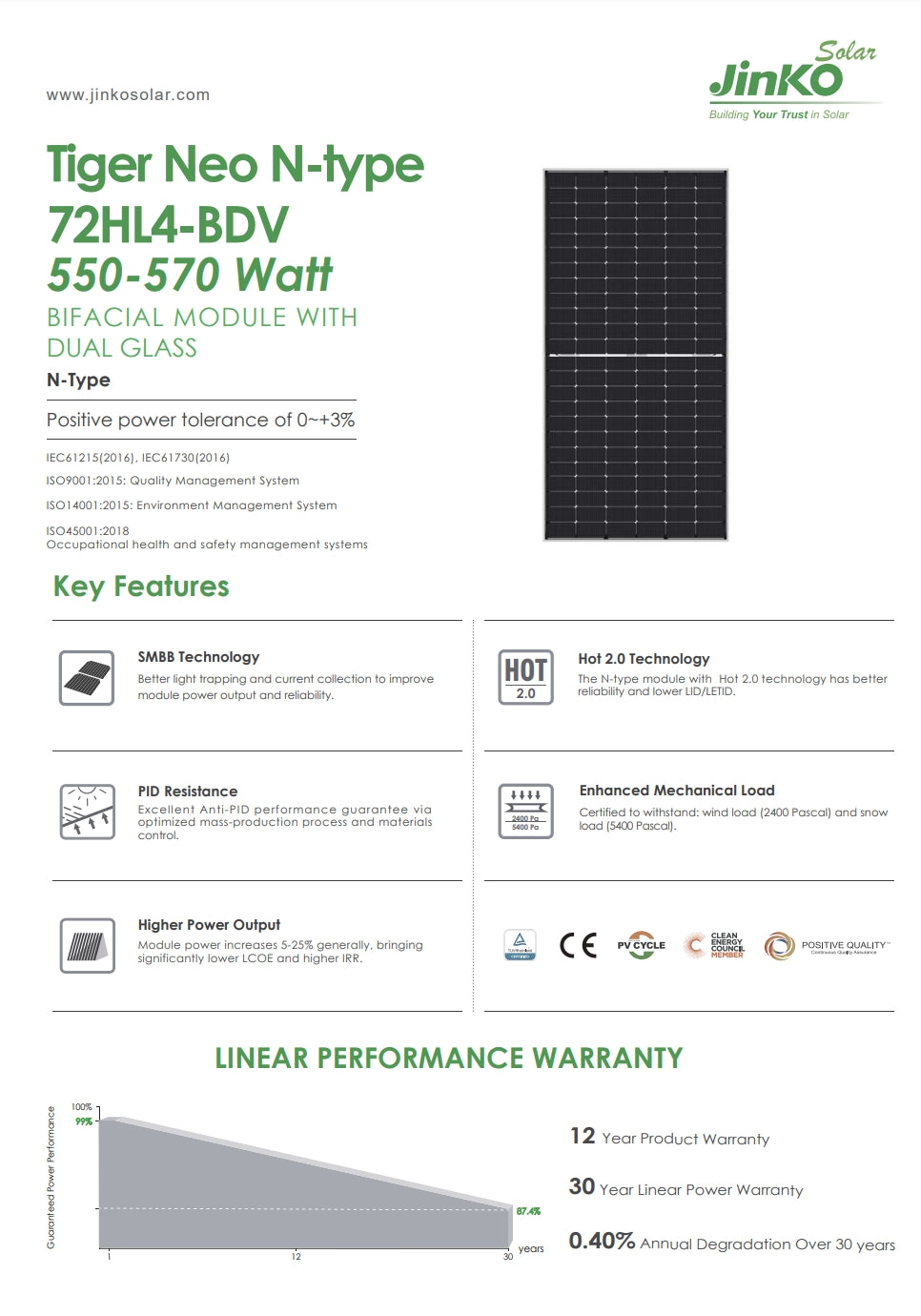

Jinko 570W Solar Panel Datasheet
The Jinko Solar Panel 570W is a high-performance module featuring SMBB technology and Hot 2.0 technology for improved power output and reliability. With an N-type design, it offers better light trapping and current collection. The module has enhanced mechanical load resistance and excellent anti-PID performance, ensuring it can withstand harsh weather conditions. Jinko optimized mass-production process and materials ensure high-quality products. The module offers a 5-25% increase in power output, reducing LCOE and increasing IRR. It comes with a 12-year product warranty and 30-year linear power warranty, with an annual degradation rate of 0.409%.

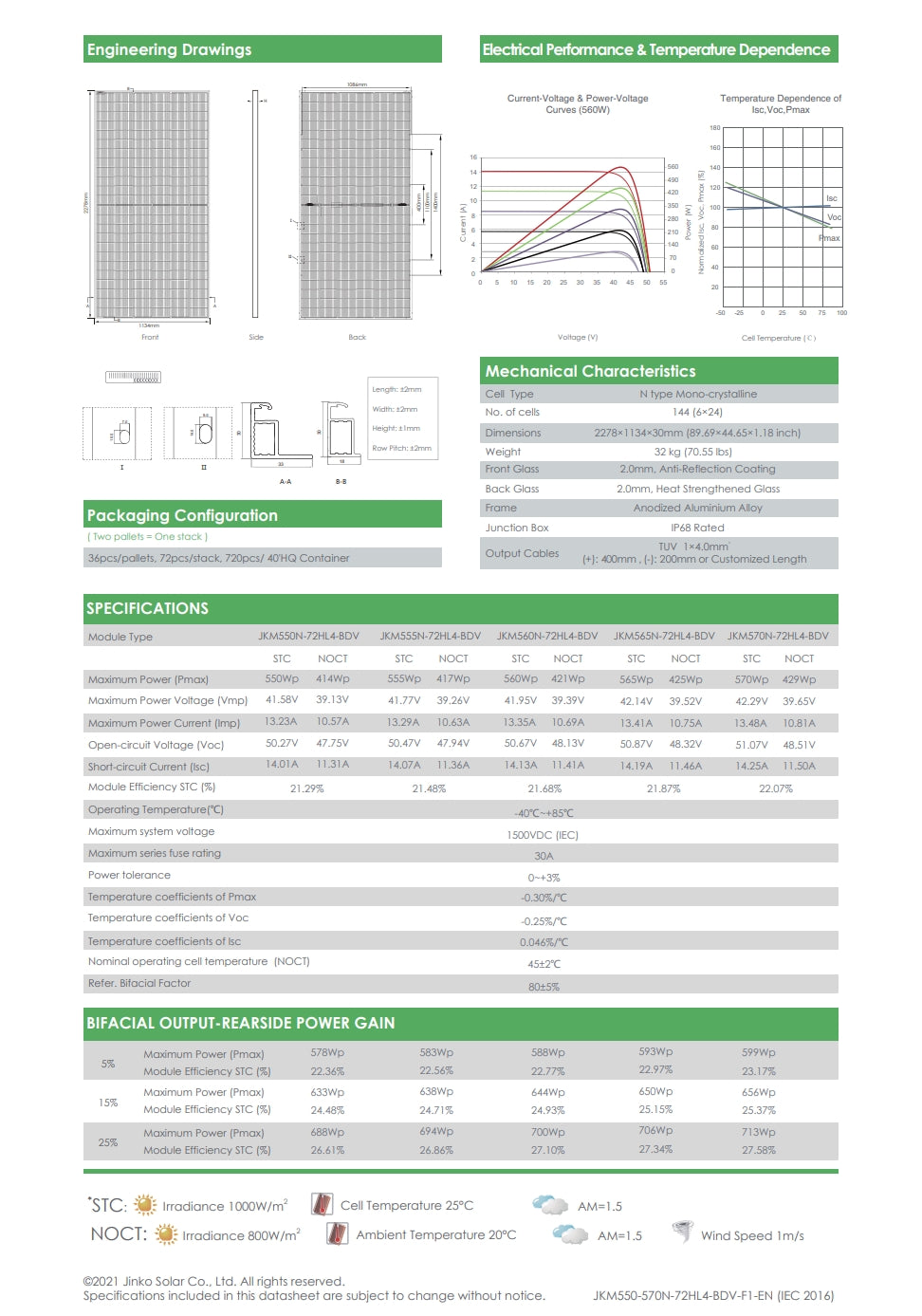

Jinko 570W Solar Panel Product Image Details ELECTRICAL PERFORMANCE & TEMPERATURE DEPENDENCE CURVES (S8OWM) ISc, Voc, Pmax, Yield Curve (Calculation) MECHANICAL CHARACTERISTICS LCOATION: Mono-crystalline NUMBER OF CELLS: 144 (6x24) DIMENSIONS: 2278 x 1134 x 30mm / 89.69 x 44.65 x 1.18 Inch WEIGHT: 32 kg (70.55 lbs) FRONT GLASS: 2Omm Anti-Reflection Coating BACK GLASS: 20mm; Heat Strengthened Glass FRAME: Anodized Aluminium Alloy PACKAGING CONFIGURATION: Junction Box IP68 Rated, Customized Length SPECIAL FEATURES: TUV 1x4 Omm 36pcs{pallets, T2pcs{stack}; T2pcsl 40HI0 Container Output Cables (+J: 400mm , (-I: 200mm)
