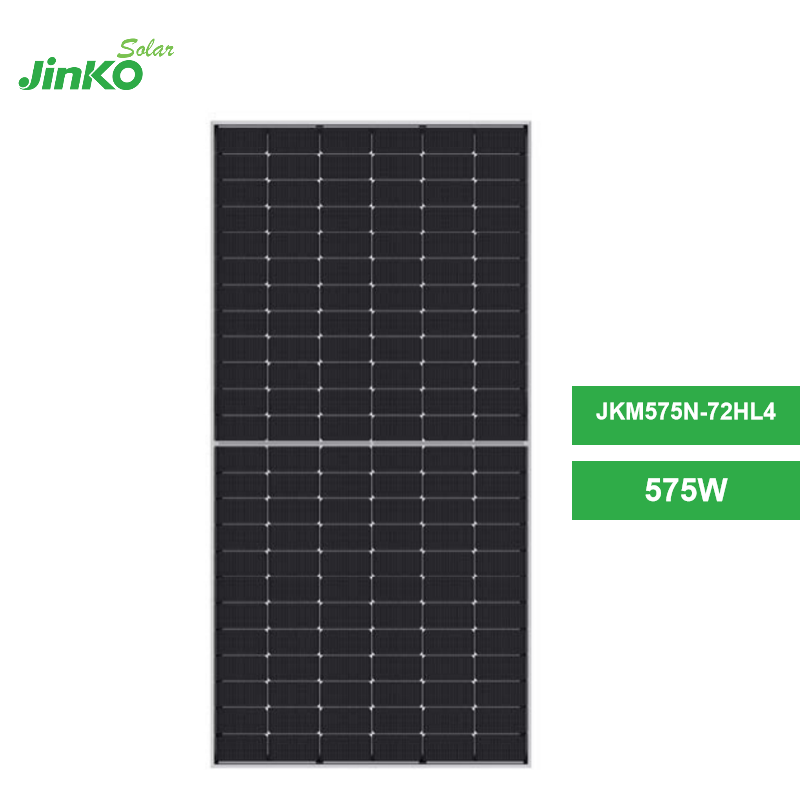

The Jinko 575 Watt Solar Panel, part of the Tiger Neo N-type Mono-Facial series, is an advanced photovoltaic module that offers exceptional efficiency, reliability, and durability. Built with cutting-edge N-type mono-crystalline technology, this solar panel is perfect for utility-scale, commercial, and residential projects demanding high energy yields and superior performance.
Key Features
- SMBB Technology: Advanced multi-busbar technology ensures efficient light trapping and enhanced current collection, improving overall reliability and energy output.
- Hot 2.0 Technology: Minimizes Light-Induced Degradation (LID) and Light and Elevated Temperature-Induced Degradation (LETID), ensuring long-lasting performance.
- PID Resistance: Anti-Potential Induced Degradation guarantees dependable operation in a variety of environmental conditions.
- Durability Against Extreme Environmental Conditions: High resistance to salt mist and ammonia makes this module ideal for coastal and agricultural installations.
- Enhanced Mechanical Load: Certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring durability in extreme weather conditions.
Mechanical Characteristics
- Cell Type: N-type Mono-crystalline
- Number of Cells: 144 (6×24)
- Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inches)
- Weight: 28 kg (61.73 lbs)
- Front Glass: 3.2mm tempered glass with anti-reflection coating
- Frame: Anodized aluminum alloy
- Junction Box: IP68 rated for exceptional protection against water and dust
- Cable Length: (+) 400mm, (-) 200mm (customizable lengths available)
Electrical Specifications
- Maximum Power (Pmax): 575W
- Module Efficiency (STC): 22.26%
- Open Circuit Voltage (Voc): 50.88V
- Short Circuit Current (Isc): 14.39A
- Maximum Power Voltage (Vmp): 49.02V
- Maximum Power Current (Imp): 11.72A
- Power Tolerance: 0~+3%
-
Temperature Coefficients:
- Pmax: -0.30%/°C
- Voc: -0.25%/°C
- Isc: 0.044%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500VDC (IEC)
Certifications
The Jinko 575 Watt Solar Panel meets the highest industry standards:
- IEC61215 (2016), IEC61730 (2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management)
Durability & Warranty
- 12-Year Product Warranty: Covers manufacturing defects.
- 30-Year Linear Power Warranty: Guarantees 87.4% of original performance after 30 years, with a low annual degradation rate of 0.40%.
Applications
The Jinko 575 Watt Solar Panel is ideal for various installations:
- Utility-Scale Solar Farms: Designed for high-performance energy generation.
- Commercial Rooftops: Maximizes energy output for businesses.
- Residential Systems: Ensures long-term reliability and efficiency for home applications.
Invest in the Jinko 575 Watt Solar Panel today and take advantage of its industry-leading efficiency, durability, and advanced features. Perfect for diverse solar projects, this module guarantees optimal performance and sustainability for years to come.

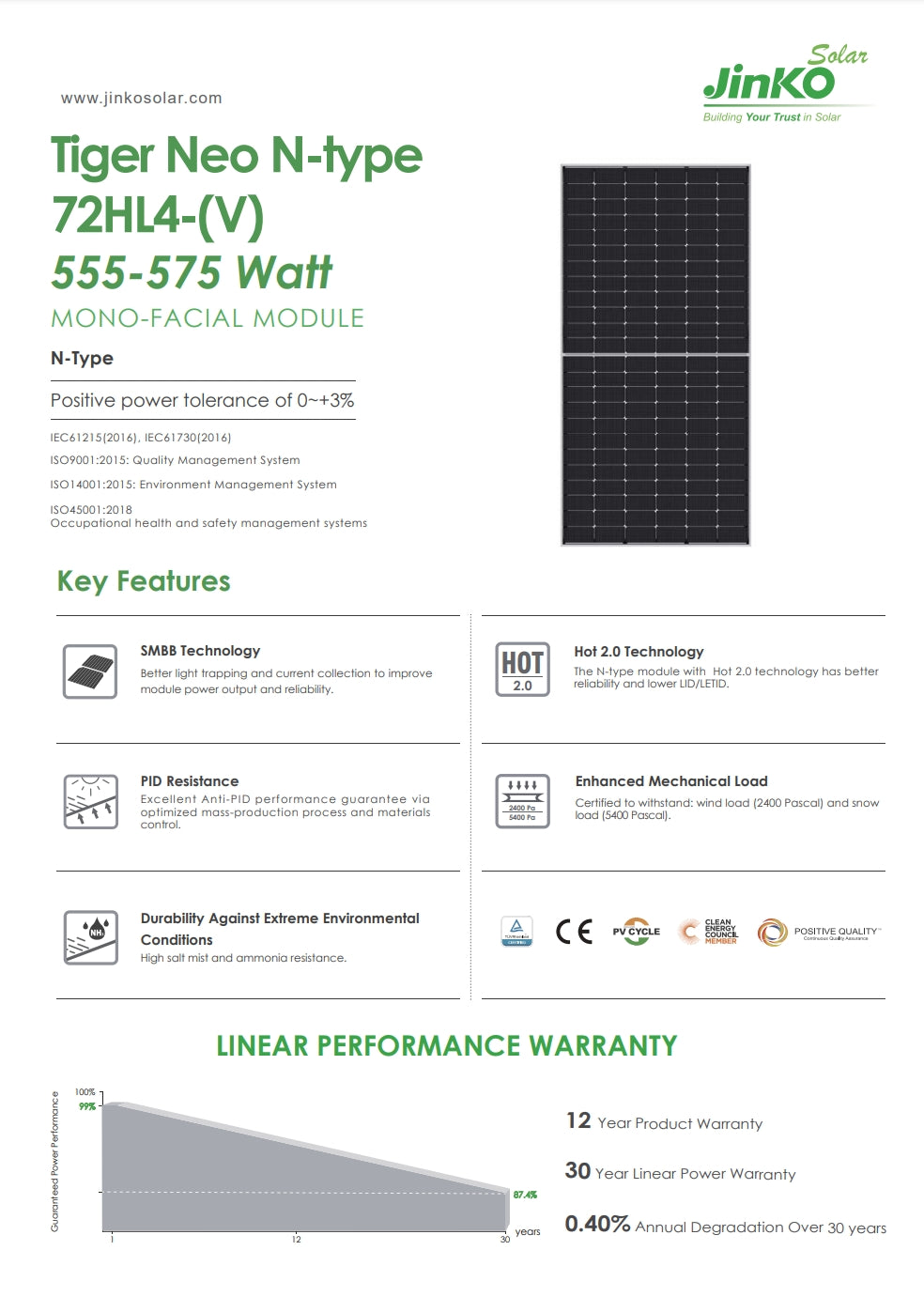

Jinko 575W Solar Panel Datasheet
Jinko Solar: Building Your Trust in Solar Tiger Neo N-type 72HL4 - (V) 575 Watt MONO-FACIAL MODULE N-Type Positive Power Tolerance of 0~+39% according to IEC61215/2016 and IEC61730(2016). ISO9001:2015, Quality Management System; ISO14001:2015, Environment Management System; OHSAS18001:2007, Occupational Health and Safety Management Systems. Features include SMBB Technology, Hot 2.0 Technology for better light trapping and current collection to improve efficiency. The N-type module with Hot 2.0 technology has better module power output and reliability, lower PID, resistance, and enhanced mechanical load. Excellent anti-PID performance guarantee via Z00 Fo certified to withstand wind load (2400 Pascal) and snow optimized mass-production process and materials. Durability Against Extreme Environmental Conditions, Pv CYCLE: Eo648 POSITIVE QUALITY High salt mist and ammonia resistance. LINEAR PERFORMANCE WARRANTY 100% for 12 years. Product Warranty: 30 Year Linear Power Warranty.

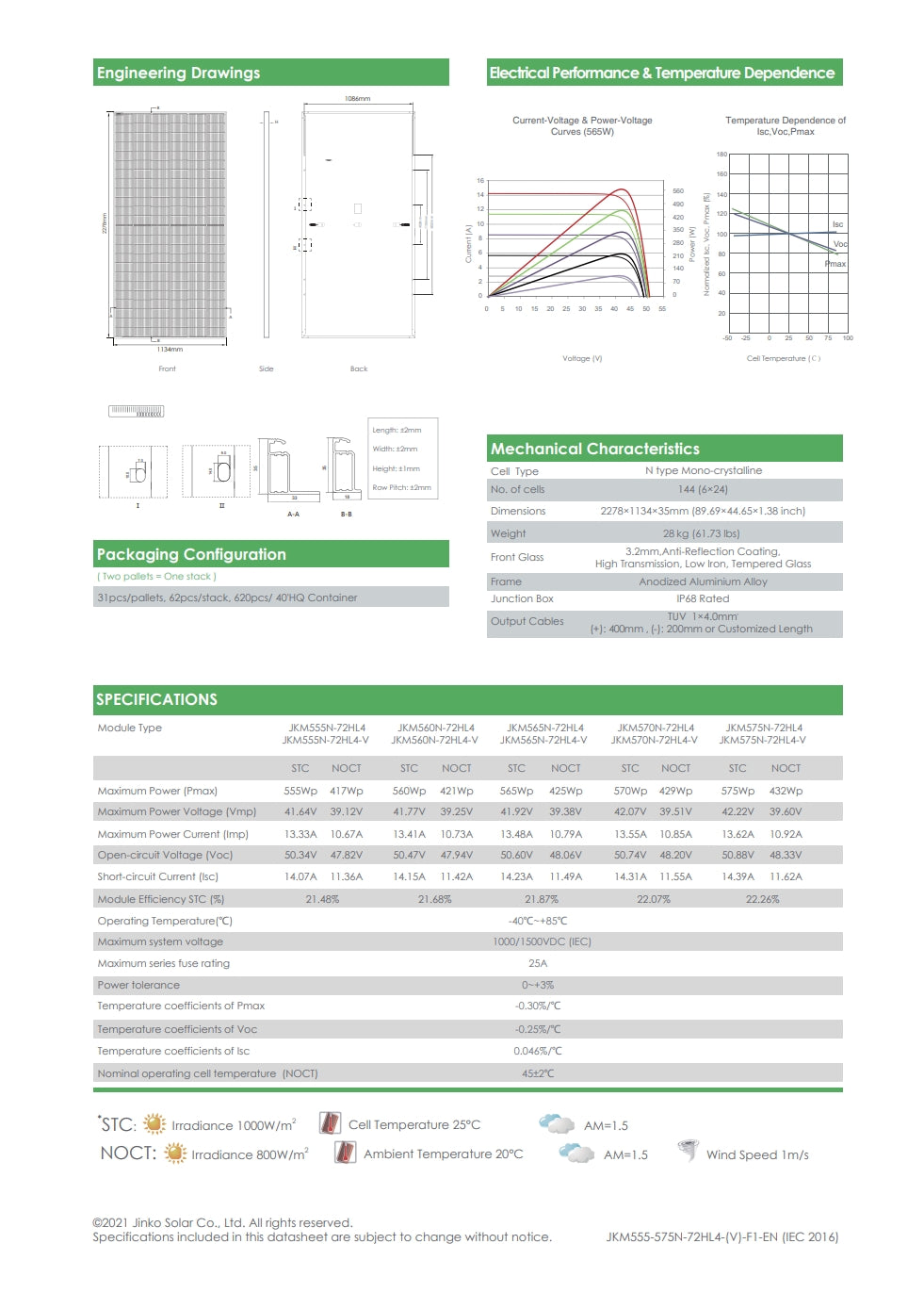

Engineering Drawings Electric Performance Temperature Dependence Current-Voltage Power-Temperature Dependence Curves. Maximum Power Voc Vimp Imp Stc Noct. Module Type Jinko Solar Co Ltd All Rights Reserved Specifications Included in this Datasheet are Subject to Change without Notice.
