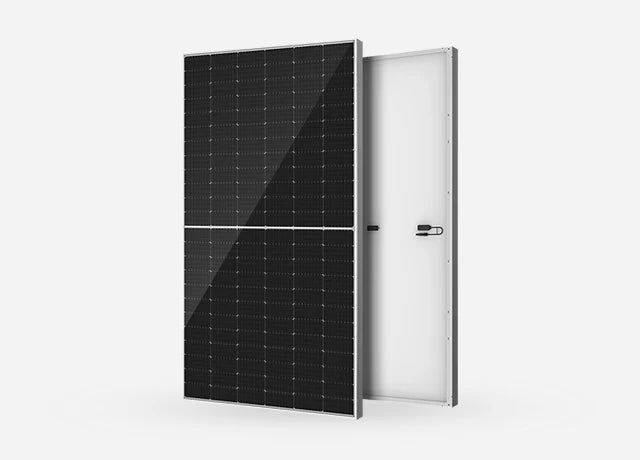

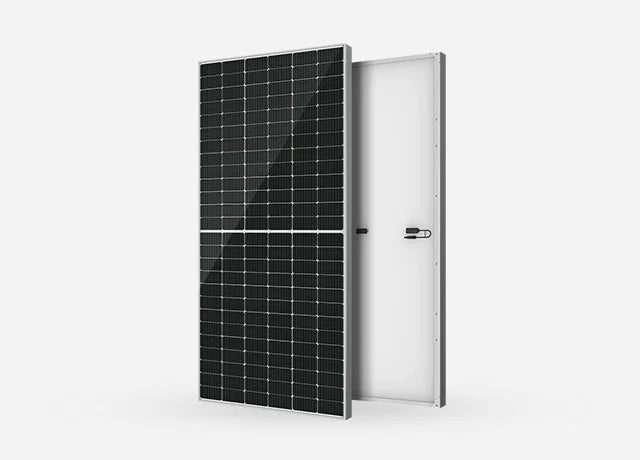

Jinko Tiger Neo 580 Watt Solar Panel Overview
The Jinko Tiger Neo 580 Watt Solar Panel is a high-efficiency, high-performance solar module designed for residential, commercial, and industrial applications. Manufactured by Jinko Solar, this panel features a cell size of 182mm x 182mm and dimensions of 2278 mm x 1134 mm x 35 mm, with a weight of 27.5 kg. The panel boasts an impressive efficiency of 22% and is certified by CE, CB, and TUV, offering a robust 25-year warranty.
Key features include SMBB Technology for better light trapping and current collection, Hot 2.0 Technology for enhanced reliability and reduced LID/LETID, and exceptional PID resistance. The panel is built with high transparency solar glass on both sides and an anodized aluminum alloy frame, rated IP68 for the junction box, ensuring durability and high mechanical load resistance (2400 Pa for wind load and 5400 Pa for snow load).
With a bifaciality factor of 70±5%, this module provides higher bifacial gain, outstanding low light performance, and optimized temperature coefficients, resulting in lower operating temperatures and optimized degradation. The Tiger Neo series also includes models with power outputs ranging from 430W to 630W, making it versatile for various power needs. Certified by TUV Nord, CE, and a member of PV Cycle and the Clean Energy Council, this panel is ideal for anyone seeking reliable, high-efficiency solar energy solutions.
Jinko Tiger Neo 580 Watt Solar Panel SPECIFICATIONS
Brand Name: Jinko
Type: Hand Tool Parts
Origin: Mainland China
Brand Name: Jinko Solar
Model Number: Tiger Neo
Place of Origin: China
Cell size: 182mmx182mm
Panel Dimensions: 2278*1134*35
Panel Efficiency: 22%
Certificate: CE / CB / TUV
Warranty: 25 YEARS
Weight: 27.5kg
Front Side Glass: High transparency solar glass 2.0mm
Back Side Glass: High transparency solar glass 2.0mm
Frame: Silver / Black, anodized aluminium alloy
Junction Box: IP68 Rated, 3 Diodes
Cable: 4.0mm2, Portrait: 300mm / Landscape: 1200mm
Wind/Snow Load: 2400Pa/5400Pa
Connector: MC Compatible
Application: Residencial,Commercial & Industry
Bifaciality: 70±5%
2. At the same time, AliExpress official logistics only in the form of express delivery, but such large goods through express transportation, freight will be very expensive, we stand in the customer's point of view, this is very uneconomical, so our delivery channel is not express, but cargo agent, so the actual logistics information and AliExpress platform display does not match! Thanks for understanding!
For inquiries about product information and actual freight and post-logistics inquiries, please contact us
Mobile: +86 15814759156

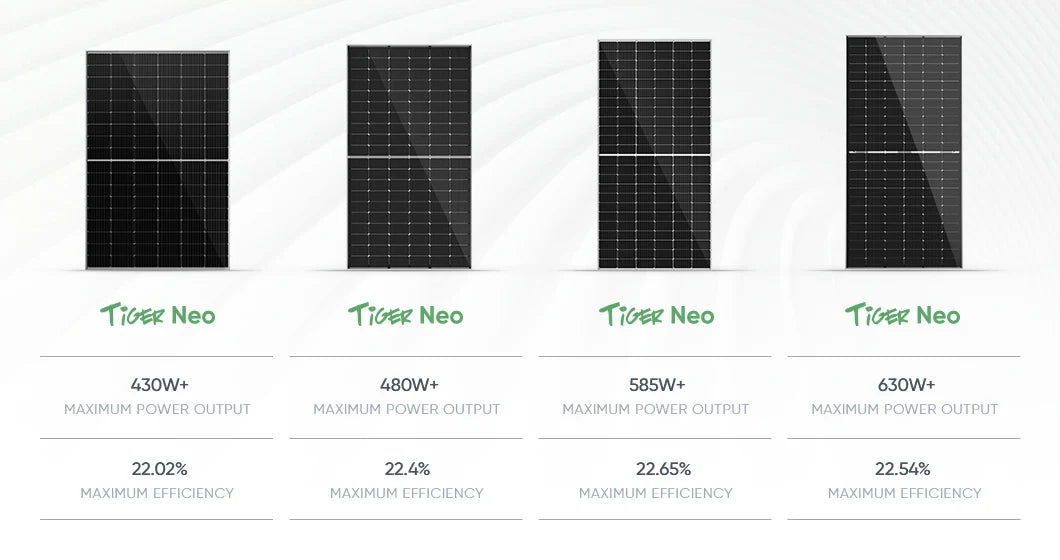

Introducing Jinko Tiger Neo, the next generation of ultra-high power solar modules, featuring maximum 630W output, 22.54% high efficiency, and in-stock availability for immediate pickup or door-to-door delivery. As an authorized Jinko distributor, we offer factory direct sales at the lowest price.
-
Tiger Neo 430W+
- Maximum Power Output: 430W+
- Maximum Efficiency: 22.02%
-
Tiger Neo 480W+
- Maximum Power Output: 480W+
- Maximum Efficiency: 22.4%
-
Tiger Neo 585W+
- Maximum Power Output: 585W+
- Maximum Efficiency: 22.65%
-
Tiger Neo 630W+
- Maximum Power Output: 630W+
- Maximum Efficiency: 22.54%
Key Features
-
SMBB Technology
- Better light trapping and current collection to improve module power output and reliability.
-
Hot 2.0 Technology
- The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
-
PID Resistance
- Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
-
Enhanced Mechanical Load
- Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
-
Higher Power Output
- Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
Certifications and Memberships
- TUV Nord certification
- CE certification
- PV Cycle member
- Clean Energy Council member
- Positive Quality assurance

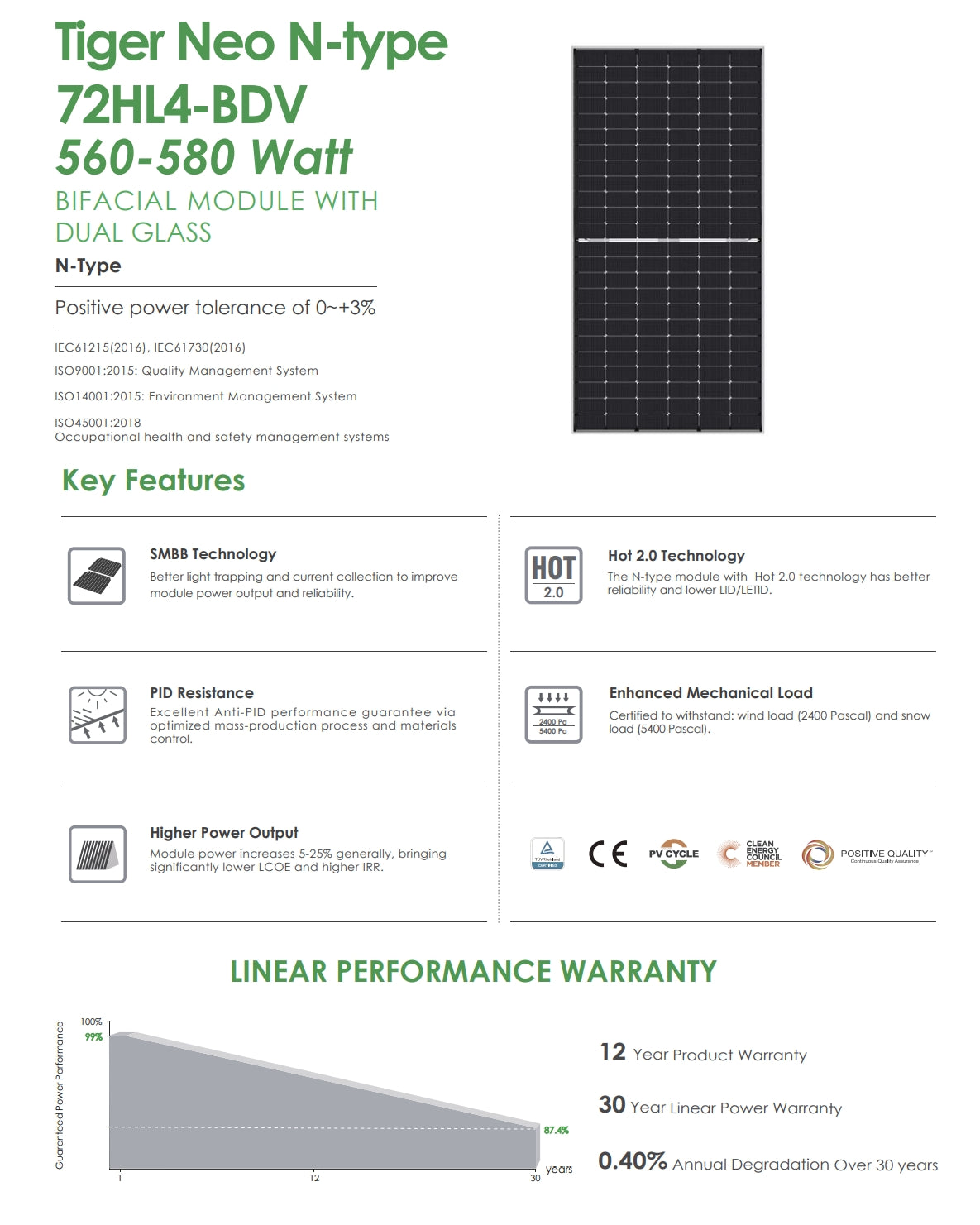

Jinko Tiger Neo 580 Watt Solar Panel Wholesale, featuring engineering drawings, electrical performance, and temperature dependence data, including current-voltage power-voltage temperature dependence curves, mechanical characteristics, and specifications such as module type, maximum power, voltage, and current, short-circuit current, open-circuit voltage, operating temperature, maximum system voltage, and more.

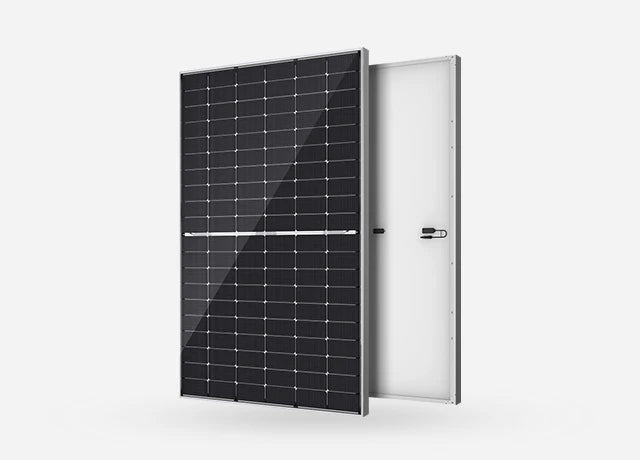

| Specification | JKM560N-72HL4-BDV | JKM565N-72HL4-BDV | JKM570N-72HL4-BDV | JKM575N-72HL4-BDV | JKM580N-72HL4-BDV |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | STC: 560Wp, NOCT: 421Wp | STC: 565Wp, NOCT: 425Wp | STC: 570Wp, NOCT: 429Wp | STC: 575Wp, NOCT: 432Wp | STC: 580Wp, NOCT: 436Wp |
| Maximum Power Voltage (Vmp) | STC: 41.95V, NOCT: 39.39V | STC: 42.14V, NOCT: 39.52V | STC: 42.29V, NOCT: 39.65V | STC: 42.44V, NOCT: 39.78V | STC: 42.59V, NOCT: 39.87V |
| Maximum Power Current (Imp) | STC: 13.35A, NOCT: 10.69A | STC: 13.41A, NOCT: 10.75A | STC: 13.48A, NOCT: 10.81A | STC: 13.55A, NOCT: 10.87A | STC: 13.62A, NOCT: 10.94A |
| Open-circuit Voltage (Voc) | STC: 50.67V, NOCT: 48.13V | STC: 50.87V, NOCT: 48.32V | STC: 51.07V, NOCT: 48.51V | STC: 51.27V, NOCT: 48.70V | STC: 51.47V, NOCT: 48.89V |
| Short-circuit Current (Isc) | STC: 14.13A, NOCT: 11.41A | STC: 14.19A, NOCT: 11.46A | STC: 14.25A, NOCT: 11.50A | STC: 14.31A, NOCT: 11.55A | STC: 14.37A, NOCT: 11.60A |
| Module Efficiency STC (%) | 21.68% | 21.87% | 22.07% | 22.26% | 22.45% |
| Operating Temperature (°C) | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C |
| Maximum system voltage | 1500VDC (IEC) | 1500VDC (IEC) | 1500VDC (IEC) | 1500VDC (IEC) | 1500VDC (IEC) |
| Maximum series fuse rating | 30A | 30A | 30A | 30A | 30A |
| Power tolerance | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% |
| Temperature coefficients of Pmax | -0.30%/°C | -0.30%/°C | -0.30%/°C | -0.30%/°C | -0.30%/°C |
| Temperature coefficients of Voc | -0.25%/°C | -0.25%/°C | -0.25%/°C | -0.25%/°C | -0.25%/°C |
| Temperature coefficients of Isc | 0.046%/°C | 0.046%/°C | 0.046%/°C | 0.046%/°C | 0.046%/°C |
| Nominal operating cell temperature (NOCT) | 45±2°C | 45±2°C | 45±2°C | 45±2°C | 45±2°C |
| Refer. Bifacial Factor | 80±5% | 80±5% | 80±5% | 80±5% | 80±5% |

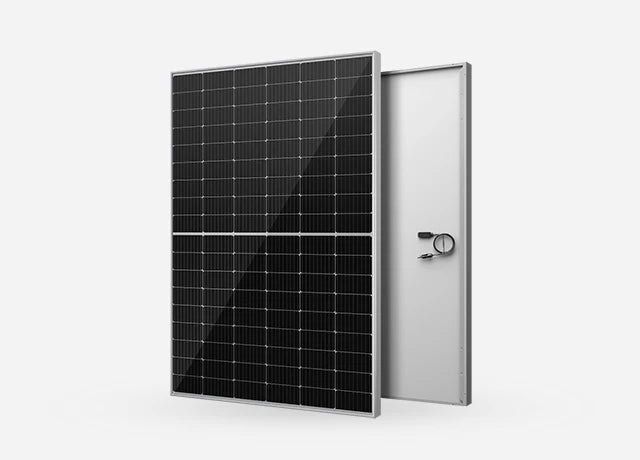

Boosted power and efficiency, enhanced bifacial gain, and improved reliability, with low LID, LET, and high compatibility, optimized temperature coefficient, lower operating temp, and exceptional degradation and low light performance, plus robust PID resistance.
- Ultra-high Power Generation / Ultra-high Efficiency
- Higher Bifacial Gain
- Enhanced Reliability
- Lower LID / LETID
- High Compatibility
- Optimized Temperature Coefficient
- Lower Operating Temperature
- Optimized Degradation
- Outstanding Low Light Performance
- Exceptional PID Resistance
Power Range: 410-430W
Dimension: 1722×1134×30 mm
Weight: 22 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Power Range: 460-480W
Dimension: 1903×1134×30mm
Weight: 24.2 kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Power Range: 565-585W
Dimension: 2278×1134×35mm
Weight: 28 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Power Range: 610-630W
Dimension: 2465×1134×35mm
Weight: 30.6 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Wholesale Jinko Tiger Neo 580W Solar Panel, Made in China by Jinko Xs Int'l Photo Voltaic Module. Type JKMAOOM-72H-V, with nominal power voltage 25V and maximum current 10.614445A, suitable for open circuit voltage 36.6V and short-circuit current 7C.
SunEvo, as a world-class solar products manufacturer, specializes in research, development, production, and sales of solar PV products, having achieved significant milestones since its foundation in 2011.
Stringent quality control is key to our manufacturing process, including solar cell string testing, appearance inspection, and final output power testing for ensured product reliability.
Jinko Tiger Neo solar panel meets international quality and safety standards, certified by IOL, SunEvo Solar, ISO9001, ISO14001, CE, TUV, UL, CI, Ee, FL, C€, and INMETRO.
Jinko Tiger Neo 580W solar panel with OEM and ODM professional services for your brand, featuring laminated logo, barcode, product label, and datasheet, complete with marketing materials from SunevG.
