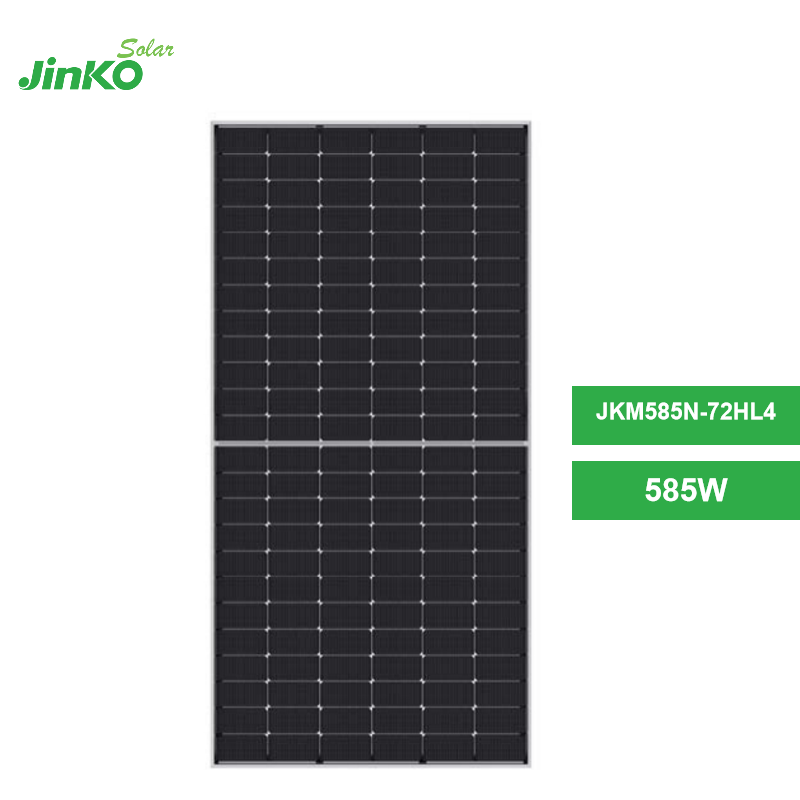

The Jinko 585W Solar Panel, part of the Tiger Neo N-type Mono-Facial series, combines cutting-edge N-type mono-crystalline technology with high-performance features. Designed to maximize energy output and reliability, it is ideal for utility-scale, commercial, and residential applications.
Key Features
- SMBB Technology: Superior Multi-Busbar design enhances light trapping and current collection for improved module efficiency and reliability.
- Hot 2.0 Technology: Reduces Light-Induced Degradation (LID) and Light and Elevated Temperature-Induced Degradation (LETID), ensuring consistent performance over time.
- PID Resistance: Anti-Potential Induced Degradation guarantees long-term stability in diverse environmental conditions.
- Durability Against Extreme Environmental Conditions: With high resistance to salt mist and ammonia, this module is ideal for installations in coastal and agricultural regions.
- Enhanced Mechanical Load: Certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring durability in extreme weather conditions.
Jinko Solar 585 Watt Specifications
Mechanical Characteristics
- Cell Type: N-type Mono-crystalline
- Number of Cells: 144 (6×24)
- Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inches)
- Weight: 28 kg (61.73 lbs)
- Front Glass: 3.2mm tempered, anti-reflection coated glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68 rated for exceptional water and dust resistance
- Cable Length: (+) 400mm, (-) 200mm (customizable lengths available)
Electrical Specifications
- Maximum Power (Pmax): 585W
- Module Efficiency (STC): 22.65%
- Open Circuit Voltage (Voc): 51.50V
- Short Circuit Current (Isc): 14.68A
- Maximum Power Voltage (Vmp): 49.35V
- Maximum Power Current (Imp): 11.85A
- Power Tolerance: 0~+3%
-
Temperature Coefficients:
- Pmax: -0.30%/°C
- Voc: -0.25%/°C
- Isc: 0.045%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500VDC (IEC)
Certifications
The Jinko 585W Solar Panel meets the highest industry standards:
- IEC61215 (2016), IEC61730 (2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management)
Warranty & Durability
- 12-Year Product Warranty: Covers manufacturing defects.
- 30-Year Linear Power Warranty: Guarantees 87.4% of original performance after 30 years, with an industry-leading annual degradation rate of 0.40%.
Applications
The Jinko 585W Solar Panel is an ideal solution for a variety of applications, including:
- Utility-Scale Projects: Designed for large solar farms demanding high efficiency.
- Commercial Rooftop Systems: Suitable for businesses with high energy needs.
- Residential Installations: A dependable choice for homes aiming to reduce energy costs.
Leverage the Jinko 585W Solar Panel for its superior efficiency, innovative technology, and robust durability. Whether for utility-scale or residential projects, this module ensures maximum energy production and long-term performance.
Jinko 585W Solar Panel Datasheet

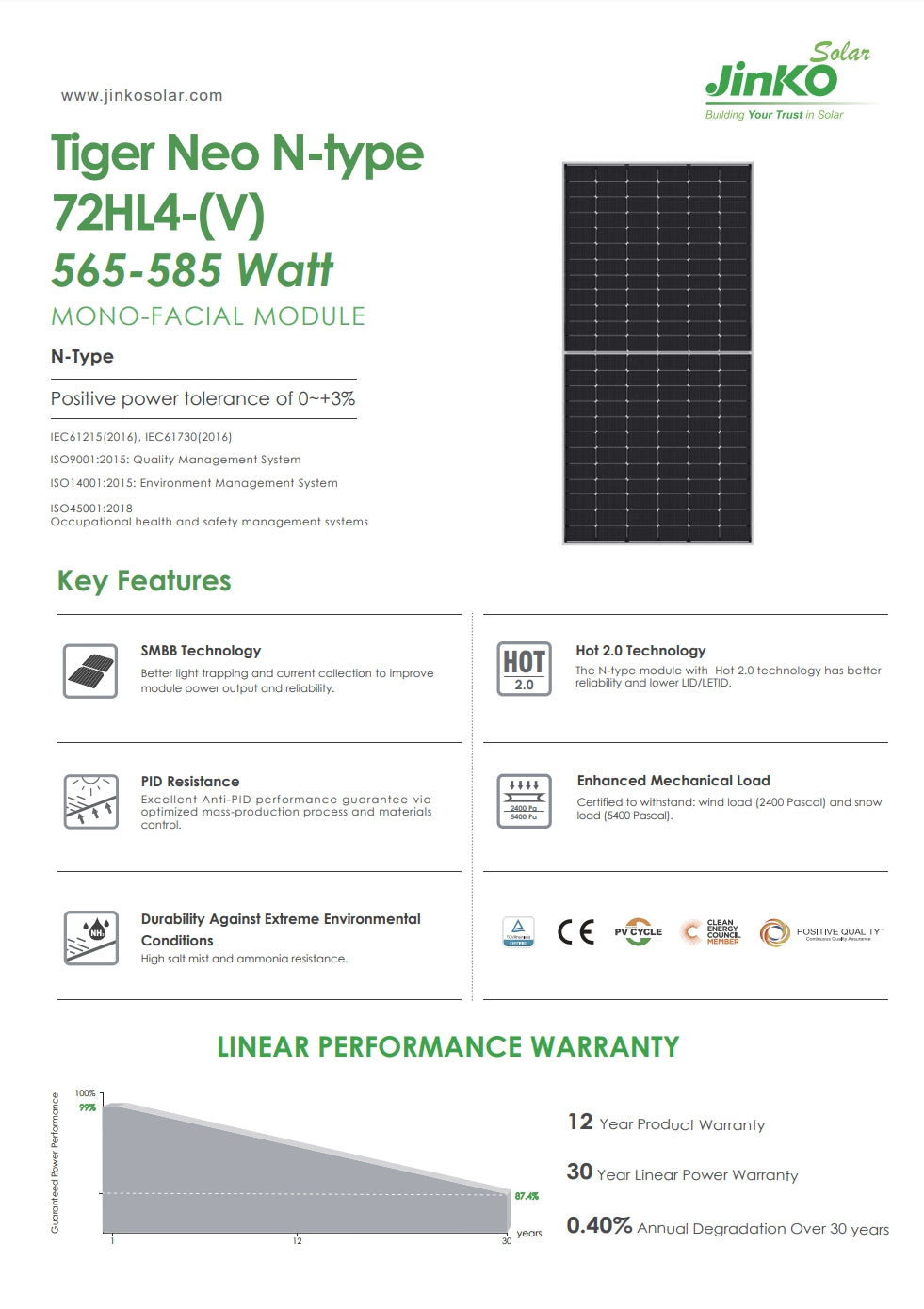

Jinko Solar Panel (JKM585N-72HL4, Tiger Neo N-type Mono-Facial Module) - Build Trust in Solar with Jinko. This module features SMBB Technology, Hot 2.0 Technology for better light trapping and current collection to improve energy output. The N-type module with Hot 2.0 technology offers improved power output and reliability, lower LID and PID resistance, and enhanced mechanical load. It is certified to withstand extreme environmental conditions including wind (2400 Pa) and snow (5400 Pa). The optimized manufacturing process and materials ensure durability against high salt mist and ammonia resistance.

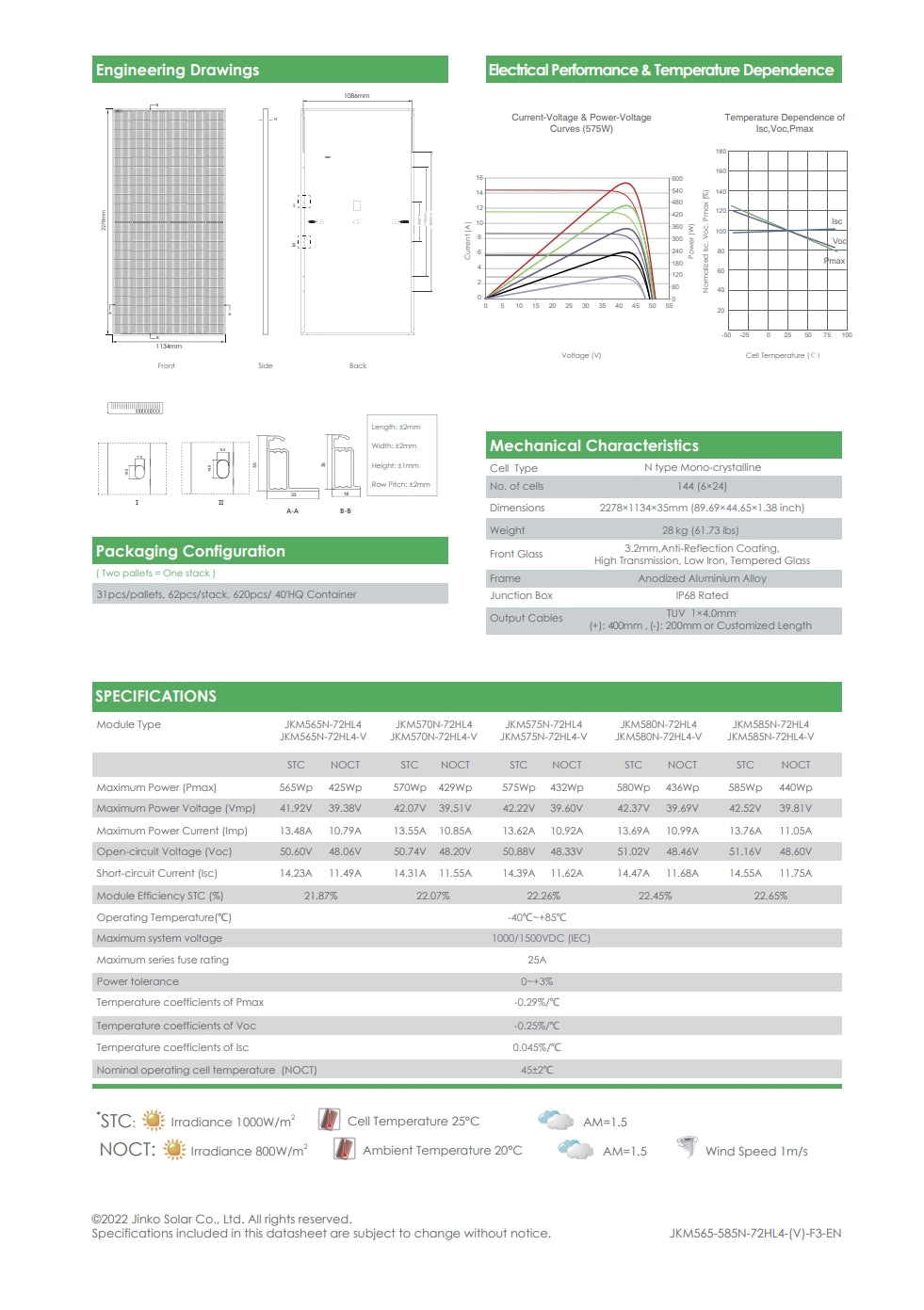

Engineering Drawings, Electrical Performance & Temperature Dependence: Current-Voltage, Power-Voltage, Temperature Dependence Curve (575W, Isc: 11.54A, Voc: 42.22V, Pmax: 432W)... Mechanical Characteristics: HCL Half-Cell Type: N-Type Mono-Crystalline Row Pitch: LITNC No. 0I Cells: 144 (6*24) Dimensions: 2278mm * 1134mm * 35mm / 89.69inch * 44.65inch * 1.38inch Weight: 28kg [61.73lbs] Packaging Configuration: Front Glass: 3.2mm Anti-Reflection Coating, High Transmission LO Tempered Glass; Two Polycrystals per Stack | Frame: Anodized Aluminium Alloy; 31 pieces/pallets; 62 pieces/stack; 620 pieces/40HQ Container Junction Box: IP68 Rated, Output Cables: 4mm * 2omm, Customized Length (SPECIFICATIONS)
