Jinko 590 Watt Solar Panel (JKM590N-78HL4-BDV, Tiger Neo N-type Bifacial Module with Dual Glass)
The Jinko 590 Watt Solar Panel, part of the Tiger Neo N-type series, is an innovative bifacial module designed with dual glass technology for optimal durability and enhanced energy production. Utilizing N-type mono-crystalline cells, this high-performance solar panel is ideal for large-scale solar projects and environments requiring maximum efficiency.
Jinko Solar 590W Key Features
- SMBB Technology: Enhanced Multi-Busbar design improves light trapping and current collection, boosting efficiency and reliability.
- Hot 2.0 Technology: Reduces Light-Induced Degradation (LID) and Light and Elevated Temperature-Induced Degradation (LETID), ensuring consistent performance over time.
- PID Resistance: Advanced Anti-Potential Induced Degradation features ensure long-term stability across diverse environmental conditions.
- Higher Power Output: Generates up to 25% more energy compared to standard modules, reducing Levelized Cost of Energy (LCOE) and increasing Internal Rate of Return (IRR).
- Enhanced Mechanical Load: Certified to endure wind loads of 2400 Pascal and snow loads of 5400 Pascal for reliable performance in extreme climates.
Jinko 590W Solar Panel Specifications
Mechanical Characteristics
- Cell Type: N-type Mono-crystalline
- Number of Cells: 156 (2×78)
- Dimensions: 2465×1134×35mm (97.05×44.65×1.38 inches)
- Weight: 34.6 kg (76.28 lbs)
- Front Glass: 2.0mm tempered, anti-reflection coating
- Back Glass: 2.0mm tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68 rated for excellent protection against water and dust
- Cable Length: (+) 400mm, (-) 200mm (customizable lengths available)
Electrical Specifications
- Maximum Power (Pmax): 590W
- Module Efficiency (STC): 21.11%
- Open Circuit Voltage (Voc): 54.76V
- Short Circuit Current (Isc): 13.71A
- Maximum Power Voltage (Vmp): 41.89V
- Maximum Power Current (Imp): 13.14A
- Power Tolerance: 0~+3%
-
Temperature Coefficients:
- Pmax: -0.30%/°C
- Voc: -0.25%/°C
- Isc: 0.044%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500VDC (IEC)
Bifacial Output
The Jinko 590 Watt Solar Panel features an 80±5% bifacial factor, with rear-side energy gains of up to 25%. This increases the effective output power to 738W under optimal conditions, maximizing overall energy production.
Certifications
- IEC61215 (2016), IEC61730 (2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management)
Warranty & Durability
- 12-Year Product Warranty: Covers manufacturing defects.
- 30-Year Linear Power Warranty: Guarantees 87.4% of original performance after 30 years, with an industry-leading annual degradation rate of 0.40%.
Applications
This module is versatile and suited for:
- Utility-Scale Solar Farms: Maximizes energy generation and cost-effectiveness.
- Commercial Installations: Ideal for large-scale rooftop projects.
- Floating Solar Systems: Delivers high efficiency in aquatic environments.
Invest in the Jinko 590 Watt Solar Panel for its industry-leading performance, durability, and advanced bifacial technology. Perfect for various applications, this panel ensures reliable energy production and long-term sustainability.

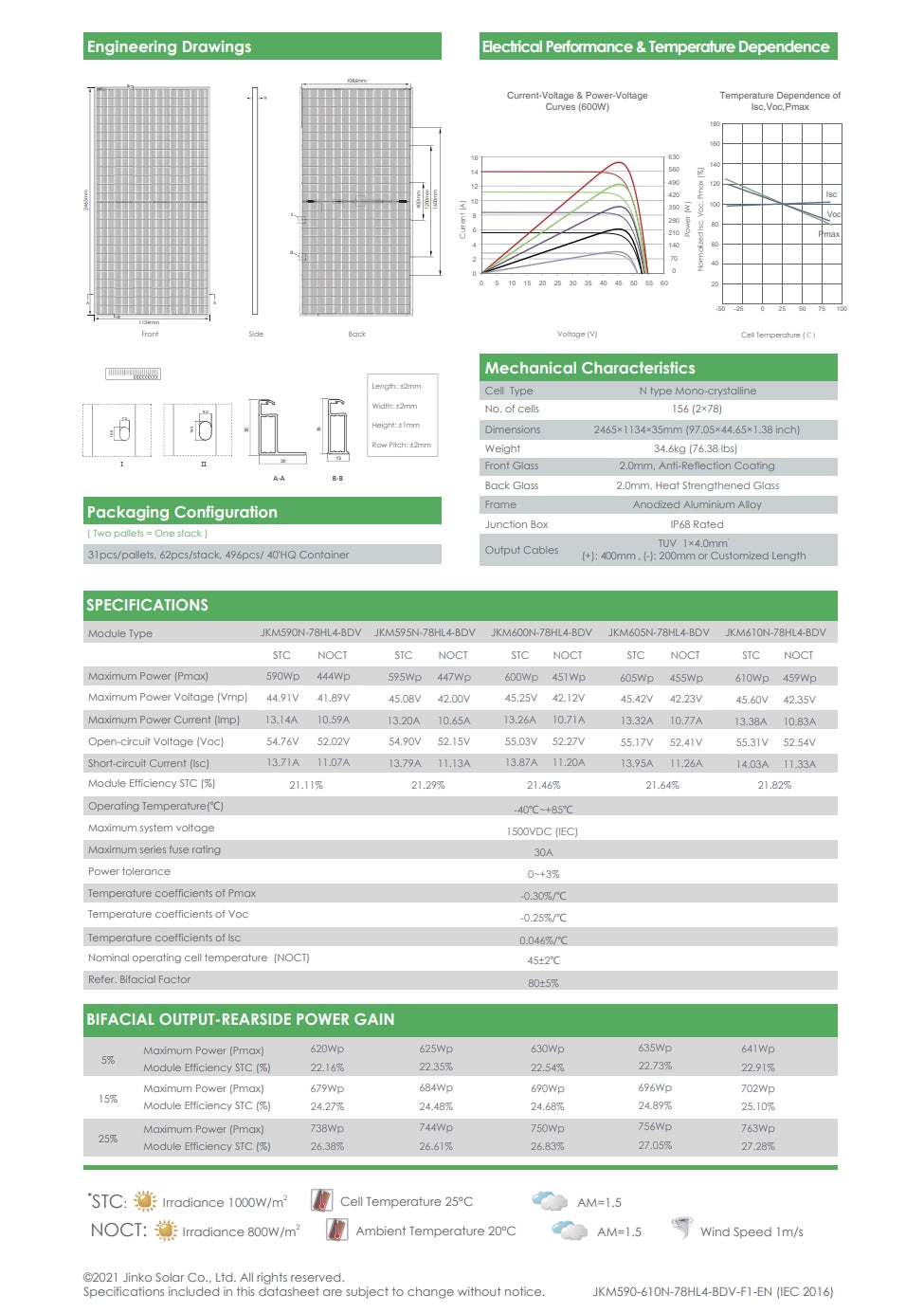

Jinko 590W Datasheet

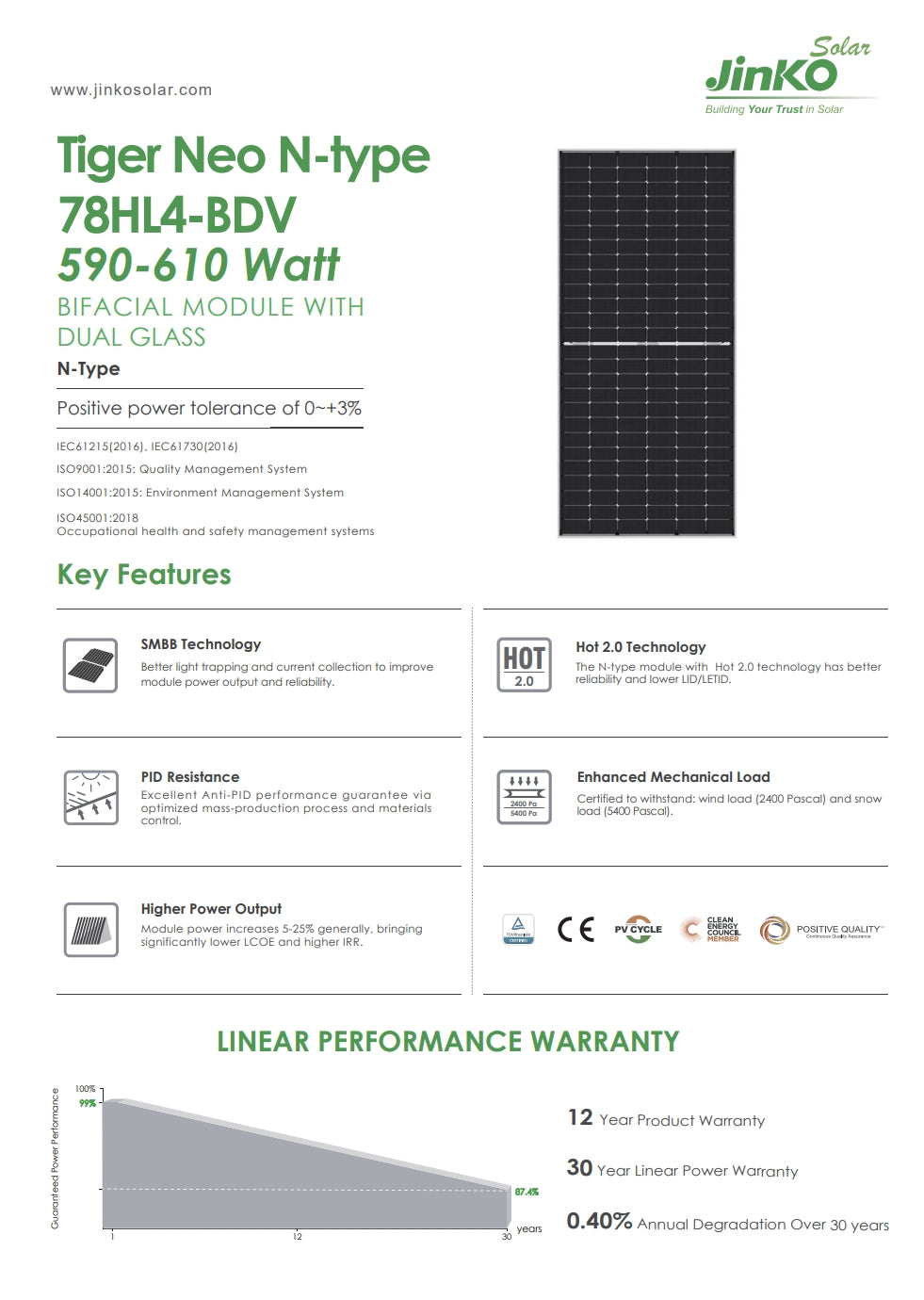

The Jinko Tiger Neo N-type 590-610 Watt Bifacial Module with Dual Glass features Positive power tolerance of 0~+3%. It has SMBB Technology, Hot 2.0 Technology, and improved light trapping and current collection to enhance module power output and reliability. The module also boasts PID Resistance, Enhanced Mechanical Load, and Anti-PID performance guarantee via OSHA certification. This results in higher wind load (2400 Pascal) and snow optimized mass-production process and materials tolerance. The product features a 12-year product warranty and a 30-year linear power warranty with an annual degradation rate of 0.407% over 30 years.
Jinko Solar Co., Ltd. presents the JKMSQON-78HL4-BDV solar panel module. This product features a maximum power output of 590W, with an operating temperature range of -40°C to +85°C. The electrical performance includes an open-circuit voltage (Voc) of 54.76V and a short-circuit current (Isc) of 13.71A. The module efficiency is rated at STC, with a maximum power tolerance of ±0%. The product dimensions are 2465mm x 1134mm x 35mm, weighing approximately 34kg. Packaging includes an IP68-rated junction box and customized length output cables.
