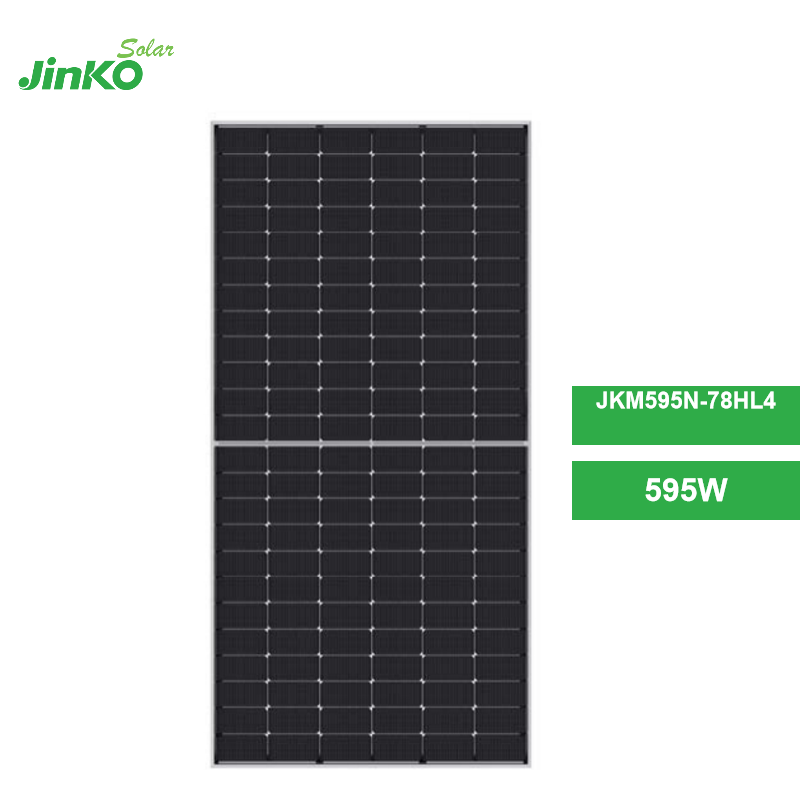

The Jinko 595 Watt Solar Panel, part of the Tiger Neo N-type Mono-Facial series, is a cutting-edge photovoltaic solution designed for maximum efficiency and durability. Built with N-type mono-crystalline technology, it delivers exceptional performance for utility-scale, commercial, and residential projects.
Jinko Solar 595W Key Features
- SMBB Technology: Advanced Multi-Busbar (SMBB) technology enhances light trapping and current collection, significantly boosting module efficiency and output reliability.
- Hot 2.0 Technology: Reduces Light-Induced Degradation (LID) and Light and Elevated Temperature-Induced Degradation (LETID), ensuring stable performance over time.
- PID Resistance: Provides robust Anti-Potential Induced Degradation performance to guarantee reliable operation in diverse environments.
- Durability Against Extreme Environmental Conditions: High resistance to salt mist and ammonia makes this module suitable for coastal and agricultural installations.
- Enhanced Mechanical Load: Certified to endure wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring durability in extreme climates.
Jinko 595W Solar Panel Specifications
Mechanical Characteristics
- Cell Type: N-type Mono-crystalline
- Number of Cells: 156 (2×78)
- Dimensions: 2465×1134×35mm (97.05×44.65×1.38 inches)
- Weight: 30.6 kg (67.46 lbs)
- Front Glass: 3.2mm tempered, anti-reflection coated glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68 rated for water and dust resistance
- Cable Length: (+) 400mm, (-) 200mm (customizable lengths available)
Electrical Specifications
- Maximum Power (Pmax): 595W
- Module Efficiency (STC): 21.29%
- Open Circuit Voltage (Voc): 54.80V
- Short Circuit Current (Isc): 13.90A
- Maximum Power Voltage (Vmp): 45.29V
- Maximum Power Current (Imp): 13.14A
- Power Tolerance: 0~+3%
-
Temperature Coefficients:
- Pmax: -0.30%/°C
- Voc: -0.25%/°C
- Isc: 0.044%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1500VDC (IEC)
Certifications
- IEC61215 (2016), IEC61730 (2016)
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety Management)
Durability & Warranty
- 12-Year Product Warranty: Covers manufacturing defects.
- 30-Year Linear Power Warranty: Guarantees 87.4% of original performance after 30 years, with a low annual degradation rate of 0.40%.
Applications
This high-efficiency panel is ideal for:
- Utility-Scale Solar Farms: Maximizes energy production with a high module output.
- Commercial Rooftops: Delivers consistent energy yields for large-scale applications.
- Residential Systems: Provides long-term, reliable energy for home use.
Leverage the Jinko 595 Watt Solar Panel to achieve industry-leading efficiency, durability, and performance. Whether for large-scale solar farms or residential installations, this module is a top choice for sustainable energy solutions.

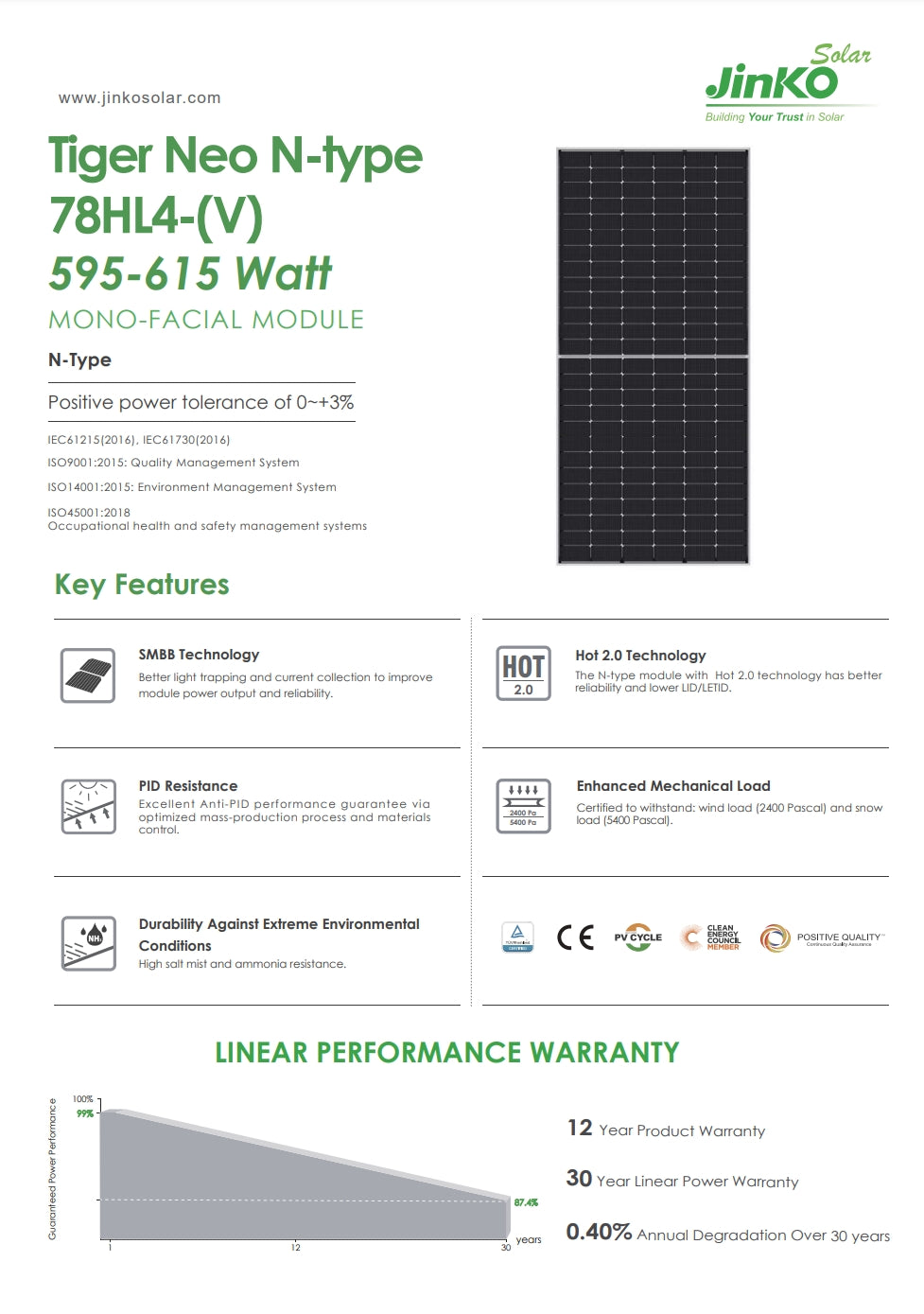

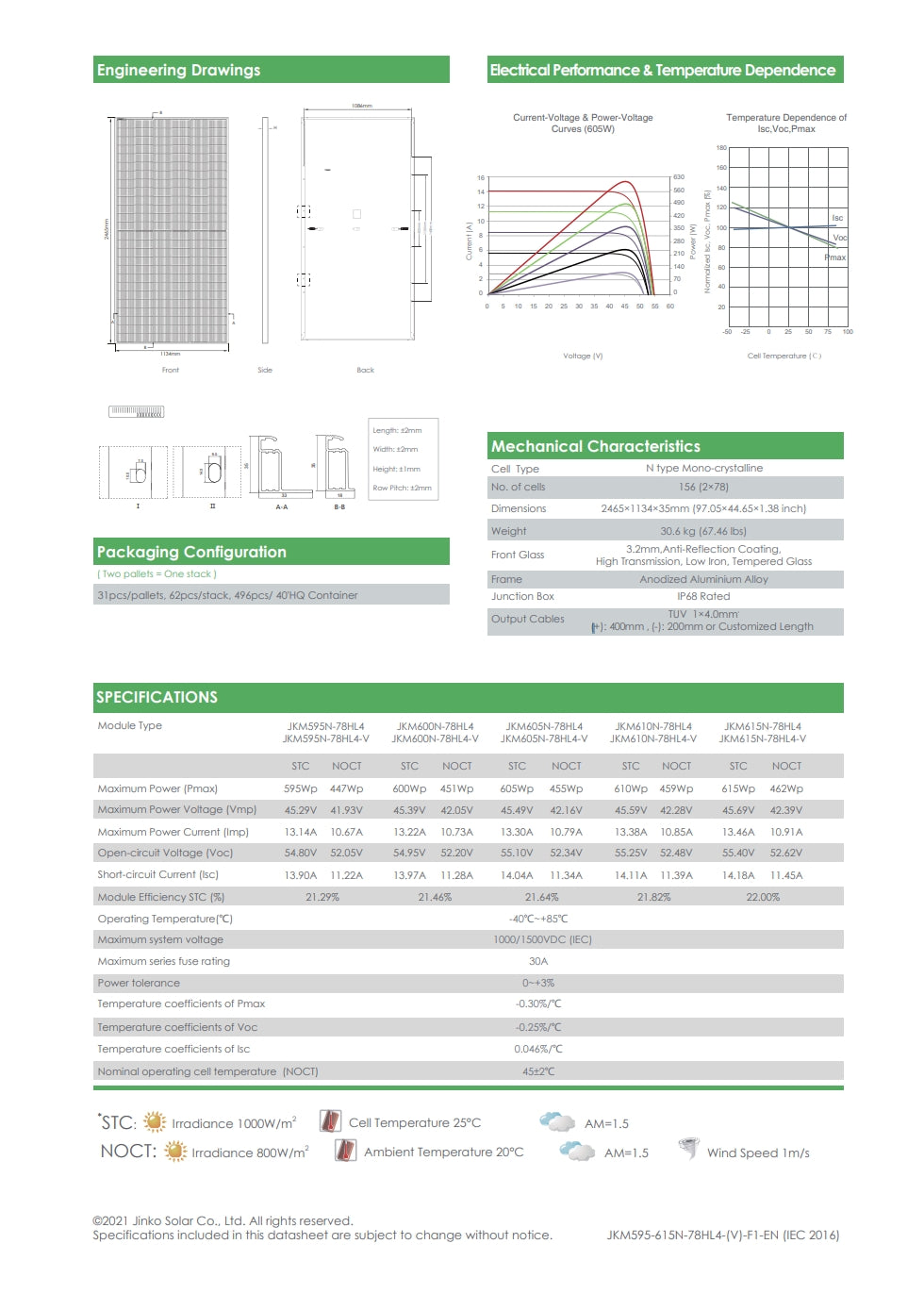

Jinko 595W Datasheet
Jinko Solar presents Tiger Neo N-type Mono-Facial Module (JKM595N-78HL4). With a power output range of 595-615 watts, this module features SMBB technology and Hot 2.0 technology for improved energy harvesting. The N-type design offers better reliability and lower LID, while PID resistance is enhanced. This module also withstands mechanical loads and extreme environmental conditions. Jinko optimized manufacturing process ensures durability. Key benefits include high salt mist and ammonia resistance, linear performance warranty, and a 12-year product warranty with 30 years of power output guarantee.
The Jinko Solar Panel JKMS59N-78HL4 is a high-performance module with a maximum power output of 595W. It features a monofacial design with 156 half-cut cells and a dimension of 2465mm x 1134mm x 35mm. The panel has an anti-reflection coating, tempered glass, and an anodized alloy frame. The specifications include STC values for maximum power output (595W), voltage (45.29V), and current (13.44A). The operating temperature range is -40°F to +85°C, with a maximum system voltage of 1000VDC. The module efficiency is 21.2952% at STC conditions.
