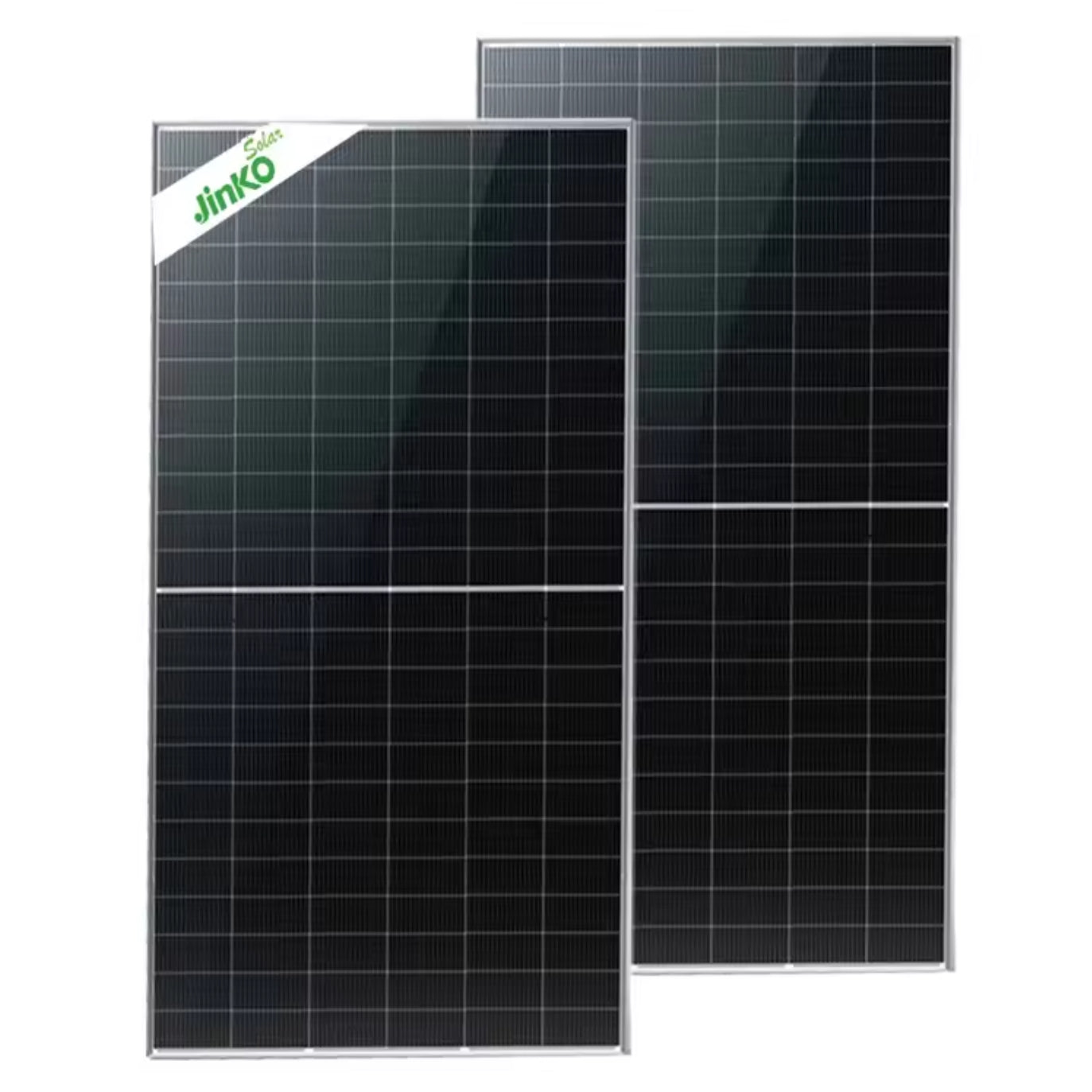

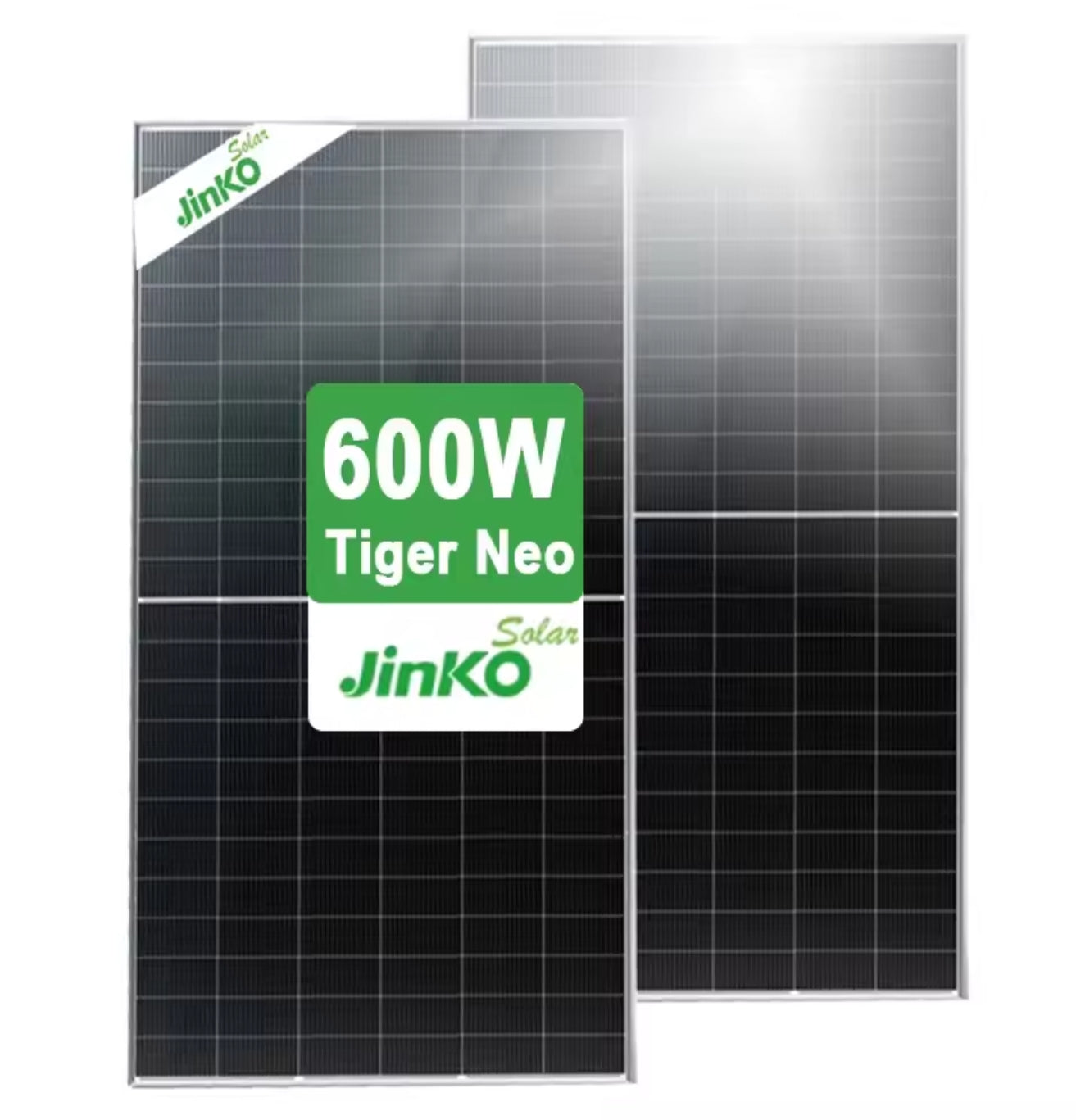

Jinko Solar 600W Tiger Neo 72HL4-BDV Bifacial Solar Panel
The Jinko Solar 600W Tiger Neo 72HL4-BDV Bifacial Solar Panel is a premium solar module designed with cutting-edge N-type Mono-crystalline technology. This panel, part of the Tiger Neo series, offers superior performance, durability, and energy efficiency, making it ideal for large-scale commercial and utility solar projects. With a power range from 575W to 600W, this bifacial module is engineered to capture sunlight from both sides, significantly enhancing energy yield and reducing the Levelized Cost of Electricity (LCOE).
Jinko 600W Solar Panel Key Features:
- N-type Technology: Utilizes Tunnel Oxide Passivating Contacts (TOPCon) technology, which lowers Light-Induced Degradation (LID) and ensures better performance in low-light conditions.
- HOT 3.0 Technology: Enhances reliability and efficiency, offering superior performance in various environmental conditions.
- Dual-Sided Power Generation: Increases energy output by capturing sunlight from both the front and back sides of the panel.
- Mechanical Load Enhanced: Certified to withstand up to 5400Pa front-side static loads and 2400Pa rear-side static loads, ensuring durability under extreme conditions.
- SMBB Technology: Improves light trapping and current collection, resulting in higher power output and reliability.
- Anti-PID Guarantee: Minimizes the risk of Potential Induced Degradation (PID), maintaining long-term performance.
Jinko 600W Datasheet
Mechanical Characteristics
| Parameter | Details |
|---|---|
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 144 (72x2) |
| Dimensions | 2278 x 1134 x 30 mm |
| Weight | 31.0 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | 4.0 mm²; (+) 400 mm, (-) 200 mm or Customized Length |
Packaging Configuration
| Parameter | Details |
|---|---|
| Pallet Dimensions | 2338 x 1140 x 1251 mm |
| Packing Details | 36 pcs/pallet, 72 pcs/stack |
| Container Capacity | 720 pcs/40'HQ Container |
Specifications (STC)
| Parameter | 575W | 580W | 585W | 590W | 595W | 600W |
|---|---|---|---|---|---|---|
| Maximum Power - Pmax (W) | 575 | 580 | 585 | 590 | 595 | 600 |
| Maximum Power Voltage - Vmp (V) | 47.33 | 47.38 | 48.02 | 48.17 | 48.33 | 48.45 |
| Maximum Power Current - Imp (A) | 13.15 | 13.22 | 13.29 | 13.36 | 13.43 | 13.50 |
| Open-Circuit Voltage - Voc (V) | 52.30 | 52.52 | 52.70 | 52.90 | 53.30 | 53.30 |
| Short-Circuit Current - Isc (A) | 13.89 | 13.94 | 14.01 | 14.14 | 14.30 | 14.39 |
| Module Efficiency STC (%) | 22.26 | 22.45 | 22.65 | 22.84 | 23.03 | 23.23 |
| Power Tolerance | 0 ~ +3% | |||||
| Temperature Coefficient of Pmax | -0.29%/°C | |||||
| Temperature Coefficient of Voc | -0.25%/°C | |||||
| Temperature Coefficient of Isc | +0.045%/°C |
Specifications (BNPI)
| Parameter | 633W | 638W | 644W | 649W | 655W | 660W |
|---|---|---|---|---|---|---|
| Maximum Power - Pmax (W) | 633 | 638 | 644 | 649 | 655 | 660 |
| Maximum Power Voltage - Vmp (V) | 43.84 | 44.00 | 44.17 | 44.33 | 44.44 | 44.66 |
| Maximum Power Current - Imp (A) | 14.44 | 14.50 | 14.58 | 14.64 | 14.72 | 14.78 |
| Open-Circuit Voltage - Voc (V) | 52.30 | 52.52 | 52.70 | 53.13 | 53.30 | 53.33 |
| Short-Circuit Current - Isc (A) | 15.19 | 15.25 | 15.31 | 15.37 | 15.43 | 15.49 |
Application Conditions
| Parameter | Details |
|---|---|
| Operating Temperature | -40 °C ~ +70 °C |
| Maximum System Voltage | 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 30 A |
| Bifaciality Coefficient | qVoc: 98 ± 5%, qIsc: 80 ± 5%, qPmax: 80 ± 5% |
Additional Value:
- 12-Year Product Warranty
- 30-Year Linear Power Warranty
- 0.40% Annual Degradation

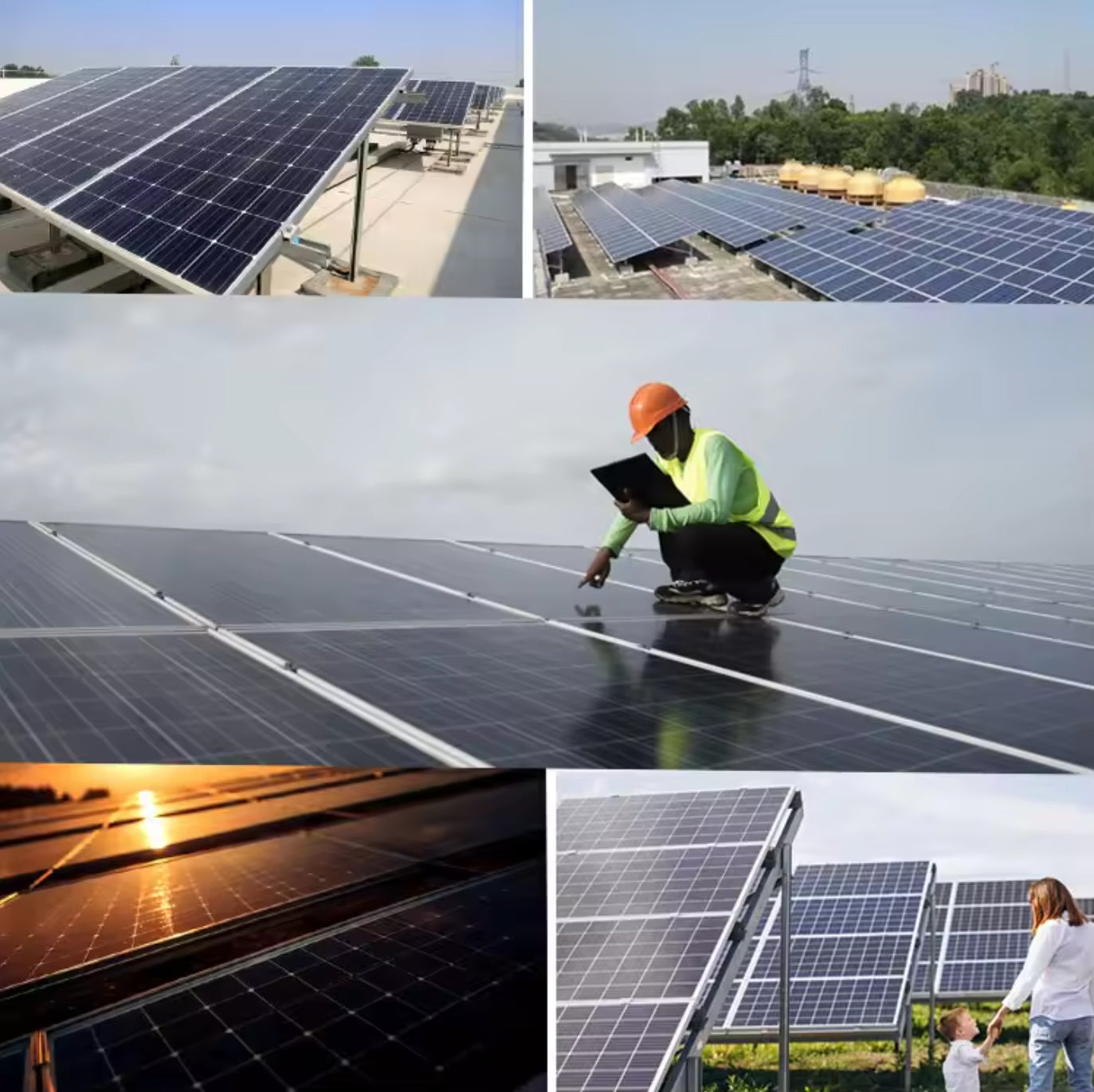

The Jinko Solar 600W Tiger Neo 72HL4-BDV Bifacial Solar Panel represents the pinnacle of solar technology, combining advanced N-type cells with HOT 3.0 technology to deliver unmatched performance and reliability. This panel is ideal for large-scale utility and commercial solar projects, providing high efficiency, robust durability, and long-term energy yield. Whether for new installations or upgrades, the Tiger Neo 72HL4-BDV ensures maximum energy production and a strong return on investment.

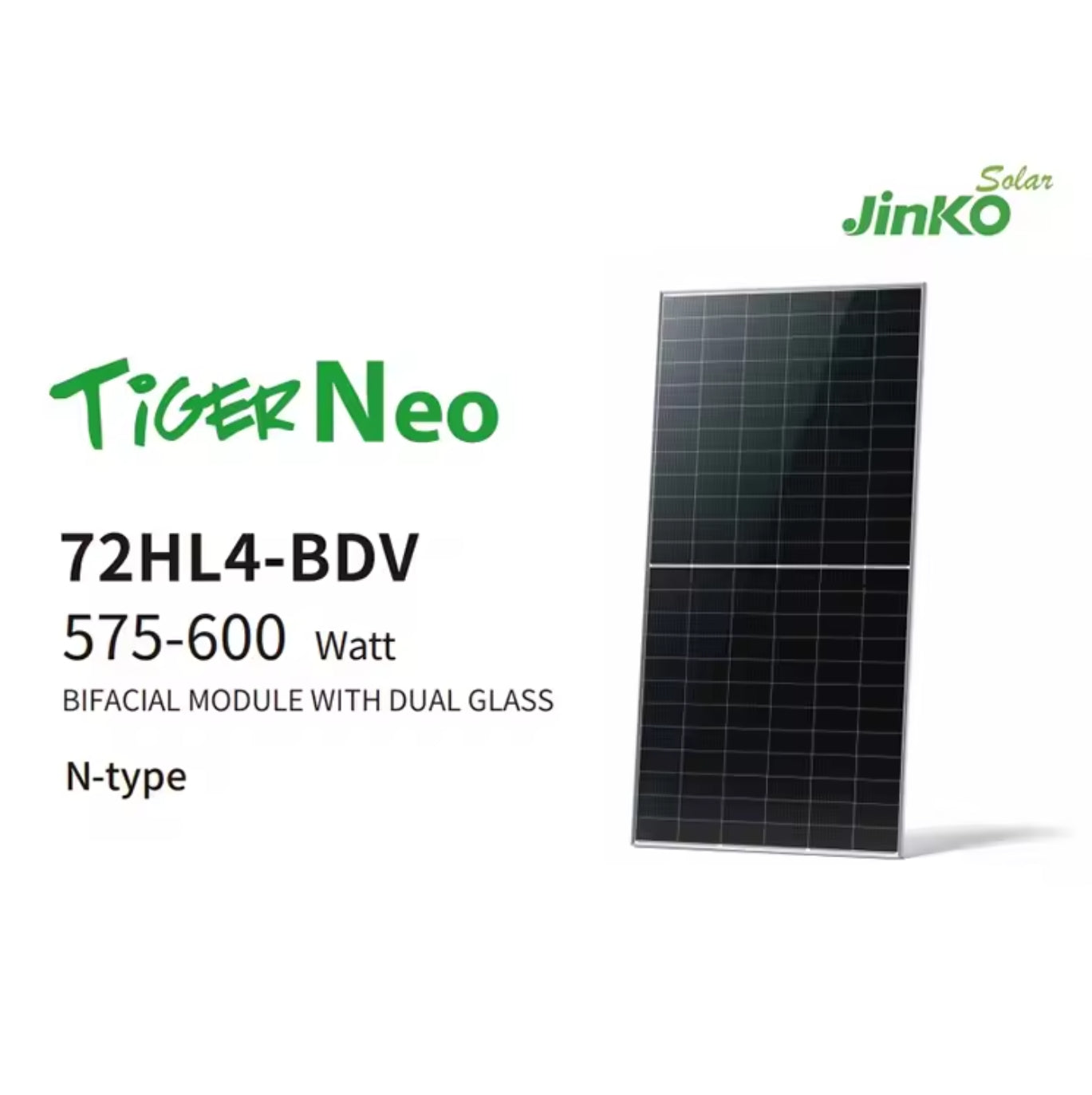

Jinko 600W Solar Panel, 575-600W, Bifacial Module with Dual Glass, N-type. High-efficiency solar panel for residential and commercial applications.

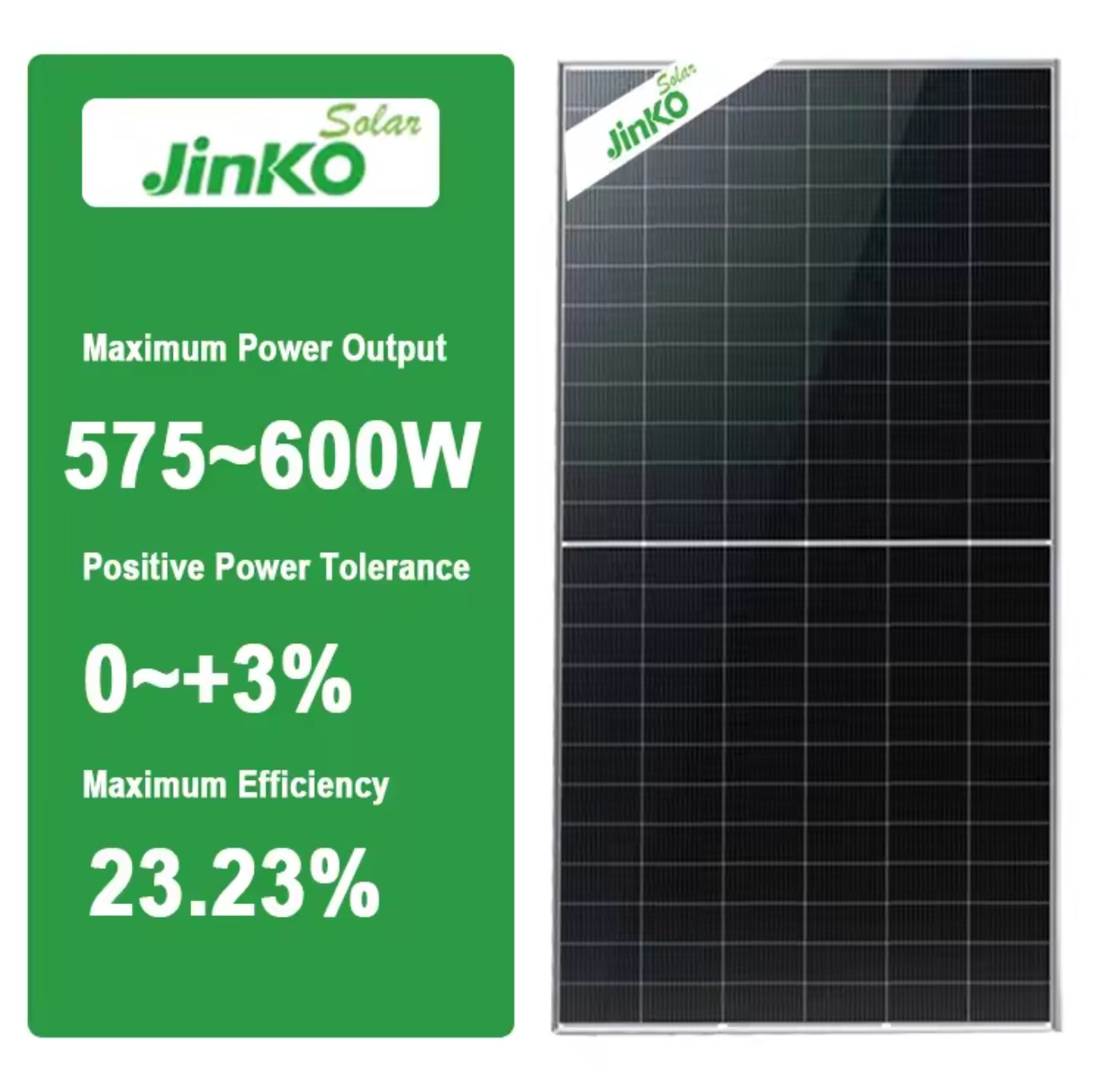

Jinko 600W Solar Panel features a maximum power output of 575-600 watts, positive power tolerance of 0-3%, and maximum efficiency of 23.23%.

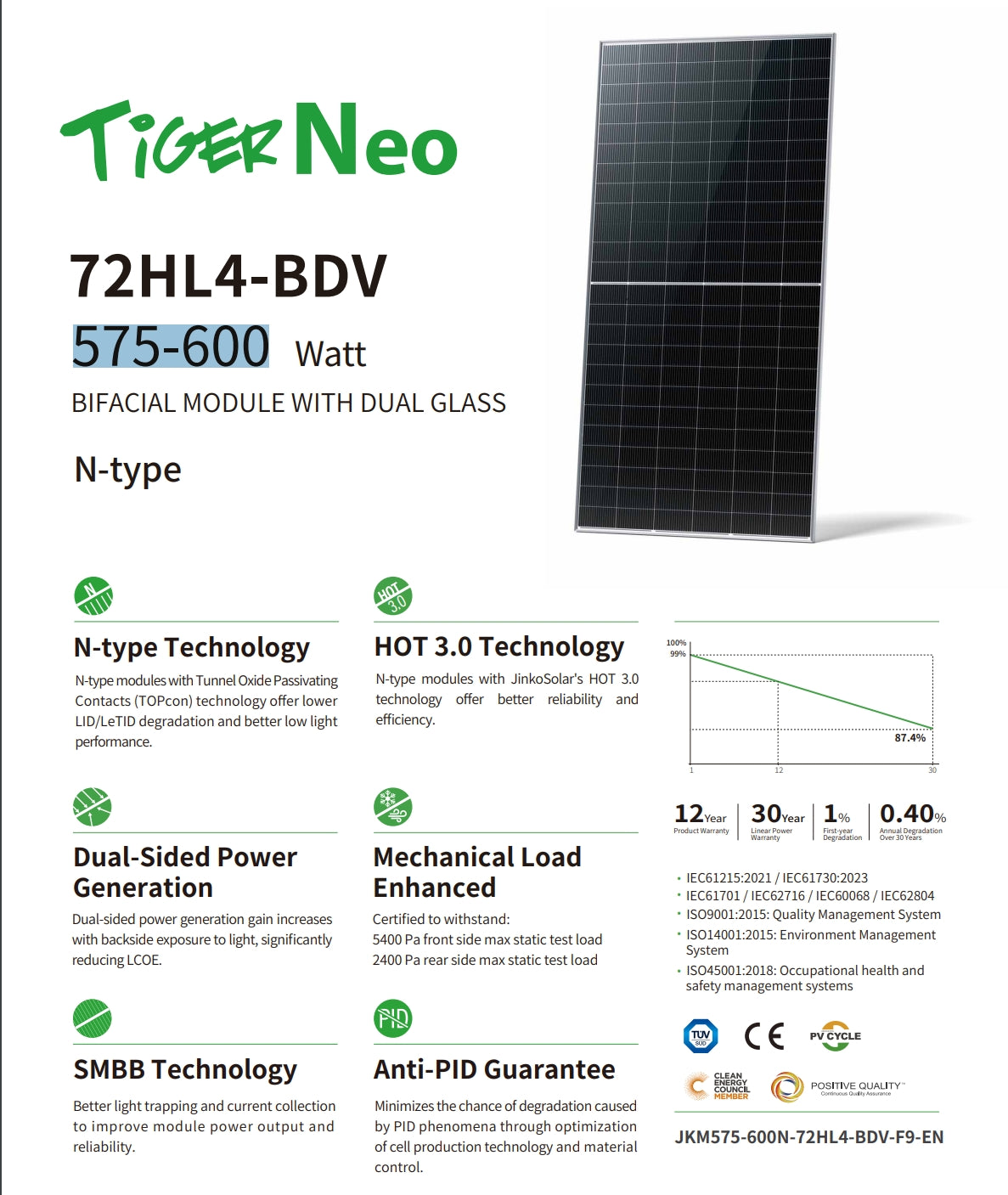

The Jinko 600W Solar Panel (575-600 Watt) features a bifacial module with dual glass and N-type 10BB technology. The HOT 3.0 contacts offer improved reliability, lower LID/LeTID degradation, and better low-light efficiency. With a performance rating of 87.496%, this module comes with a 12-year warranty and a power output guarantee. It has been certified to withstand various environmental conditions, including front-side and rear-side static test loads. The panel also features enhanced IEC61701 and IEC62716 standards for reliability and durability.

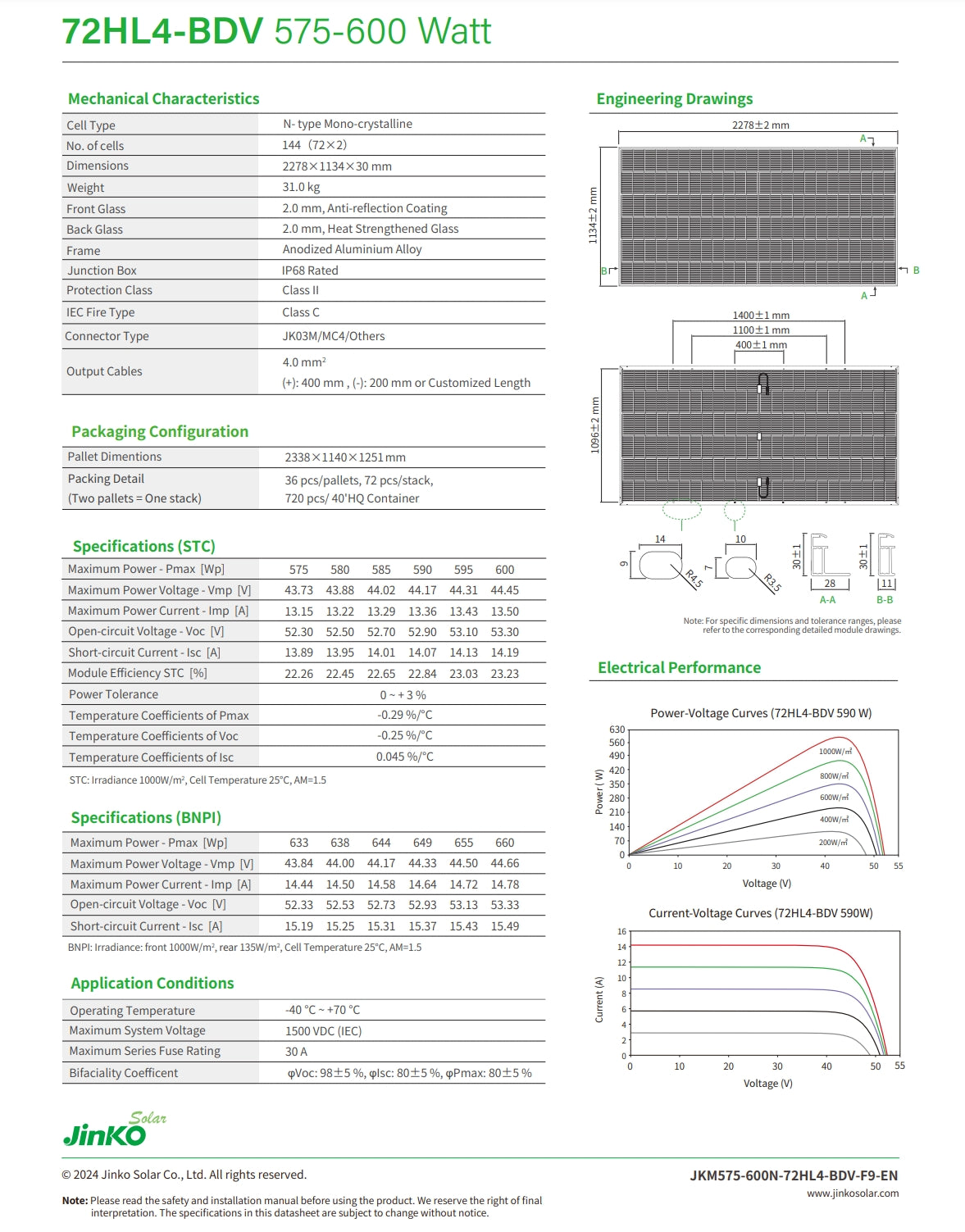

Jinko 600W Solar Panel (575-600 Watt) Mechanical Characteristics: Engineering Drawings Cell Type: N-type Mono-crystalline 2278x1134*30 mm Weight: 31.0 kg Front Glass: 2.0 mm; Anti-reflection Coating Back Glass: 2.0 mm; Heat Strengthened Glass 1 Frame: Anodized Aluminium Alloy Junction Box: IP68 Rated Protection Class: Class II IEC Fire Type: Class C 1400_ L Connector Type: JKO3M/ MC4/Others 1100 _ 1mm 400 _ 1mm 4.0 mm Output Cables: (+): 400 mm, (-J: 200 mm or Customized Length Packaging Configuration: Pallet Dimensions: 2338x1140x1251mm Packing Detail: 36 pcs/pallets, 72 pcs/stack; (Two pallets One stack) 720 pcs/ 40'HQ Container Specifications: Maximum Power (Pmax): 575-600 W Maximum Power Voltage (Vmp): 43.73-44.45 V Maximum Power Current (Imp): 13.15-13.50 A Open-circuit Voltage (Voc): 52.30-53.30 V Short-circuit Current (Isc): 13.89-14.19 A Module Efficiency: 22.26-23.23 % Power Tolerance: 0 ~ +3 % Temperature Coefficients: Pmax: 0.29 %/°C Voc: 0.25 %/*°C Isc: 0.045 %/°C Electrical Performance: Power Curve: (72HL4-BDV 590 W) Temperature Coefficients: Pmax: 0.29 %/°C Voc: 0.25 %/*°C Isc: 0.045 %/°C Specifications: BNPI: Irradiance: 1000 W/m, Cell Temperature: 25°C-15°C Operating Temperature: 40°C ~+70°C Maximum System Voltage: 1500 VDC (IEC) Maximum Series Fuse Rating: 30 A Bifaciality Coefficient: @Voc: 98.15 %, @Isc: 80.15 %, @Pmax: 85 %
