Jinko 605W Solar Panel (580-605W Mono-Facial Module)
The Jinko 605W Solar Panel from the Tiger Neo 72HL4-V series is a high-performance module featuring 144 N-type monocrystalline cells, delivering power outputs between 580W to 605W with an impressive module efficiency of up to 23.42%. This panel is equipped with HOT 3.0 technology, ensuring superior low-light performance and long-term reliability. Its robust design includes IP68-rated junction boxes and a mechanical load capacity of 5400 Pa, making it highly durable in extreme environments. Additionally, the panel is optimized with anti-PID technology, minimizing power degradation and extending the lifespan of the module.
Jinko 605W Solar Panel Key Features:
-
High Power Output: Delivers 580-605W, achieving up to 23.42% efficiency for higher energy yields.
-
N-Type Technology: TOPCon technology reduces LID/LeTID degradation, improving low-light performance.
-
Durability: Certified for extreme environments, with high salt mist and ammonia resistance.
-
HOT 3.0 Technology: Ensures better reliability and performance stability over time.
-
Mechanical Load Resistance: Can withstand up to 5400 Pa of static load on the front and 2400 Pa on the rear, ideal for various climates.
-
Anti-PID Guarantee: Mitigates the risk of power loss due to Potential Induced Degradation (PID).
Jinko 605 Watt Solar Panel Specs
| Type |
Monocrystalline |
| Model No. |
| 580W |
585W |
590W |
595W |
600W |
605W |
|
| Warranty |
|
| Product Warranty |
12 Years |
| Power Warranty |
30 Years of 84.7% Output Power |
| Electrical Data at STC |
|
| Maximum Power (Pmax) |
| 580 Wp |
585 Wp |
590 Wp |
595 Wp |
600 Wp |
605 Wp |
|
| Voltage at Maximum Power (Vmpp) |
| 43.35 V |
43.53 V |
43.71 V |
43.88 V |
44.06 V |
44.23 V |
|
| Current at Maximum Power (Impp) |
| 13.38 A |
13.44 A |
13.5 A |
13.56 A |
13.62 A |
13.68 A |
|
| Open Circuit Voltage (Voc) |
| 52.31 V |
52.47 V |
52.63 V |
52.79 V |
52.95 V |
53.11 V |
|
| Short Circuit Current (Isc) |
| 14.01 A |
14.07 A |
14.13 A |
14.19 A |
14.25 A |
14.31 A |
|
| Panel Efficiency |
| 22.45 % |
22.65 % |
22.84 % |
23.03 % |
23.23 % |
23.42 % |
|
| Power Tolerance (Positive) |
| + 3 % |
+ 3 % |
+ 3 % |
+ 3 % |
+ 3 % |
+ 3 % |
|
| |
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C |
| Thermal Ratings |
|
| Operating Temperature Range |
-40~70 °C |
| Temperature Coefficient of Pmax |
-0.29 %/°C |
| Temperature Coefficient of Voc |
-0.25 %/°C |
| Temperature Coefficient of Isc |
0.045 %/°C |
| Maximum Ratings |
|
| Maximum System Voltage |
1500 V |
| Series Fuse Rating |
25 A |
| Material Data |
|
| Panel Dimension (H/W/D)
|
2278x1134x35 mm |
| Weight |
27 kg |
| Cell Number |
144 |
| Glass Type |
Anti-reflection Coating, Tempered |
| Glass Thickness |
3.2 mm |
| Frame Type |
Anodized Aluminium |
| Junction Box Protection Class |
IP 68 |
| Connector Type |
MC4 |
| Cable Crossection |
4 mm2
|

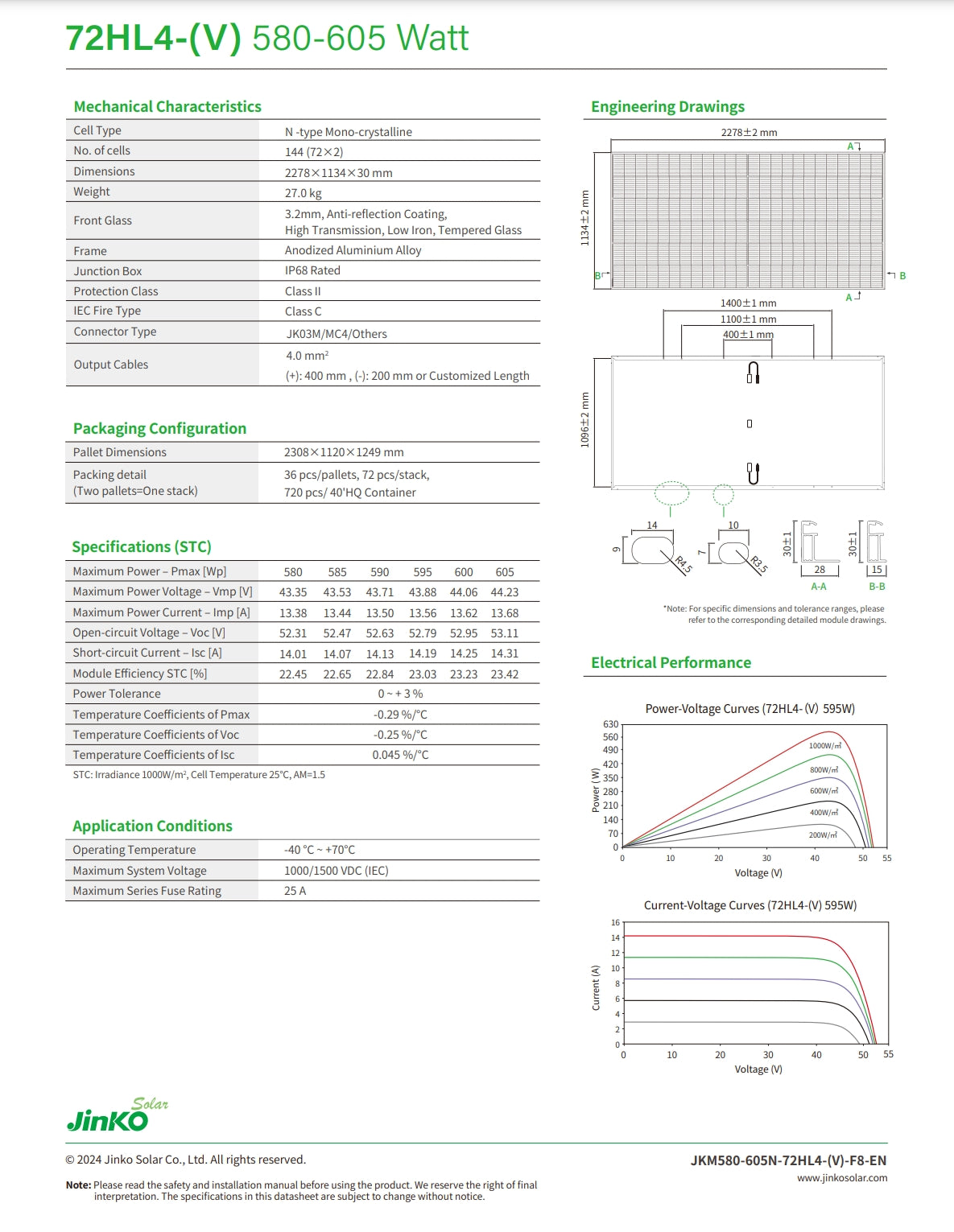

Jinko 605W Datasheet

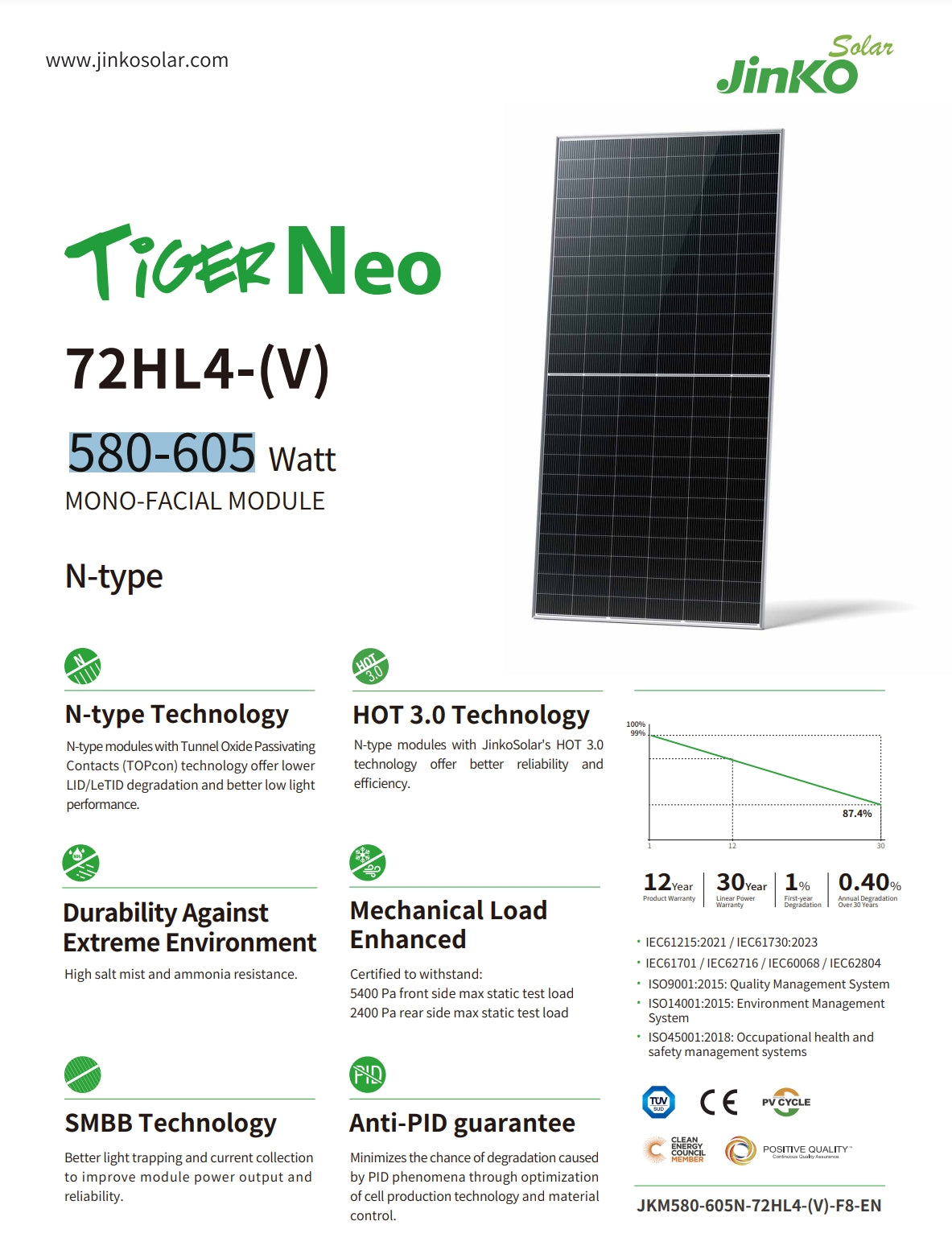

JinkoSolar 605W Solar Panel (580-605 Watt) - Mono-Facial Module with N-type Technology HOT 3.0, Tunnel Oxide Passivating, and JinkoSolar TOPcon technology for better reliability, lower LID degradation, and improved low-light efficiency. Performance: 87.4% (12-year warranty), 30-year durability against mechanical load and extreme environment (IEC61215:2021, IEC61730:2023). Certified to withstand high salt mist and ammonia resistance (IEC60068, IEC62804).
Jinko 605W Solar Panel (580-605 Watt) Mechanical Characteristics: * Cell Type: Mono-crystalline
* Dimensions: 2278x1134x30 mm
* Weight: 27.0 kg
* Front Glass: 3.2mm; Anti-reflective Coating; High Transmission; Low Iron, Tempered Glass
* Frame: Anodized Aluminium Alloy
* Junction Box: IP68 Rated Protection Class II
Electrical Performance: * Maximum Power (Pmax): 580-605 Wp
* Open-circuit Voltage (Voc): 52.31-53.11 V
* Short-circuit Current (Isc): 14.01-14.31 A
* Module Efficiency: 22.45-23.42%
* Power Tolerance: 0~+3%
Temperature Coefficients: * Pmax: -0.29%/C
* Voc: 0.25%/C
* Isc: 0.045%/C
Specifications: * Irradiance: 1000 W/m
* Cell Temperature: 25°C, AM-15 E
* Operating Temperature: 40°C~+70°C
* Maximum System Voltage: 1000/1500 VDC (IEC)
* Maximum Series Fuse Rating: 25 A
