Jinko

Jinko 630W Solar Panel (605-630 Watt)

Jinko 630W Solar Panel (605-630 Watt)

Regular price $3,330.00 USD
Regular price Sale price $3,330.00 USD
Sale Sold out
Shipping calculated at checkout.

2 orders in last 30 days

Quantity
View full details

Jinko 630W Solar Panel (605-630W Tiger Neo 66HL4M-BDV Bifacial Module with Dual Glass)

The Jinko 630W Solar Panel from the Tiger Neo 66HL4M-BDV series combines N-type monocrystalline technology with a dual-sided power generation design, making it one of the most advanced bifacial solar modules available. With power outputs between 605W and 630W, this panel can significantly boost energy production by utilizing both the front and back sides for power generation. Equipped with HOT 3.0 technology, this module delivers superior performance in terms of efficiency, reliability, and durability, ensuring long-term operation in various environmental conditions.

Jinko 630 Watt Solar Panel Key Features:

  • High Power Output: Generates 605W-630W on the front side, with additional power from the rear side.
  • Dual-Sided Power Generation: Increases energy yield by harnessing sunlight from both sides of the module.
  • N-type Technology: Utilizes Tunnel Oxide Passivating Contacts (TOPCon) to enhance performance and reduce degradation.
  • HOT 3.0 Technology: Ensures higher efficiency and stability, even in low-light conditions.
  • Mechanical Load Enhanced: Certified to withstand 5400 Pa front load and 2400 Pa rear load for strong durability in harsh environments.
  • Anti-PID Technology: Minimizes the risk of Potential Induced Degradation (PID) for a longer operational lifespan.

Jinko 630W Datasheet

Specifications Table:

Category Details
Cell Type N-type Mono-crystalline
Number of Cells 132 (66 x 2)
Dimensions 2382 x 1134 x 30 mm
Weight 32.4 kg
Front Glass 2.0 mm, Anti-reflection Coating, Tempered Glass
Back Glass 2.0 mm, Heat Strengthened Glass
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Protection Class Class II
IEC Fire Type Class C
Connector Type MC4 / Others
Output Cables 4.0 mm² (±400 mm, customizable length)

Performance Metrics (STC):

Parameter 605W 610W 615W 620W 625W 630W
Maximum Power Current (Imp) 15.01 A 15.08 A 15.15 A 15.22 A 15.29 A 15.36 A
Open-circuit Voltage (Voc) 48.48 V 48.68 V 48.88 V 49.08 V 49.28 V 49.48 V
Short-circuit Current (Isc) 15.90 A 15.96 A 16.02 A 16.08 A 16.14 A 16.20 A
Module Efficiency 22.20 % 22.40 % 22.58 % 22.77 % 22.95 % 23.32 %
Power Tolerance 0 ~ +3%

Bifacial Power Generation (BNPI):

Parameter 668W 674W 679W 685W 690W 696W
Maximum Power Current (Imp) 16.58 A 16.66 A 16.73 A 16.81 A 16.88 A 16.95 A
Open-circuit Voltage (Voc) 48.66 V 48.86 V 49.06 V 49.26 V 49.46 V 49.66 V
Short-circuit Current (Isc) 17.56 A 17.64 A 17.70 A 17.77 A 17.83 A 17.90 A

Temperature Coefficients:

  • Pmax: -0.29% / °C
  • Voc: -0.25% / °C
  • Isc: 0.045% / °C

Application Conditions:

Parameter Details
Operating Temperature -40°C to +70°C
Maximum System Voltage 1500 VDC (IEC)
Maximum Series Fuse Rating 35 A
Bifaciality Coefficient qVoc: 98±5 %, qIsc: 80±5 %, qPmax: 80±5 %

Mechanical Load:

  • Front Load: 5400 Pa
  • Rear Load: 2400 Pa

Packaging Configuration:

Parameter Details
Pallet Dimensions 2396 x 1110 x 1251 mm
Pallet Packing 36 pcs/pallets, 72 pcs/stack
Container Capacity 720 pcs/40'HQ Container

Certifications & Warranty:

  • 12-Year Product Warranty
  • 30-Year Linear Power Warranty
  • First-Year Degradation: 1%
  • Annual Degradation Over 30 Years: 0.40%

This bifacial solar module is designed for optimized energy yield, reducing LCOE (Levelized Cost of Energy) through its dual-sided power generation, making it an excellent choice for both large-scale commercial and residential installations.

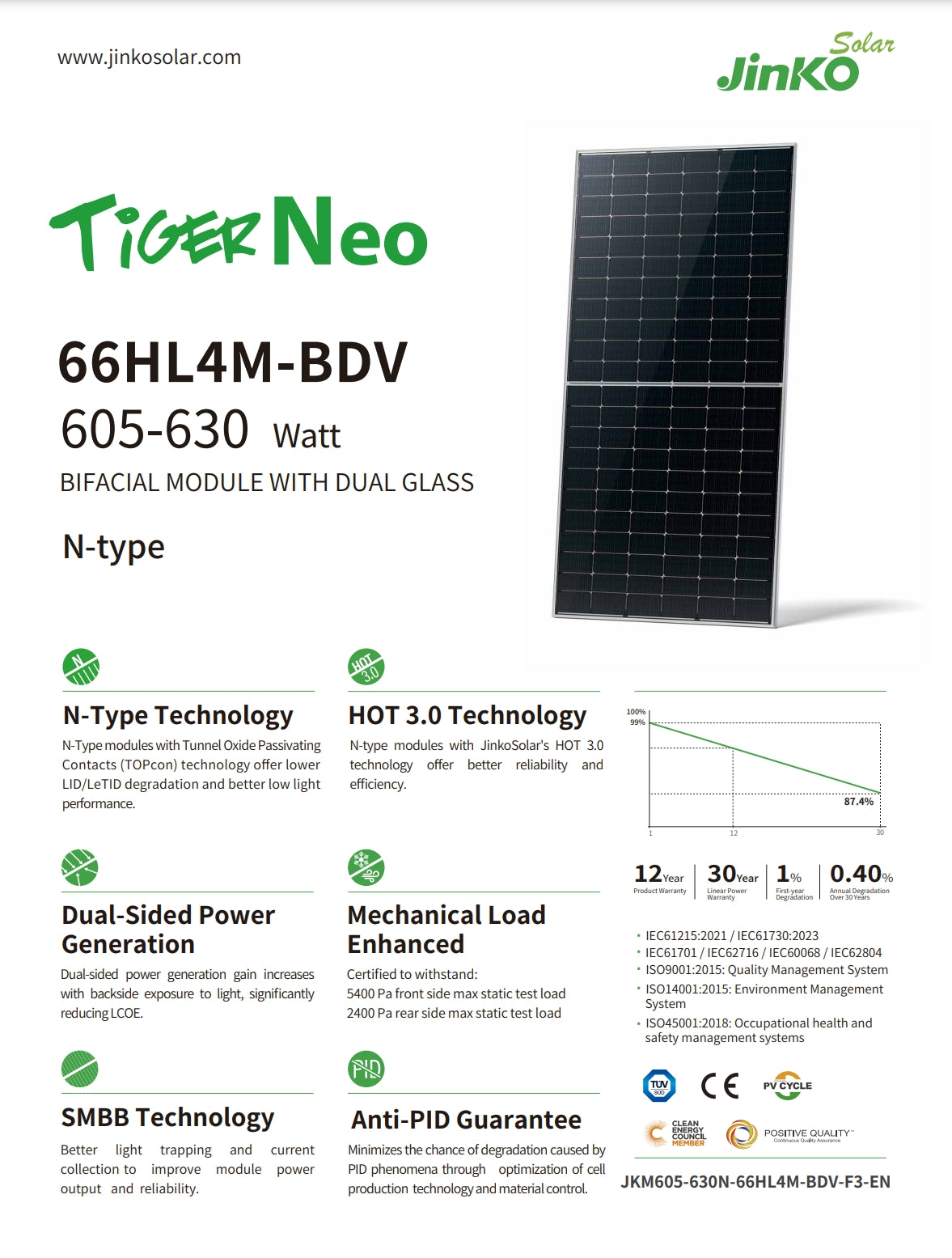

Jinko 630W Solar Panel, JinkoSolar Tioer Neo module features improved reliability, better performance, and enhanced low light efficiency with N-type technology and dual glass design.

JinkoSolar Tioer Neo 605-630W Bifacial Module with Dual Glass N-type Technology. HOT 3.0 Contacts technology offers improved reliability, reduced LID/LeTID degradation, and enhanced low light efficiency. This module features JinkoSolar N-type modules with Tunnel Oxide Passivating and TOPcon technology for better performance. It also has a certified quality management system (ISO9001:2015) and environmental management system (ISO14001:2018). The module is designed to withstand extreme conditions, including backside exposure to light, with a maximum static test load of 5400 Pa on the front side and 2400 Pa on the rear side. Additionally, it features anti-PID guarantee, minimizing the chance of degradation caused by PID phenomena.

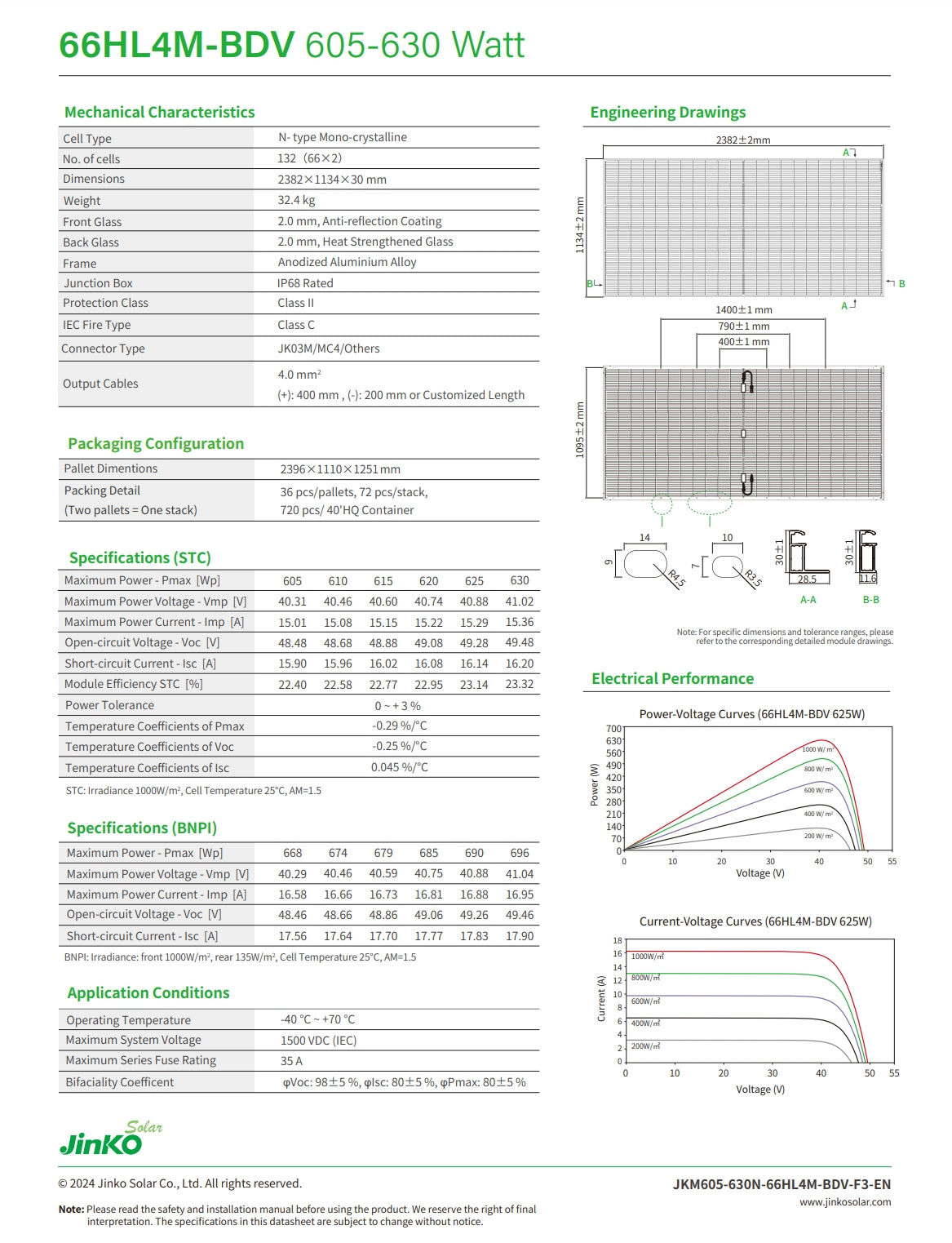

Jinko 630W Solar Panel, Description of Jinko solar panel with power range from 605 to 630 watts.

Jinko 630W Solar Panel (605-630 Watt) product image, with obvious word errors corrected:
