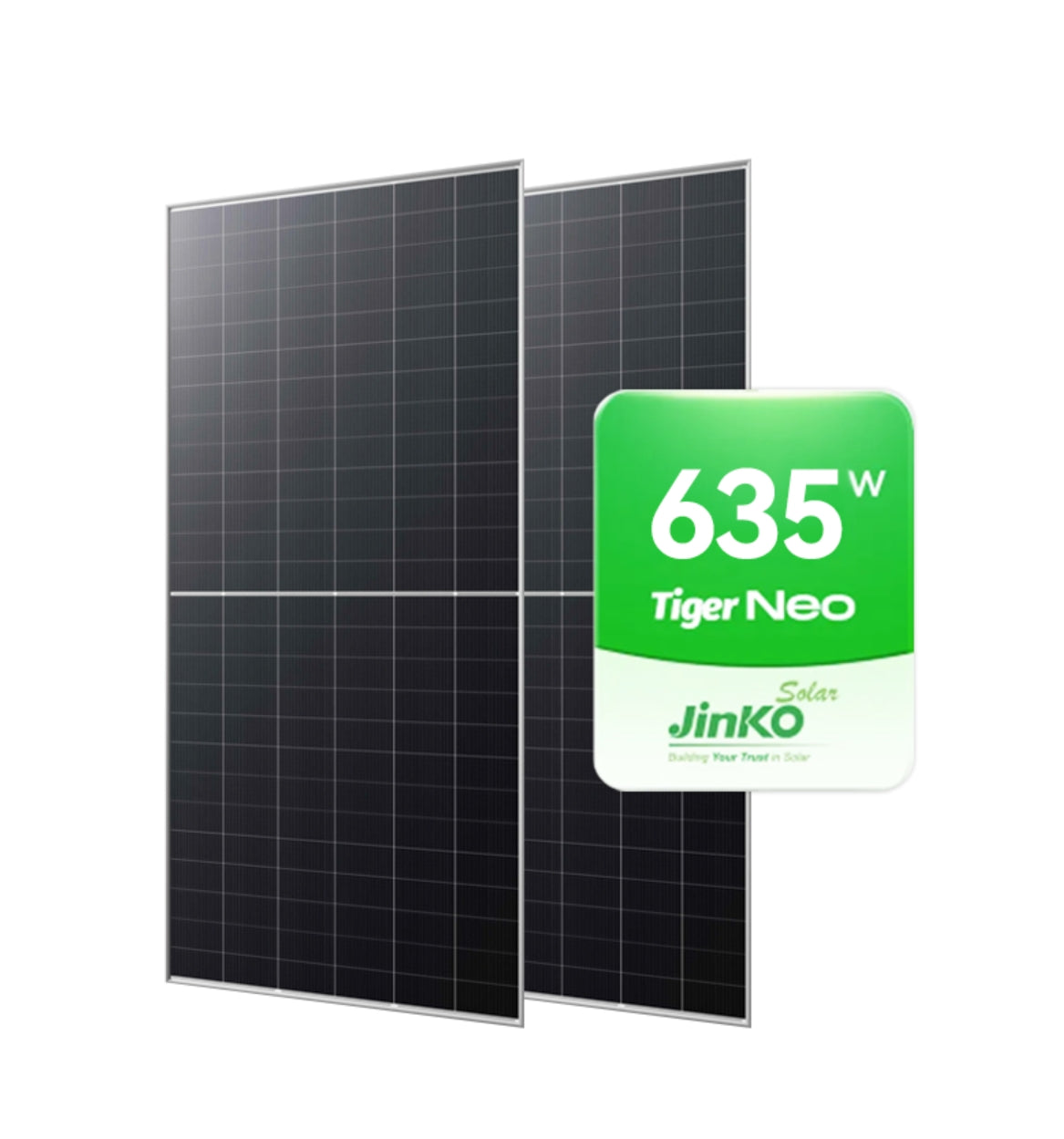

Jinko 635W Solar Panel (610-635W Mono-Facial Module)
The Jinko 635W Solar Panel from the Tiger Neo 66HL4M-V series is designed with cutting-edge N-type monocrystalline technology. With power outputs ranging from 610W to 635W and a maximum module efficiency of up to 23.51%, it provides a highly efficient solution for both commercial and residential solar installations. The panel features HOT 3.0 technology for enhanced reliability, improved performance in low-light conditions, and superior durability, even in extreme environments. The IP68-rated junction box and enhanced mechanical load resistance further ensure long-term stability and performance.
Jinko 635 Watt Solar Panel Key Features
- High Power Output: Delivers between 610-635W, with module efficiency up to 23.51%.
- N-type Technology: Tunnel Oxide Passivating Contacts (TOPCon) minimize LID/LeTID degradation and improve low-light performance.
- Durability: High salt mist and ammonia resistance, ensuring optimal performance in harsh environments.
- Mechanical Load Enhanced: Can withstand up to 5400 Pa on the front and 2400 Pa on the rear.
- Anti-PID Technology: Minimizes the risk of Potential Induced Degradation (PID) for improved longevity.
Jinko 610-635 Watt Solar Panel Specifications Table:
| Category | Details |
|---|---|
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 132 (66 x 2) |
| Dimensions | 2382 x 1134 x 35 mm |
| Weight | 28.2 kg |
| Front Glass | 3.2 mm, Anti-reflection Coating, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | MC4 / Others |
| Output Cables | 4.0 mm² (±400 mm, customizable length) |
Performance Metrics (STC):
| Parameter | 610W | 615W | 620W | 625W | 630W | 635W |
|---|---|---|---|---|---|---|
| Maximum Power Current (Imp) | 15.04 A | 15.10 A | 15.16 A | 15.22 A | 15.28 A | 15.34 A |
| Open-circuit Voltage (Voc) | 48.63 V | 48.79 V | 48.95 V | 49.11 V | 49.27 V | 49.43 V |
| Short-circuit Current (Isc) | 16.01 A | 16.08 A | 16.15 A | 16.22 A | 16.29 A | 16.36 A |
| Module Efficiency | 22.58 % | 22.77 % | 22.95 % | 23.13 % | 23.32 % | 23.51 % |
| Power Tolerance | 0 ~ +3% |
Temperature Coefficients:
- Pmax: -0.29% / °C
- Voc: -0.25% / °C
- Isc: 0.045% / °C
Application Conditions:
| Parameter | Details |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1000 / 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 30 A |
Mechanical Load:
- Front Load: 5400 Pa
- Rear Load: 2400 Pa
Packaging Configuration:
| Parameter | Details |
|---|---|
| Pallet Dimensions | 2396 x 1110 x 1251 mm |
| Pallet Packing | 31 pcs/pallets, 62 pcs/stack |
| Container Capacity | 620 pcs/40'HQ Container |
Certifications & Warranty:
- 12-Year Product Warranty
- 30-Year Linear Power Warranty
- First-Year Degradation: 1%
- Annual Degradation Over 30 Years: 0.40%

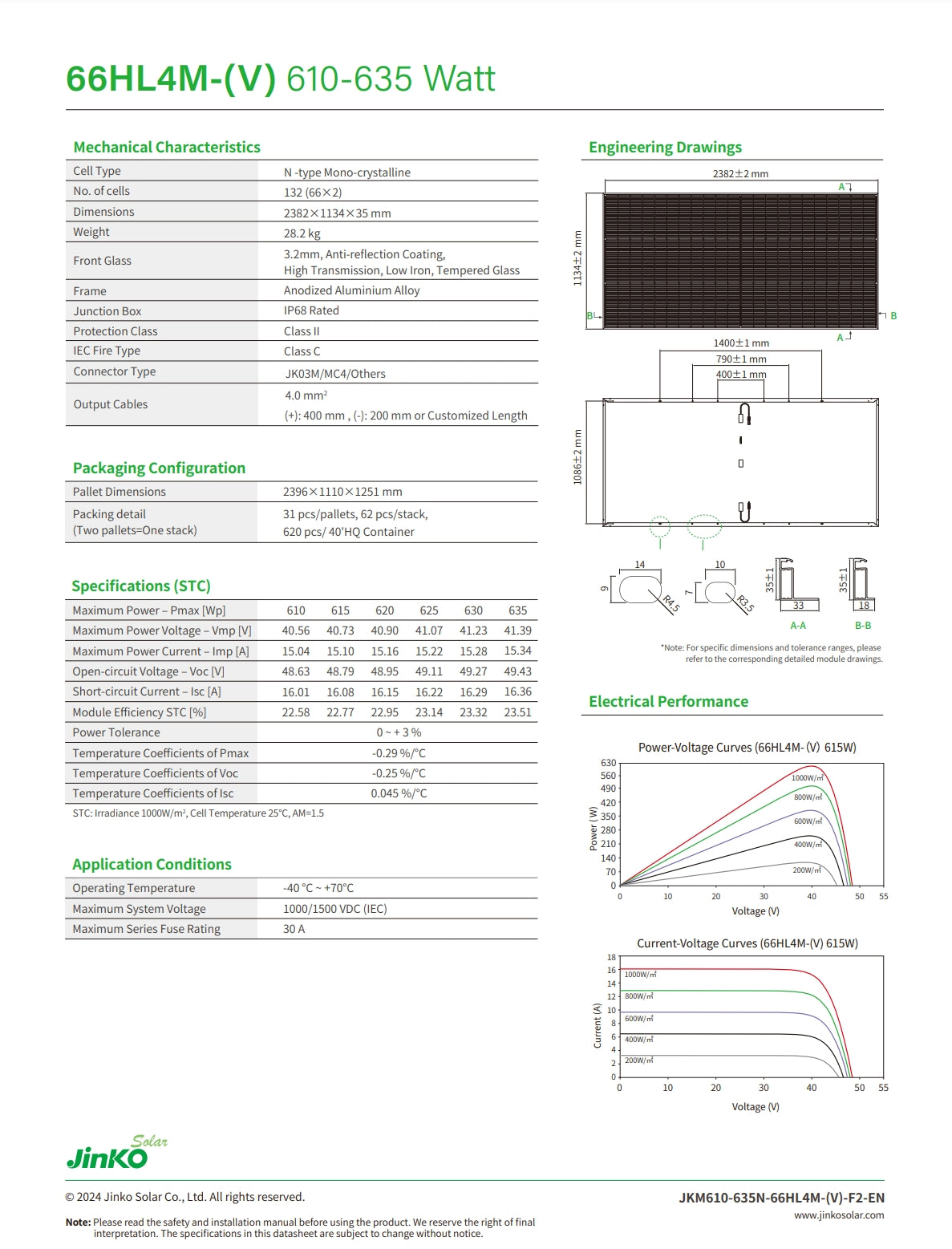

Jinko 635W Datasheet

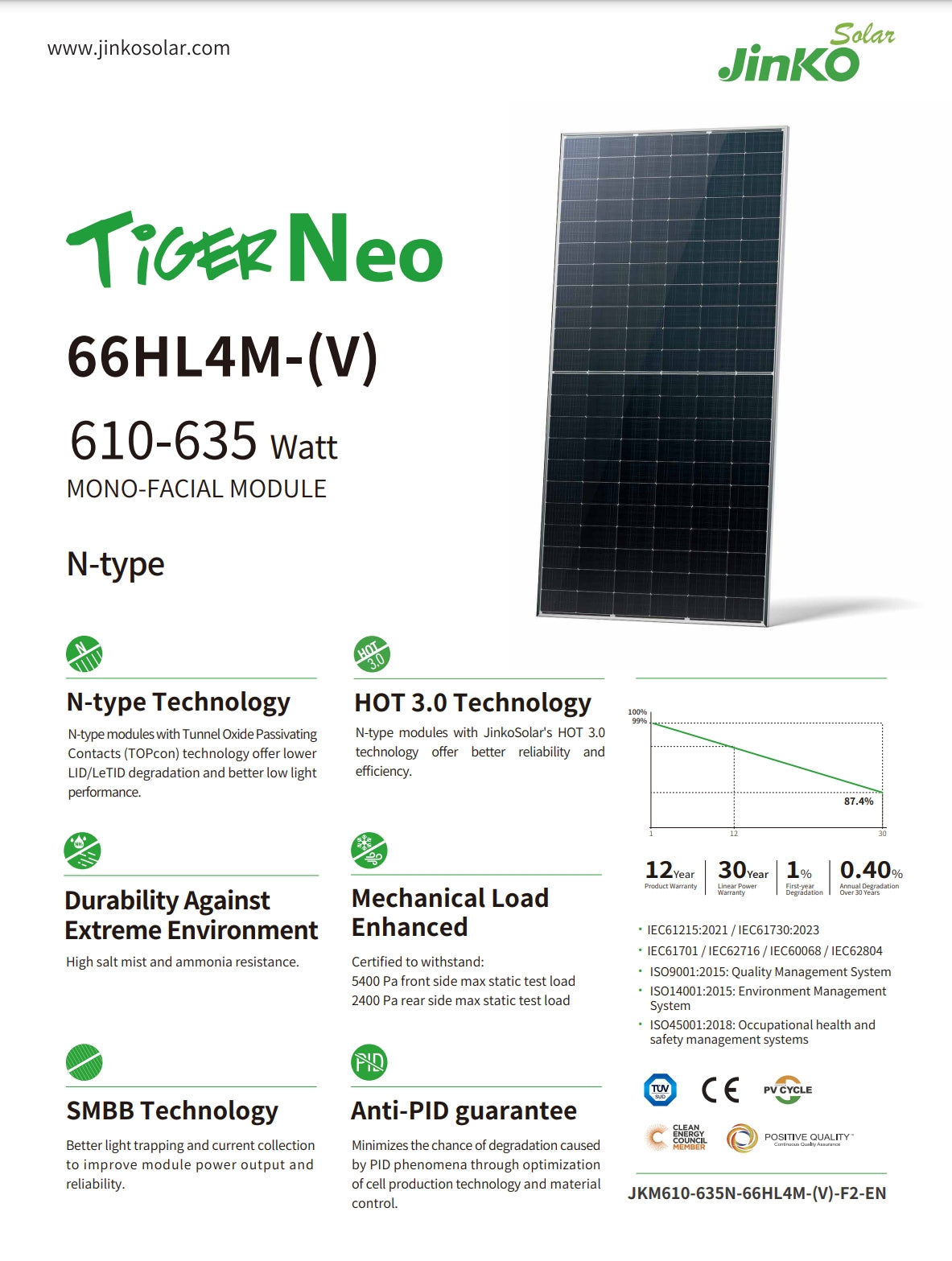

Jinko Solar 610-635W Mono-Facial Module features HOT 3.0 Technology with Tunnel Oxide Passivating and N-type modules for better reliability, low light efficiency, and degradation resistance. The module has a durable design against mechanical load and extreme environments, meeting IEC standards. With high salt mist and ammonia resistance, it is certified to withstand ISO9001:2015 and Environment Management 5400 Pa front side max static test load. Additionally, the module features SMBB Technology, Anti-PID guarantee, and better light trapping and current collection for optimized performance.
Jinko 635W Solar Panel (610-635 Watt) Product Description: The Jinko 635W solar panel features a high-efficiency mono-crystalline cell type with a power output range of 610-635 watts. The mechanical characteristics include dimensions of 2382x1134x35mm, weight of 28.2kg, and a front glass thickness of 3.2mm with anti-reflection coating. The frame is made of anodized aluminum alloy, and the junction box has IP68 rated protection class II. The connector type is JKO3M MC4/Others, and the output cables have customized lengths. Specifications: - Maximum power: 610-635W - Maximum power voltage: 40.56-41.39V - Maximum power current: 15.04-15.34A
