Jinko 650W Solar Panel Overview
The Jinko Solar 650W Tiger Neo 78HL4-BDV Bifacial Solar Panel is a high-performance solar module designed with advanced N-type Mono-crystalline technology. This panel is part of the Tiger Neo series, which incorporates the latest innovations in solar technology to deliver superior energy output and reliability. With a power range of 625W to 650W, this bifacial module is ideal for large-scale commercial and utility projects that demand high efficiency and robust durability.
Jinko 650 Watt Solar Panel Key Features:
- N-type Technology: Utilizes Tunnel Oxide Passivating Contacts (TOPCon) to reduce LID/LeTID degradation and improve long-term performance.
- HOT 3.0 Technology: Ensures better reliability and efficiency through advanced module design.
- Dual-Sided Power Generation: Increases energy yield by capturing sunlight from both sides of the panel, significantly reducing the Levelized Cost of Electricity (LCOE).
- Mechanical Load Enhanced: Certified to withstand heavy snow loads up to 5400Pa and rear static loads up to 2400Pa.
- SMBB Technology: Improves light trapping and current collection, enhancing overall module performance.
- Anti-PID Guarantee: Minimizes degradation caused by Potential Induced Degradation (PID) through optimized cell production technology.

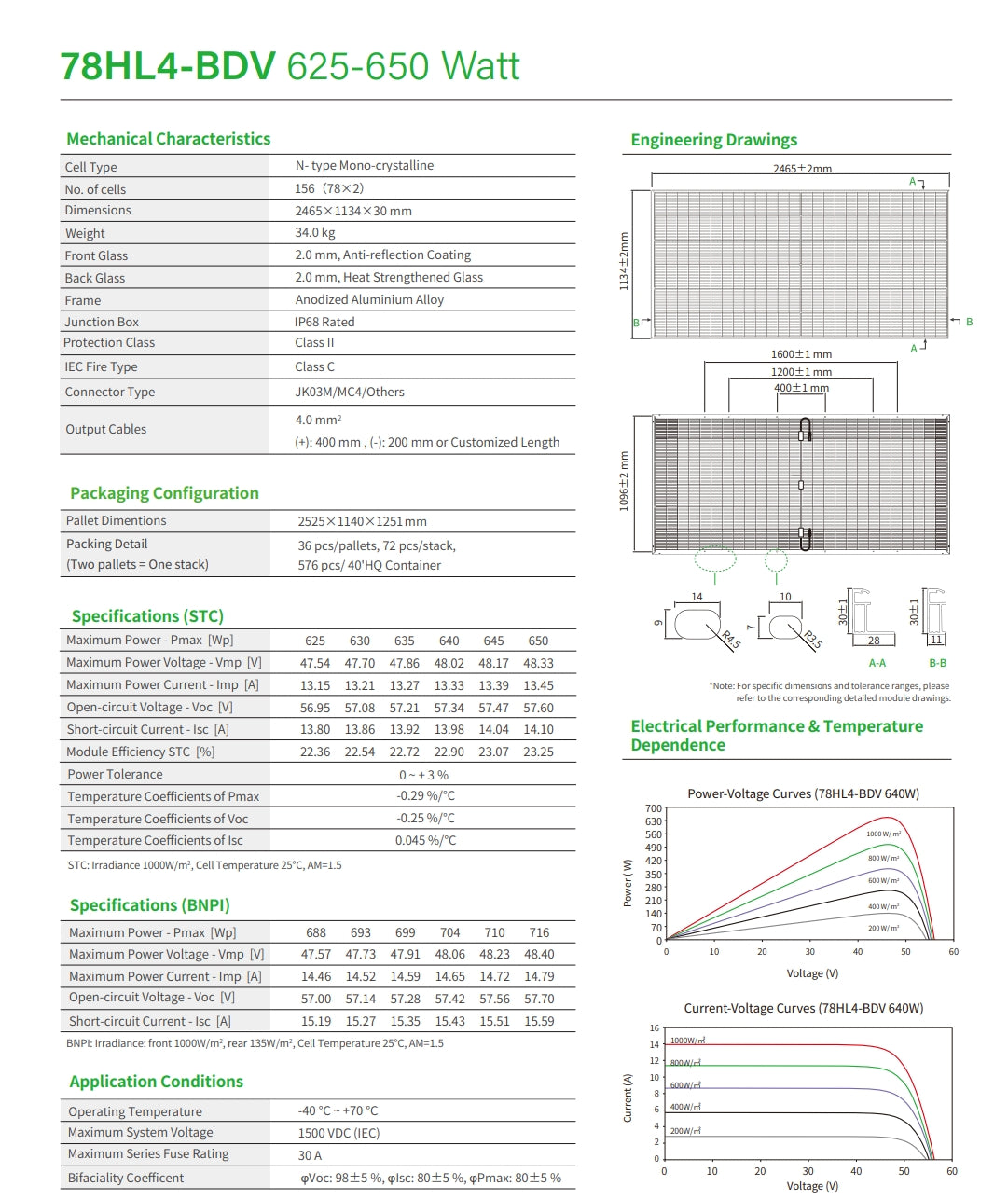

Jinko 650W Datasheet
Mechanical Characteristics
| Parameter | Details |
|---|---|
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 156 (78x2) |
| Dimensions | 2465 x 1134 x 30 mm |
| Weight | 34.0 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | 4.0 mm²; (+) 400 mm, (-) 200 mm or Customized Length |
Packaging Configuration
| Parameter | Details |
|---|---|
| Pallet Dimensions | 2525 x 1140 x 1251 mm |
| Packing Details | 36 pcs/pallet, 72 pcs/stack |
| Container Capacity | 576 pcs/40'HQ Container |
Specifications (STC)
| Parameter | 625W | 630W | 635W | 640W | 645W | 650W |
|---|---|---|---|---|---|---|
| Maximum Power - Pmax (W) | 625 | 630 | 635 | 640 | 645 | 650 |
| Maximum Power Voltage - Vmp (V) | 47.54 | 47.70 | 47.86 | 48.02 | 48.17 | 48.33 |
| Maximum Power Current - Imp (A) | 13.15 | 13.20 | 13.26 | 13.33 | 13.39 | 13.45 |
| Open-Circuit Voltage - Voc (V) | 56.95 | 57.08 | 57.21 | 57.34 | 57.47 | 57.60 |
| Short-Circuit Current - Isc (A) | 13.89 | 13.97 | 14.04 | 14.10 | 14.17 | 14.23 |
| Module Efficiency STC (%) | 22.36 | 22.52 | 22.68 | 22.84 | 23.00 | 23.25 |
| Power Tolerance | 0 ~ +3% | |||||
| Temperature Coefficient of Pmax | -0.29%/°C | |||||
| Temperature Coefficient of Voc | -0.25%/°C | |||||
| Temperature Coefficient of Isc | +0.045%/°C |
Specifications (BNPI)
| Parameter | 688W | 693W | 699W | 704W | 710W | 716W |
|---|---|---|---|---|---|---|
| Maximum Power - Pmax (W) | 688 | 693 | 699 | 704 | 710 | 716 |
| Maximum Power Voltage - Vmp (V) | 47.54 | 47.73 | 47.91 | 48.06 | 48.23 | 48.40 |
| Maximum Power Current - Imp (A) | 14.48 | 14.52 | 14.59 | 14.65 | 14.71 | 14.79 |
| Open-Circuit Voltage - Voc (V) | 57.00 | 57.14 | 57.27 | 57.42 | 57.57 | 57.74 |
| Short-Circuit Current - Isc (A) | 15.19 | 15.27 | 15.35 | 15.42 | 15.51 | 15.59 |
Application Conditions
| Parameter | Details |
|---|---|
| Operating Temperature | -40 °C ~ +70 °C |
| Maximum System Voltage | 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 30 A |
| Bifaciality Coefficient | qVoc: 98 ± 5%, qIsc: 80 ± 5%, qPmax: 80 ± 5% |
Additional Value:
- 12-Year Product Warranty
- 30-Year Linear Power Warranty
- 0.40% Annual Degradation
The Jinko Solar 650W Tiger Neo 78HL4-BDV Bifacial Solar Panel combines cutting-edge N-type and HOT 3.0 technologies with dual-sided power generation to deliver maximum efficiency and reliability. Certified for enhanced mechanical load capacity, this panel is built to withstand the most challenging environmental conditions. With its high power output and advanced design, the Tiger Neo 78HL4-BDV is an ideal choice for utility-scale solar projects and large commercial installations, ensuring long-term energy yield and reduced LCOE.

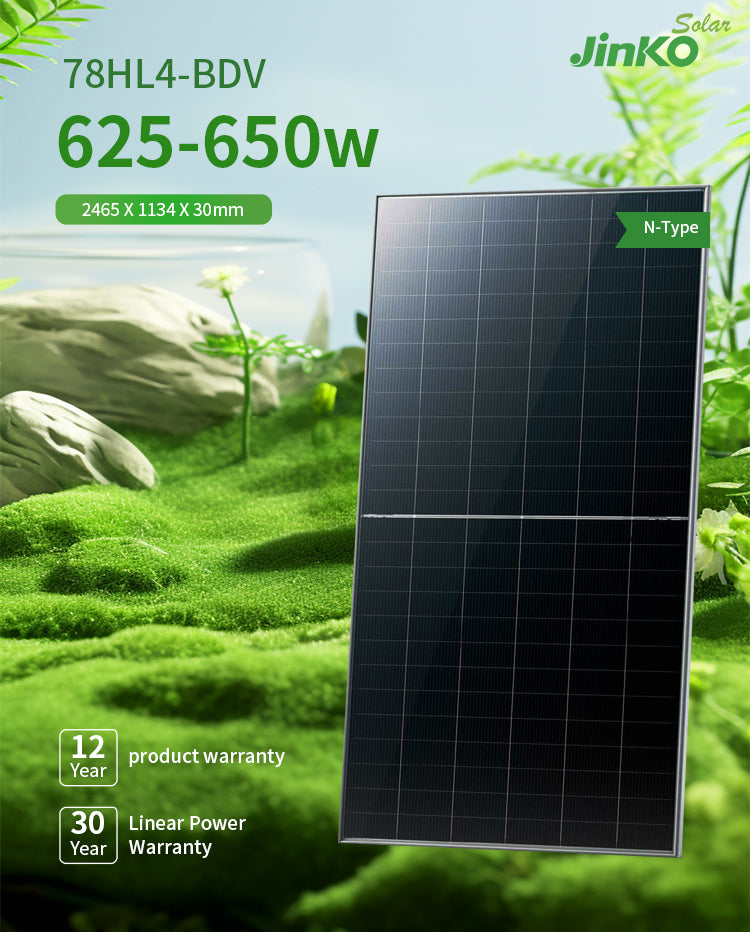

Solar Jinko 78HL4-BDV 625-650W panel features a robust design with dimensions of 2465 x 1134 x 30mm. The N-type panel offers high power output and durability. Backed by a 12-year product warranty and a 30-year linear power guarantee, this solar panel ensures reliable performance for years to come.

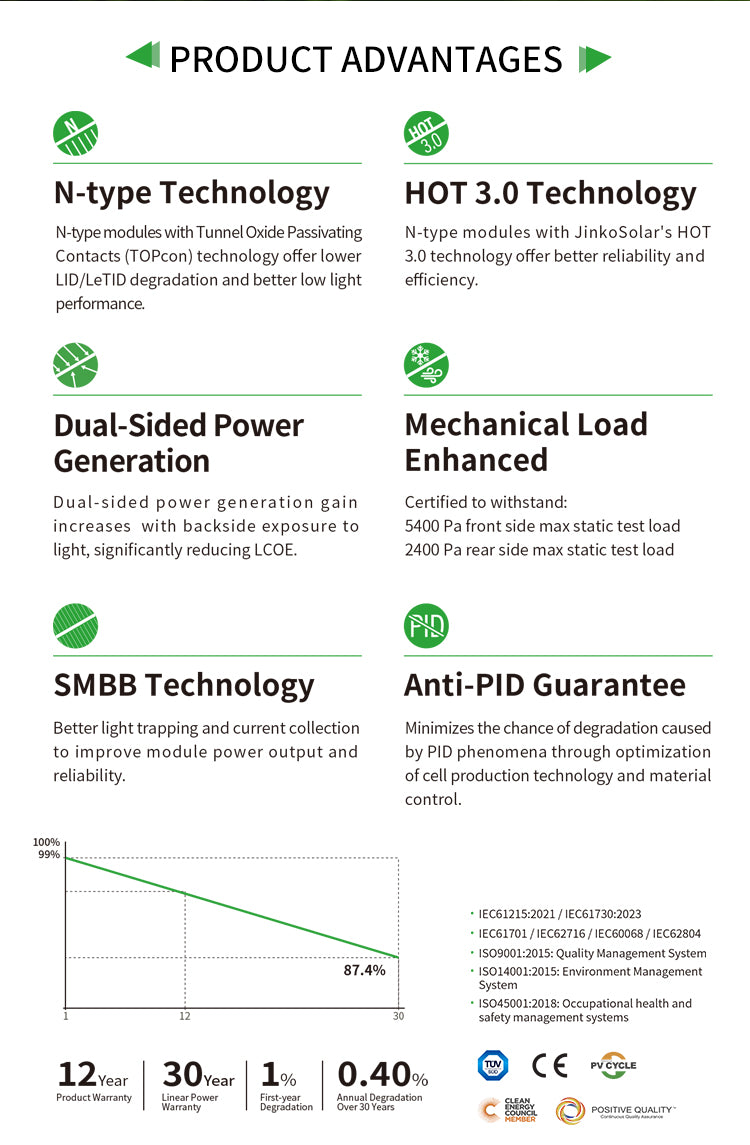

The Jinko 650 Watt Solar Panel features N-type technology with HOT 3.0 and Tunnel Oxide Passivating technologies for improved reliability and low light efficiency. The dual-sided power generation ensures better performance. It is certified to withstand a maximum static test load of 5400 Pa on the front side and 2400 Pa on the rear side, reducing LCOE. The SMBB Technology and Anti-PID Guarantee minimize degradation caused by PID phenomena, optimizing module power output and reliability. This product meets IEC standards including 61215.2021, 61730.2023, 61701, 62716, 60868, and 62804, as well as ISO9001:2015, ISO140012015, and OHSAS 18001:2007.

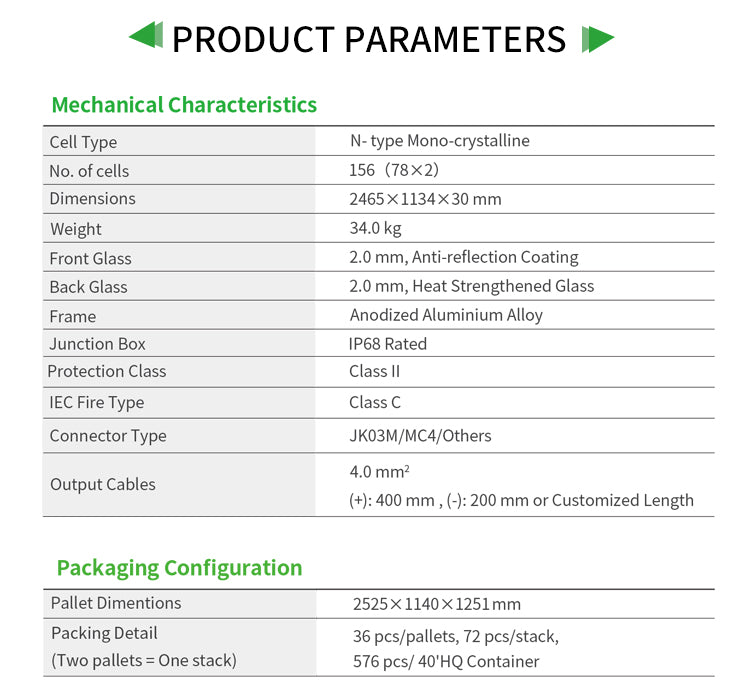

The Jinko 650W Solar Panel (625-650W) features mechanical characteristics including N-type mono-crystalline cells and 156 cells with dimensions of 2465x1134x30 mm. The weight is 34 kg, with a front glass layer measuring 2.0 mm and anti-reflection coating. The back glass layer is also 2.0 mm thick, heat-strengthened for durability. The frame is made from anodized aluminum alloy, while the junction box has IP68 rated protection class II IEC. Fire type is Class C with a connector type of JKO3M/Mc4/Others and 4.0 mm output cables. Cables include (+J: 400 mm and (-J: 200 mm or customized length. The panel is packaged in pallets with dimensions of 2525x1140x1251mm, containing 36 panels per pallet or 72 per stack (two pallets equal one stack). A single 40'HQ container can hold up to 576 panels.

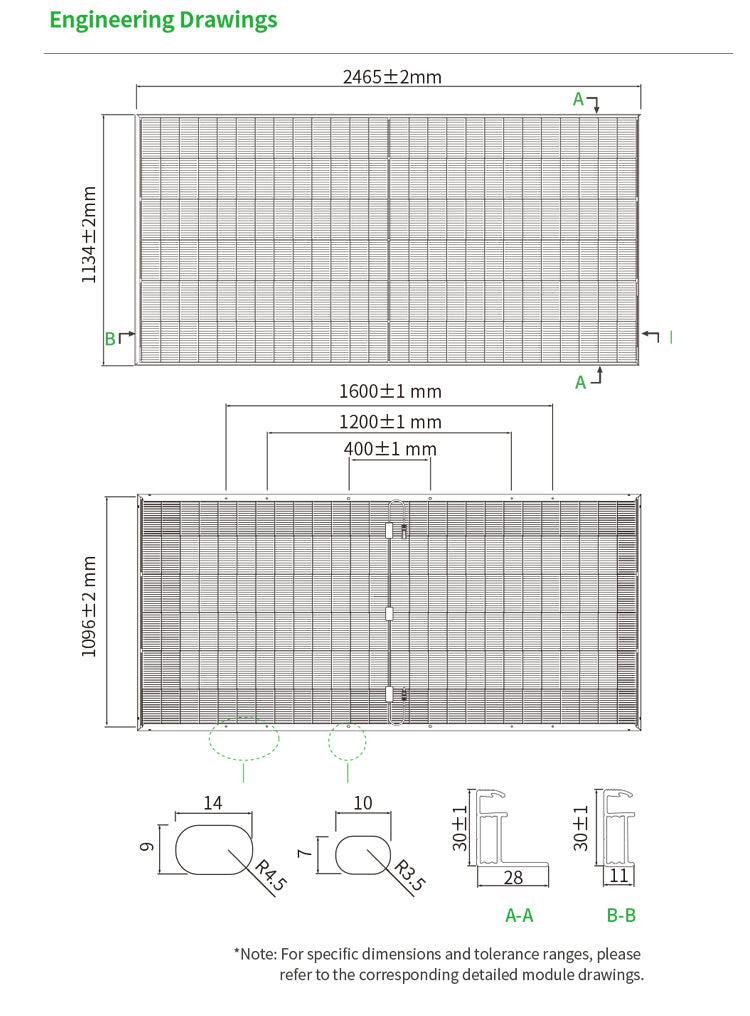

Jinko Solar Panel Product Image: High-efficiency monocrystalline silicon solar panel with 625-650W power output. Dimensions: 2465+2mm (length), 1600+1 mm (width), and 1200+1 mm (height). Tolerances and specific dimensions refer to detailed module drawings. Rated current: 10A, voltage: 4V.

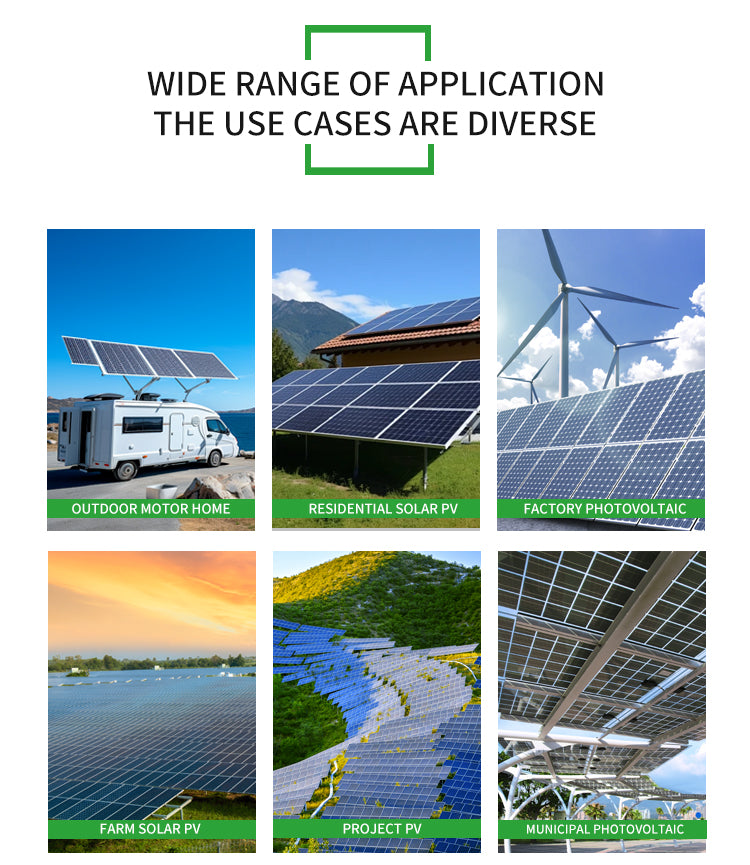

Wide range of applications include outdoor, motor homes, residential, solar farms, and municipal projects. Our 650W solar panel (625-650W) is suitable for various photovoltaic systems and industrial uses.
