Jinko 700 Watt Solar Panel Overview
The Jinko 700 Watt Solar Panel, part of the Tiger Neo series, is designed to deliver exceptional performance with its advanced N-type technology. This bifacial module features a power output range of 695-720W and offers an impressive panel efficiency of 23.20%. The robust construction includes a double-glass design and an IP68 rated junction box, ensuring superior durability and weather resistance. The panel measures 2384 x 1303 x 33mm and weighs 37.5 kg, making it an ideal choice for both residential and commercial solar energy systems.
Jinko Solar 700W Specifications
Attribute | Specification |
---|---|
Core Parameters | |
Cell Size | 182mm x 182mm |
Type | Bifacial, Double-glass, Half Cell, PERC, N-TYPE, All Black, MWT, IBC, HJT, hbc, TOPCON, BIPV |
Panel Efficiency | 23.20% |
Warranty | 25 years |
Industry-specific Attributes | |
Cell Type | N-type Bifacial Module With Dual Glass |
No. of Cells | 132 cells (66 x 2) |
Encapsulant Material | EVA |
Other Attributes | |
Place of Origin | Jiangsu, China |
Panel Dimensions | 2384 x 1303 x 33mm |
Brand Name | Jinko |
Model Number | Tiger Neo N-type 66HL5-BDV |
Weight | 37.5 kg |
Power Tolerance | 0~3% |
Front Glass | 2.0 mm, Anti-Reflection Coating |
Back Glass | 2.0 mm, Heat Strengthened Glass |
Frame | Anodized Aluminum Alloy |
J-Box | IP68 rated |
Certificate | TUV, CE |
Jinko 700W Solar Panel Highlights
High Customer Value
- The N-type technology with Tunnel Oxide Passivating Contacts (TOPCon) offers lower LID/LeTID degradation and better low light performance.
- The dual-sided power generation capability increases energy yield with backside exposure to light, significantly reducing the Levelized Cost Of Energy (LCOE).
High Reliability
- Certified to withstand harsh environmental conditions, including high salt, ammonia, sand, high temperature, and high humidity areas.
- Mechanical load enhanced to endure up to 5400 Pa front side static test load and 2400 Pa rear side static test load.
- Ensures better light trapping and current collection with SMBB (Super Multi-Busbar) technology.
High Power Output
- Capable of delivering up to 720W power output with a panel efficiency of 23.20%.
- Designed with HOT 2.0 technology for improved reliability and efficiency.
Certifications and Projects
- The panel has received multiple certifications, including TUV and CE, ensuring compliance with international standards.
- Jinko Solar panels have been successfully installed in numerous large-scale projects worldwide, demonstrating their reliability and performance in various conditions.
With these comprehensive attributes and certifications, the Jinko 700 Watt Solar Panel is a highly reliable and efficient option for diverse solar power installations, offering high energy yield and robust performance.

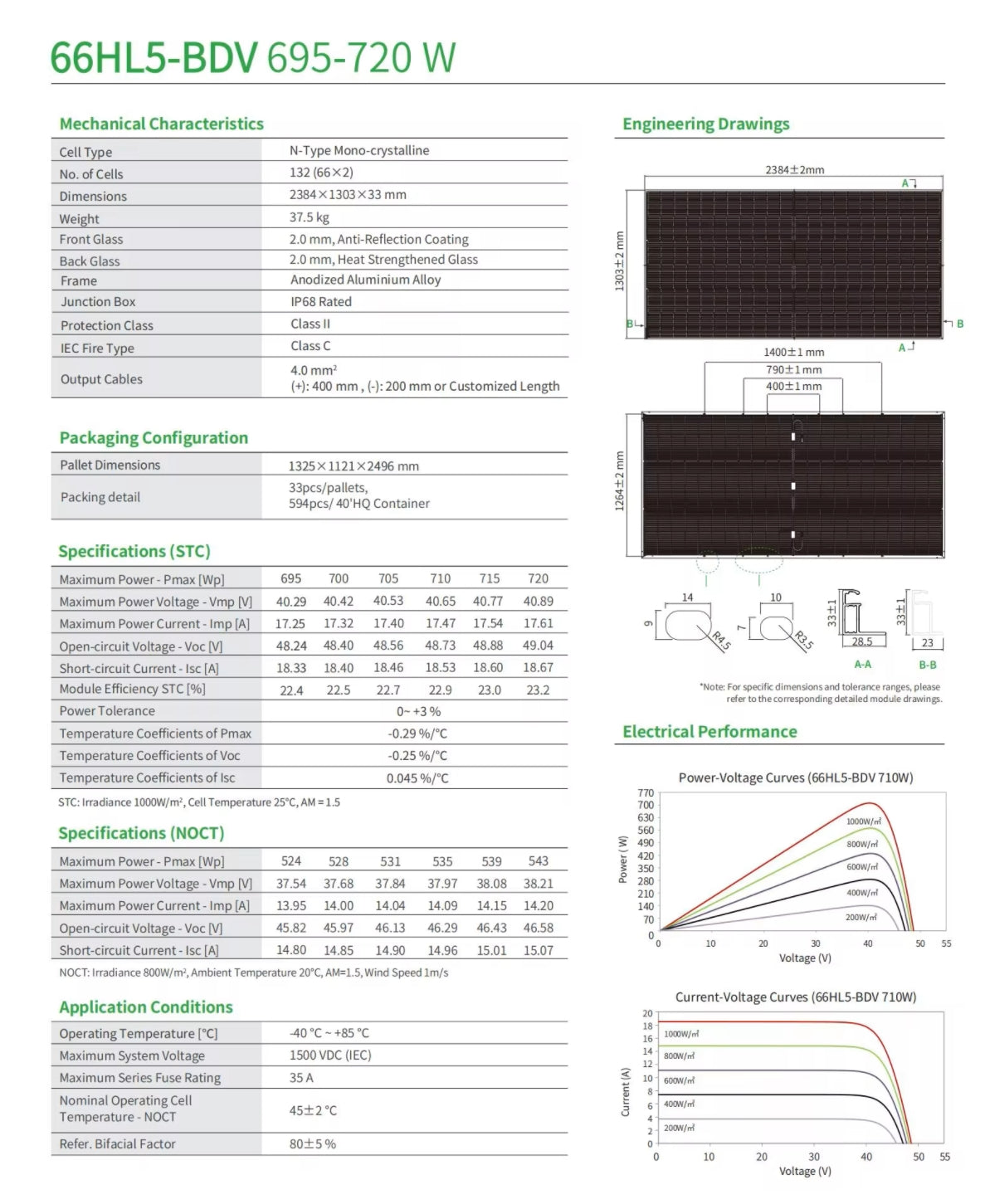

Jinko 700W Datasheet

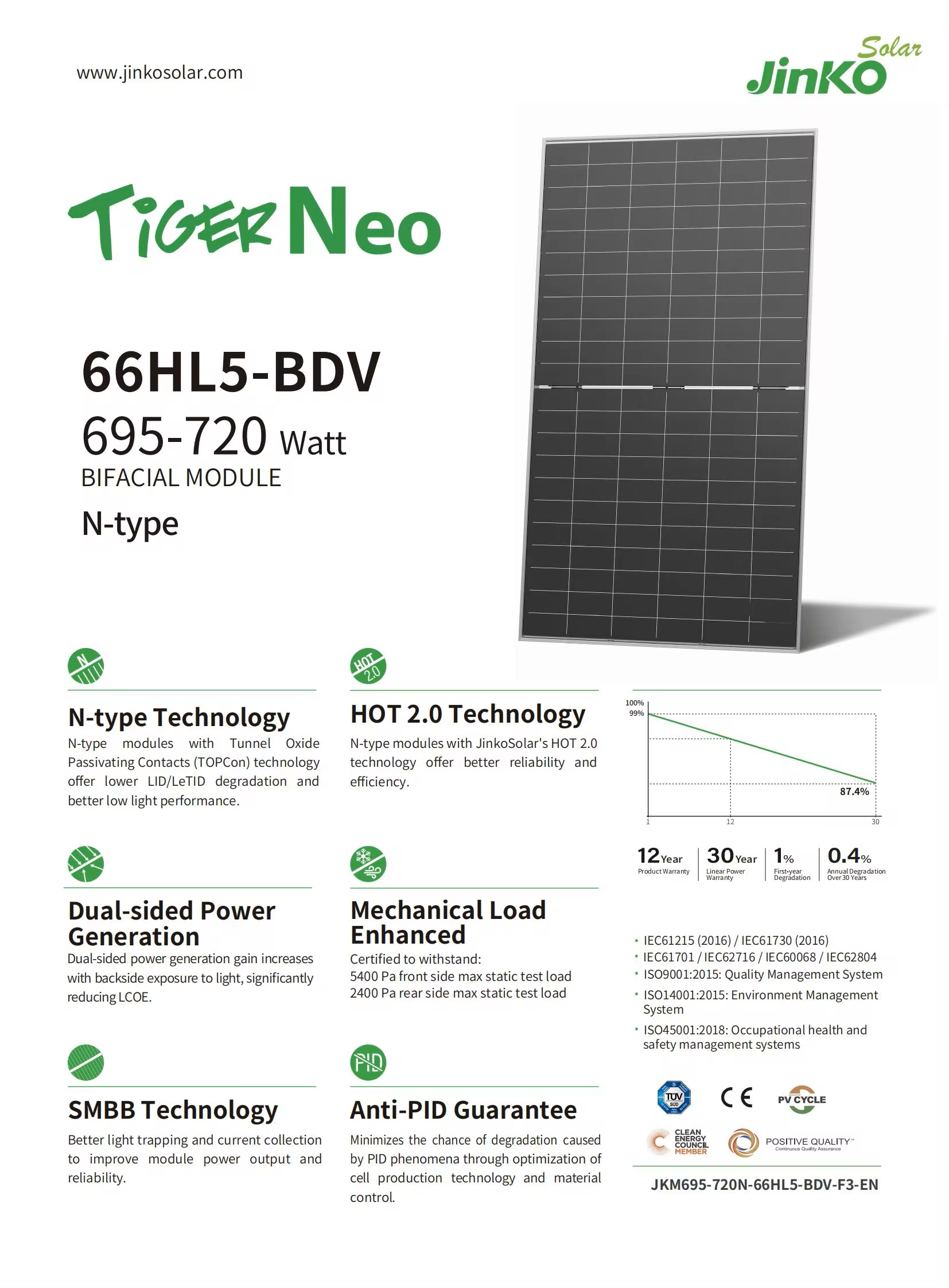

Jinko's Tiger Neo N-type Bifacial Solar Panel offers 695-720W power output, with 100% N-type technology and HOT 2.0 passivating contacts for improved reliability, lower degradation, and better low-light performance. The panel features tunnel oxide N-type modules with dual-sided power generation, ensuring high efficiency (87.4%) and certified to withstand various environmental tests, including IEC standards.
Jinko 700W Solar Panel - Tiger Neo N-type Bifacial Solar Panel with mechanical characteristics, including a maximum power output of 695-720W and dimensions of 2384x1303x33mm.
