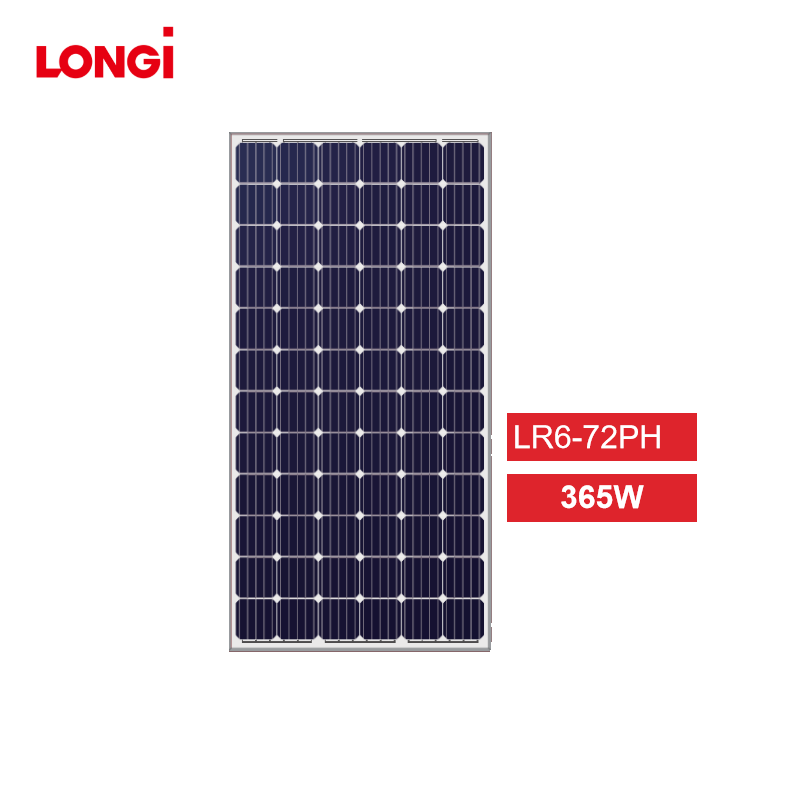

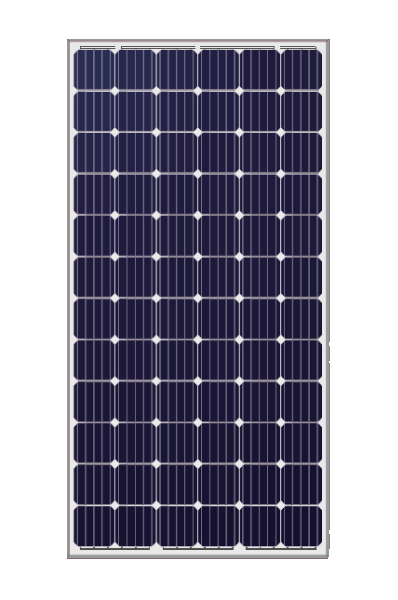

LonGi 365W Solar Panel Overview:
The LonGi 365W Solar Panel (LR6-72PH, 360-380 Watt) leverages advanced Mono PERC technology to deliver an impressive 19.6% module conversion efficiency. Designed for 1500V DC systems, it features a power output tolerance of 0 to +5W. With a maximum power output of 365W, an open-circuit voltage of 48.1V, and a short-circuit current of 9.90A, this panel guarantees excellent energy performance. Additionally, its robust design can withstand 5400Pa front-side and 2400Pa rear-side static loads, ensuring long-term durability under extreme environmental conditions. The LonGi 365W Solar Panel is ideal for large-scale commercial and utility solar projects, offering stable performance and high energy output in all climates.
LonGi 365W Solar Panel Key Features:
- High Efficiency: Module conversion efficiency up to 19.6%, maximizing energy production.
- Low Power Degradation: Annual power degradation of only 0.55%, retaining over 80.7% power output after 25 years.
- Durable Construction: Withstands 5400Pa front static load and 2400Pa rear static load.
- Wide Temperature Range: Operates reliably in temperatures from -40°C to +85°C.
- PID Resistance: Enhanced PID resistance ensures long-term performance.
LonGi 365W Solar Panel Specifications:
Mechanical Parameters | |
---|---|
Cell Orientation | 72 (6×12) |
Junction Box | IP67, with three diodes |
Output Cable | 4mm², 1200mm length |
Glass | 3.2mm tempered glass |
Weight | 22.5 kg |
Dimensions | 1956 × 991 × 40 mm |
Packaging | 26 pieces per pallet |
130 pcs per 20'GP, 624 pcs per 40'HC |
Operating Parameters | |
---|---|
Operational Temperature | -40°C ~ +85°C |
Power Output Tolerance | 0 ~ +5 W |
Maximum System Voltage | 1500V DC (IEC & UL) |
Maximum Series Fuse Rating | 20 A |
Nominal Operating Cell Temp | 45 ± 2°C |
Application Class | Class II |
Fire Rating | UL Type 4 |
Electrical Characteristics:
Model Number | LR6-72PH-360M | LR6-72PH-365M | LR6-72PH-370M | LR6-72PH-375M | LR6-72PH-380M |
---|---|---|---|---|---|
Maximum Power (Pmax) | 360 W | 365 W | 370 W | 375 W | 380 W |
Open Circuit Voltage | 47.8 V | 48.1 V | 48.4 V | 48.7 V | 49.0 V |
Short Circuit Current | 9.87 A | 9.90 A | 9.93 A | 9.96 A | 10.00 A |
Voltage at Max Power | 39.0 V | 39.3 V | 39.7 V | 40.1 V | 40.4 V |
Current at Max Power | 9.23 A | 9.28 A | 9.32 A | 9.36 A | 9.40 A |
Module Efficiency | 18.6% | 18.8% | 19.1% | 19.3% | 19.6% |
Temperature Ratings (STC):
Parameter | Coefficient |
---|---|
Temperature Coefficient of Isc | +0.057%/°C |
Temperature Coefficient of Voc | -0.286%/°C |
Temperature Coefficient of Pmax | -0.370%/°C |
Mechanical Loading:
Loading Type | Rating |
---|---|
Front Side Maximum Static Loading | 5400Pa |
Rear Side Maximum Static Loading | 2400Pa |
Hailstone Test | 25mm hailstone at 23m/s |
Certifications:
- IEC 61215, IEC 61730
- ISO 9001:2008 (Quality Management)
- ISO 14001:2004 (Environmental Management)
- OHSAS 18001:2007 (Occupational Health & Safety)
Warranty:
- 10-year product warranty for materials and processing.
- 25-year linear power warranty with an annual degradation rate of 0.55%.
The LonGi 365W Solar Panel is engineered to provide reliable solar energy generation and to maximize returns on solar investments. Its high efficiency, durability, and long-term warranty make the LonGi 365W Solar Panel the ideal choice for large-scale solar installations looking for high energy output and durability across various environments.

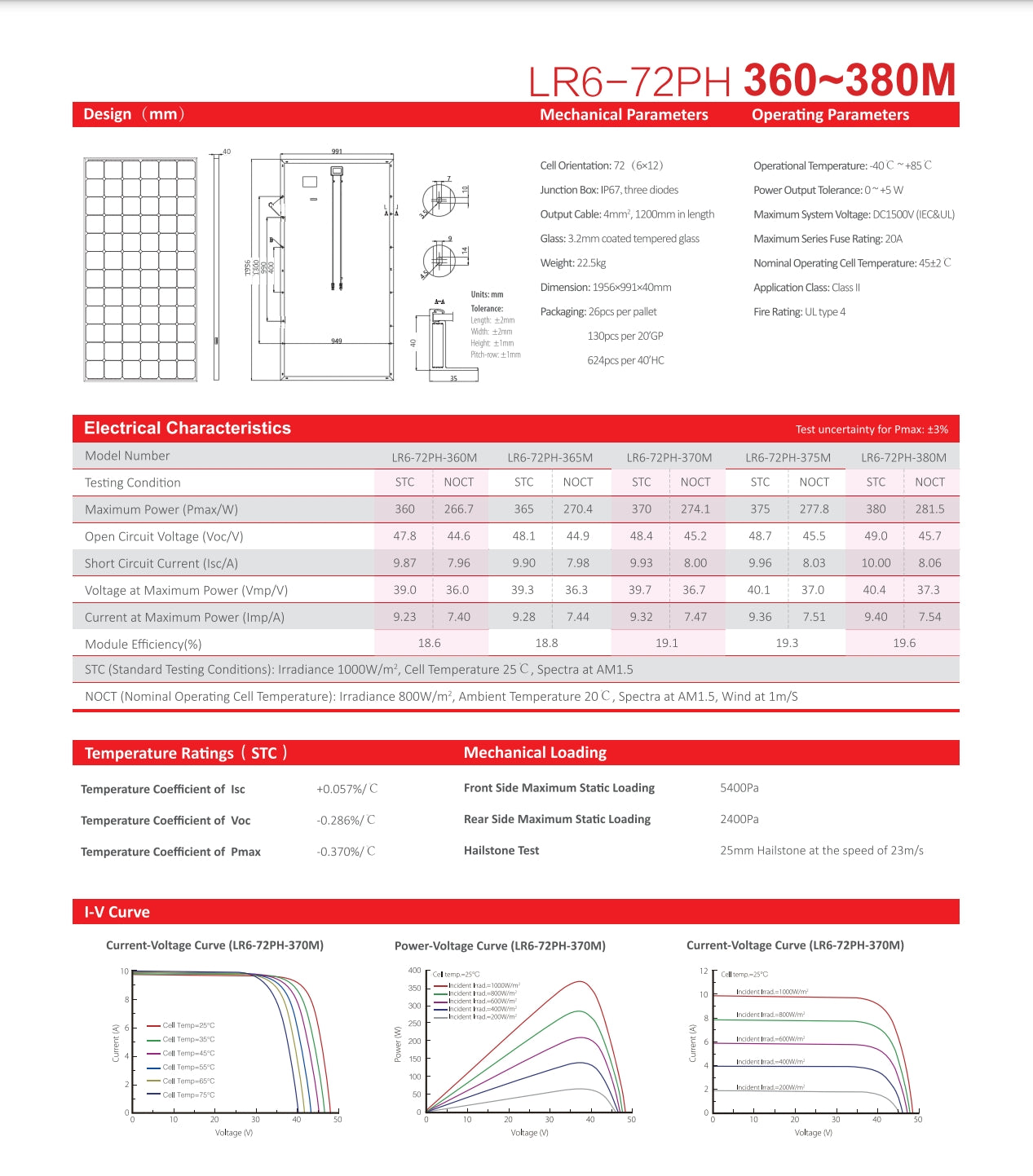

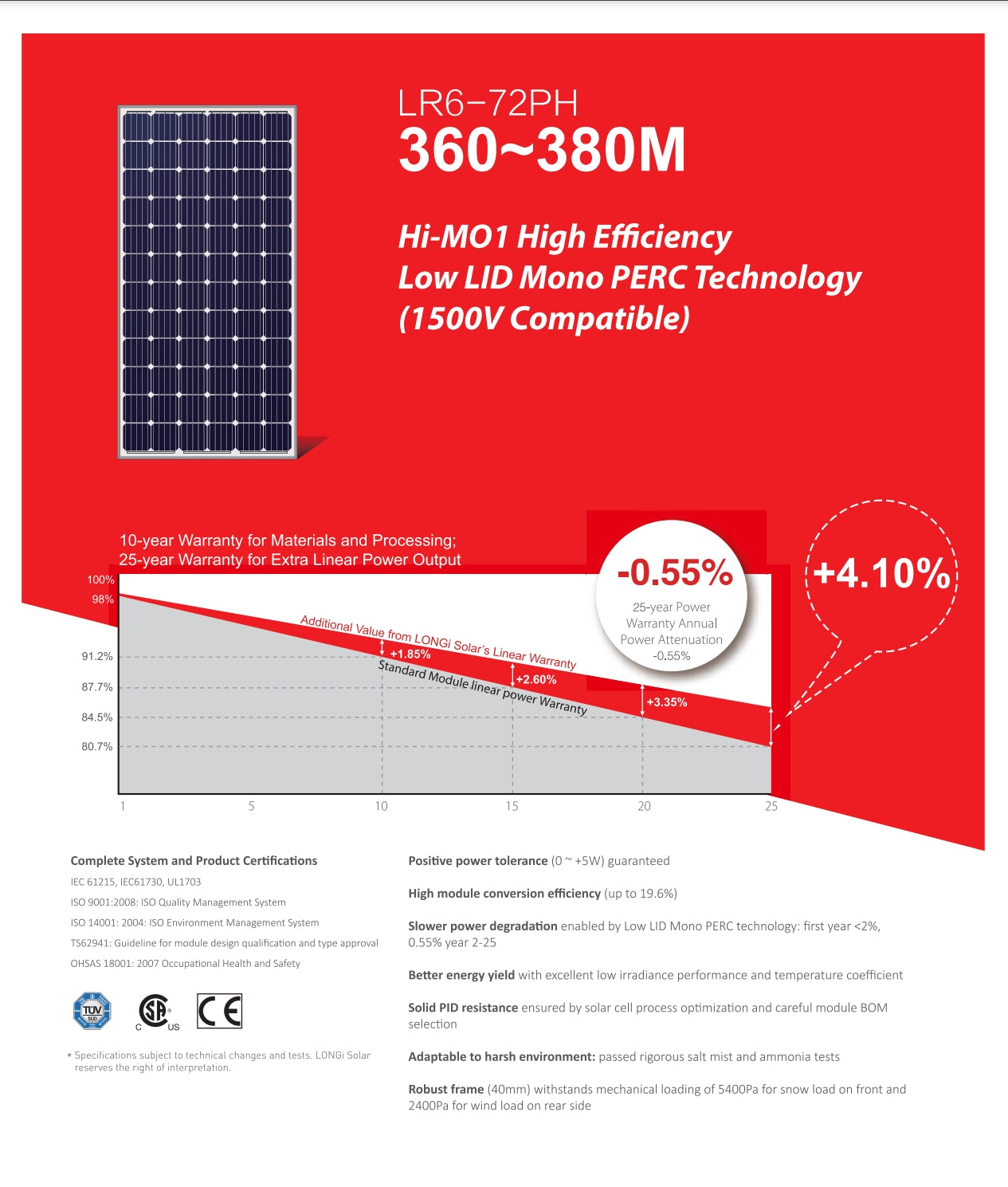

LonGi 365W Datasheet
LONGi 365W Solar Panel (LR6-72PH, 360-380W) features high-efficiency low LID Mono PERC technology. It comes with a 10-year warranty for materials and processing, and a 25-year warranty for extra linear power output. The module has a positive power tolerance of up to 4.1% and is certified to IEC 61215, IEC61730, and UL1703 standards. With high conversion efficiency up to 19%, it enables slower power degradation and excellent low irradiance performance. The module also features robust framing that withstands mechanical loading.
LonGi 365W Solar Panel Product Information LR6-72PH, 360-380 Watt Cell Orientation: 72 (6x12) Operational Temperature: -40°C ~+85°C Junction Box: IP67, three diodes Power Output Tolerance: 0 ~+5 W Output Cable: 4mm², 120mm in length Maximum System Voltage: DCISOOV (IEC60950-1) Glass: 3.2mm coated tempered glass Maximum Series Fuse Rating: 20A Weight: 22.5kg Nominal Operating Cell Temperature: 45±2°C Dimension: 1956*9994*40mm Application Class: Class I Units: mm Molerancp- Packaging: 26pcs per pallet Fire Rating: UL type Lemi Ydlk tlmni 130pcs per 2OGP LFim Purt-Mur+It 62Apcs per AOHC Electrical Characteristics: Test uncertainty for Pmax: 13% Model Number: LR6-72PH-360M, LR6-72PH-365M, LR6-72PH-370M, LR6-72PH-375M, LR6-72PH-380M Testing Condition: STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25°C, Spectra at AM1.5 NOCT (Nominal Operating Cell Temperature): Irradiance 800W/m², Ambient Temperature 20°C, Spectra at AM1.5, Wind at 1m/S
