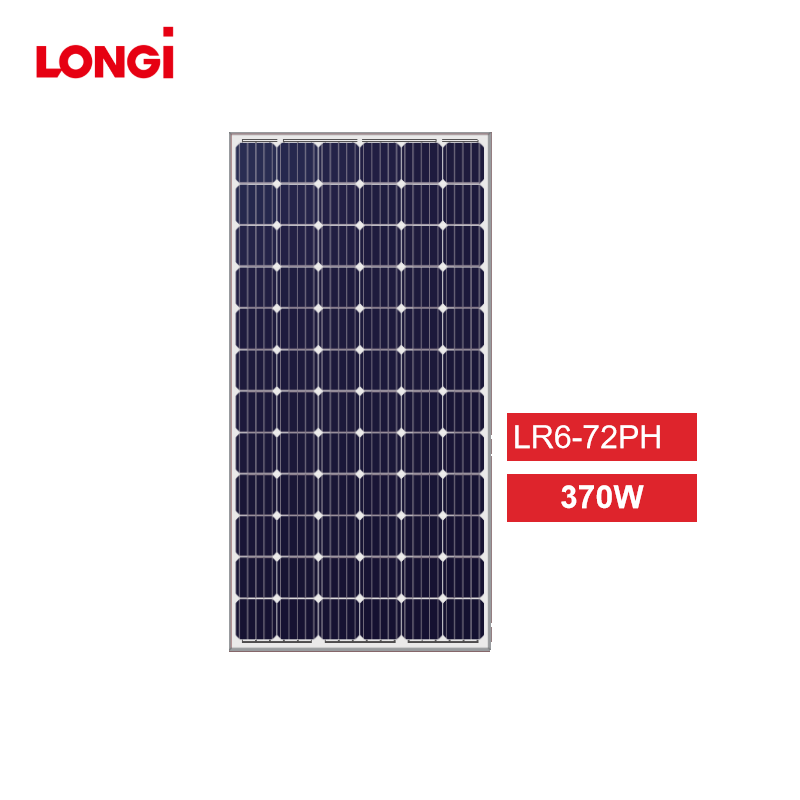

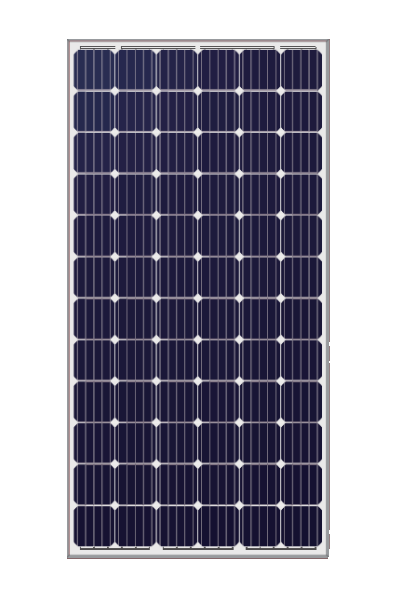

LonGi 370W Solar Panel Overview:
The LonGi 370W Solar Panel (LR6-72PH, 350-370 Watt) combines cutting-edge Mono PERC technology and a durable construction to provide high efficiency and long-term reliability. With a maximum power output of 370W, 19.1% module efficiency, and compatibility with 1500V DC systems, this panel ensures superior energy generation for large-scale commercial and utility projects. Its robust design allows it to withstand harsh environmental conditions, including front-side static loads of 5400Pa and rear-side static loads of 2400Pa, making it an excellent choice for regions prone to high snow and wind.
LonGi 370W Solar Panel Key Features:
- High Efficiency: Module conversion efficiency reaching 19.1%, maximizing energy output.
- Low Power Degradation: Power degradation of only 0.55% per year, ensuring more than 80% power output after 25 years.
- Positive Power Tolerance: 0 to +5W output power tolerance ensures consistent performance.
- Durability: Withstands 5400Pa front-side static loads and 2400Pa rear-side static loads, suitable for snow and wind-prone areas.
- PID Resistance: Improved resistance to Potential Induced Degradation (PID) ensures long-term reliability.
LonGi 370W Solar Panel Specifications:
| Mechanical Parameters | |
|---|---|
| Cell Orientation | 72 (6×12) |
| Junction Box | IP67, with three diodes |
| Output Cable | 4mm², 1200mm length |
| Connector | MC4 or MC4 compatible |
| Glass | 3.2mm tempered glass |
| Weight | 26.5 kg |
| Dimensions | 1956 × 991 × 45 mm |
| Packaging | 23 pieces per pallet |
| Operating Parameters | |
|---|---|
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0 ~ +5 W |
| Maximum System Voltage | 1500V DC (IEC & UL) |
| Maximum Series Fuse Rating | 15 A |
| Nominal Operating Cell Temp | 45 ± 2°C |
| Application Class | Class A |
Electrical Characteristics:
| Model Number | LR6-72PH-350M | LR6-72PH-355M | LR6-72PH-360M | LR6-72PH-365M | LR6-72PH-370M |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 350 W | 355 W | 360 W | 365 W | 370 W |
| Open Circuit Voltage | 47.5 V | 47.7 V | 47.9 V | 48.0 V | 48.4 V |
| Short Circuit Current | 9.57 A | 9.63 A | 9.70 A | 9.74 A | 9.85 A |
| Voltage at Max Power | 38.8 V | 39.0 V | 39.2 V | 39.3 V | 39.4 V |
| Current at Max Power | 9.03 A | 9.10 A | 9.18 A | 9.29 A | 9.40 A |
| Module Efficiency | 18.1% | 18.3% | 18.6% | 18.8% | 19.1% |
Temperature Ratings (STC):
| Parameter | Coefficient |
|---|---|
| Temperature Coefficient of Isc | +0.057%/°C |
| Temperature Coefficient of Voc | -0.286%/°C |
| Temperature Coefficient of Pmax | -0.380%/°C |
Mechanical Loading:
| Loading Type | Rating |
|---|---|
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm hailstone at 23m/s |
Certifications:
- IEC 61215, IEC 61730
- ISO 9001:2008 (Quality Management)
- ISO 14001:2004 (Environmental Management)
- OHSAS 18001:2007 (Occupational Health & Safety)
Warranty:
- 10-year product warranty for materials and processing.
- 25-year linear power warranty with an annual degradation rate of 0.55%.
The LonGi 370W Solar Panel is designed for optimal energy production and long-term reliability, making it an ideal solution for large-scale solar installations. Its high efficiency, robust construction, and long-lasting performance ensure that this panel will maximize your energy yield for decades to come.

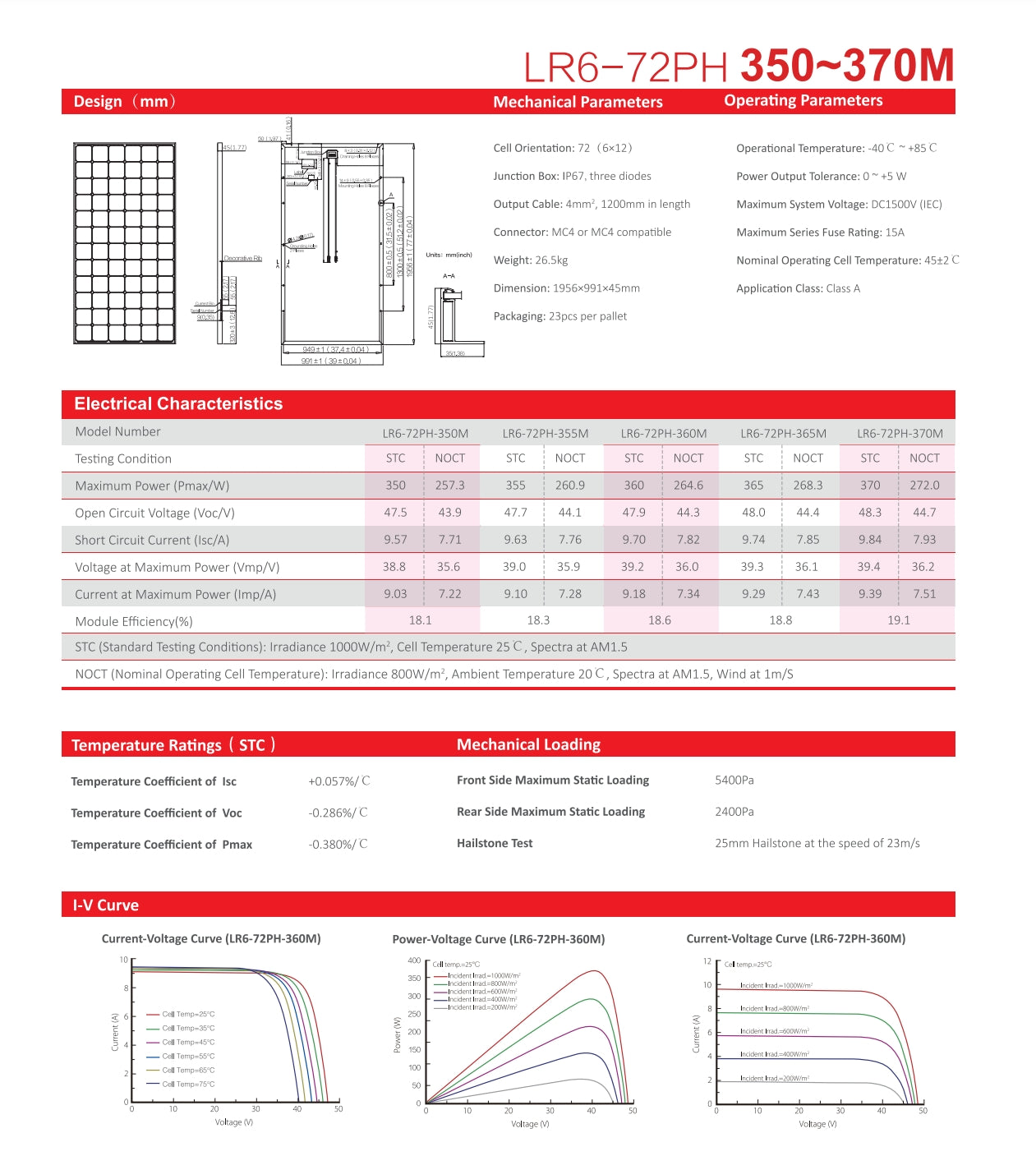

LonGi 370W Datasheet

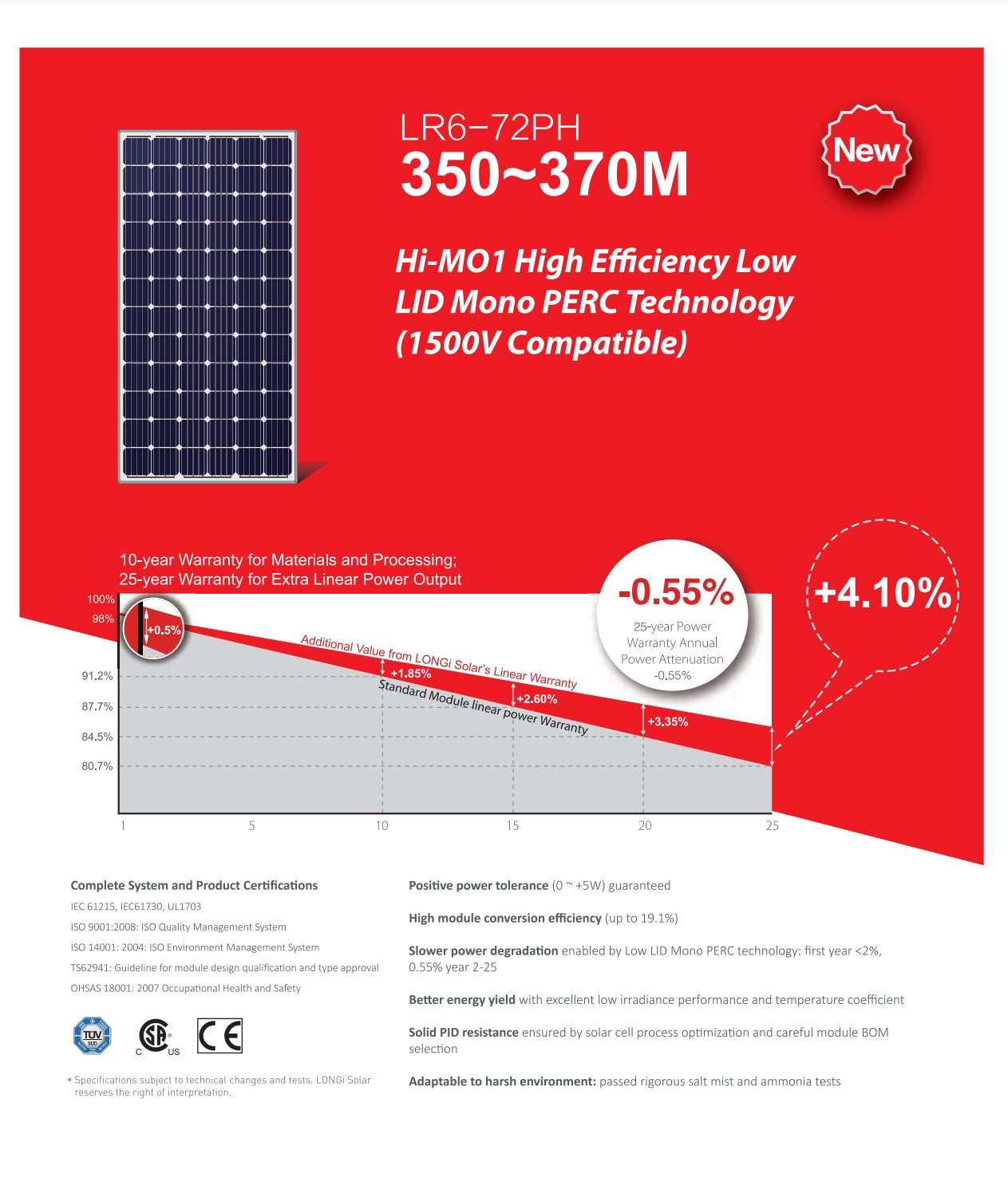

LR6-72PH New Solar Panel, 350-370W Hi-MoO High Efficiency Mono PERC Technology. Compatible with 1S00V. 10-year warranty for materials and processing; 25-year warranty for extra linear power output. Guaranteed positive power tolerance (0% +SW) to IEC 61215, IEC61730, UL1703. High module conversion efficiency up to 19.1%. ISO 9001:2008, ISO 14001:2004. Low Mono PERC technology enables slower power degradation with <2% loss in the first year and <0.55% loss per year from years two to twenty-five.
LonGi 370W Solar Panel (LR6-72PH, 350-370 Watt) Description: LR6-72P4-350M LR6-72PH-355M LR6-72PH-360M LR6-72PH-365M LR6-72PH-370M Specifications: * Power Output: 350-370W * Operating Temperature: -40°C to +85°C * Junction Box: IP67, three diodes * Power Output Tolerance: ±5W * Output Cable: 4mm, 1200mm in length * Maximum System Voltage: DCISOOV (IEC) * Connector: MC4 or MC4 compatible * Maximum Series Fuse Rating: 154 mm² * Weight: 26.5 kg * Nominal Operating Cell Temperature: 45°C * Dimension: 1956x991x45mm * Application Class: Class I * Packaging: 23pcs per pallet
