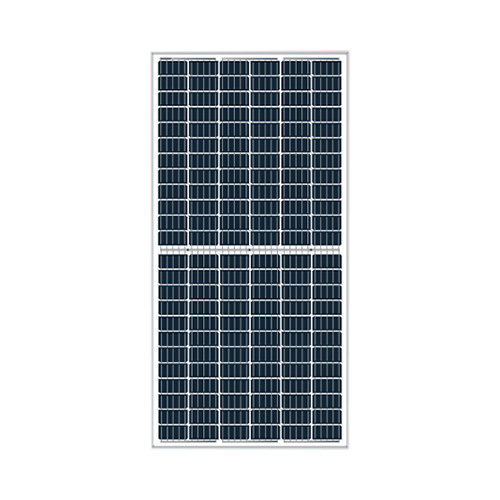

LonGi 380W Solar Panel Overview:
The LonGi 380W Solar Panel (LR6-72HPH, 365-385 Watt) is engineered with advanced Mono PERC half-cut cell technology, offering high efficiency and reliable performance. With a maximum power output of 380W and module efficiency up to 19.3%, this panel is optimized for commercial and utility-scale installations. It features robust construction, allowing it to withstand challenging environmental conditions, such as high wind and snow loads. The LonGi 380W Solar Panel is designed for long-term performance, backed by a 25-year linear power warranty.
LonGi 380W Solar Panel Key Features:
- High Efficiency: Achieves module conversion efficiency up to 19.3%, maximizing energy production.
- Low Power Degradation: The panel experiences only 0.55% power degradation annually, maintaining over 84.95% power output after 25 years.
- Half-Cut Cell Technology: Reduces resistive loss, increases efficiency, and minimizes hot spot risk.
- Durable Design: Capable of withstanding up to 5400Pa front-side static load and 2400Pa rear-side static load, making it suitable for extreme conditions.
- PID Resistance: Ensures long-term performance with excellent resistance to Potential Induced Degradation.
LonGi 380W Solar Panel Specifications:
| Mechanical Parameters | |
|---|---|
| Cell Orientation | 144 (6×24), half-cut cells |
| Junction Box | IP67, with three diodes |
| Output Cable | 4mm², 300mm in length |
| Glass | 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 23.0 kg |
| Dimensions | 2004 × 996 × 35 mm |
| Packaging | 30 pieces per pallet, 150 pieces per 20'GP, 660 pcs per 40'HC |
| Operating Parameters | |
|---|---|
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0 ~ +5 W |
| Maximum System Voltage | 1500V DC (IEC & UL) |
| Maximum Series Fuse Rating | 20 A |
| Nominal Operating Cell Temp | 45 ± 2°C |
| Fire Rating | UL Type 1 or Type 2 |
Electrical Characteristics:
| Model Number | LR6-72HPH-365M | LR6-72HPH-370M | LR6-72HPH-375M | LR6-72HPH-380M | LR6-72HPH-385M |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 365 W | 370 W | 375 W | 380 W | 385 W |
| Open Circuit Voltage | 48.4 V | 48.6 V | 48.8 V | 49.2 V | 49.5 V |
| Short Circuit Current | 9.71 A | 9.79 A | 9.87 A | 10.03 A | 10.08 A |
| Voltage at Max Power | 40.0 V | 40.2 V | 40.4 V | 40.7 V | 40.8 V |
| Current at Max Power | 9.13 A | 9.21 A | 9.28 A | 9.36 A | 9.43 A |
| Module Efficiency | 18.3% | 18.5% | 18.8% | 19.0% | 19.3% |
Temperature Ratings (STC):
| Parameter | Coefficient |
|---|---|
| Temperature Coefficient of Isc | +0.057%/°C |
| Temperature Coefficient of Voc | -0.286%/°C |
| Temperature Coefficient of Pmax | -0.370%/°C |
Mechanical Loading:
| Loading Type | Rating |
|---|---|
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm hailstone at 23m/s |
Certifications:
- IEC 61215, IEC 61730
- ISO 9001:2008 (Quality Management)
- ISO 14001:2004 (Environmental Management)
- OHSAS 18001:2007 (Occupational Health & Safety)
Warranty:
- 10-year product warranty for materials and processing.
- 25-year linear power warranty with an annual degradation rate of 0.55%, ensuring over 84.95% power output at the end of 25 years.
The LonGi 380W Solar Panel is designed for high efficiency, durability, and long-term reliability, making it ideal for large-scale solar projects. Its half-cut cell technology reduces resistive losses and ensures optimal energy production under various environmental conditions.

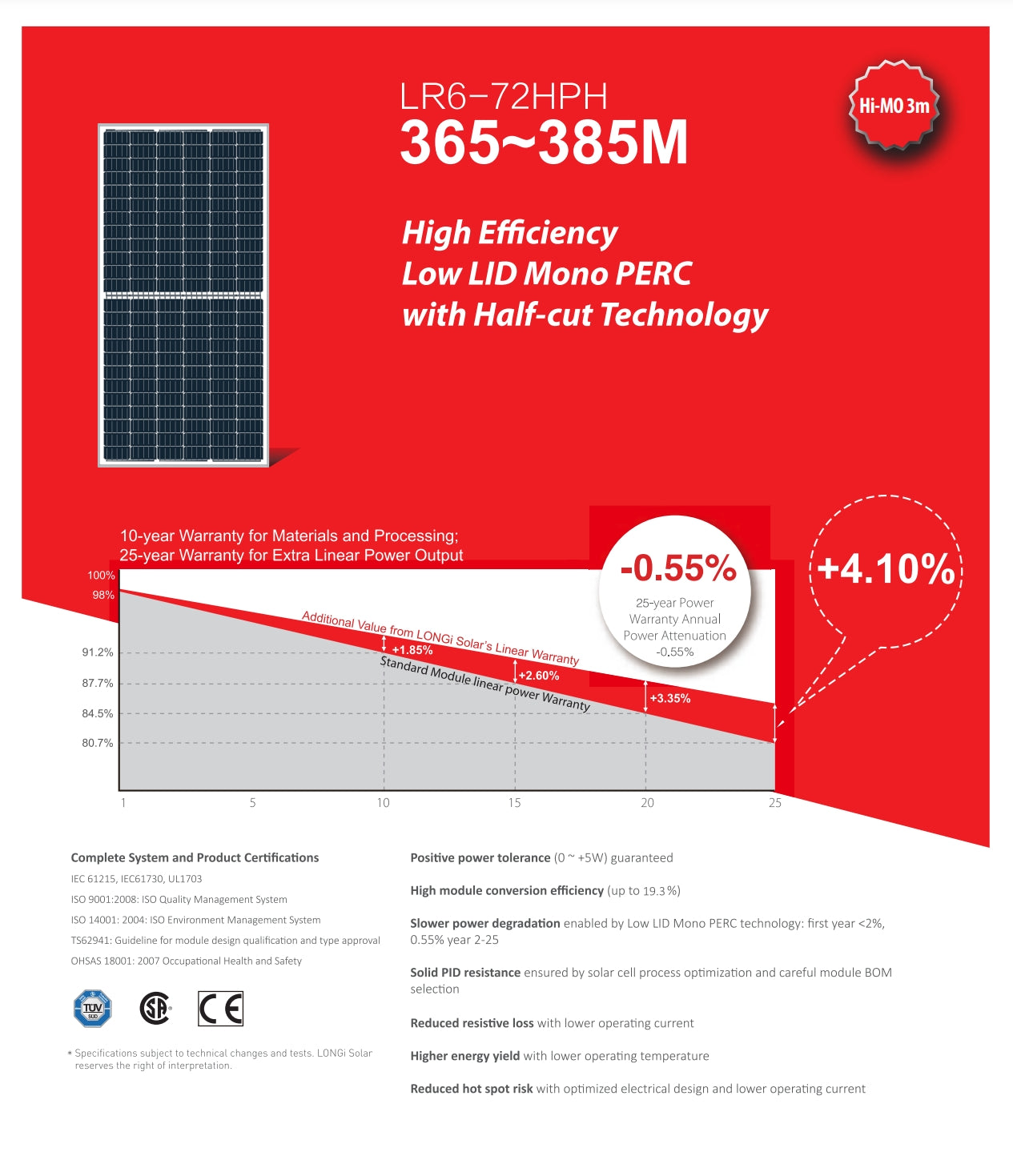

LonGi 380W Datasheet
Longi 380W Solar Panel (LR6-72HPH, 265-385 Watts) features Hi-MO 3 technology with high efficiency and low LID mono PERC. It comes with a 10-year warranty for materials and processing, as well as a 25-year warranty for extra linear power output. The panel boasts a high module conversion efficiency of up to 19.3%. Additionally, it has a positive power tolerance (0% +SW) guaranteed by certifications from IEC 61215, IEC61730, UL1703, and others.

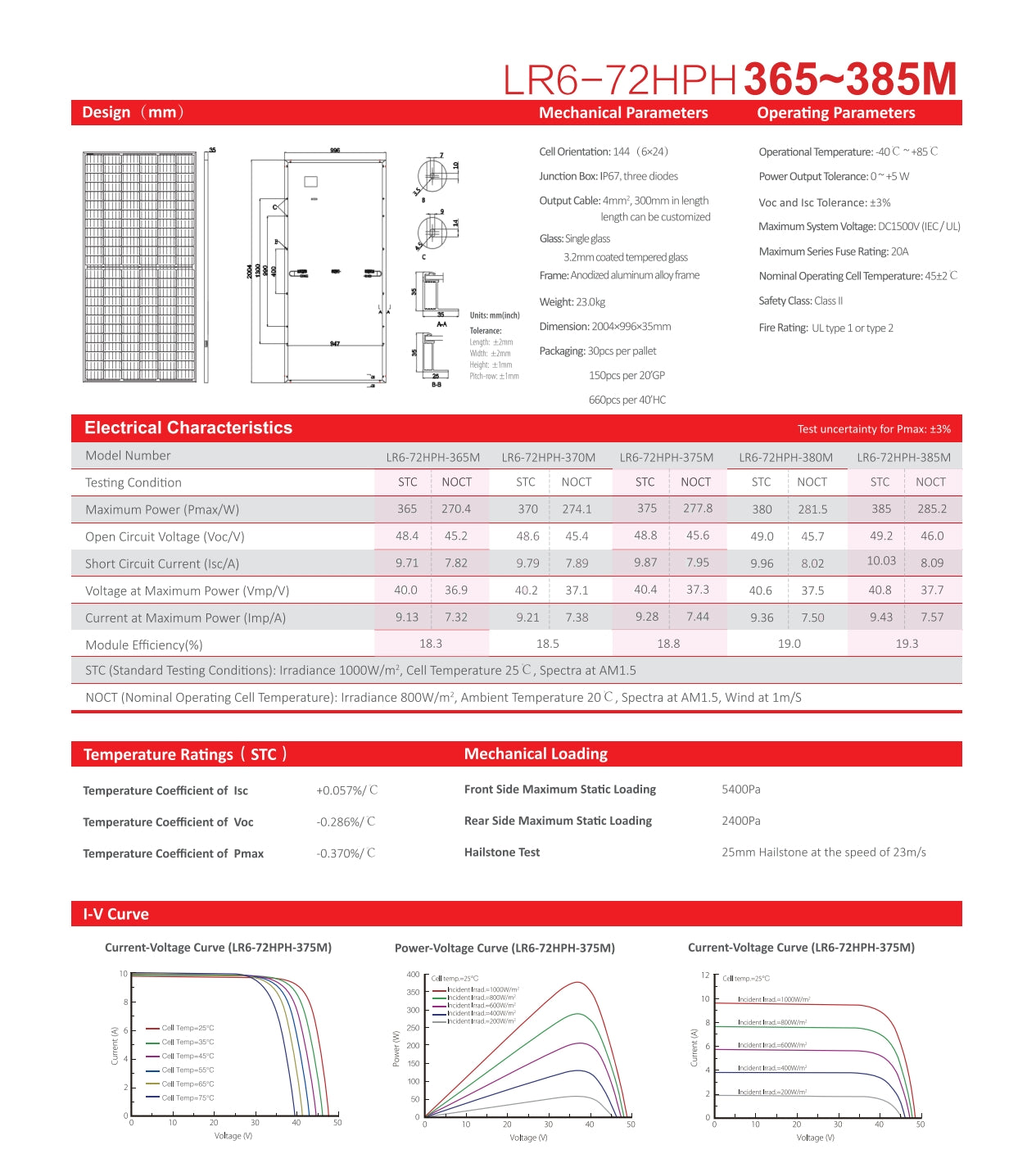

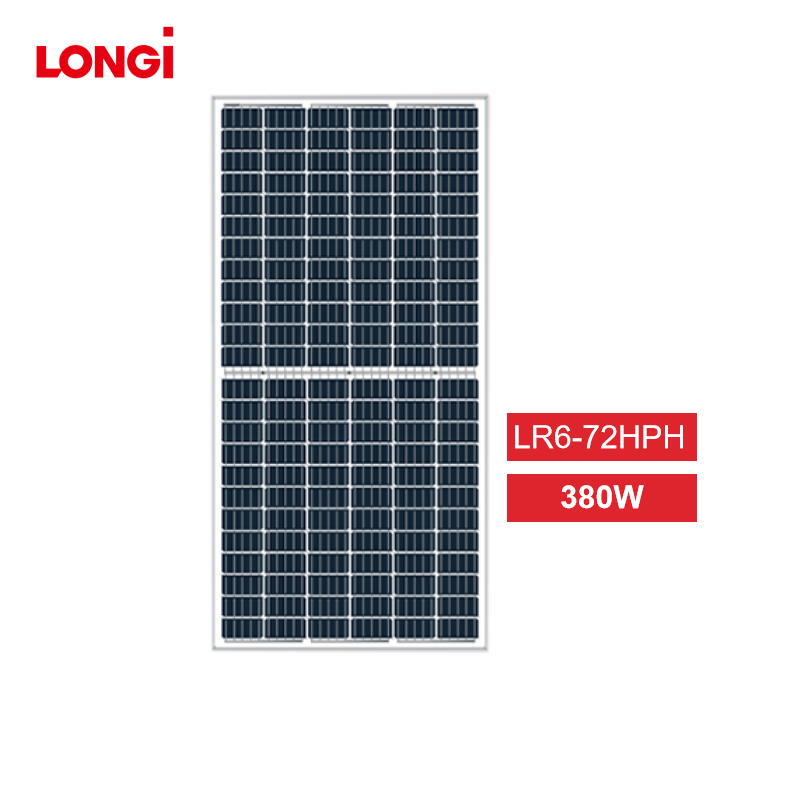

LonGi 380W Solar Panel (LR6-72HPH, 265-385 Watt) Product Image: LR6_72HPH365-385M Design mm Mechanical Parameters Operating Parameters Cell Orientation: 144 (6x24) Operational Temperature:-40 +85 Junction Box: IP6? three dipdes Power Output Tolerance: 0 ~+5W Output Cable: 4rnm?, 30Omm in length Voc and Isc Tolerance: _3%0 length can be customized Maximum System Voltage: DCISOOV (IEC / UL) Glass: Single elass Maximum Series Fuse Rating: 20A 3 Zrrim coated teripered glass Frame: Anodized aluminumalloy frame Nominal Operating Cell Temperature: 45+2 Weight: 23.0kg Safety Class: Class II Units: mm (mllinch) lolerante_ Dimension: 2004x996x35mm Fire Rating: ULtype ` ortype 2 Letggh; +XIII7I czh: EZiri Packaging: 30pcs per pallet Helgh:: 1 Imm Azh-m# =lmm 150pcs per 20GP 660pcs per 40HC Electrical Characteristics Test uncertainty for Pmax: 13% Model Number LR6-72HPH-365M LR6-72HPH-370M LR6-72HPH-375M LR6-72HPH-385M Testing Condition STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT Maximum Power (Pmax/WI) 365 270.4 370 274.1 375 277.8 380 281.5 385 285.2 Open Circuit Voltage (Voc/V) 48.4 45.2 48,6 45,4 48.8 45,6 49.0 45,7 49.2 46.0 Short Circuit Current (Isc/A) 7.82 9.79 7,89 9.87 7,95 9.96 8,02 10.03 8,09 Voltage at Maximum Power (Vmp/V) 40.0 36.9 40.2 37.1 40,4 37.3 40.6 37.5 40.8 37.7 Current at Maximum Power (Imp/A) 7.32 9.21 7,38 9.28 7,44 9.36 7,50 9,43 7,57 Module Efficiency (%) 18.3 18.5 18.8 19.0 19.3 STC (Standard Testing Conditions): Irradiance 1000W/m', Cell Temperature 25 C, Spectra at AM1,5 NOCT (Nominal Operating Cell Temperature): Irradiance 800W/m' , Ambient Temperature 20 € , Spectra at AM1.5, Wind at Im/s Temperature Ratings STC Mechanical Loading Temperature Coefficient of Isc +0.057%/€ Front Side Maximum Static Loading 5400Pa Temperature Coefficient of Voc -0.286%/€ Rear Side Maximum Static Loading 2400Pa Temperature Coefficient of Pmax 0.370%/€ Hailstone Test 25mm Hailstone at the top 23m/5 T-V Curve Current-Voltage Curve (LR6-72HPH-375M) Power-Voltage Curve (LR6-72HPH-375M) Current-Voltage Curve (LR6-72HPH-375M)
