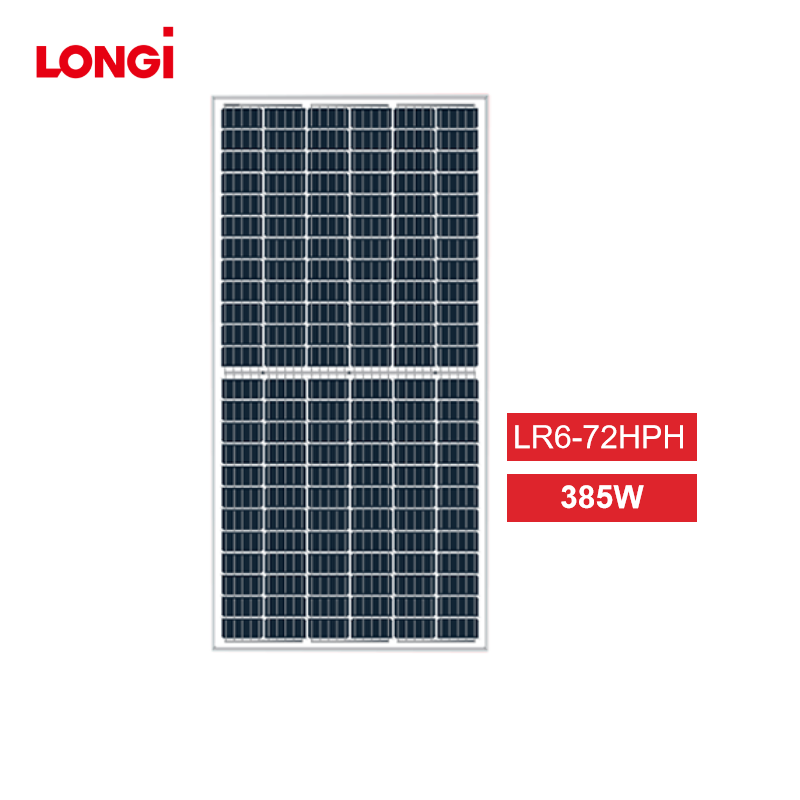

LonGi 385W Solar Panel Overview:
The LonGi 385W Solar Panel (LR6-72HPH, 365-385 Watt) leverages advanced Mono PERC half-cut cell technology to offer superior performance, efficiency, and reliability. With a maximum power output of 385W and module efficiency of up to 19.3%, this panel is designed for large-scale commercial and utility solar projects. Its robust construction allows it to withstand harsh environmental conditions such as high wind and snow loads, ensuring long-term durability. With a 25-year linear power warranty, the panel ensures a gradual degradation rate, maintaining more than 84.95% of its power output over its lifespan.
LonGi 385 Watt Solar Panel Key Features:
- High Efficiency: Module conversion efficiency up to 19.3%, maximizing energy yield.
- Low Power Degradation: Annual power attenuation of 0.55%, ensuring over 84.95% power output after 25 years.
- Half-Cut Cell Technology: Increases efficiency by reducing resistive loss, enhances performance under low irradiance, and minimizes hot spot risk.
- Durable Construction: Withstands 5400Pa front-side static load and 2400Pa rear-side static load, suitable for challenging environments.
- PID Resistance: Ensures long-term performance with excellent resistance to Potential Induced Degradation.
LonGi 385W Solar Panel Specifications:
| Mechanical Parameters | |
|---|---|
| Cell Orientation | 144 (6×24), half-cut cells |
| Junction Box | IP67, with three diodes |
| Output Cable | 4mm², 300mm in length |
| Glass | 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 23.0 kg |
| Dimensions | 2004 × 996 × 35 mm |
| Packaging | 30 pieces per pallet, 660 pcs per 40'HC |
| Operating Parameters | |
|---|---|
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0 ~ +5 W |
| Maximum System Voltage | 1500V DC (IEC & UL) |
| Maximum Series Fuse Rating | 20 A |
| Nominal Operating Cell Temp | 45 ± 2°C |
| Fire Rating | UL Type 1 or Type 2 |
Electrical Characteristics:
| Model Number | LR6-72HPH-365M | LR6-72HPH-370M | LR6-72HPH-375M | LR6-72HPH-380M | LR6-72HPH-385M |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 365 W | 370 W | 375 W | 380 W | 385 W |
| Open Circuit Voltage | 48.4 V | 48.6 V | 48.8 V | 49.2 V | 49.5 V |
| Short Circuit Current | 9.71 A | 9.79 A | 9.87 A | 10.03 A | 10.08 A |
| Voltage at Max Power | 40.0 V | 40.2 V | 40.4 V | 40.7 V | 40.8 V |
| Current at Max Power | 9.13 A | 9.21 A | 9.28 A | 9.36 A | 9.43 A |
| Module Efficiency | 18.3% | 18.5% | 18.8% | 19.0% | 19.3% |
Temperature Ratings (STC):
| Parameter | Coefficient |
|---|---|
| Temperature Coefficient of Isc | +0.057%/°C |
| Temperature Coefficient of Voc | -0.286%/°C |
| Temperature Coefficient of Pmax | -0.370%/°C |
Mechanical Loading:
| Loading Type | Rating |
|---|---|
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm hailstone at 23m/s |
Certifications:
- IEC 61215, IEC 61730
- ISO 9001:2008 (Quality Management)
- ISO 14001:2004 (Environmental Management)
- OHSAS 18001:2007 (Occupational Health & Safety)
Warranty:
- 10-year product warranty for materials and processing.
- 25-year linear power warranty with an annual degradation rate of 0.55%, ensuring over 84.95% power output at the end of 25 years.
The LonGi 385W Solar Panel is designed to deliver high efficiency, durability, and long-term reliability, making it the perfect choice for large-scale solar installations. Its half-cut cell technology enhances overall performance and energy yield, providing an optimized solution for any solar project.

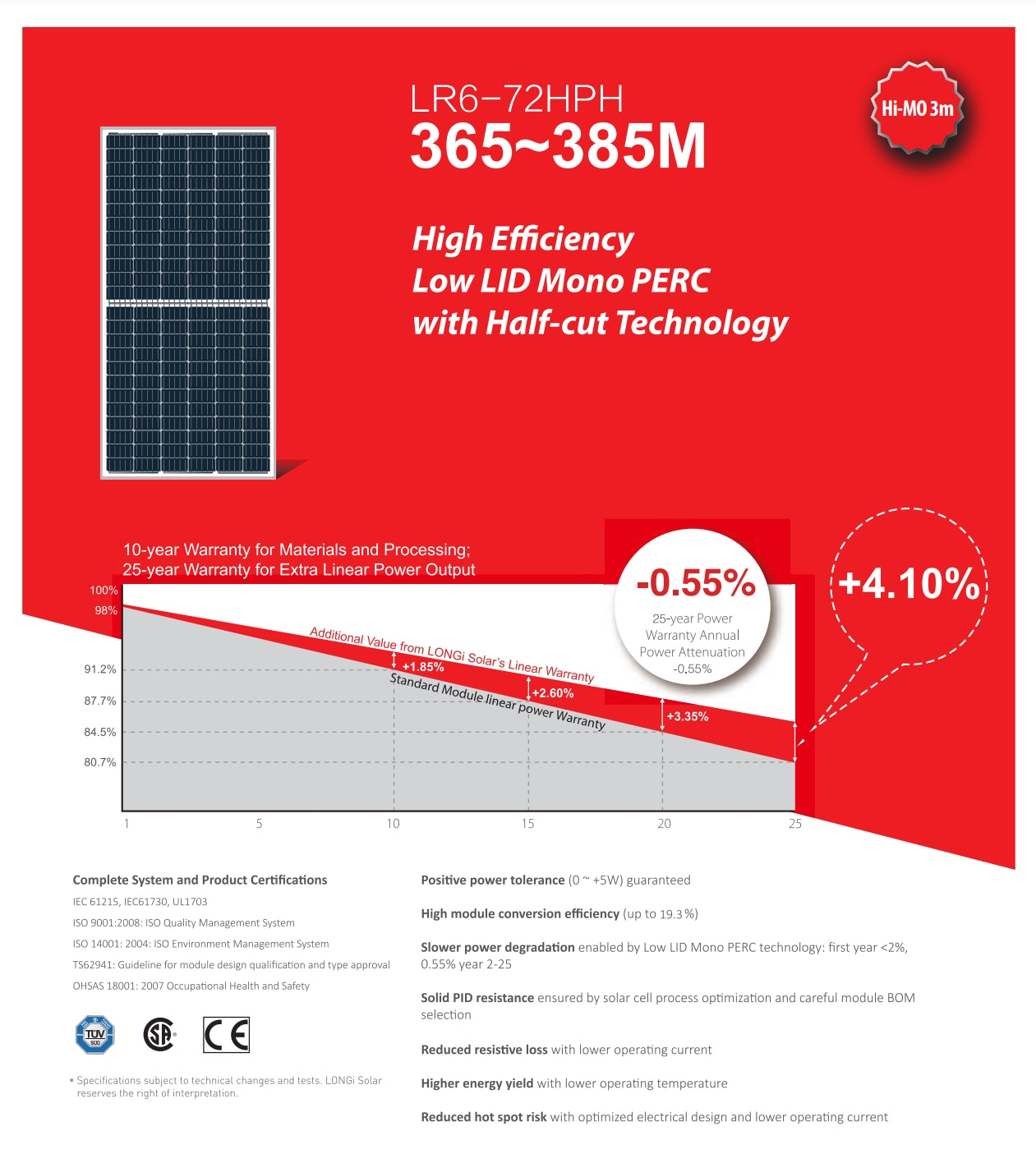

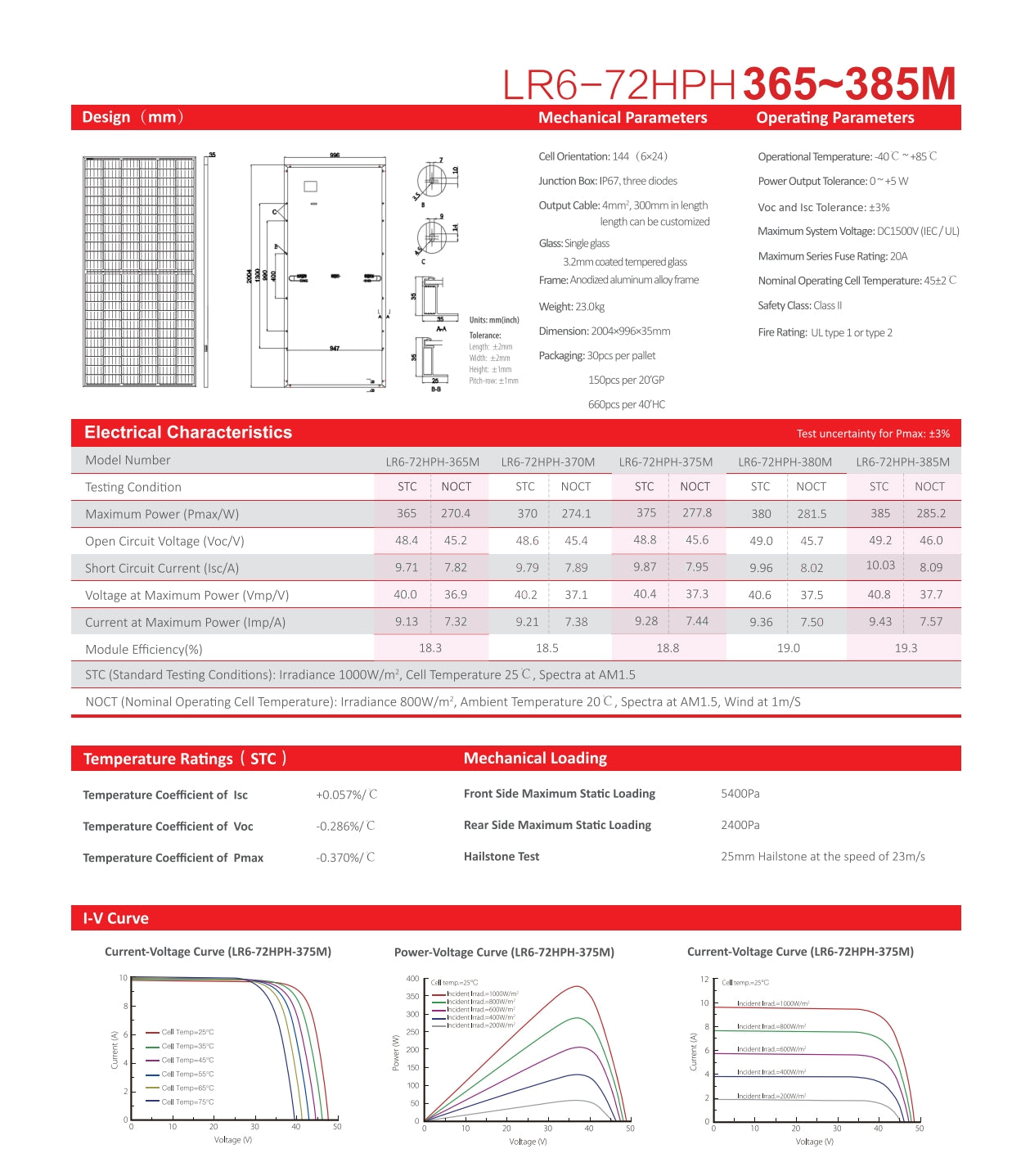

LonGi 385W Datasheet
LR6-72HPH Hi-MO 3M High Efficiency Low LID Mono PERC with Half-Cut Technology. Features a 10-year warranty for materials and processing, as well as a 25-year warranty for extra linear power output. The module has a high conversion efficiency of up to 19.3%. It also features positive power tolerance (0/+SW), guaranteed certifications including IEC 61215, IEC 61730, and UL 1703. The module slow power degradation is enabled by Low LID Mono PERC technology, with an annual attenuation rate of less than 2% for the first year.
LONGi 385W Solar Panel (LR6-72HPH, 365-385 Watt) Product Image: Design: mm Mechanical Parameters: Operating Parameters: Cell Orientation: 144 (6x24) Operational Temperature: -40°C to +85°C Junction Box: IP67, three diodes Power Output Tolerance: ±5 W Output Cable: 4mm², 30m in length Voc and Isc Tolerance: ±3% Maximum System Voltage: DC IEC/UL Glass: Single piece of tempered glass Frame: Anodized aluminum alloy frame Nominal Operating Cell Temperature: 45°C Weight: 23.0 kg Safety Class: Class II Units: mm (inch) Dimension: 2004 x 996 x 35mm Fire Rating: UL type 2 Packaging: 30pcs per pallet, 150pcs per 20GP, 660pcs per 40HC Electrical Characteristics: Test uncertainty for Pmax: 13% Model Number: LR6-72HPH-365M to LR6-72HPH-385M Testing Condition: STC: Irradiance 1000W/m², Cell Temperature 25°C, Spectra at AM1.5 NOCT: Irradiance 800W/m², Ambient Temperature 20°C, Spectra at AM1.5 Maximum Power (Pmax): 365-385 W Open Circuit Voltage (Voc): 48.4 V to 49.2 V Short Circuit Current (Isc): 7.82 A to 10.03 A Voltage at Maximum Power (Vmp/V): 36.9 V to 40.8 V Current at Maximum Power (Imp/A): 7.32 A to 9.43 A Module Efficiency (%): 18.3% to 19.3% STC (Standard Testing Conditions): Irradiance: 1000W/m² Cell Temperature: 25°C Spectra: AM1.5 NOCT (Nominal Operating Cell Temperature): Irradiance: 800W/m² Ambient Temperature: 20°C Spectra: AM1.5
