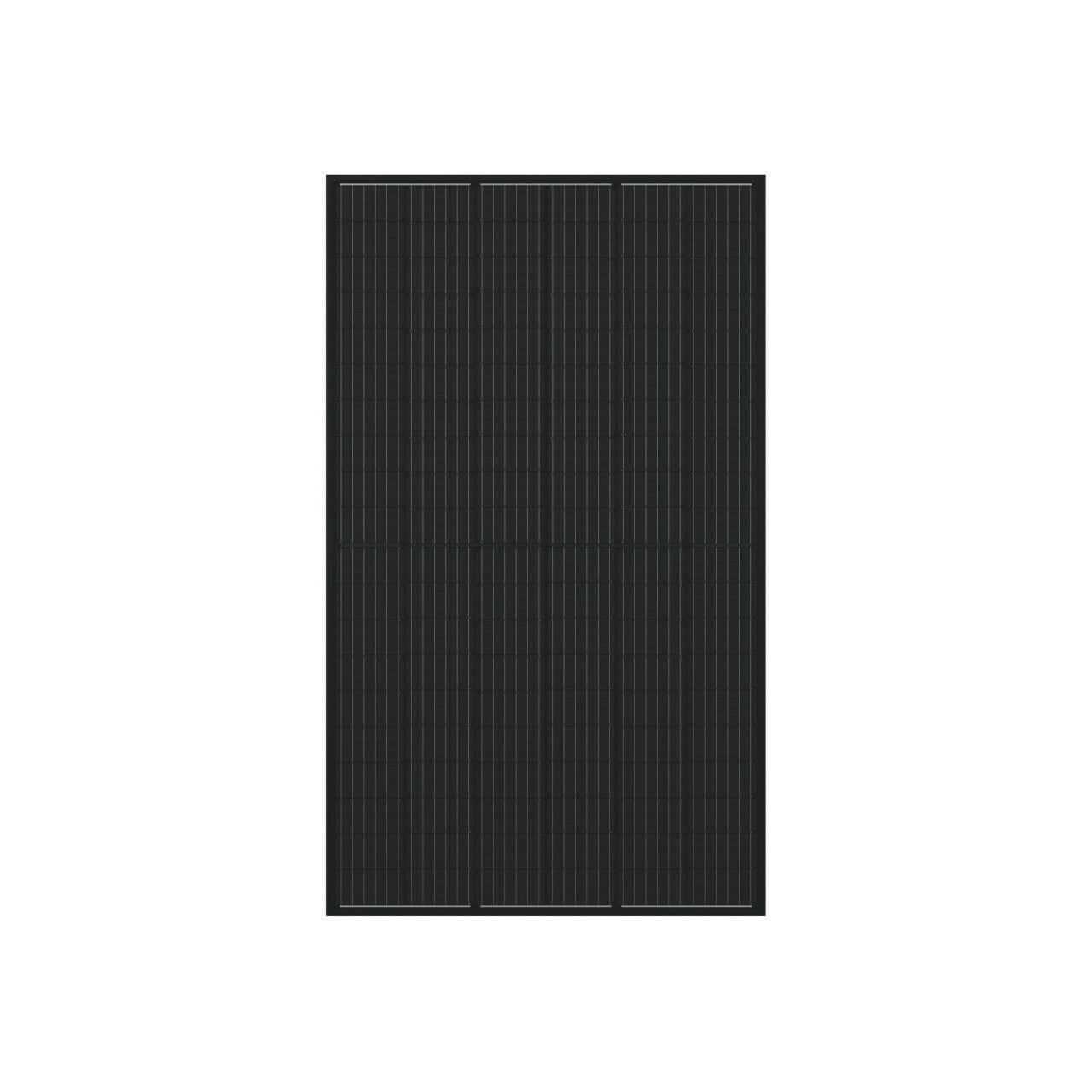

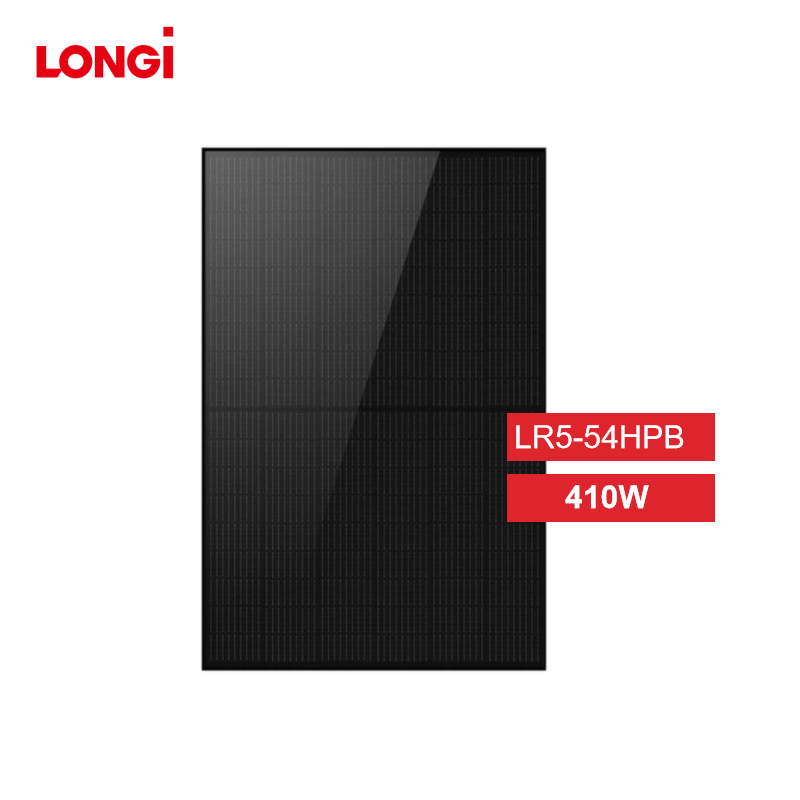

LonGi 410W Solar Panel Overview:
The LonGi 410W Solar Panel (LR5-54HPB, 400-420 Watt) is an advanced solar module engineered for superior performance and efficiency in distributed energy projects. Utilizing cutting-edge Hi-MO 5m technology with half-cell design, this module offers an impressive module efficiency of up to 21.5%, ensuring maximum energy output. The all-black aesthetic is ideal for both functional and visually appealing installations. With its advanced materials, including M10 Gallium-doped Wafer, integrated segmented ribbons, and 9-busbar half-cut cell technology, this panel ensures optimal performance, making it an excellent choice for residential, commercial, and industrial projects.
LonGi 410W Solar Panel Key Features:
- High Efficiency: Achieves a maximum module efficiency of 21.5% to optimize energy output.
- Low Power Degradation: Less than 2% degradation in the first year, with an annual power attenuation of 0.55% from years 2 to 25, maintaining over 84.80% power output after 25 years.
- Durable Construction: Engineered with single glass (3.2mm coated tempered glass) and an anodized aluminum alloy frame, ensuring durability in harsh environmental conditions.
- Low Operating Temperature: The half-cell design reduces operating temperatures and resistive loss, allowing for better performance in extreme conditions.
- Warranty: Comes with a 12-year warranty for materials and processing and a 25-year warranty for linear power output.
LonGi 410W Solar Panel Specifications:
Mechanical Parameters:
| Parameter | Value |
|---|---|
| Cell Orientation | 108 (6×18) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm², 1200mm (customizable) |
| Glass | Single glass, 3.2mm coated tempered |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8 kg |
| Dimensions | 1722 × 1134 × 30mm |
| Packaging | 36 pcs per pallet, 936 pcs per 40' HC |
Electrical Characteristics:
| Model | LR5-54HPB-400M | LR5-54HPB-405M | LR5-54HPB-410M | LR5-54HPB-415M | LR5-54HPB-420M |
|---|---|---|---|---|---|
| Max Power (Pmax) | 400 W | 405 W | 410 W | 415 W | 420 W |
| Open Circuit Voltage (Voc) | 36.90 V | 37.05 V | 37.40 V | 37.65 V | 37.89 V |
| Short Circuit Current (Isc) | 13.72 A | 13.78 A | 13.84 A | 13.91 A | 13.96 A |
| Voltage at Max Power (Vmp) | 30.47 V | 30.74 V | 30.84 V | 30.94 V | 31.09 V |
| Current at Max Power (Imp) | 12.93 A | 13.05 A | 13.10 A | 13.15 A | 13.20 A |
| Module Efficiency | 20.5% | 20.7% | 21.0% | 21.3% | 21.5% |
Operating Parameters:
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0 ~ +3% |
| VOC and ISC Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2°C |
| Protection Class | Class II |
| Bifaciality | 70-95% |
| Fire Rating | UL type 1 or 2, IEC Class C |
Mechanical Loading:
| Parameter | Value |
|---|---|
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm hailstone at 23 m/s |
Temperature Ratings (STC):
| Parameter | Coefficient |
|---|---|
| Temperature Coefficient of Isc | +0.050%/°C |
| Temperature Coefficient of Voc | -0.265%/°C |
| Temperature Coefficient of Pmax | -0.340%/°C |
Certifications:
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Occupational Health & Safety)
Warranty:
- 12-year warranty for materials and processing.
- 25-year linear power output warranty, ensuring over 84.80% power output after 25 years.
The LonGi 410W Solar Panel (LR5-54HPB, 400-420 Watt) combines sleek aesthetics with advanced solar technology, making it ideal for various distributed energy projects. Its superior efficiency, durable construction, and robust performance across different environments ensure reliable and long-lasting solar energy generation.

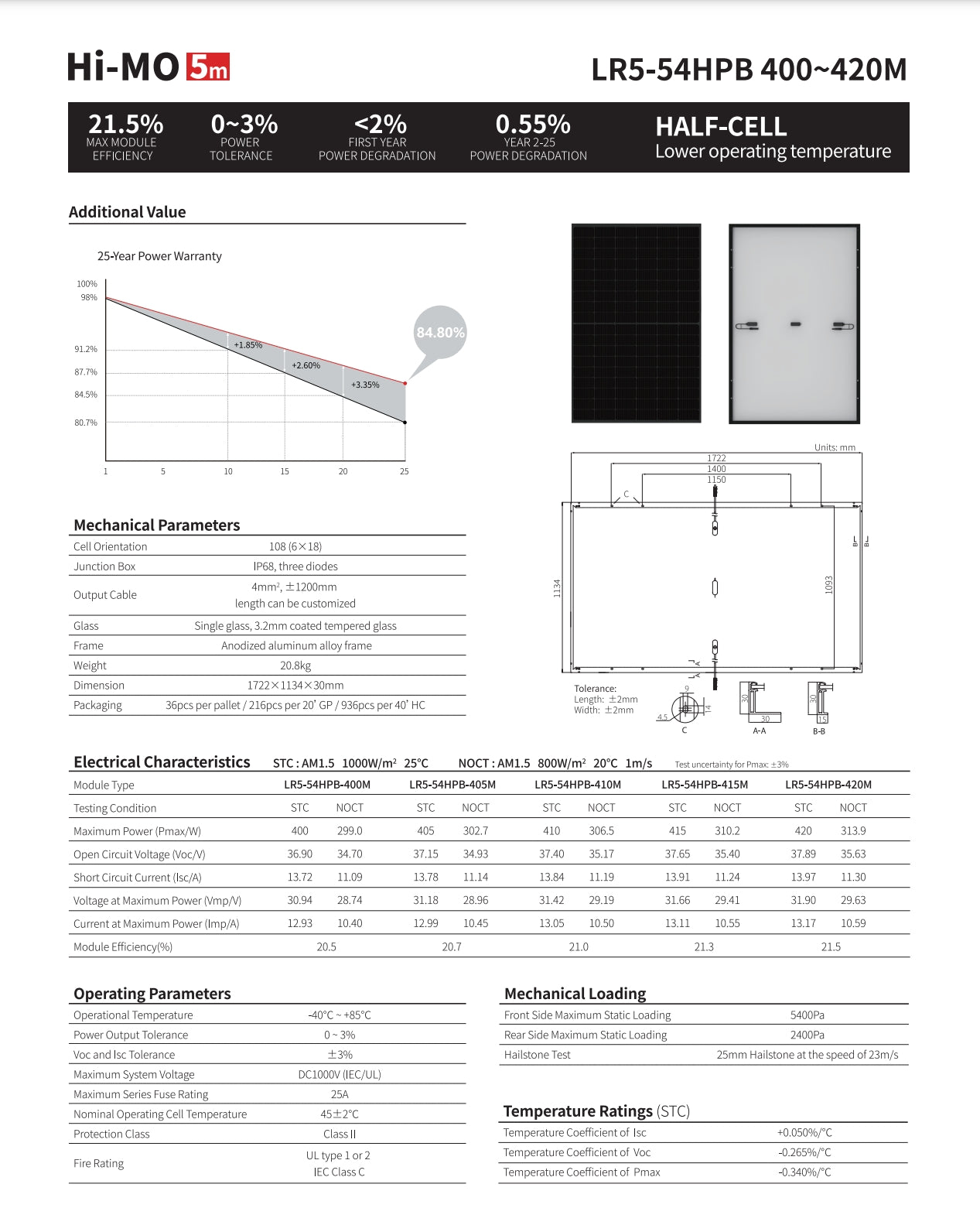

LonGi 410W Datasheet

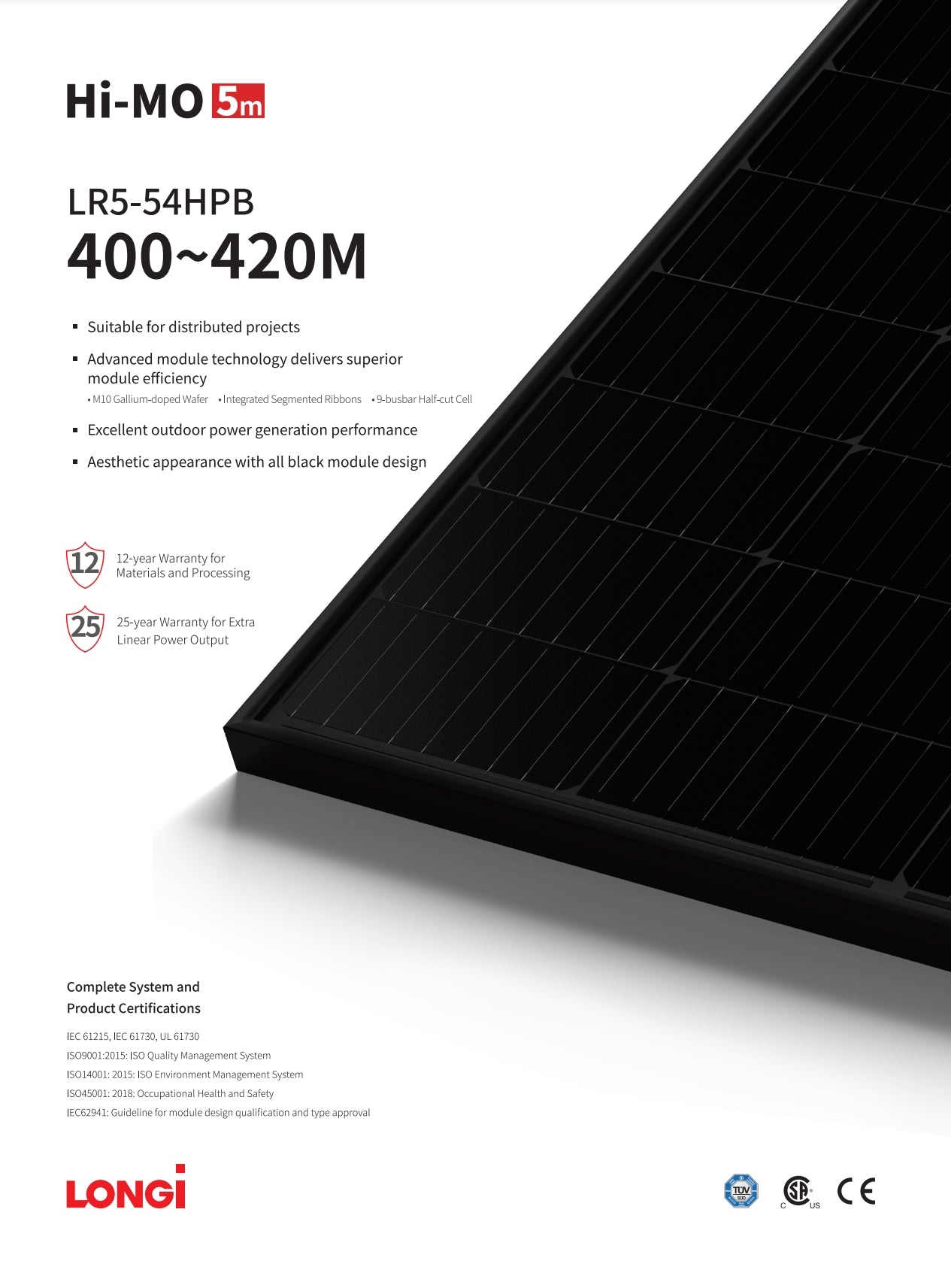

Longi LR5-54HPB 400-420W Solar Panel Suitable for distributed projects, advanced module technology delivers superior module efficiency. M1O Gallium-doped wafer with integrated segmented ribbons and g-busbar half-cut cell design. Excellent outdoor power generation performance with an aesthetic all-black module appearance. 12-year warranty for materials and processing, and 25-year warranty for extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2018.
