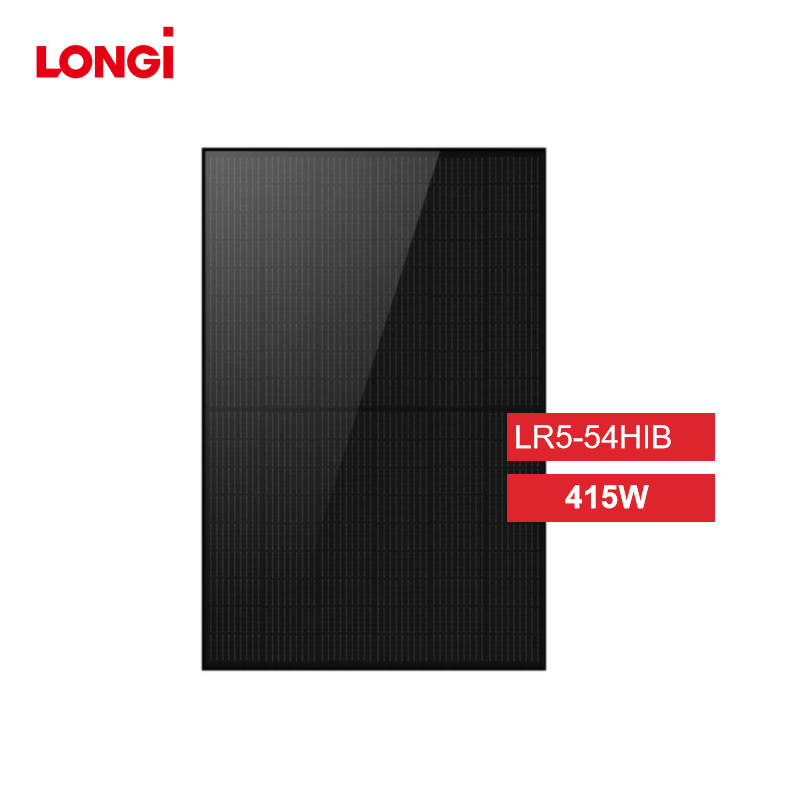

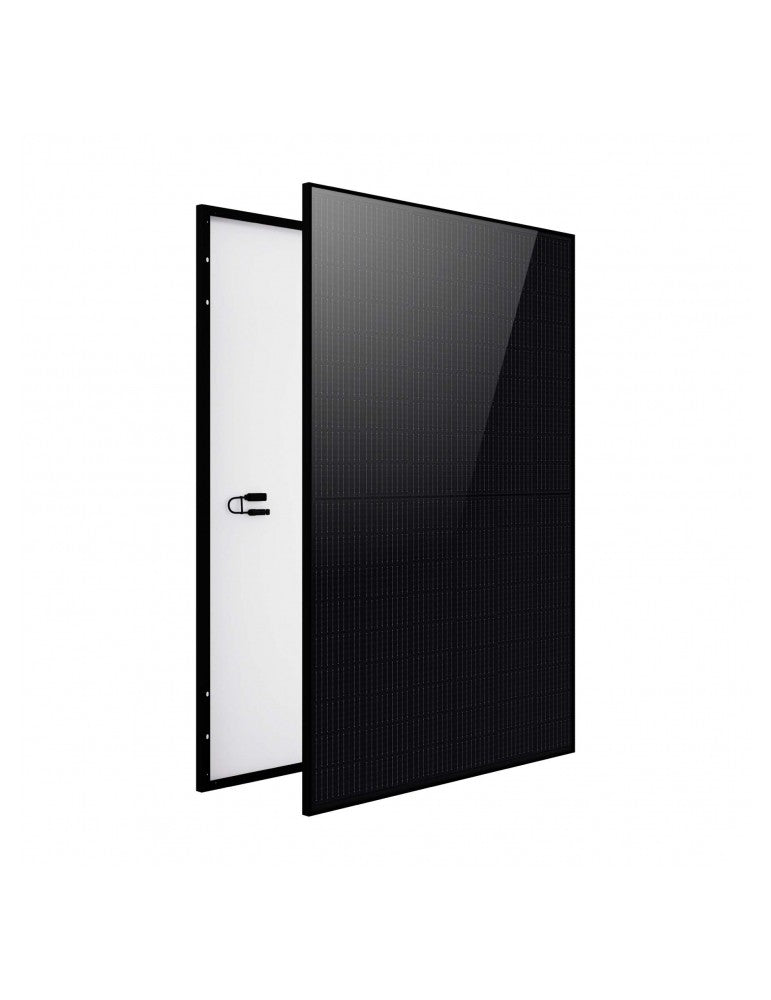

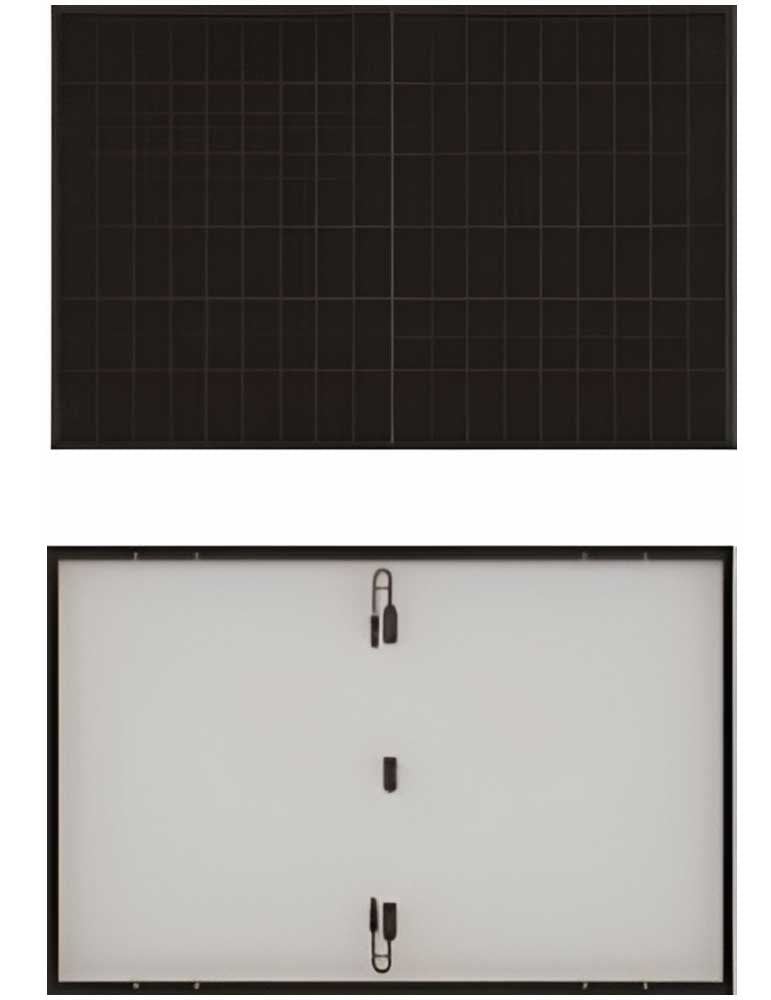

LonGi 415W Solar Panel Overview
The LonGi 415W Solar Panel represents cutting-edge solar technology designed for superior performance and durability. With a power output range from 395W to 415W, this panel is ideal for distributed projects and ensures maximum efficiency of up to 21.3%. It features Half-Cell technology, offering improved shading tolerance and reduced power loss, making it highly efficient even in partial shade. The LonGi 415W Solar Panel also benefits from bifacial energy generation, enabling additional power harvesting from the rear side, further enhancing its energy output. Its robust construction allows it to withstand challenging environmental conditions, making it a reliable choice for both residential and commercial installations. The panel dimensions are 1722 x 1134 x 30mm, and it weighs 20.8kg, offering ease of installation and maintenance.
LonGi 415W Solar Panel Key Features
- Power Output Range: 395W to 415W, providing high performance across varied conditions.
- Module Efficiency: Up to 21.3%, maximizing energy yield in any environment.
- Half-Cell Technology: Enhances efficiency by reducing resistive losses, improving shading tolerance, and boosting overall module reliability.
- Bifacial Technology: Additional energy harvested from the rear side (up to 25%) for increased energy output.
- Durability: Certified for 25mm hailstone impact and capable of withstanding static loads up to 5400Pa, ensuring long-lasting performance.
- Warranty: 25-year linear power output warranty and 12-year product warranty for guaranteed longevity.

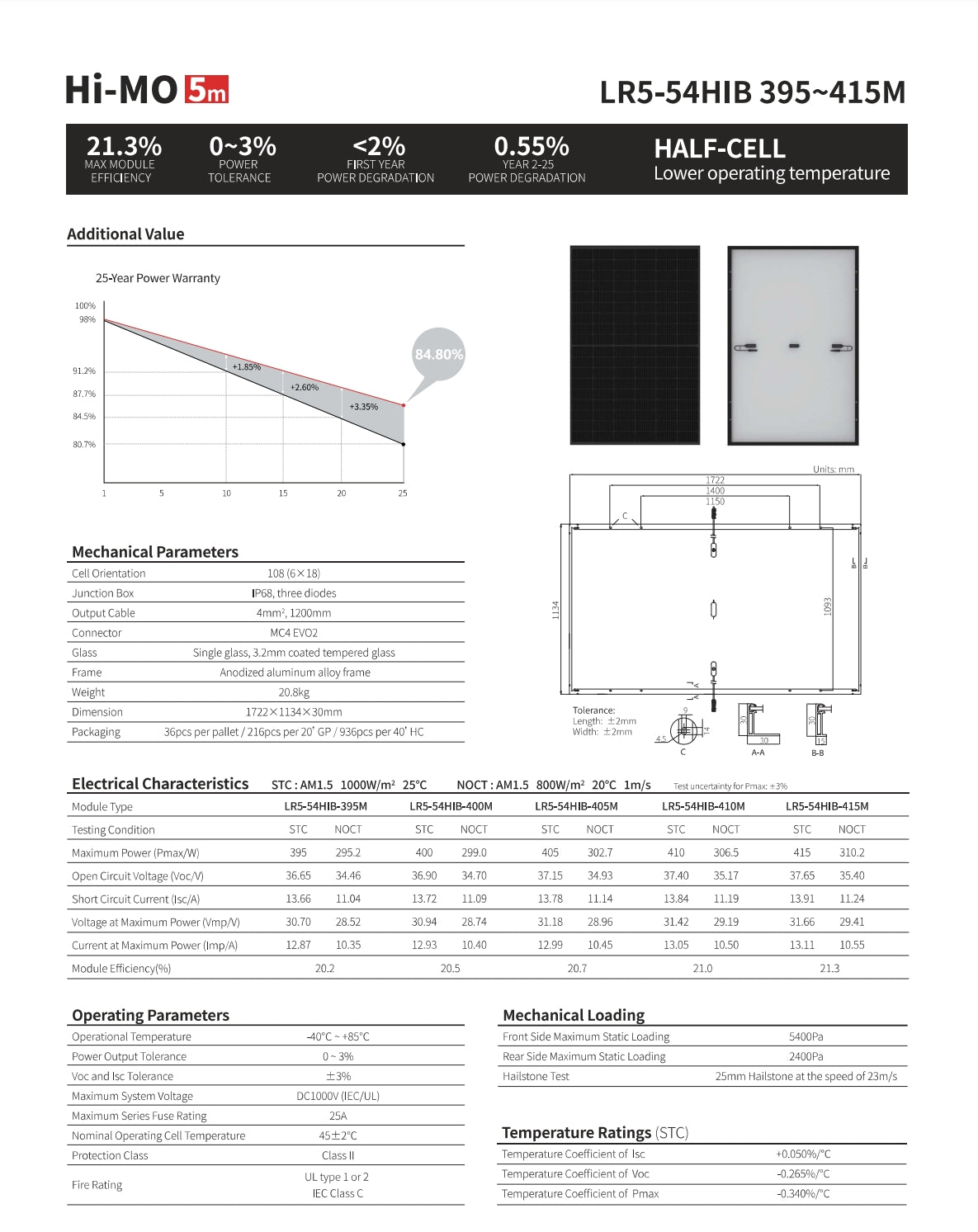

LonGi 415W Datasheet
Mechanical Parameters
| Parameter | Value |
|---|---|
| Cell Orientation | 108 (6×18) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm², 1200mm |
| Connector | MC4 EVO2 |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8kg |
| Dimensions | 1722 x 1134 x 30mm |
| Packaging | 36pcs per pallet / 216pcs per 20’ GP / 936pcs per 40’ HC |
Electrical Characteristics
| Parameter | LR5-54HIB-395M | LR5-54HIB-400M | LR5-54HIB-405M | LR5-54HIB-410M | LR5-54HIB-415M |
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 395 | 400 | 405 | 410 | 415 |
| Open Circuit Voltage (Voc/V) | 36.65 | 36.90 | 37.15 | 37.40 | 37.65 |
| Short Circuit Current (Isc/A) | 13.66 | 13.72 | 13.78 | 13.84 | 13.91 |
| Voltage at Maximum Power (Vmp/V) | 30.70 | 30.94 | 31.18 | 31.42 | 31.66 |
| Current at Maximum Power (Imp/A) | 12.87 | 12.93 | 12.99 | 13.05 | 13.11 |
| Module Efficiency (%) | 20.2 | 20.5 | 20.7 | 21.0 | 21.3 |
Operating Parameters
| Parameter | Value |
|---|---|
| Operational Temperature | -40℃ ~ +85℃ |
| Power Output Tolerance | 0 ~ 3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1000V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45 ± 2℃ |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2, IEC Class C |
Mechanical Loading & Temperature Ratings
| Mechanical Loading | Value |
|---|---|
| Front Side Static Load | 5400Pa |
| Rear Side Static Load | 2400Pa |
| Hailstone Impact Resistance | 25mm hailstone at 23m/s |
| Temperature Ratings (STC) | Value |
|---|---|
| Temperature Coefficient of Isc | +0.050%/℃ |
| Temperature Coefficient of Voc | -0.265%/℃ |
| Temperature Coefficient of Pmax | -0.340%/℃ |
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO9001:2015 (Quality Management System)
- ISO14001:2015 (Environmental Management System)
- ISO45001:2018 (Occupational Health and Safety)
- IEC62941 (Guideline for module design qualification and type approval)
Packaging Information
- 36pcs per pallet
- 216pcs per 20' GP
- 936pcs per 40' HC
Summary
The LonGi 415W Solar Panel delivers exceptional energy efficiency, durability, and reliability with Half-Cell technology and bifacial energy generation. Ideal for distributed solar projects, it offers additional power harvesting capabilities and can operate efficiently even in shaded conditions. With its 25-year power output warranty and 12-year product warranty, the LonGi 415W Solar Panel provides peace of mind and long-term energy savings, making it the perfect choice for both residential and commercial installations.

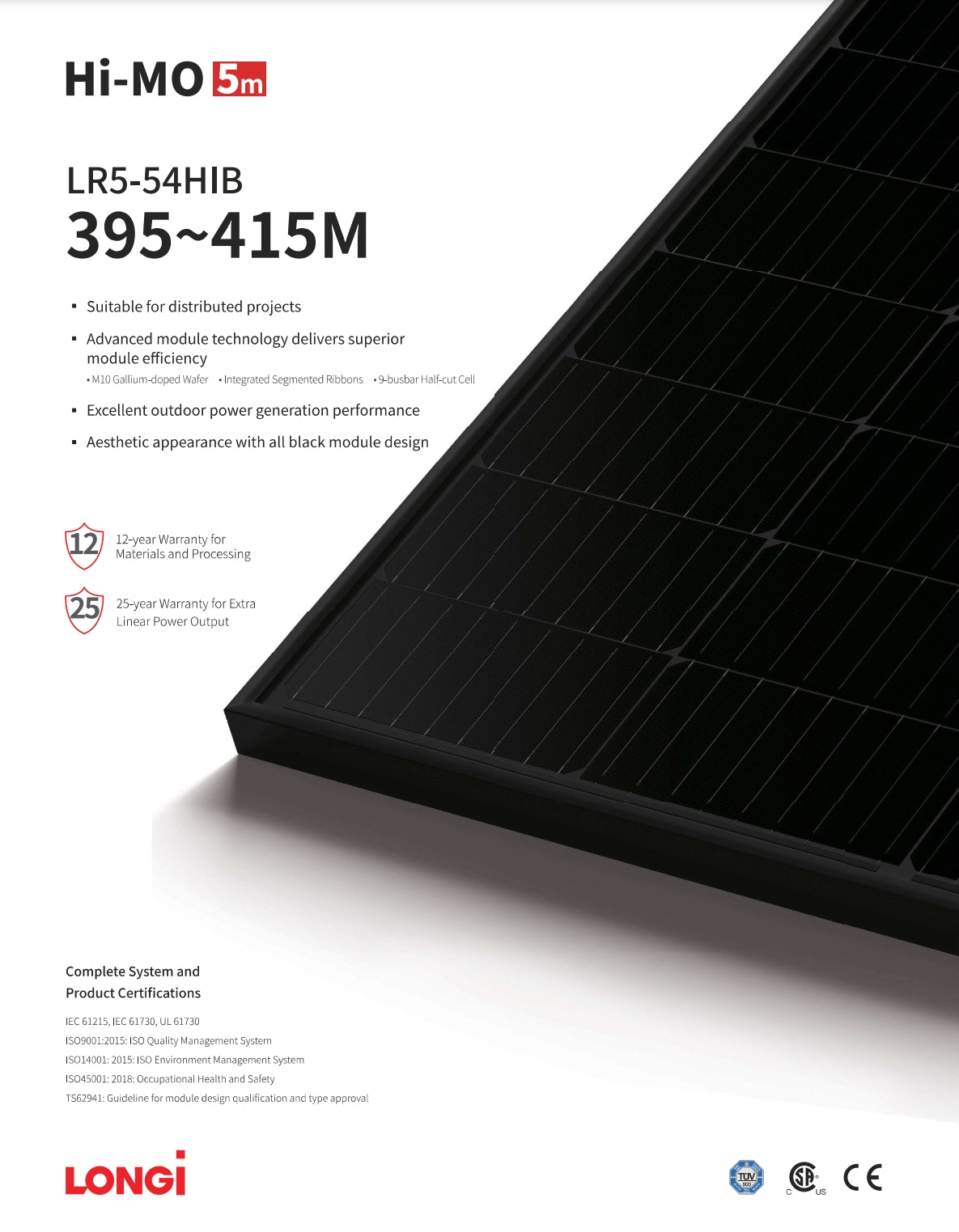

LONGi 415W Solar Panel (LR5-54HIB, 395-415 Watt) Features Hi-MO Bifacial Module Technology Advanced module technology delivers superior module efficiency Mono Gallium-doped Wafer Integrated Segmented Ribbons and Half-cut Cell Excellent outdoor power generation performance Aesthetic appearance with all-black module design Warranty: 12-year warranty for materials and processing, 25-year warranty for extra linear power output Complete system and product certifications: IEC 61215, IEC 61730, UL 61730 ISO certifications: ISO9001:2015 (Quality Management System), ISO14001:2015 (Environment Management System), ISO45001:2018 (Occupational Health and Safety)
LonGi LR5-54HIB Solar Panel, 395-415 Watt. Hi-MO Em. Module type: LRS-54HIB-395M to LRS-54HIB-415M. Maximum power: 395-415 Watts. Efficiency tolerance: +/- 3%. Operating temperature: -40°C to 85°C. Front side maximum static loading: 5400 Pa. Power output tolerance: 0-3%. Rear side maximum static loading: 240 Pa. Voc and Isc tolerance: +/- 3% of nominal values.
