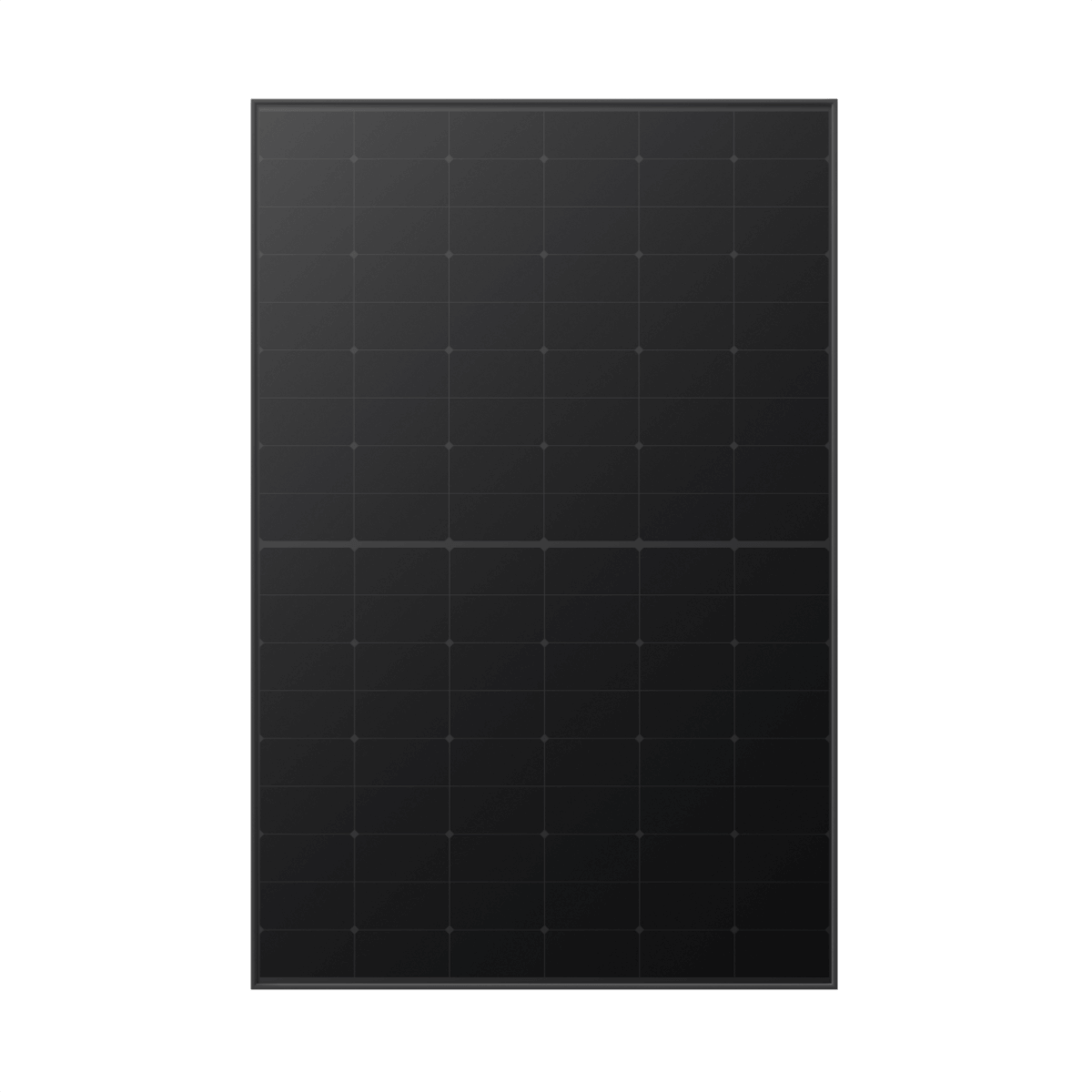

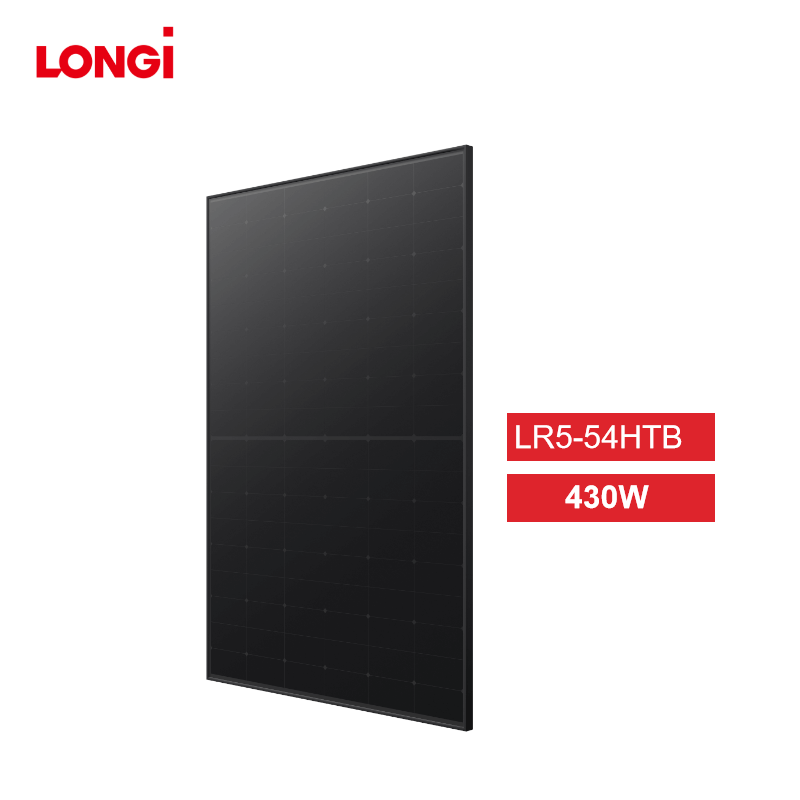

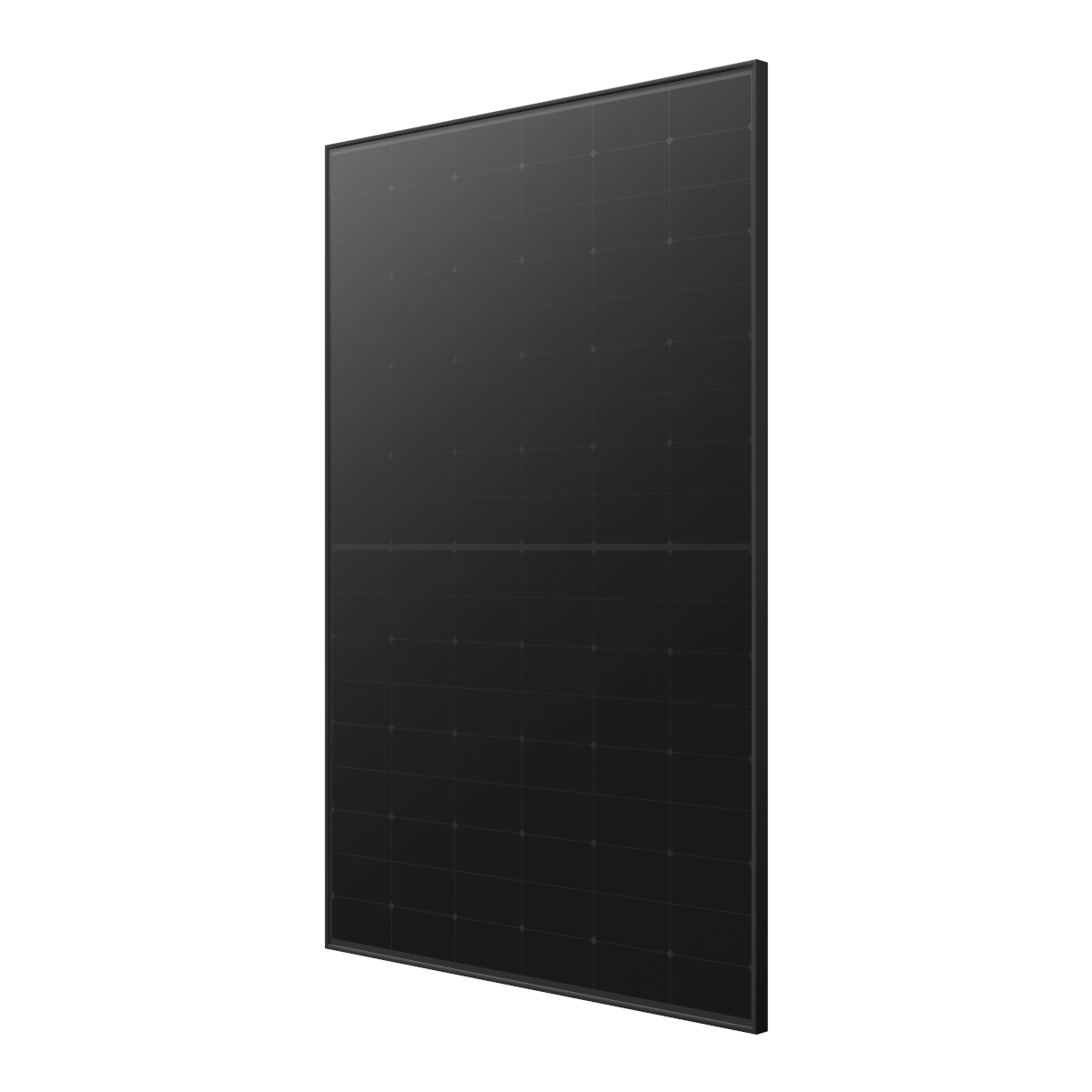

LonGi 430W Solar Panel Overview
The LonGi 430W Solar Panel (LR5-54HTB) is designed with cutting-edge Hi-MO X6 Explorer technology, providing a maximum power output of 415-435W. This high-efficiency solar panel boasts a module efficiency of up to 22.3%, ensuring superior energy generation even in low-light conditions. With its pure black, aesthetically appealing design, it is ideal for distributed projects and rooftop installations. The bifacial design captures additional energy from both sides, enhancing overall performance, while the 0.40% degradation rate guarantees long-term reliability and stability.
LonGi 430 Watt Solar Panel Key Features:
- High Efficiency: Up to 22.3% module efficiency for optimal power generation.
- Power Output: Generates between 415W and 435W, suitable for various distributed energy needs.
- Low Degradation Rate: First-year power degradation is less than 1.5%, and the annual degradation over 25 years is only 0.40%.
- Advanced Design: Equipped with M10 Gallium-doped wafer and 9-busbar Half-Cut Cell for enhanced energy efficiency.
- Durability: IP68-rated junction box ensures water and dust resistance, while the robust anodized aluminum frame provides durability under extreme conditions.
- Temperature Coefficient: Superior temperature performance with a Pmax coefficient of -0.290%/°C, maintaining efficiency even in high-temperature environments.

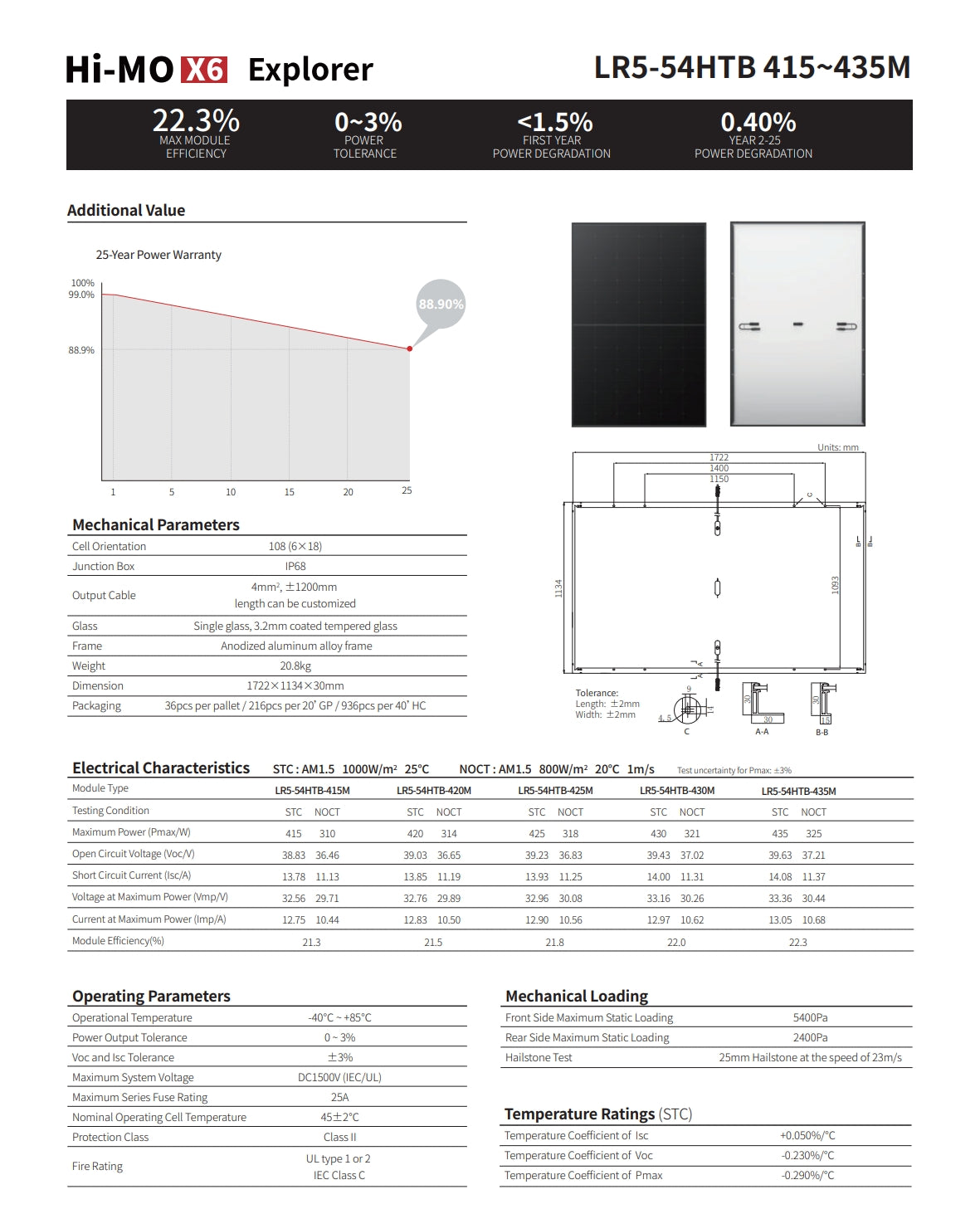

LonGi 430W Datasheet
Electrical Characteristics:
| Module Type | LR5-54HTB-415M | LR5-54HTB-420M | LR5-54HTB-425M | LR5-54HTB-430M | LR5-54HTB-435M |
|---|---|---|---|---|---|
| Maximum Power (W) | 415 | 420 | 425 | 430 | 435 |
| Voc (V) | 38.83 | 39.33 | 39.43 | 39.83 | 39.93 |
| Isc (A) | 13.85 | 13.90 | 14.00 | 14.10 | 14.15 |
| Vmp (V) | 32.56 | 32.76 | 32.98 | 33.36 | 33.56 |
| Imp (A) | 12.75 | 12.84 | 12.95 | 13.05 | 13.10 |
| Module Efficiency | 21.3% | 21.5% | 21.8% | 22.0% | 22.3% |
Mechanical Parameters:
| Parameter | Specification |
|---|---|
| Cell Orientation | 108 (6 x 18) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm², 1200mm |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8kg |
| Dimensions | 1722 x 1134 x 30mm |
| Packaging | 36pcs per pallet / 216pcs per 20' GP / 936pcs per 40' HC |
Operating Parameters:
| Parameter | Specification |
|---|---|
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0 ~ +3% |
| Maximum System Voltage | DC1000V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temp | 45±2°C |
| Protection Class | Class II |
| Fire Rating | UL Type 1 or 2, IEC Class C |
Temperature Ratings:
| Temperature Coefficient of Isc | +0.050%/°C |
|---|---|
| Temperature Coefficient of Voc | -0.230%/°C |
| Temperature Coefficient of Pmax | -0.290%/°C |
Certifications:
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 Quality Management System
- ISO 14001:2015 Environmental Management System
- ISO 45001:2018 Occupational Health and Safety
- IEC 62941: Guidelines for module design qualification and type approval
Packaging:
- 36pcs per pallet / 216pcs per 20' GP / 936pcs per 40' HC.
Summary:
The LonGi 430W Solar Panel (LR5-54HTB) is the perfect choice for distributed energy solutions. With its high power output, exceptional efficiency, and long-lasting durability, it is designed to maximize energy generation in all conditions. Whether for residential or commercial installations, this panel provides unmatched performance, ensuring reliable and sustainable energy production for years to come.

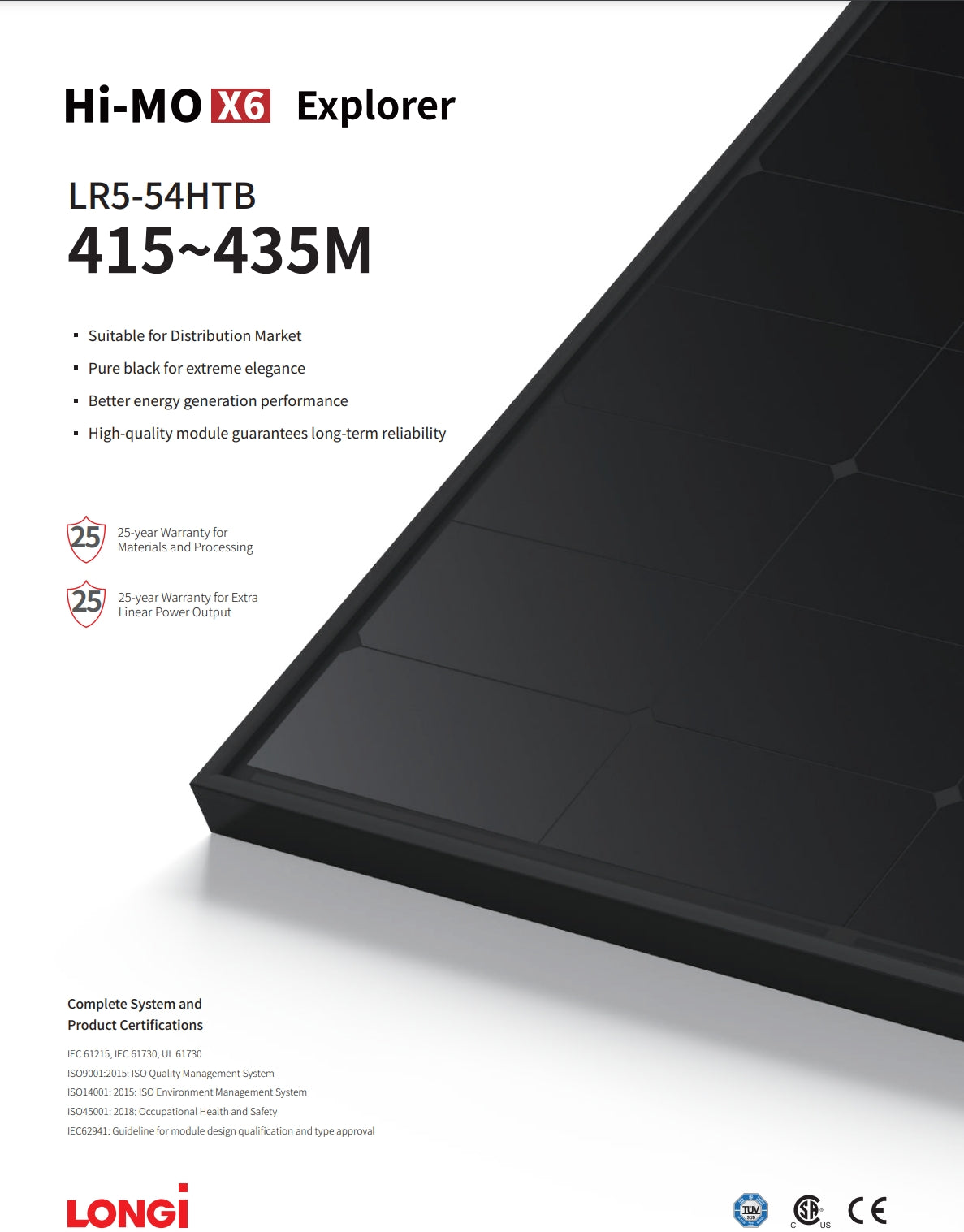

Hi-MOX Explorer LR5-54HTB Solar Panel, 415-435W. Suitable for distribution market, pure black for extreme elegance. Better energy generation performance with high-quality modules ensuring long-term reliability. 25-year warranty for extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2018, IEC 62941. LONGi Solar, 25-year warranty.
