LonGi 465W Solar Panel Overview
The LonGi 465W Solar Panel (LR4-72HPH, 445-465 Watt) is designed for ground power plants and distributed projects, offering superior energy performance and long-term reliability. It incorporates advanced M6 Gallium-doped Wafer technology and 9-busbar Half-cut Cell technology, which enhances module efficiency and ensures excellent outdoor power generation. This panel is engineered to perform in varying environmental conditions, providing high module quality and reliability for long-term use. With a power output range of 445W to 465W, this solar panel delivers outstanding efficiency and stability, making it a top choice for large-scale solar applications.
LonGi 465 Watt Solar Panel Key Features
- High Module Efficiency: The LonGi 465W Solar Panel delivers up to 21.4% module efficiency, ensuring optimal energy production.
- Power Output Range: Ranging from 445W to 465W, this panel supports high energy generation for large projects.
- M6 Gallium-doped Wafer and 9-busbar Half-cut Cell technology offer superior energy performance and efficiency.
- Low Power Degradation: The first-year power degradation is less than 2%, with a degradation rate of 0.55% for the next 2-25 years.
- Robust Design: The panel is designed to withstand harsh environmental conditions with its anodized aluminum alloy frame and IP68 junction box.
- Warranty: 12-year warranty for materials and processing, 25-year warranty for extra linear power output.

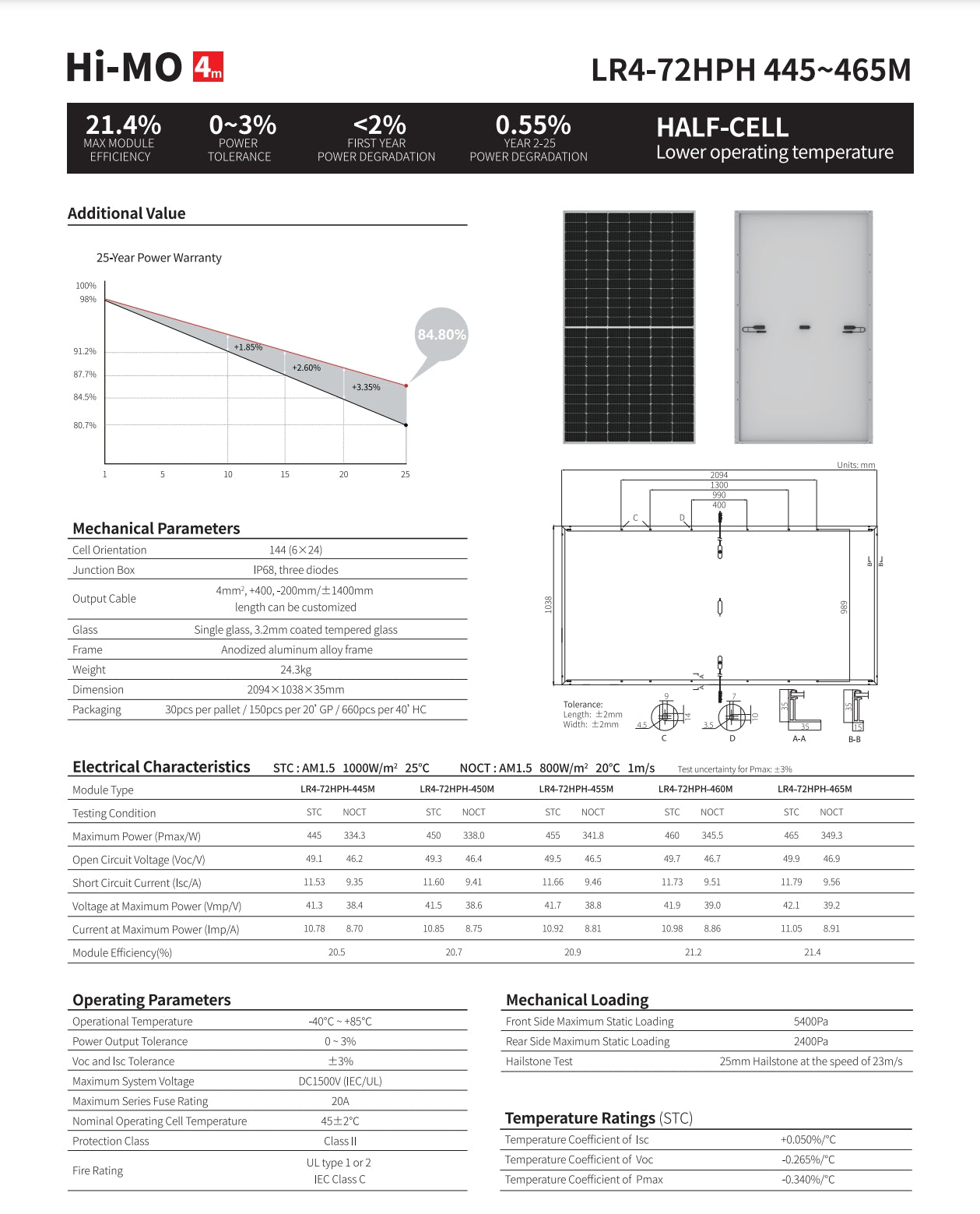

LonGi 465W Datasheet
Mechanical Parameters
Parameter | Value |
---|---|
Cell Orientation | 144 (6x24) |
Junction Box | IP68, three diodes |
Output Cable | 4mm² (+400mm/-200mm), length can be customized |
Glass | Single glass, 3.2mm coated tempered glass |
Frame | Anodized aluminum alloy frame |
Weight | 24.3kg |
Dimension | 2094×1038×35mm |
Packaging | 30pcs per pallet / 150pcs per 20' GP / 660pcs per 40' HC |
Electrical Characteristics
Module Type | LR4-72HPH-445M | LR4-72HPH-450M | LR4-72HPH-455M | LR4-72HPH-460M | LR4-72HPH-465M |
---|---|---|---|---|---|
Maximum Power (Pmax/W) | 445 | 450 | 455 | 460 | 465 |
Open Circuit Voltage (Voc/V) | 49.1 | 49.3 | 49.5 | 49.7 | 49.9 |
Short Circuit Current (Isc/A) | 11.66 | 11.73 | 11.79 | 11.85 | 11.90 |
Voltage at Maximum Power (Vmp/V) | 38.4 | 38.6 | 38.8 | 39.0 | 39.2 |
Current at Maximum Power (Imp/A) | 10.78 | 10.85 | 10.92 | 10.98 | 11.04 |
Module Efficiency (%) | 20.5 | 20.7 | 20.9 | 21.2 | 21.4 |
Operating Parameters
Parameter | Value |
---|---|
Operational Temperature | -40°C ~ +85°C |
Power Output Tolerance | 0 ~ +3% |
Voc and Isc Tolerance | ±3% |
Maximum System Voltage | DC1500V (IEC/UL) |
Maximum Series Fuse Rating | 20A |
Nominal Operating Cell Temperature | 45±2°C |
Protection Class | Class II |
Fire Rating | UL type 1 or 2 / IEC Class C |
Mechanical Loading
Parameter | Value |
---|---|
Front Side Maximum Static Loading | 5400Pa |
Rear Side Maximum Static Loading | 2400Pa |
Hailstone Test | 25mm Hailstone at 23m/s |
Temperature Ratings (STC)
Coefficient | Value |
---|---|
Temperature Coefficient of Isc | +0.050%/°C |
Temperature Coefficient of Voc | -0.265%/°C |
Temperature Coefficient of Pmax | -0.340%/°C |
Summary
The LonGi 465W Solar Panel (LR4-72HPH, 445-465 Watt) is an efficient and reliable choice for ground-mounted solar installations. With its high energy performance, robust design, and extended warranties, this panel is perfect for large-scale solar power projects. It ensures consistent energy output and low degradation over time, providing excellent long-term value.
LONGi LR4-72HPH Solar Panel, 445-465W. Suitable for ground power plants and distributed projects, our advanced module technology delivers superior module efficiency. Our modules feature an MG gallium-doped wafer, 9-busbar half-cut cell design for excellent outdoor power generation performance. We guarantee high-quality products with long-term reliability backed by a 12-year warranty for materials processing and a 25-year warranty for extra linear power output. Our systems and products meet complete certifications including IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and IEC 62941.
LonGi 465W Solar Panel, LR4-72HPH, 445-465 Watt, High-efficiency solar panel with a power output of up to 465 watts. Maximum power: 445-465 Watts, Open-circuit voltage: 49.1V, Short-circuit current: 11.53A, Operating temperature range: -40°C to +85°C, Mechanical loading: 5400Pa (front side), 2400Pa (rear side), Hailstone test: up to 25mm at a speed of 23m/s

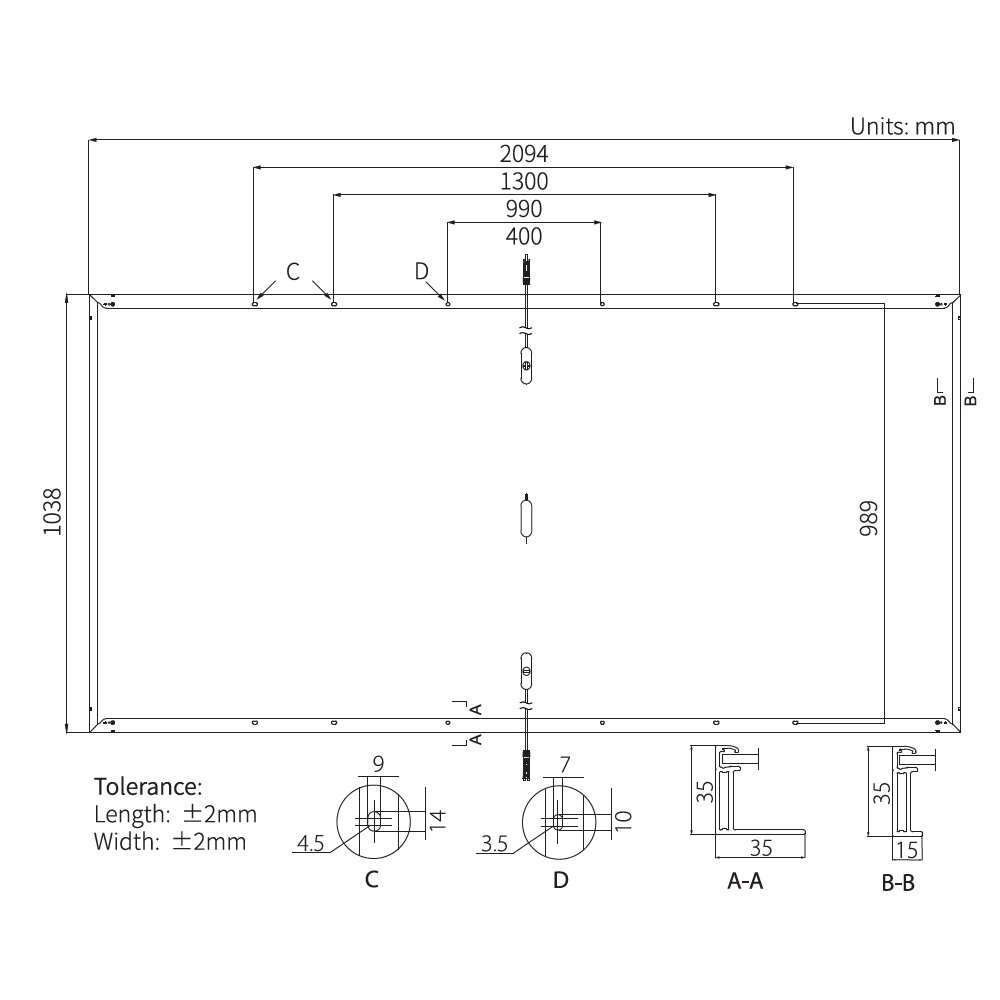

The LonGi 465W Solar Panel (LR4-72HPH, 445-465 Watt) product image features units of mm, with dimensions including length, width, and tolerance specifications.
The LONGi 465W Solar Panel is a high-performance solar panel with an output power of 445-465 watts. It features LR4-72HPH technology and is designed for residential and commercial applications. The panel has a robust construction and high-efficiency cells to ensure optimal energy production. With its sleek design, the LONGi 465W Solar Panel is ideal for rooftop installations and can be used as a standalone system or part of a larger solar array.
