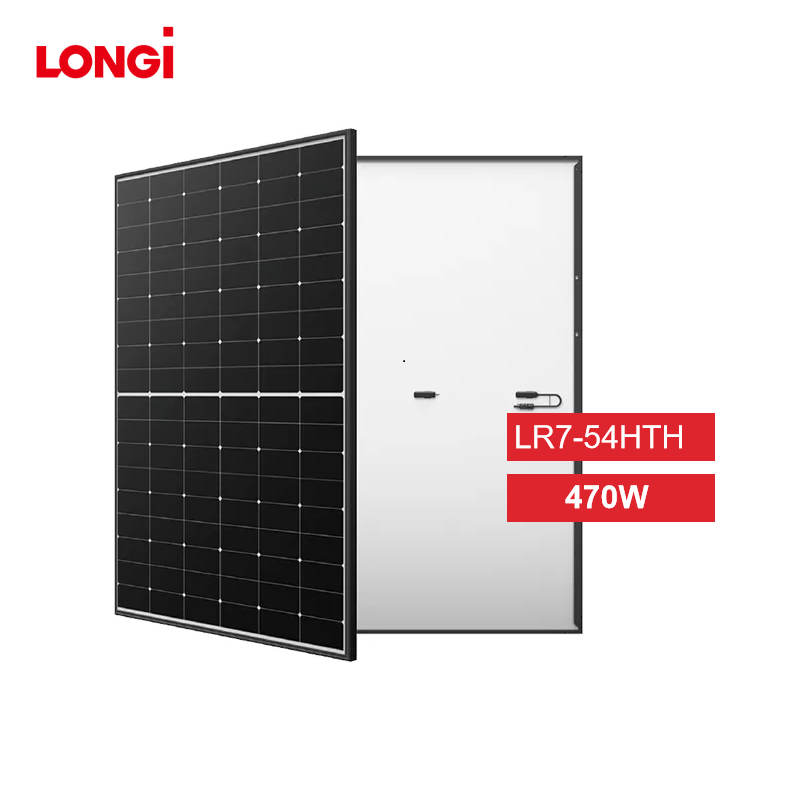

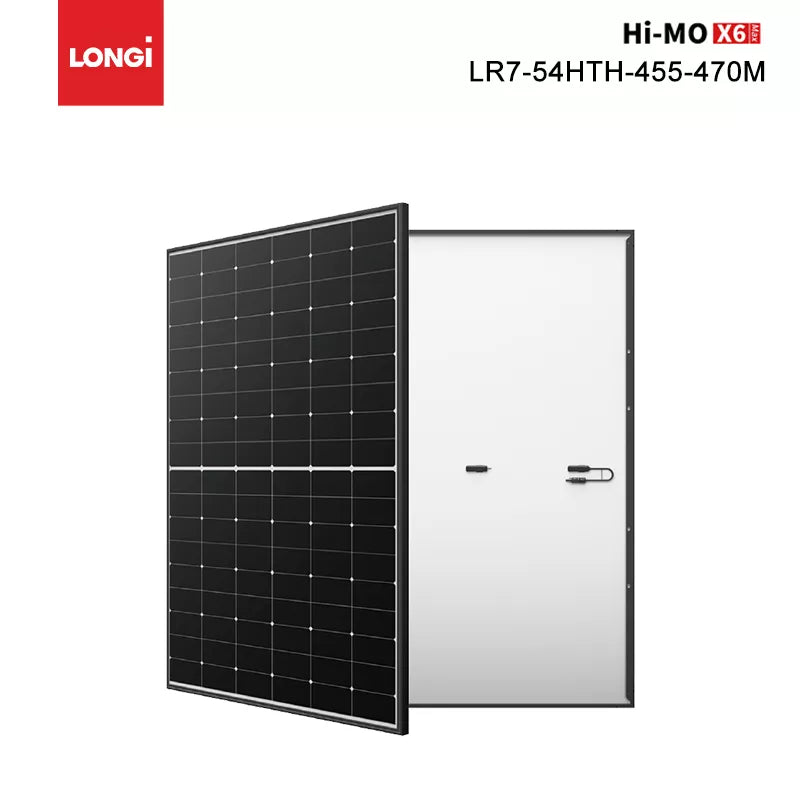

LonGi 470W Solar Panel Overview
The LonGi 470W Solar Panel (LR7-54HTH 455~470M) from the Hi-MO X6 Max series is a high-efficiency solar panel designed for distribution markets. It delivers an impressive 23.0% module efficiency and up to 470W power output. With a robust design featuring IP68-rated junction boxes and tempered glass, this panel ensures reliable performance in all conditions. The LonGi 470W Solar Panel also supports high mechanical loading (5400Pa on the front and 2400Pa on the rear), making it durable enough to withstand harsh environmental impacts. It is backed by globally recognized certifications, ensuring top-notch quality and reliability.
LonGi 470W Solar Panel Key Features
- High Efficiency: The LonGi 470W Solar Panel achieves up to 23.0% efficiency, optimizing energy generation even in low-irradiation conditions.
- Durability: Built with an anodized aluminum alloy frame and 3.2mm tempered glass, it is resistant to weather extremes.
- Low Power Degradation: Features less than 1% degradation in the first year and 0.40% in years 2 to 25, ensuring long-term stability.
- Warranty: Comes with a 15-year warranty for materials and processing, and a 25-year warranty for extra linear power output.
- Certified Quality: Holds multiple international certifications such as IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 for environmental and occupational safety.
LonGi 470W Datasheet
Mechanical Parameters
Parameter | Specification |
---|---|
Cell Orientation | 108 (6×18) |
Junction Box | IP68, three diodes |
Output Cable | 4mm², ±1200mm, customizable length |
Glass | Single glass, 3.2mm coated tempered |
Frame | Anodized aluminum alloy |
Weight | 21.6kg |
Dimension | 1800×1134×30mm |
Packaging | 36pcs per pallet, 216pcs per 40' GP, 864pcs per 40' HC |
Electrical Characteristics
Module Type | LR7-54HTH-455M | LR7-54HTH-460M | LR7-54HTH-465M | LR7-54HTH-470M |
---|---|---|---|---|
Maximum Power (Pmax/W) | 455 | 460 | 465 | 470 |
Open Circuit Voltage (Voc/V) | 39.15 | 39.35 | 39.57 | 39.75 |
Short Circuit Current (Isc/A) | 14.95 | 15.00 | 15.20 | 15.30 |
Voltage at Maximum Power (Vmp/V) | 33.19 | 33.29 | 33.40 | 33.50 |
Current at Maximum Power (Imp/A) | 13.80 | 13.86 | 13.93 | 13.99 |
Module Efficiency (%) | 22.3 | 22.5 | 22.8 | 23.0 |
Operating Parameters
Parameter | Value |
---|---|
Operational Temperature | -40°C ~ +85°C |
Power Output Tolerance | 0 ~ +3% |
Maximum System Voltage | DC1500V (IEC/UL) |
Maximum Series Fuse Rating | 25A |
Nominal Operating Cell Temperature | 45±2°C |
Protection Class | Class II |
Fire Rating | IEC Class C |
Mechanical Loading
Test Condition | Front Side Maximum Static Loading | Rear Side Maximum Static Loading | Hailstone Test |
---|---|---|---|
Mechanical Load | 5400Pa | 2400Pa | Resistant to 25mm hailstones at 23m/s |
Temperature Ratings (STC)
Parameter | Value |
---|---|
Temperature Coefficient of Isc | +0.050%/°C |
Temperature Coefficient of Voc | -0.233%/°C |
Temperature Coefficient of Pmax | -0.268%/°C |
Certifications
- IEC 61215
- IEC 61730
- UL 61730
- ISO 9001:2015 (Quality Management System)
- ISO 14001:2015 (Environmental Management System)
- ISO 45001:2018 (Occupational Health and Safety)
Warranty Information
- 15-year Warranty for materials and processing.
- 25-year Warranty for extra linear power output.

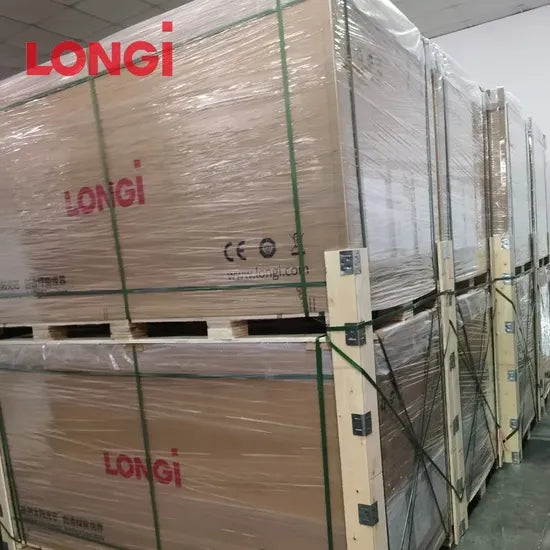

Packaging Information
- 36 panels per pallet.
- 216 panels per 40' GP container.
- 864 panels per 40' HC container.

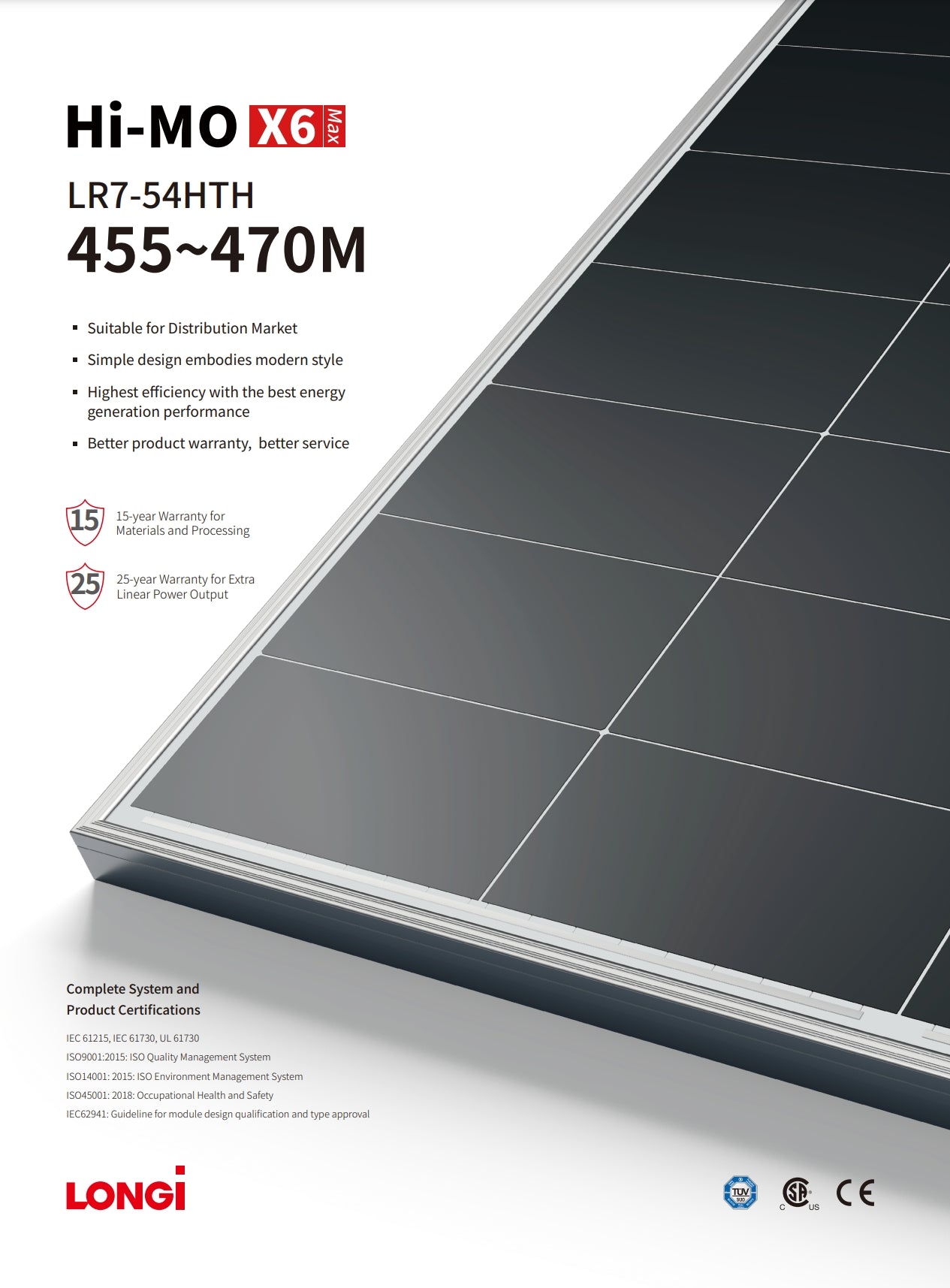

Longi LR7-54HTH Solar Panel, suitable for distribution markets. The simple design embodies modern style, with high efficiency and excellent energy generation performance. We offer a better product warranty and service, including a 15-year warranty for materials and processing, and a 25-year warranty for extra linear power output. Our products also meet complete system and product certifications, such as IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2018.

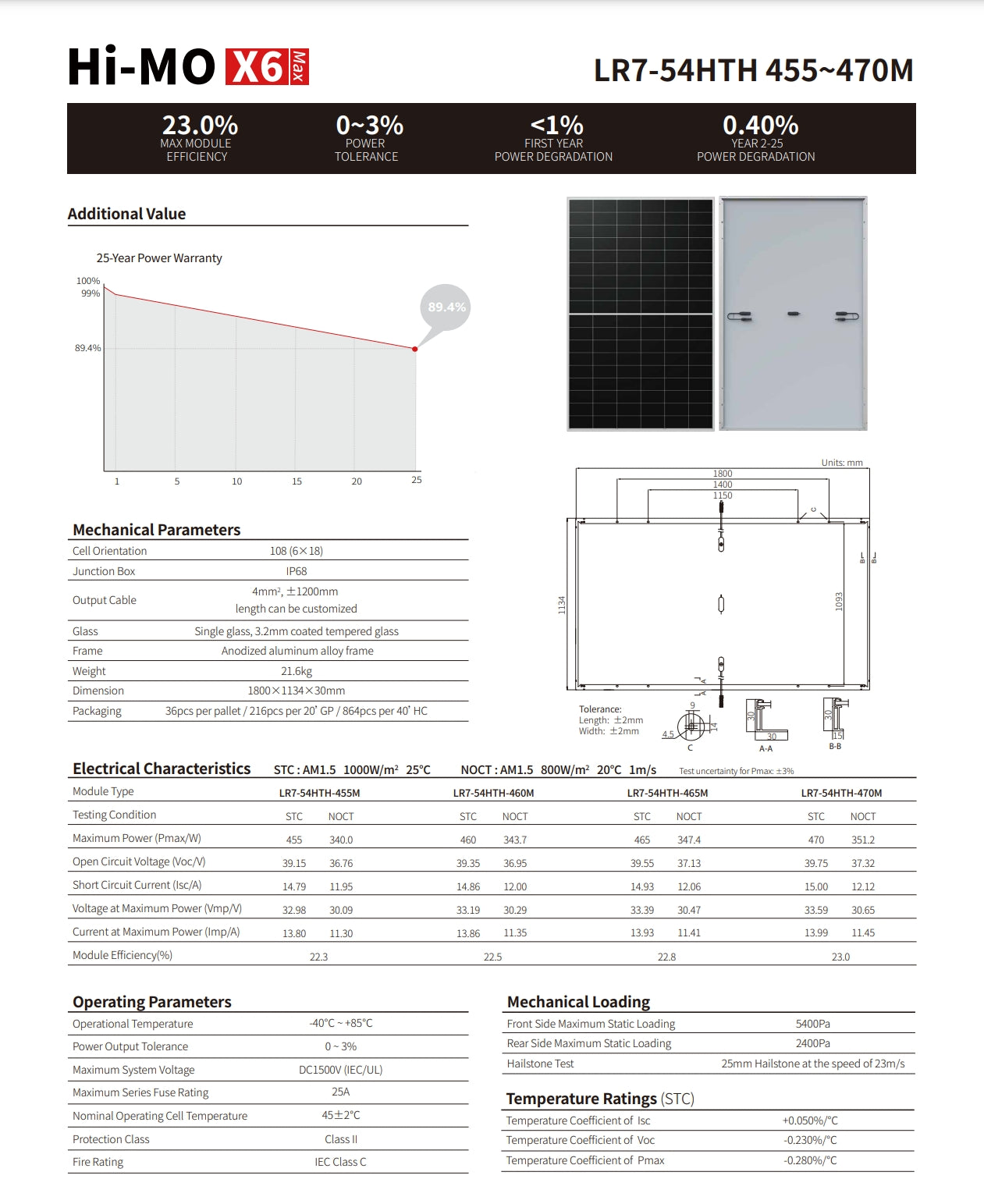

LonGi 470W Solar Panel LR7-54HTH 455~470M. Hi-Mo X6E, 23.0%, 0~3%, <10, 0.40% MAX MODULE POWER FIRST YEAR, 2-25 EFFICIENCY TOLERANCE POWER DEGRADATION POWER DEGRADATION Additional Value 25-Year Power Warranty. Mechanical Parameters: Cell Orientation: 108 (6X18), Junction Box: IPG8, 4mm, Output Cable length can be customized, Glass: Single glass, coated tempered glass Frame: Anodized aluminum alloy frame, Weight: 21.6kg, Dimension: 1800x1134*30mm, Packaging: 36pcs per pallet, 216pcs per 20' GP, 864pcs per 40' HC. Electrical Characteristics: STC (AM1.5): 100OW/lm², 258C, NOCT (AM1.5): 80W/lm², 20*C, Imls Test uncertainty: 10% Pmax: 1380. Module Type: LR7-54HTH-455M, LR7-54HTH-460M, LR7-54HTH-465M, LR7-54HTH-470M. Testing Condition: STC, NOCT, STC, NOCT, STC, NOCT, STC, NOCT
LONGi LR7-54HTH 455~470M Solar Panel for Hi-MO XGB, high-efficiency module with 470W power output, ideal for residential and commercial applications.
