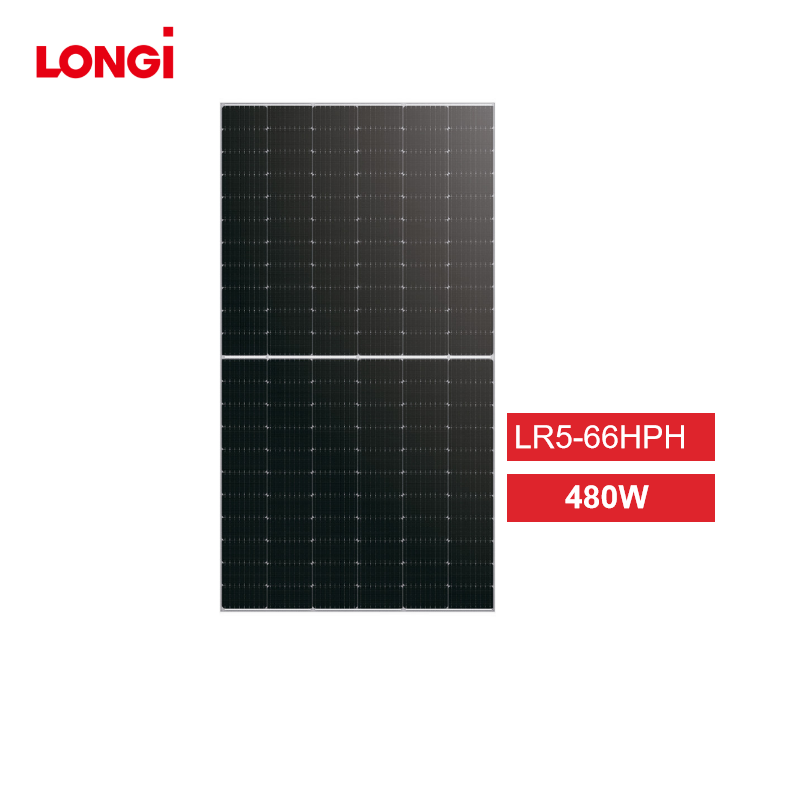

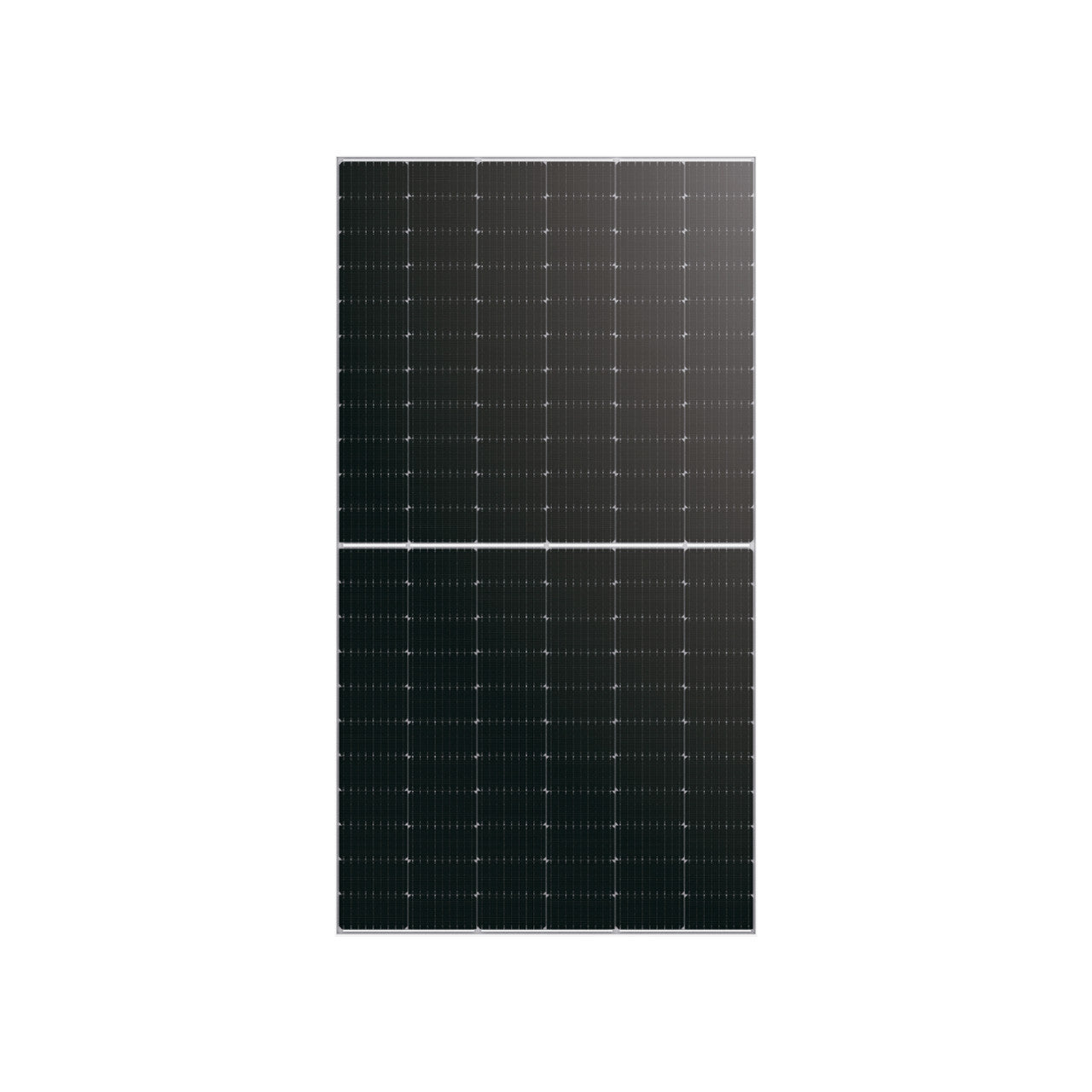

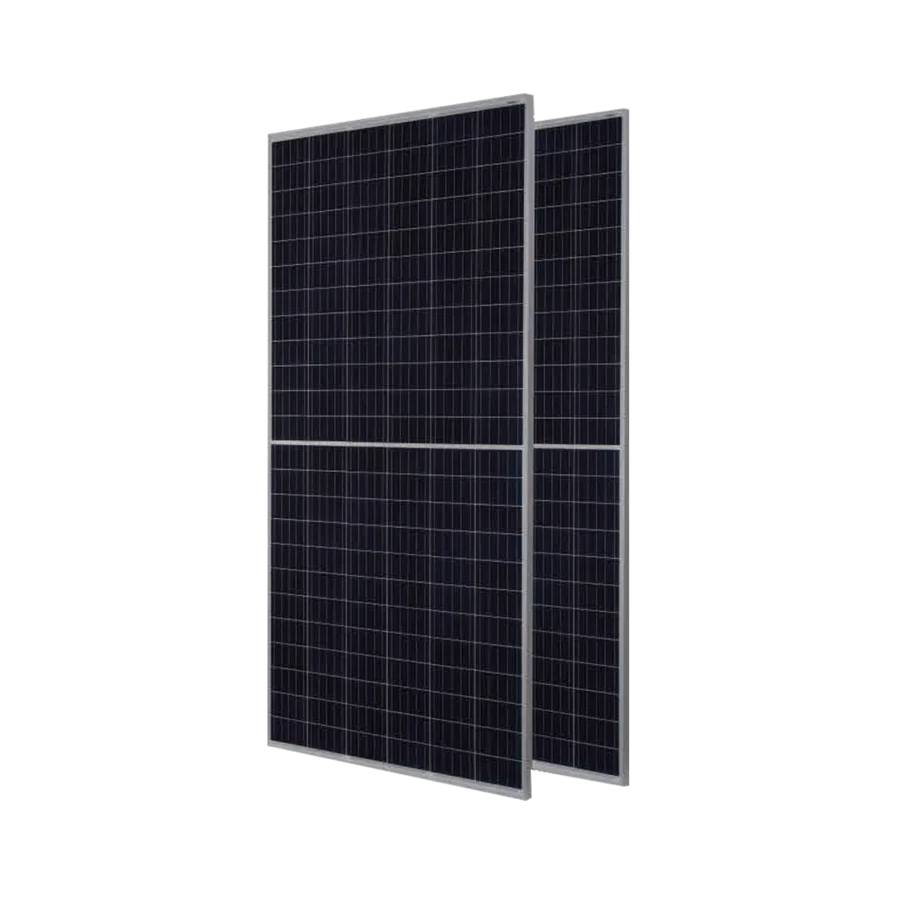

LonGi 480W Solar Panel Overview
The LonGi 480W Solar Panel (LR5-66HPH 480~505M) is designed with advanced technology and superior materials, making it the ideal choice for large-scale solar power plants. Featuring a high module efficiency of up to 21.5%, it utilizes M10 Gallium-doped wafers and smart soldering techniques to enhance performance. This panel also supports half-cell technology, which ensures lower operating temperatures and higher output under real-world conditions. With its 9-busbar half-cut cell design and a power range between 480W and 505W, this panel is perfect for delivering reliable and efficient energy.
LonGi 480 Watt Solar Panel Key Features
- Power range: 480W to 505W
- High module efficiency of 21.5%
- Advanced module technology including M10 Gallium-doped wafers and Smart Soldering
- 9-busbar half-cut cell design for optimized energy output
- Half-Cell Technology for lower operating temperature
- Enhanced outdoor power generation performance

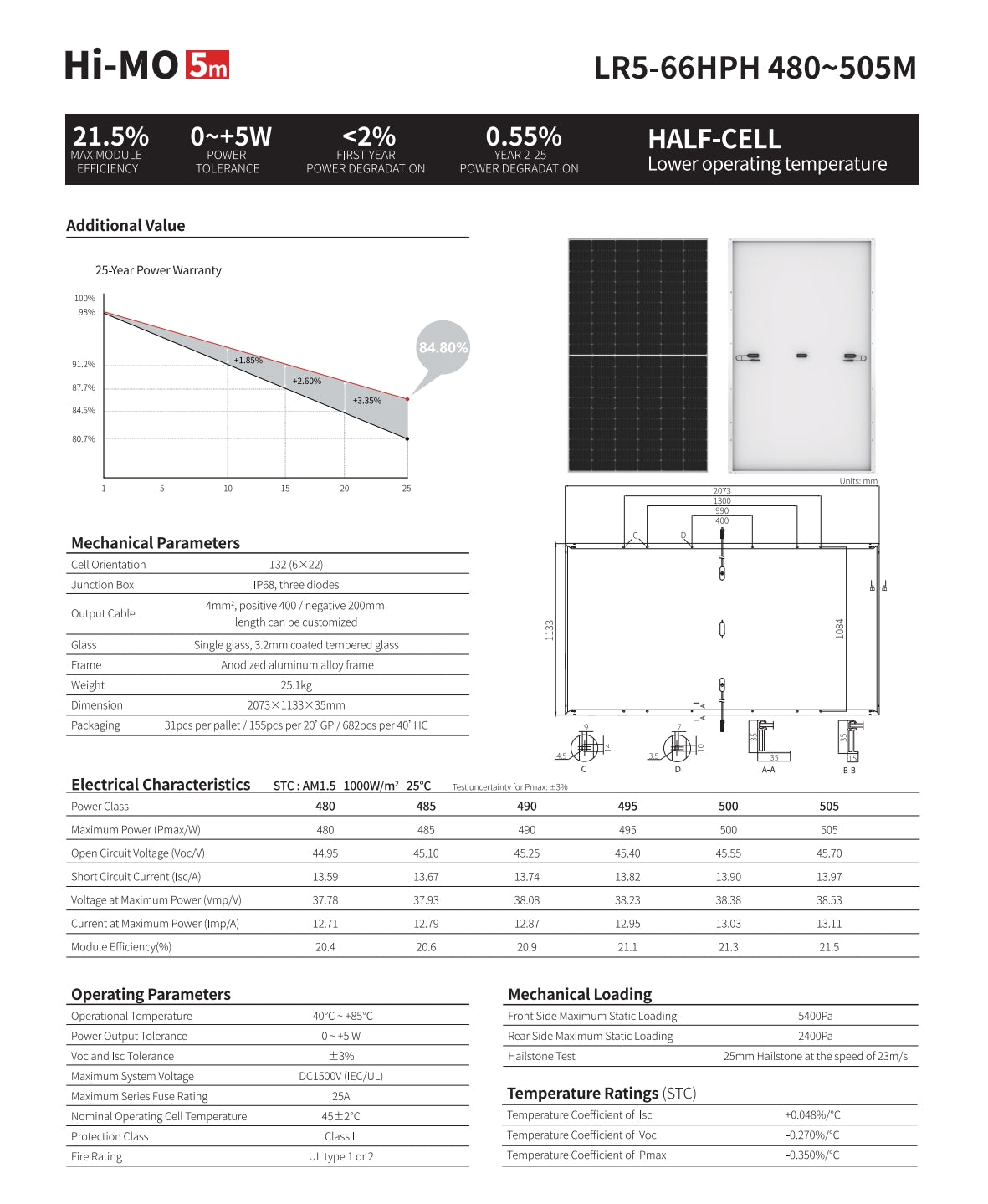

LonGi 480W Datasheet
Electrical Characteristics
- Maximum Power (Pmax): 480W to 505W
- Open Circuit Voltage (Voc): 44.95V (for 480W) to 45.70V (for 505W)
- Short Circuit Current (Isc): 13.59A (for 480W) to 13.97A (for 505W)
- Voltage at Maximum Power (Vmp): 37.78V to 38.53V
- Current at Maximum Power (Imp): 12.71A to 13.11A
- Module Efficiency: 20.4% to 21.5%
Mechanical Parameters
- Cell Orientation: 132 (6 x 22)
- Junction Box: IP68, three diodes
- Output Cable: 4mm², positive 400mm / negative 200mm (length customizable)
- Glass: Single glass, 3.2mm coated tempered glass
- Frame: Anodized aluminum alloy frame
- Weight: 25.1kg
- Dimensions: 2073mm x 1133mm x 35mm
- Packaging: 31pcs per pallet, 155pcs per 20' GP, 682pcs per 40' HC
Operating Parameters
- Operational Temperature: -40°C to +85°C
- Power Output Tolerance: 0 ~ +5W
- Voc and Isc Tolerance: ±3%
- Maximum System Voltage: DC1500V (IEC/UL)
- Maximum Series Fuse Rating: 25A
- Nominal Operating Cell Temperature: 45±2°C
- Protection Class: Class II
- Fire Rating: UL type 1 or 2
Mechanical Loading
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Hailstone Test: 25mm hailstone at the speed of 23m/s
Temperature Ratings (STC)
- Temperature Coefficient of Isc: +0.048%/°C
- Temperature Coefficient of Voc: -0.270%/°C
- Temperature Coefficient of Pmax: -0.350%/°C
Certifications and Warranty
- Certified by IEC 61215, IEC 61730, UL 61730
- ISO certifications: ISO 9001:2008, ISO 14001:2015, ISO 45001:2018
- 12-year warranty for materials and processing
- 25-year warranty for extra linear power output

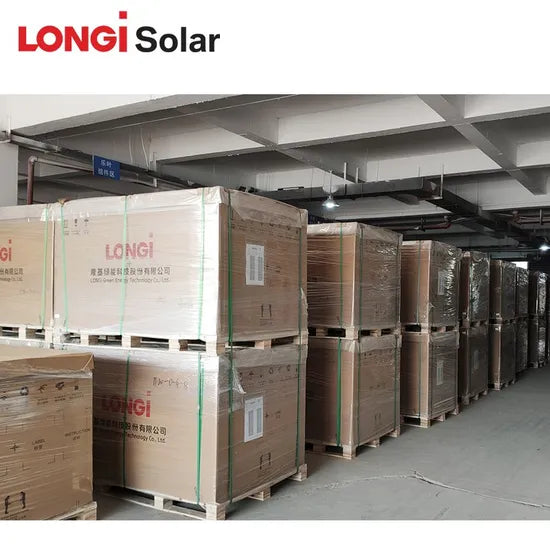

Packaging Details
- 31pcs per pallet
- 155pcs per 20' GP
- 682pcs per 40' HC
This LonGi 480W Solar Panel is a powerful and reliable solution for both large-scale solar projects and distributed energy systems.

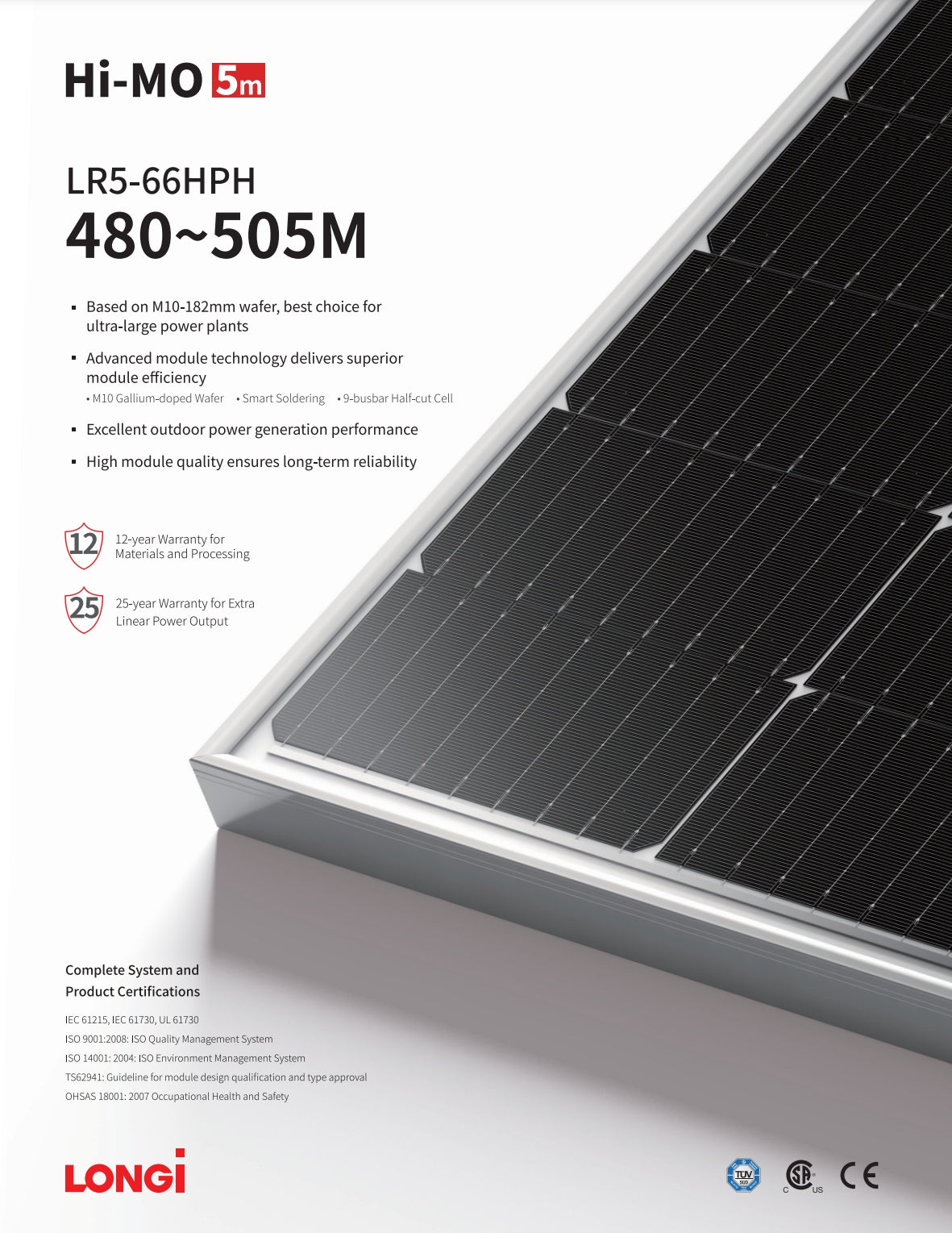

LonGi 480W Solar Panel (LR5-66HPH, 480~505M) features a M1O-182mm wafer-based design. This module boasts advanced technology for superior efficiency, smart soldering, and half-cut cells. It excels in outdoor power generation performance, ensuring long-term reliability with a 12-year warranty on materials and processing, as well as a 25-year warranty on extra linear power output. The product meets certifications including IEC 61215, IEC 61730, UL 61730, ISO 9001:2008, ISO 14001:2004, TS62941, and OHSAS 18001:2007.
LonGi 480W Solar Panel (LR5-66HPH 480~505M) This solar panel features a high efficiency rating of 21.5%, with a maximum module power output of 480W to 505W. It has a 25-year power warranty and is designed for outdoor use, with an anodized aluminum alloy frame and tempered glass. The panel electrical characteristics include a voltage at maximum power (Vmp) of 37.78V to 38.53V, current at maximum power (Imp) of 12.71A to 13.11A, and module efficiency (%) of 20.4% to 21.5%
