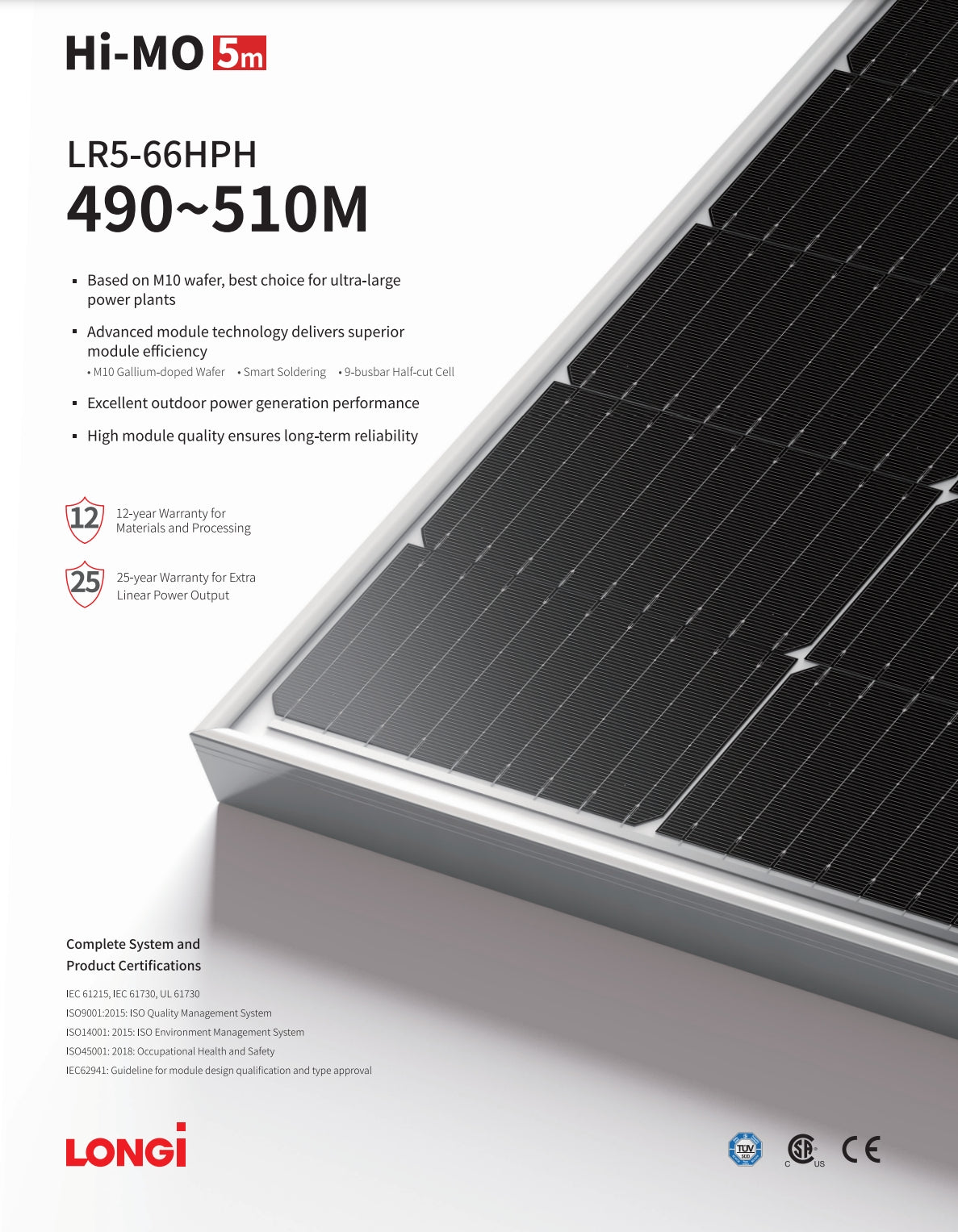

LonGi 490W Solar Panel Overview

The LonGi 490W Solar Panel (LR5-66HPH 490~510M) is a highly efficient solar panel that incorporates advanced technology to ensure superior energy generation. With a power range of 490W to 510W, it is based on the M10 wafer, making it the optimal choice for ultra-large power plants. Featuring M10 Gallium-doped wafers, Smart Soldering, and 9-busbar half-cut cells, this solar panel delivers excellent outdoor power generation performance with lower operating temperatures. The panel offers long-term reliability and high module quality, providing an ideal solution for ground-mounted solar projects and large-scale power generation installations.

LonGi 490 Watt Solar Panel Key Features

  • Power Output: 490W to 510W
  • Module Efficiency: Up to 21.7%
  • Advanced Technology: M10 Gallium-doped wafers, Smart Soldering, 9-busbar half-cut cell
  • 25-year warranty for extra linear power output
  • Lower power degradation at <2% in the first year and 0.55% degradation from year 2 to year 25
  • Enhanced reliability and performance in harsh environmental conditions

LonGi 490W Datasheet

Electrical Characteristics

Power Class 490W 495W 500W 505W 510W
Maximum Power (Pmax/W) 490 495 500 505 510
Open Circuit Voltage (Voc/V) 45.25 45.40 45.60 45.55 45.85
Short Circuit Current (Isc/A) 11.82 11.87 12.00 12.07 12.17
Voltage at Maximum Power (Vmp/V) 37.88 38.04 38.32 38.35 38.53
Current at Maximum Power (Imp/A) 12.87 12.95 13.03 13.11 13.19
Module Efficiency (%) 20.9 21.1 21.3 21.5 21.7

Mechanical Parameters

  • Cell Orientation: 132 cells (6 x 22)
  • Junction Box: IP68, three diodes
  • Output Cable: 4mm², +400, -200mm (customizable length)
  • Glass: Single glass, 3.2mm coated tempered glass
  • Frame: Anodized aluminum alloy frame
  • Weight: 25.1 kg
  • Dimensions: 2073mm x 1133mm x 35mm
  • Packaging: 31 pcs per pallet / 682 pcs per 40' HC

Operating Parameters

  • Operational Temperature: -40°C ~ +85°C
  • Power Output Tolerance: 0 ~ +5W
  • Voltage and Current Tolerance: ±3%
  • Maximum System Voltage: DC1500V (IEC/UL)
  • Fire Rating: UL Type 1 or 2, IEC Class C
  • Nominal Operating Cell Temperature: 45°C ± 2°C

Mechanical Loading

  • Front Side Maximum Static Loading: 5400Pa
  • Rear Side Maximum Static Loading: 2400Pa
  • Hailstone Test: 25mm hailstone at 23m/s

Temperature Ratings (STC)

Temperature Coefficient Value
Coefficient of Isc +0.050%/°C
Coefficient of Voc -0.269%/°C
Coefficient of Pmax -0.340%/°C

Certifications

The LonGi 490W Solar Panel is certified for its high-quality manufacturing standards and safety, adhering to the following certifications:

  • IEC 61215, IEC 61730, UL 61730
  • ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2018
  • ISO 45001:2018

Warranty

  • 12-year warranty for materials and processing
  • 25-year warranty for extra linear power output

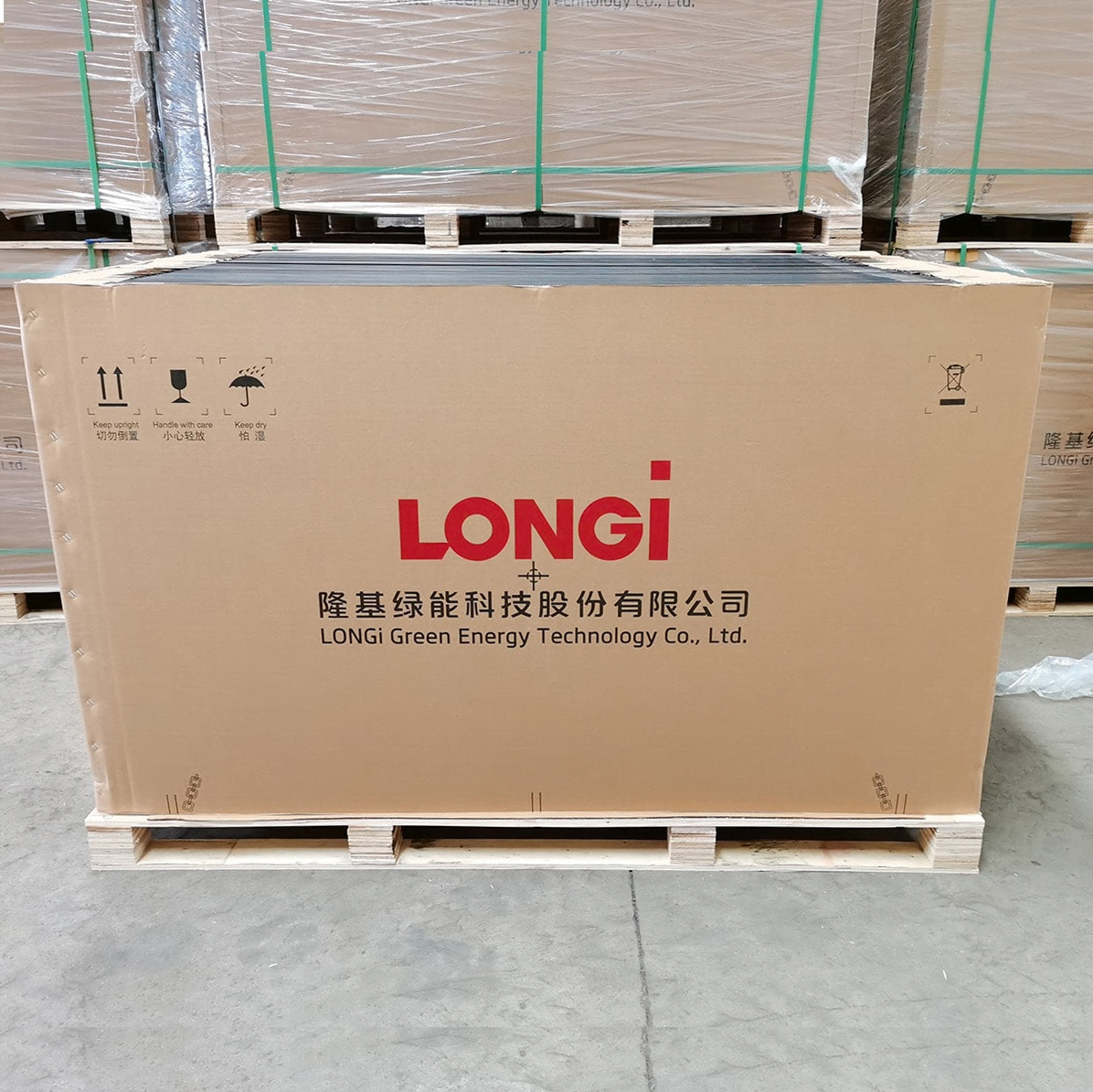

Packaging

  • 31 pcs per pallet
  • 155 pcs per 20' GP
  • 682 pcs per 40' HC

This product combines advanced technology with durable design, making it an excellent choice for long-term solar power generation.

Longi 490W Solar Panel features advanced technology for high-quality performance, excellent outdoor power generation, and a long lifespan with a 25-year warranty.

Longi 490W Solar Panel (LR5-66HPH, 490-510M) features advanced module technology for superior efficiency. MIO wafer-based construction ensures high-quality performance. The panel boasts excellent outdoor power generation and a long lifespan, backed by a 12-year warranty for materials processing and 25 years for extra linear power output. Certifications include IEC 61215, IEC 61730, UL 61730, ISO9001:2015, ISO14001:2015, and IS045001:2018. This module meets occupational health and safety guidelines and is designed to last 25 years.

LonGi 490W Solar Panel, A solar panel product named LonGi 490W with specifications including power output and voltage range.

LonGi 490W Solar Panel, The panel provides long-term reliability and high-quality modules, suitable for ground-mounted solar projects and large-scale power generation.

Longi 490W Solar Panel offers high-efficiency monocrystalline technology with a 25-year warranty, designed for outdoor use.

Longi 490W Solar Panel LR5-66HPH 490-510M, high-efficiency monocrystalline solar panel with 25-year warranty and IP67 waterproof design for reliable performance in outdoor applications.
