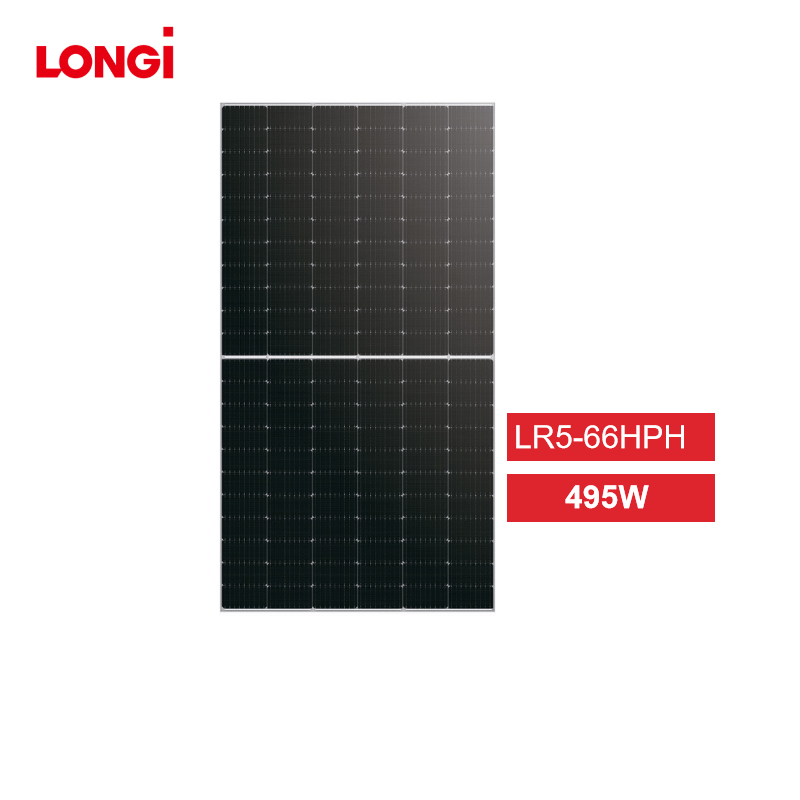

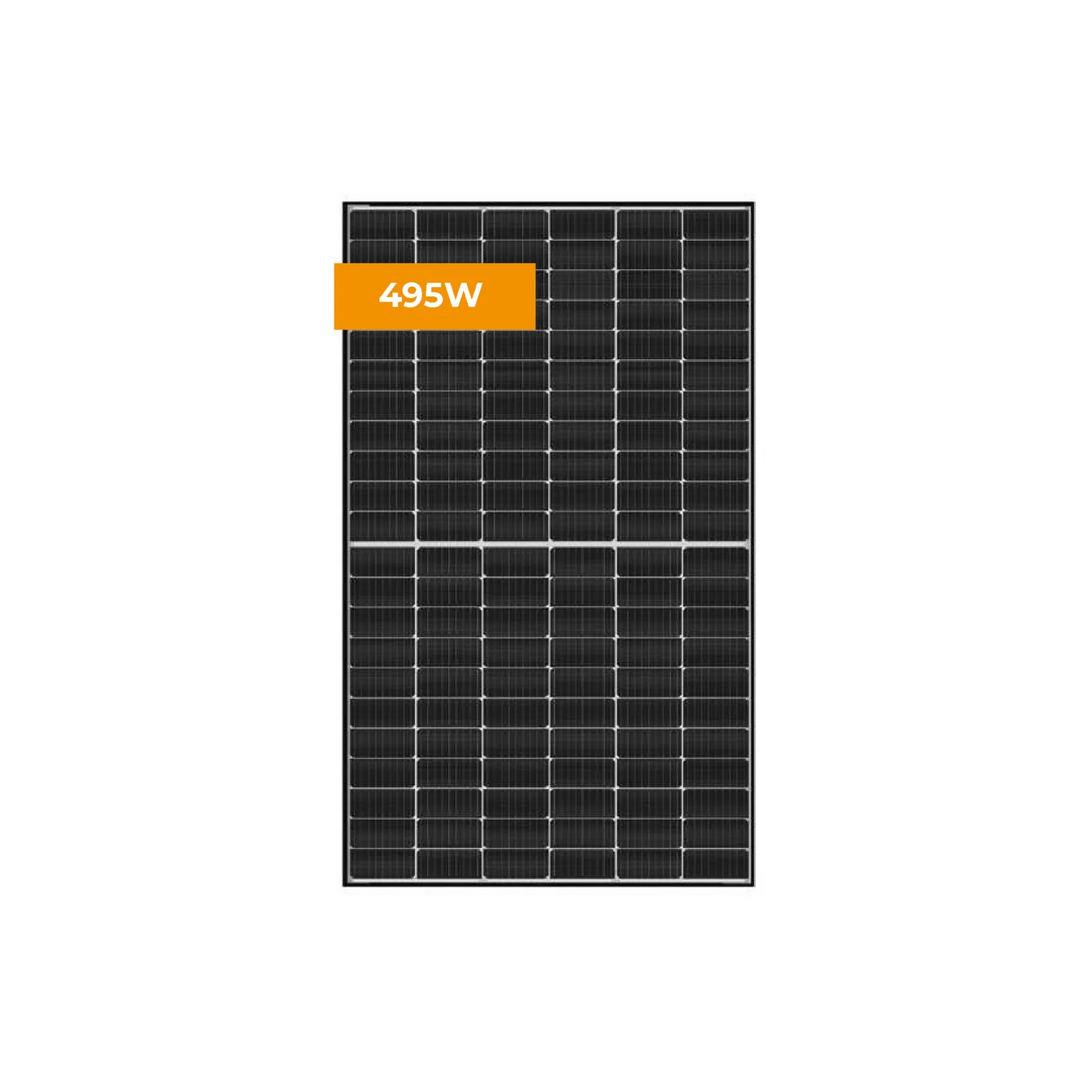

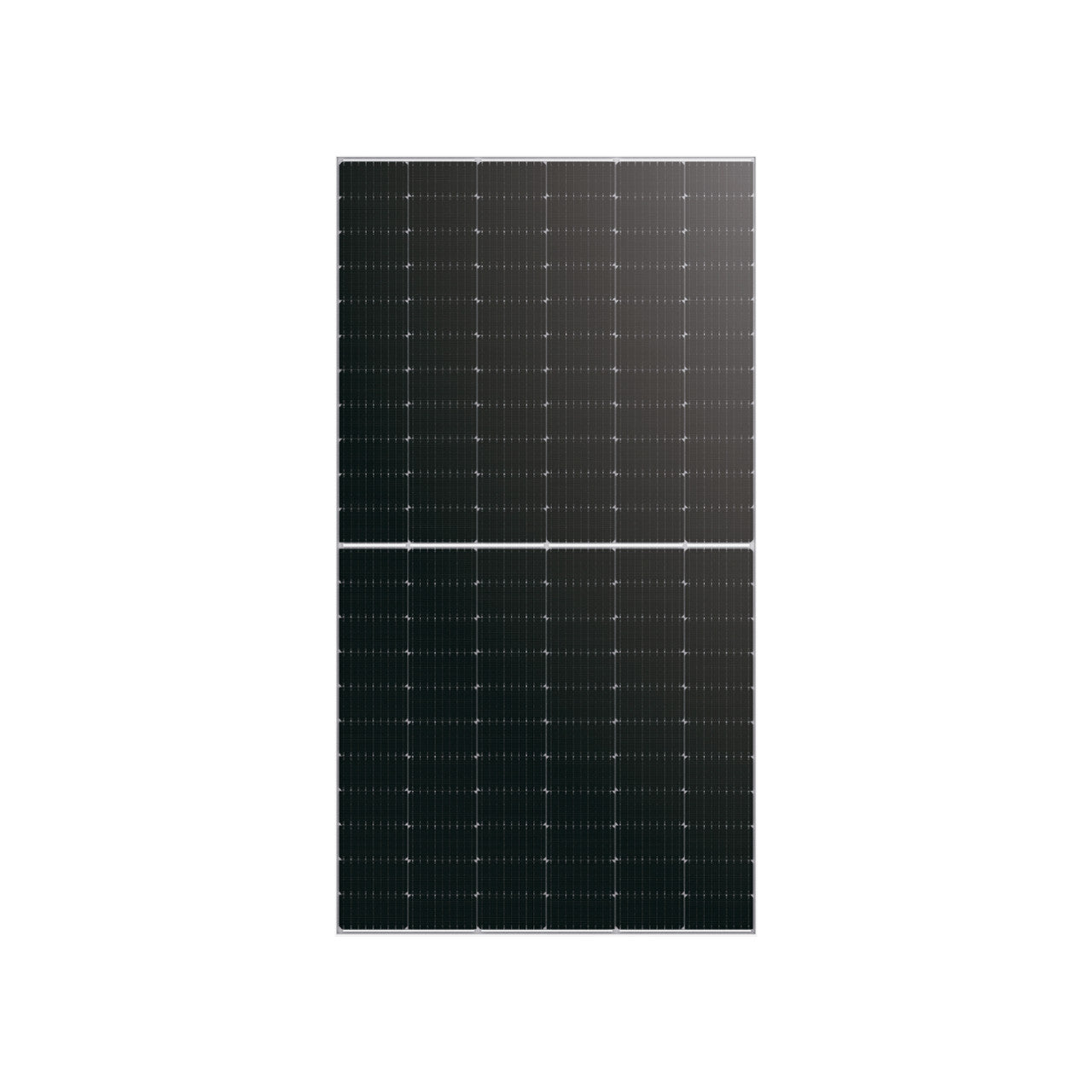

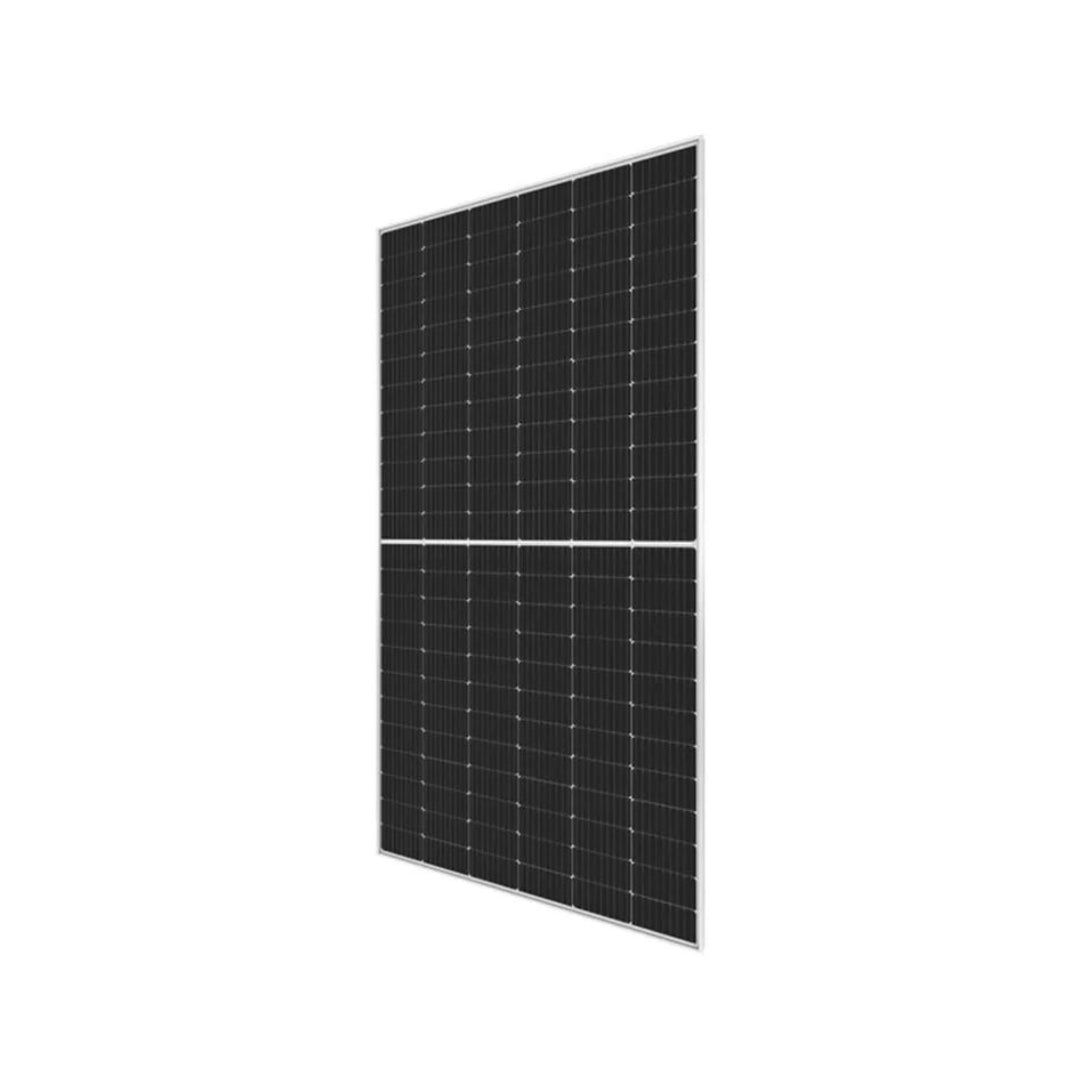

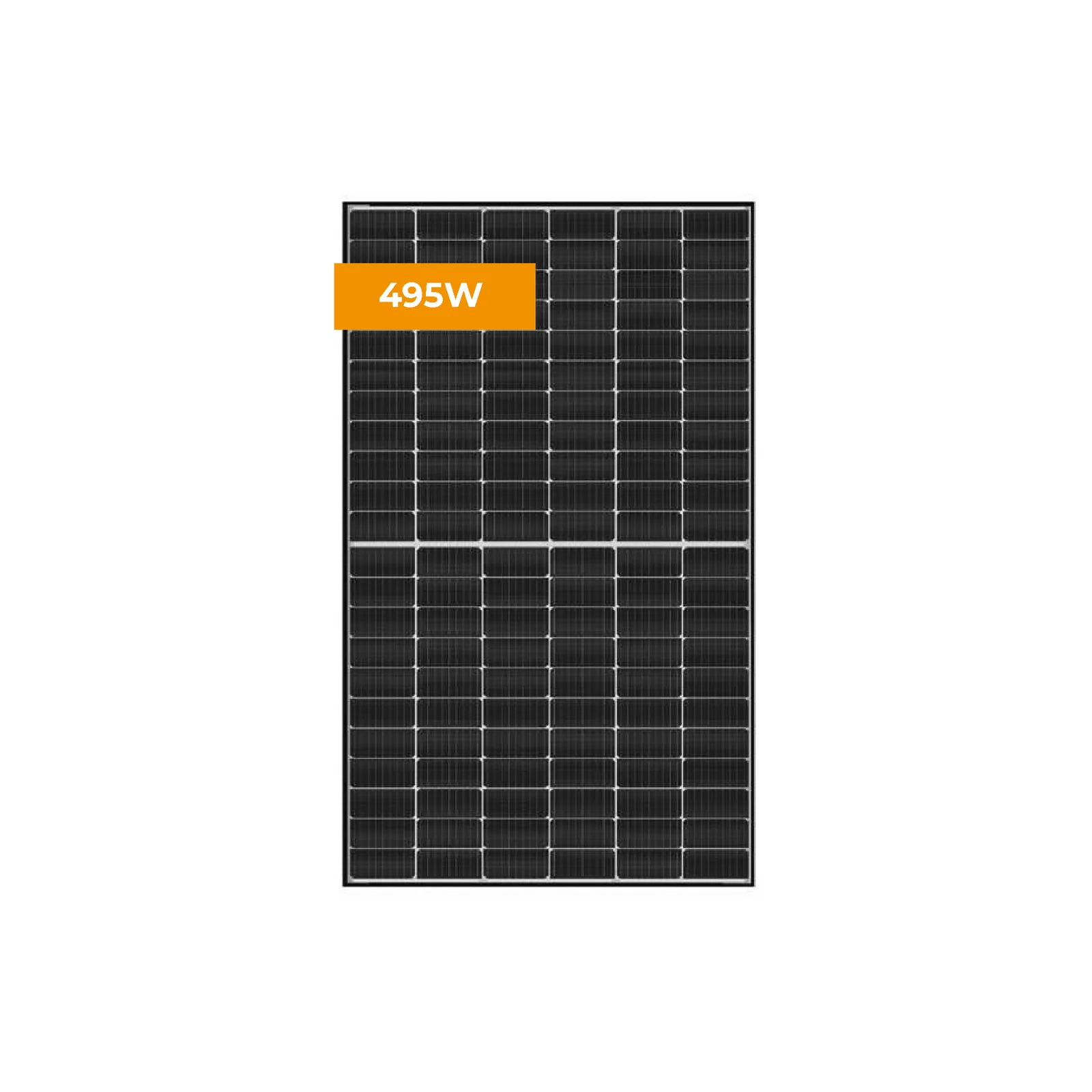

LonGi 495W Solar Panel Overview
The LonGi 495W Solar Panel (LR5-66HPH 495~515M) is a high-efficiency solar module based on M10-182mm wafers, designed for ultra-large power plants. With a maximum efficiency of 21.7% and a power range from 495W to 515W, it utilizes advanced module technology, including M10 Gallium-doped wafers, smart soldering, and 9-busbar half-cut cells. The panel ensures superior outdoor power generation performance under lower temperatures and offers long-term reliability. Backed by a 12-year warranty for materials and workmanship and a 25-year linear power output warranty, this panel is ideal for large-scale applications.
LonGi 495 Watt Solar Panel Key Specifications
- Power Output Range: 495W - 515W
- Maximum Efficiency: 21.7%
- Temperature Coefficient (Pmax): -0.340%/°C
- Operating Temperature: -40°C ~ +85°C
- Protection Class: Class II
- Dimensions: 2093mm x 1134mm x 35mm
LonGi 495W Solar Panel Key Features
- M10 Gallium-doped wafers and 9-busbar half-cut cell technology improve power generation efficiency.
- Smart soldering enhances long-term stability and durability.
- Optimized for ultra-large power plants, ensuring excellent outdoor performance.
- High power output ensures long-term stable operation for solar plants.

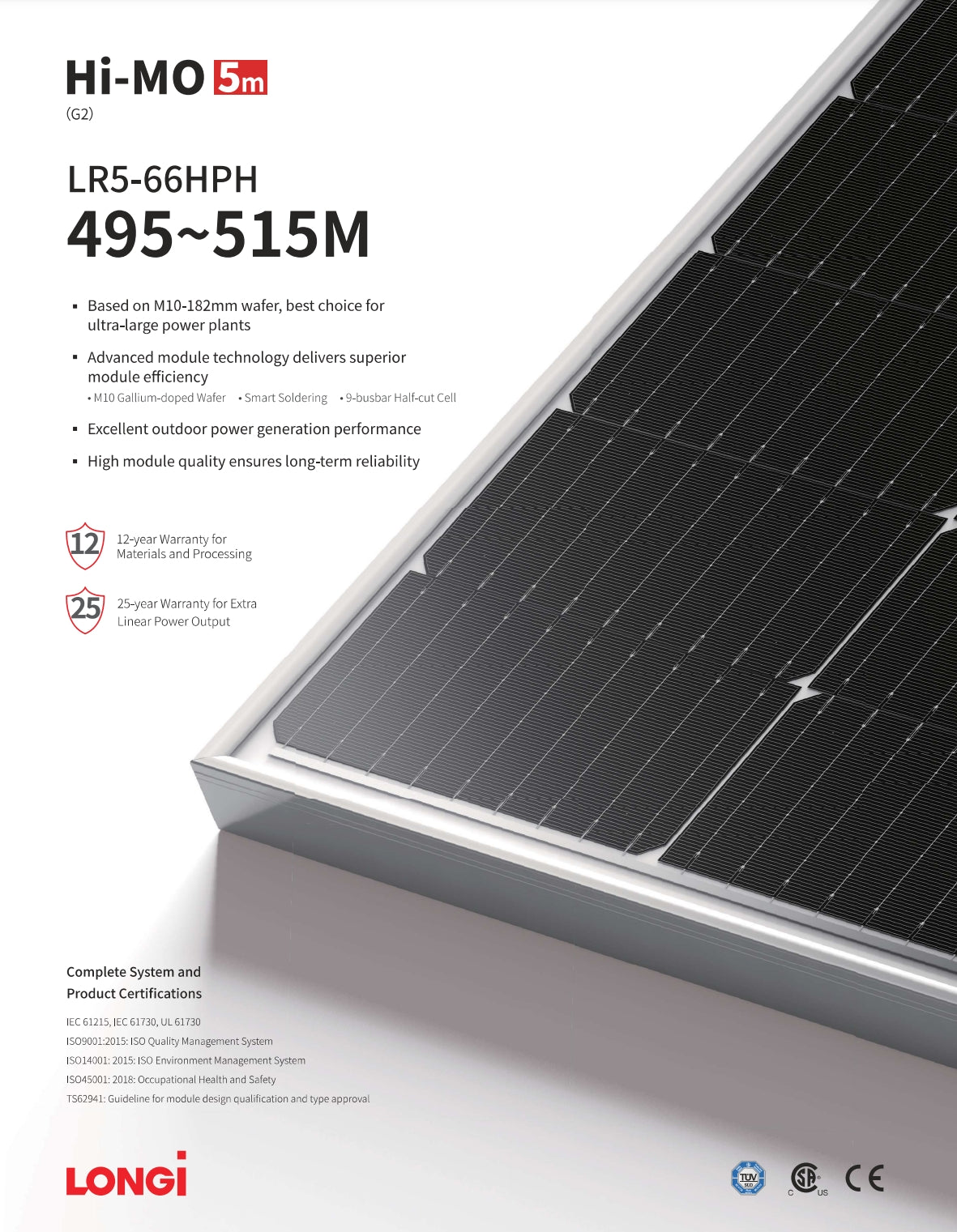

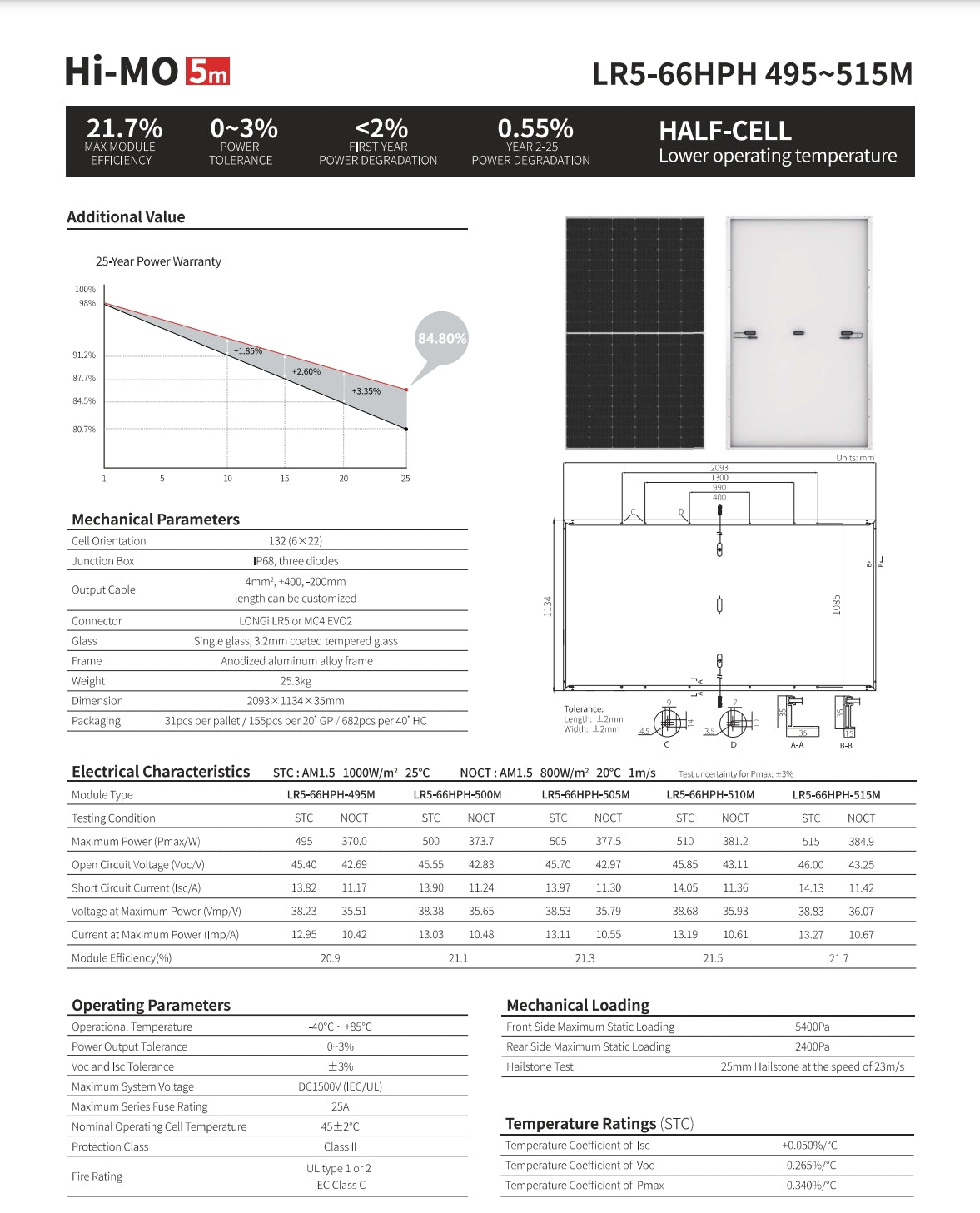

LonGi 495W Datasheet
Certifications & Warranty
- Certifications: IEC 61215, IEC 61730, UL 61730
- Quality Management Certification: ISO9001:2015
- Environmental Management Certification: ISO14001:2015
- Occupational Health & Safety Certification: ISO45001:2018
- Other Certifications: OHSAS 18001:2007, IEC62941
- Warranty: 12-year warranty for materials and workmanship, 25-year linear power output warranty
Mechanical Parameters
- Cell Configuration: 132 (6x22)
- Junction Box: IP68, three diodes
- Glass: Single glass, 3.2mm coated tempered glass
- Frame: Anodized aluminum alloy frame
- Weight: 25.3 kg

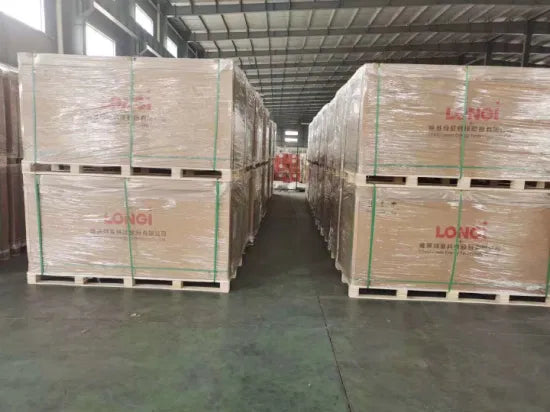

- Packaging: 31 pcs per pallet, 155 pcs per 20' GP, 682 pcs per 40' HC container
Electrical Characteristics
| Power Class | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Voltage at Maximum Power (Vmp) | Current at Maximum Power (Imp) | Module Efficiency (%) |
|---|---|---|---|---|---|
| 495W | 49.50V | 13.90A | 40.80V | 12.15A | 21.0% |
| 515W | 50.60V | 14.10A | 42.20V | 12.25A | 21.5% |
Operating Parameters
- Operating Temperature: -40°C to +85°C
- Power Output Tolerance: 0 ~ +3%
- Nominal Operating Cell Temperature: 45±2°C
- Maximum System Voltage: 1500V DC (IEC/UL)
- Fire Rating: UL type 1 or 2, IEC Class C
Mechanical Loading
- Front Side Maximum Static Load: 5400Pa
- Rear Side Maximum Static Load: 2400Pa
- Hailstone Test: 25mm hailstone at the speed of 23m/s
Temperature Ratings (STC)
- Temperature Coefficient of Isc: +0.050%/°C
- Temperature Coefficient of Voc: -0.265%/°C
- Temperature Coefficient of Pmax: -0.340%/°C
This description integrates all relevant information from the datasheet while highlighting the core parameters and certifications, ensuring a clear presentation for potential customers.
LONGI 495W Solar Panel (LR5-66HPH, 495-515M) - Hi-Mo Bifacial Module Based on M1O-182mm Wafer; Best Choice for Ultra-Large Power Plants. Advanced module technology delivers superior module efficiency. Smart Soldering, 9-busbar, Half-cut Cell Design. Excellent outdoor power generation performance and high module quality ensure long-term reliability. 12-year warranty for materials and processing. 25-year warranty for extra linear power output.
