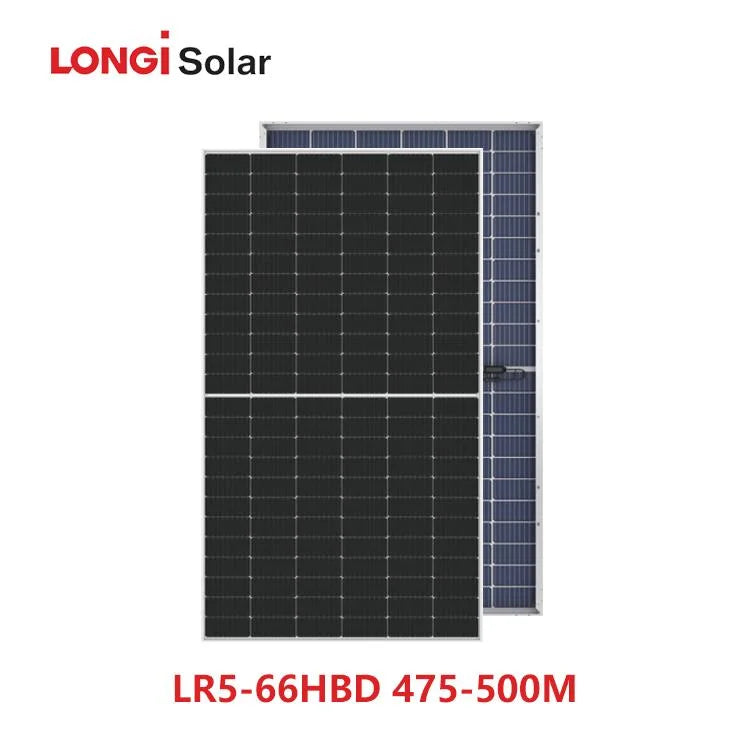

Longi Hi-MO 5 LR5-66HBD 475~500M Solar Panel
The Longi 500W solar panel (Hi-MO 5 LR5-66HBD 475~500M) is a high-performance module designed for large-scale solar power installations. Featuring dimensions of 2073 × 1133 × 35mm, a weight of 30.6kg, and a 132 half-cell (6x22) configuration, this panel delivers outstanding power outputs ranging from 475W to 500W. With an open circuit voltage (Voc) of 44.80V to 45.55V, this module is engineered to provide efficient and reliable energy even under challenging conditions. Its bifacial technology enhances energy yield, making it an ideal choice for commercial and utility-scale applications.
Longi 500W Solar Panel Key Features:
- Advanced Module Technology: M10 Gallium-doped wafer combined with 9-busbar half-cell design and smart soldering ensures optimal performance.
- High Power Output: Rated for 475W to 500W, with module efficiency up to 21.3%, supporting higher energy generation.
- Optimized Temperature Coefficients: The -0.350%/°C temperature coefficient for Pmax ensures stable performance in high temperatures.
- Durability and Protection: Dual 2.0mm tempered glass layers and an anodized aluminum frame provide superior protection against environmental factors such as extreme heat, cold, and debris impact.
- Extended Warranty: Includes a 12-year warranty on materials and processing, and a 30-year linear power output warranty, guaranteeing long-term reliability and peace of mind.
- Comprehensive Certifications: Certified for international standards including IEC 61215, IEC 61730, UL 61730, ensuring high safety and performance standards. Other certifications include ISO 9001:2008, ISO 14001:2004, and OHSAS 18001:2007 for quality, environmental, and occupational health management systems.

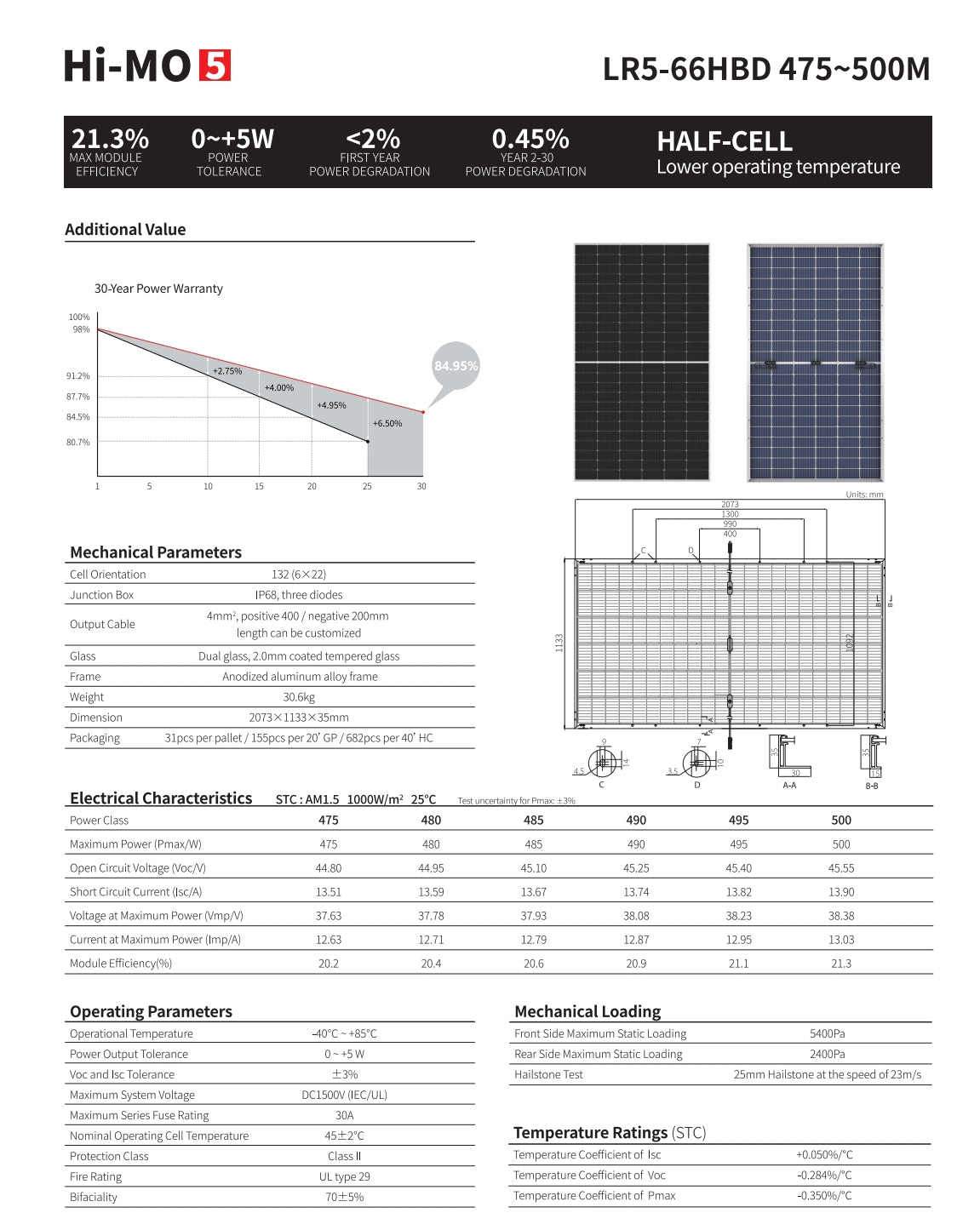

Longi 500W Datasheet
Mechanical Parameters:
- Cell Orientation: 132 (6×22)

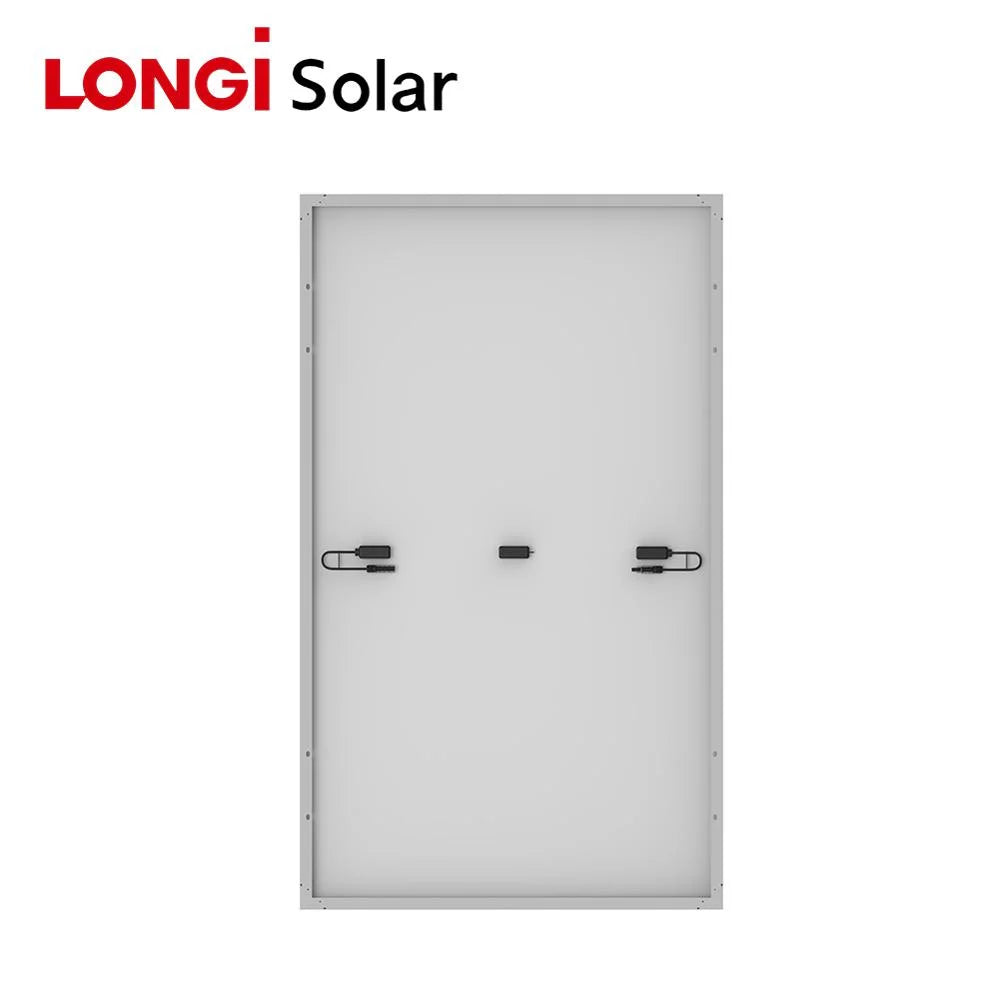

- Junction Box: IP68, three diodes
- Glass: Dual glass, 2.0mm coated tempered glass
- Frame: Anodized aluminum alloy
- Dimensions: 2073 × 1133 × 35mm
- Weight: 30.6kg

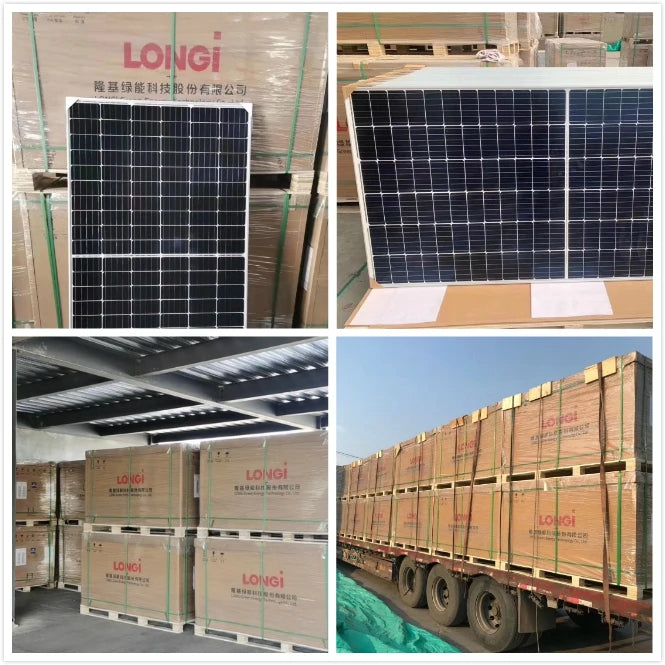

- Packaging: 31 panels per pallet, 155 per 20' GP container, 682 per 40' HC container
Electrical Characteristics (STC: 1000W/m², 25°C):
| Power Class | 475W | 480W | 485W | 490W | 495W | 500W |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 475 | 480 | 485 | 490 | 495 | 500 |
| Open Circuit Voltage (Voc) [V] | 44.80 | 44.95 | 45.10 | 45.25 | 45.40 | 45.55 |
| Short Circuit Current (Isc) [A] | 13.51 | 13.59 | 13.67 | 13.74 | 13.82 | 13.90 |
| Voltage at Maximum Power (Vmp) [V] | 37.63 | 37.78 | 37.93 | 38.08 | 38.23 | 38.38 |
| Current at Maximum Power (Imp) [A] | 12.63 | 12.71 | 12.79 | 12.87 | 12.95 | 13.03 |
| Module Efficiency (%) | 20.2 | 20.4 | 20.6 | 20.9 | 21.1 | 21.3 |
Operating Parameters:
- Operational Temperature: -40°C ~ +85°C
- Maximum System Voltage: 1500V DC (IEC/UL)
- Power Output Tolerance: 0~+5W
- Fire Rating: Class II
- Maximum Series Fuse Rating: 30A
- Bifaciality: 70% ± 5%
Mechanical Loading:
- Front Side Maximum Static Load: 5400Pa
- Rear Side Maximum Static Load: 2400Pa
- Hailstone Test: 25mm hailstone at 23m/s
Temperature Ratings (STC):
- Temperature Coefficient of Isc: +0.050%/°C
- Temperature Coefficient of Voc: -0.284%/°C
- Temperature Coefficient of Pmax: -0.350%/°C
Certifications and Standards:
- IEC 61215, IEC 61730, UL 61730: International certifications ensuring product safety and quality.
- ISO 9001:2008, ISO 14001:2004: Certifications for quality management and environmental management.
- OHSAS 18001:2007: Certification for occupational health and safety.
- Fire Rating: Class II compliance ensures safety under fire conditions.
- Tested under extreme conditions: Hailstone impact tests at 25mm and other durability benchmarks prove its strength.
The Longi Hi-MO 5 LR5-66HBD 475~500M is built for maximum reliability and performance, combining cutting-edge technology with robust materials. Its high energy yield, enhanced bifaciality, and certification credentials make it a leading choice for large-scale solar power projects. Whether for commercial or utility-scale installations, this module delivers the durability and efficiency needed to maximize energy production across a wide range of conditions.

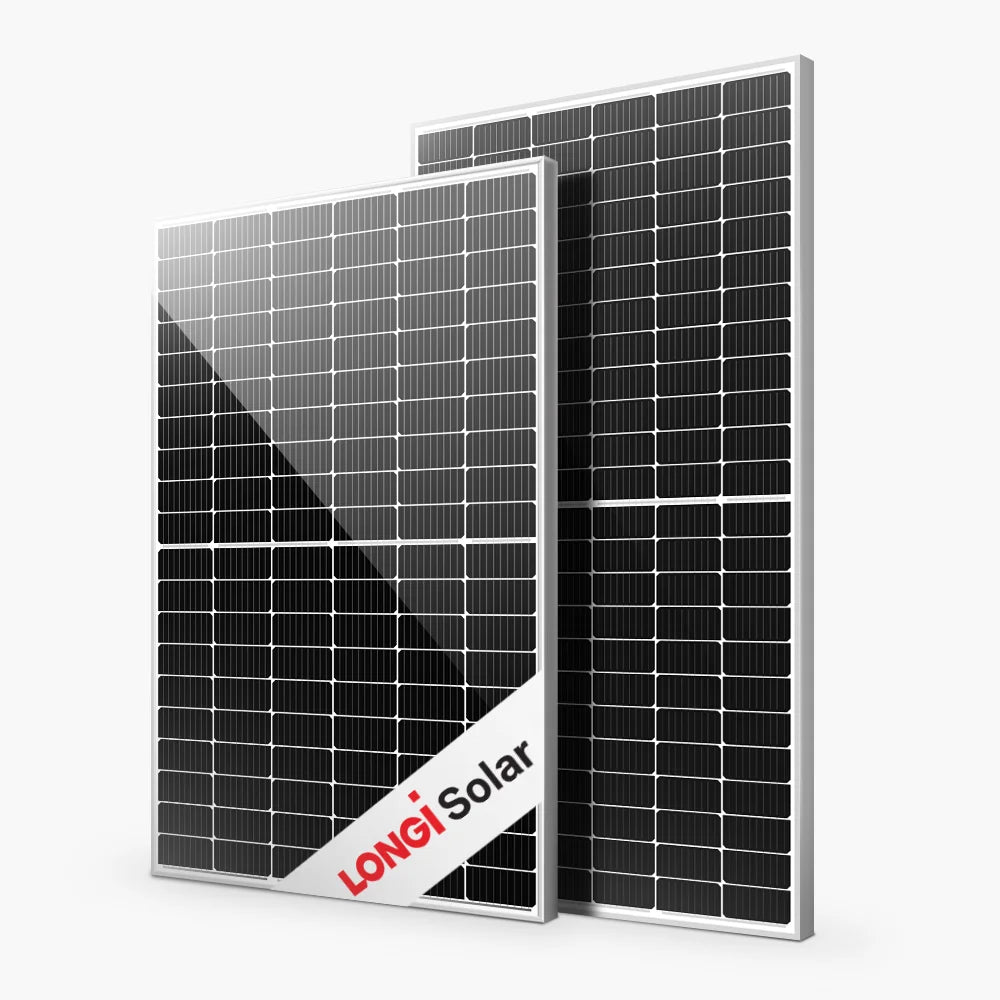

LONGi 500 Watt Solar Panel (475-500W) - High-efficiency mono facial solar panel for residential and commercial use.

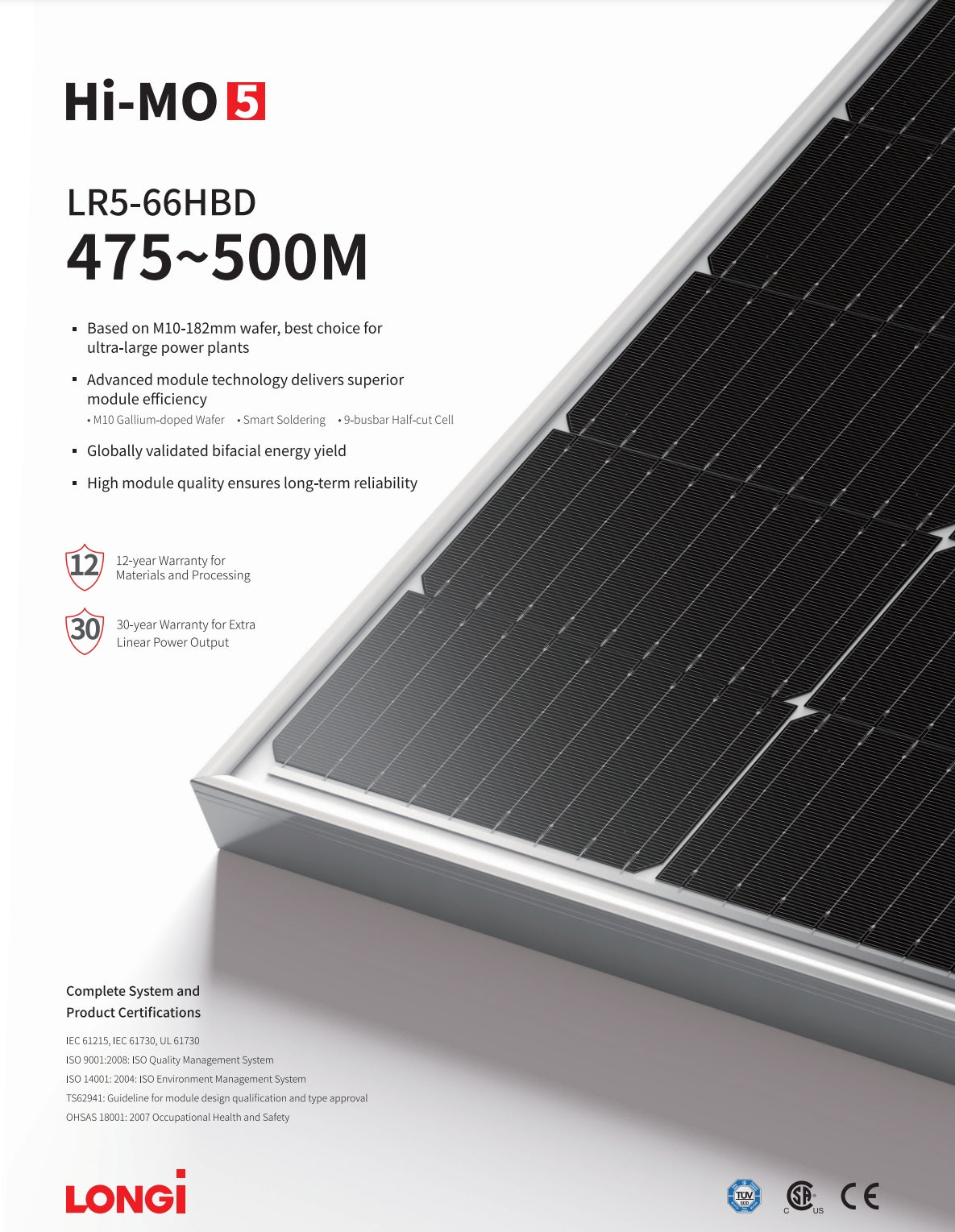

LONGI 500W Solar Panel. High-efficiency module technology with M1O Gallium-doped Wafer and Smart Soldering. Advanced features include 9- busbar, Half-cut Cell, and Bifacial energy yield. Globally validated for high-quality performance. 12-year warranty on materials and processing, and 30-year warranty on extra linear power output. Certified to IEC 61215, IEC 61730, UL 61730, ISO 9001:2008, ISO 14001:2004, TS 62941, and OHSAS 18001:2007.

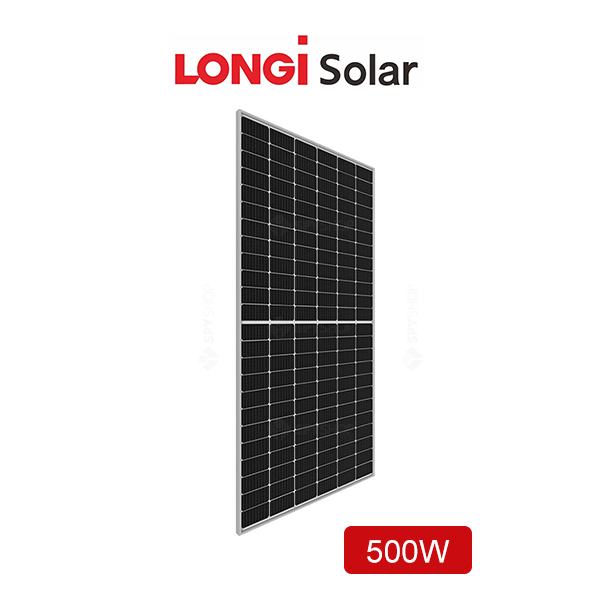

Longi 500 Watt Solar Panel (475-500W) Product Image. High-efficiency module with up to 21.3% efficiency, 30-year power warranty and additional value, low operating temperature for improved performance, dual glass structure with tempered glass coating, anodized aluminum alloy frame for durability, dimensions: 2073 x 1133 x 35mm, weight: 30.6kg, maximum power: 475-500W, open circuit voltage: 44.80-45.55V, short circuit current: 13.51-13.90A, module efficiency: up to 21.3%, mechanical loading: S400Pa front side, 2400Pa rear side, operational temperature: -40°C ~ +85°C, protection class: Class II, certifications and ratings: IEC/UL maximum system DC power output: 500W, nominal operating cell temperature: 45.2°C, fire rating: UL type 29, bifaciality: 70+5%
