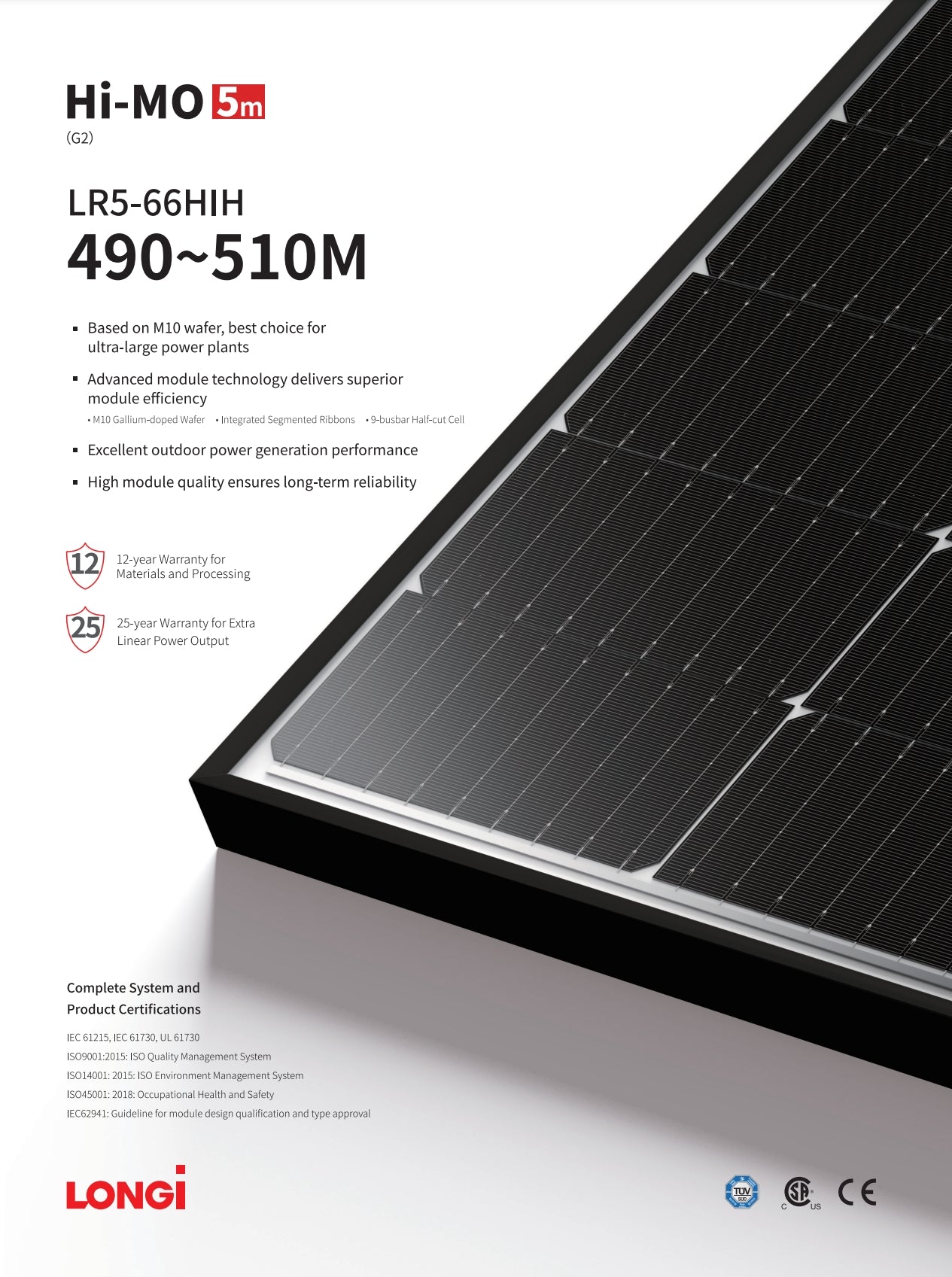

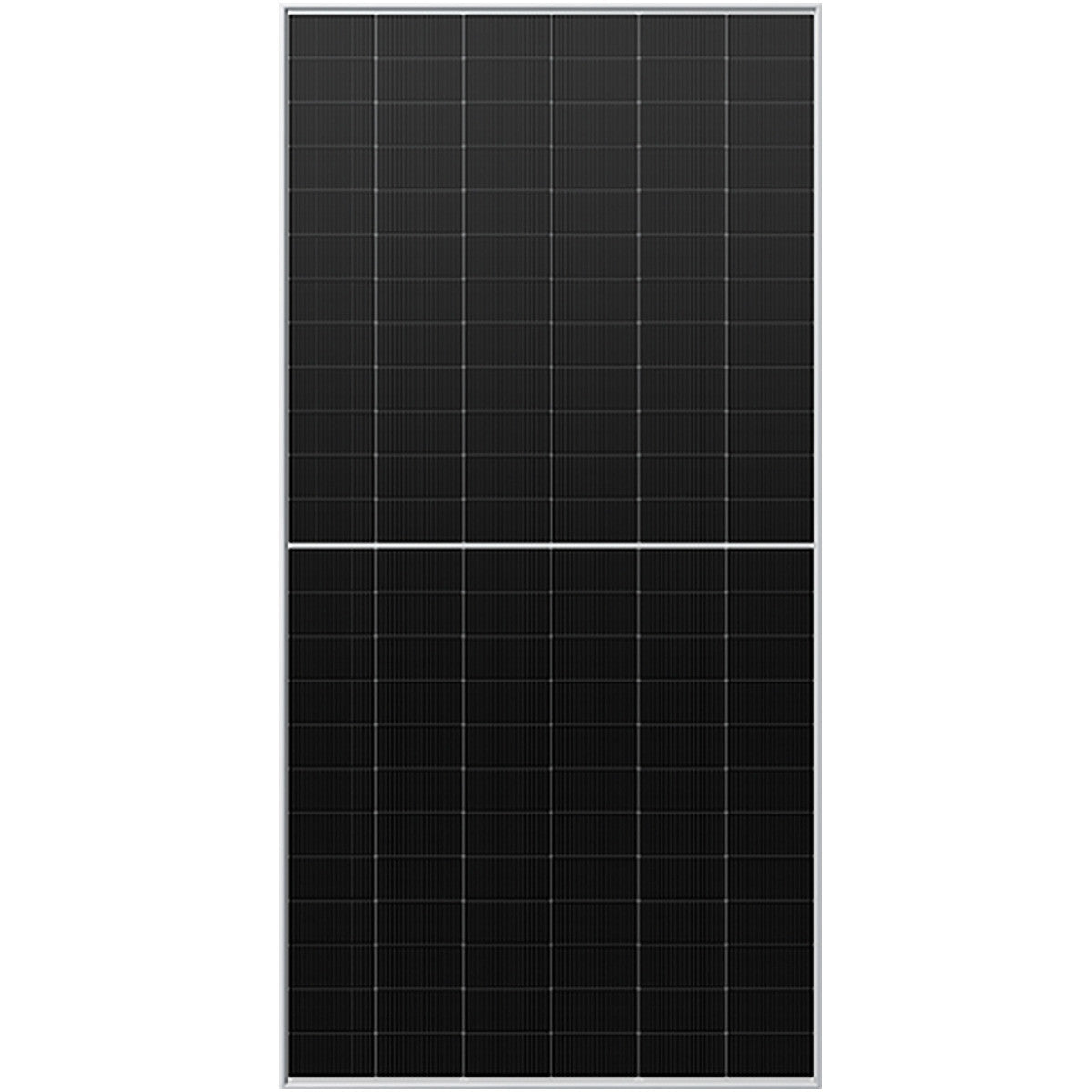

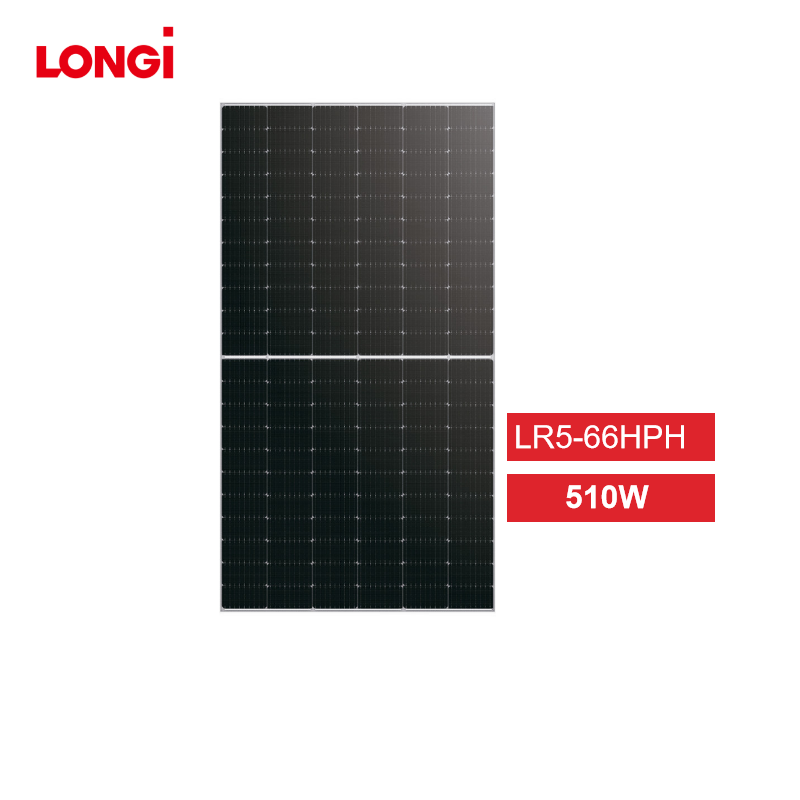

LonGi 510W Solar Panel Overview
The LonGi 510W Solar Panel (HR5-66HIH) represents the pinnacle of solar technology, delivering an impressive power output range of 490W to 510W with a maximum module efficiency of 21.5%. Utilizing cutting-edge M10 wafer technology and innovative 9-busbar half-cut cell design, this solar panel is specifically engineered for large-scale solar installations. The LonGi 510W Solar Panel ensures reliable energy production across diverse environmental conditions, making it an ideal choice for any renewable energy project.
LonGi 510 Watt Solar Panel Features
- High Efficiency: Achieves a maximum module efficiency of 21.5%, significantly enhancing energy yield.
- Robust Durability: Designed to withstand extreme weather, the panel supports a front-side static load capacity of up to 5400Pa.
- Long-term Performance: Backed by a 25-year power output warranty, the LonGi 510W Solar Panel guarantees sustained energy generation.
- Advanced Technology: The integration of M10 gallium-doped wafers results in superior performance and efficiency.

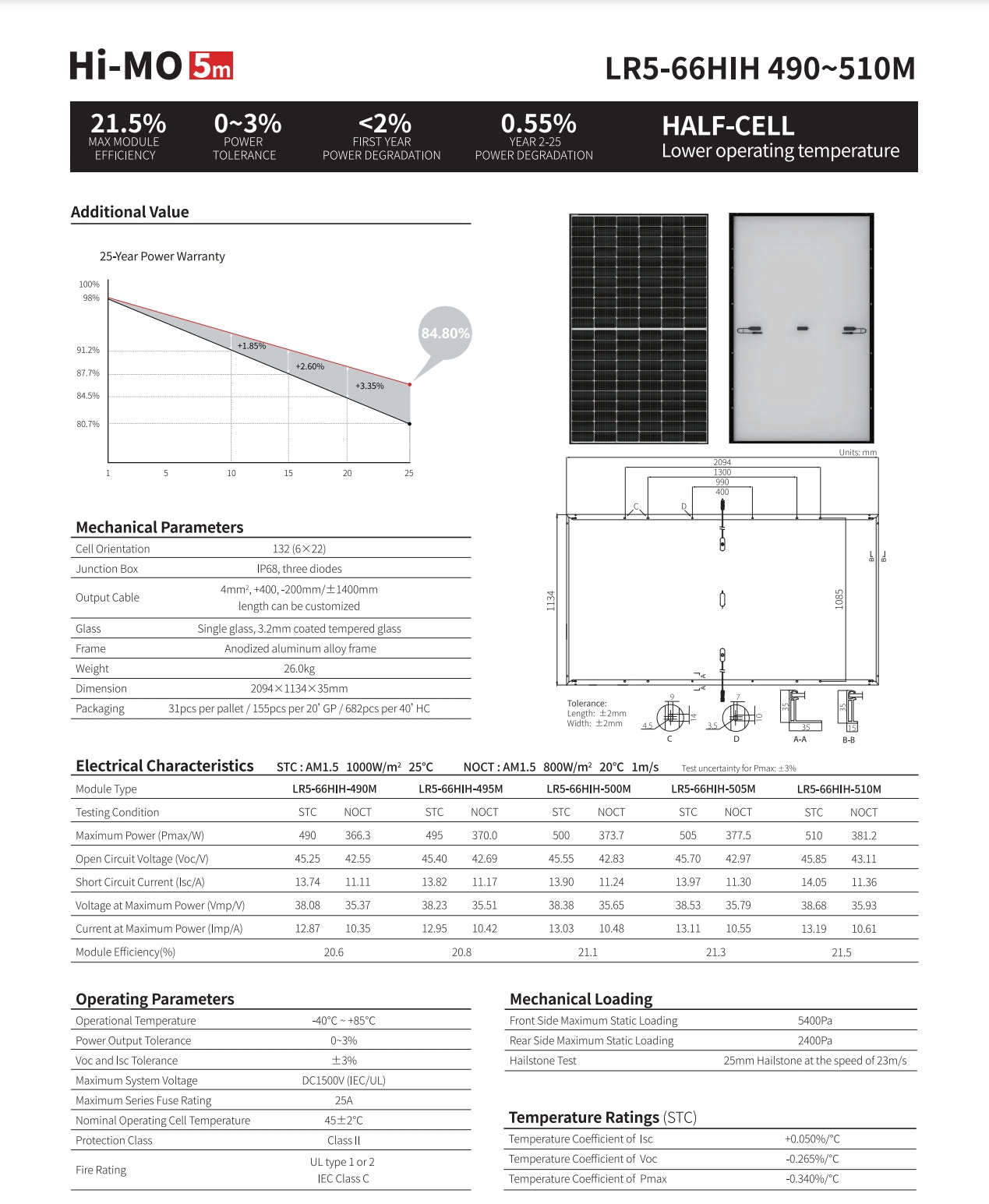

LonGi 510W Datasheet
Mechanical Parameters
- Dimensions: 2094mm x 1134mm x 35mm
- Weight: 26.0kg
- Frame Material: Anodized aluminum alloy
- Glass Type: Single glass, 3.2mm coated tempered glass
- Junction Box: IP68 rated with three diodes
Electrical Characteristics
| Parameter | HR5-66HIH 490M | HR5-66HIH 495M | HR5-66HIH 500M | HR5-66HIH 505M | HR5-66HIH 510M |
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 490 | 495 | 500 | 505 | 510 |
| Open Circuit Voltage (Voc/V) | 45.25 | 45.40 | 45.55 | 45.70 | 45.85 |
| Short Circuit Current (Isc/A) | 13.74 | 13.82 | 13.90 | 13.97 | 14.05 |
| Voltage at Maximum Power (Vmp/V) | 38.08 | 38.23 | 38.38 | 38.53 | 38.68 |
| Current at Maximum Power (Imp/A) | 12.87 | 12.95 | 13.03 | 13.11 | 13.19 |
| Module Efficiency (%) | 20.6 | 20.8 | 21.1 | 21.3 | 21.5 |

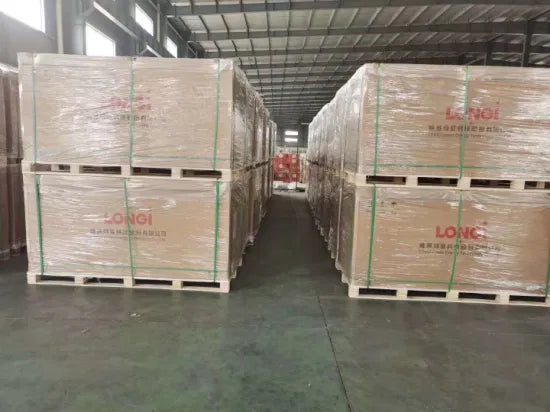

Packaging Information
- Packaging Dimensions: 2094mm x 1134mm x 35mm
- Packaging Type: 31 pieces per pallet
- Container Capacity: 155 pieces per 20' container / 682 pieces per 40' HC container
Operating Parameters
- Operational Temperature: -40°C to +85°C
- Power Output Tolerance: 0% to +3%
- Maximum System Voltage: DC1500V (IEC/UL)
- Nominal Operating Cell Temperature: 45±2°C
- Protection Class: Class II
Mechanical Loading
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Hailstone Test: 25mm hailstone at the speed of 23m/s
Temperature Ratings
- Temperature Coefficient of Isc: +0.050%/°C
- Temperature Coefficient of Voc: -0.265%/°C
- Temperature Coefficient of Pmax: -0.340%/°C
Certifications
The LonGi 510W Solar Panel complies with international standards, including IEC 61215, IEC 61730, and UL 61730, ensuring high quality and safety.
Warranty
- 12-Year Warranty: For materials and processing.
- 25-Year Warranty: For extra linear power output.
