Overview

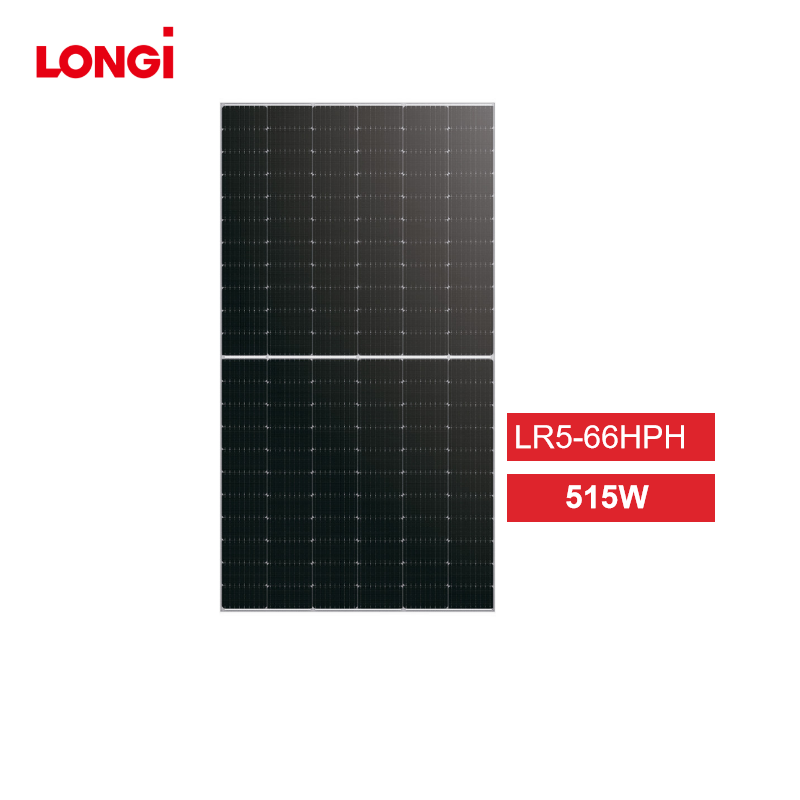

The LonGi 515W Solar Panel (LR5-66HPH) is designed to meet the needs of ultra-large power plants, offering a power output range of 495W to 515W with a maximum module efficiency of 21.7%. Utilizing advanced M10-182mm wafer technology and featuring a 9-busbar half-cell design, this solar panel ensures excellent outdoor performance and long-term reliability. The LonGi 515W Solar Panel is an ideal choice for renewable energy projects, delivering high energy production in diverse environments.
Product Features
- High Efficiency: Achieves a maximum module efficiency of 21.7%, enhancing overall energy yield.
- Durable Design: Engineered to withstand extreme weather conditions with a front-side static load capacity of up to 5400Pa.
- Long-Term Warranty: Backed by a 25-year power output warranty, ensuring consistent energy generation throughout its lifespan.
- Advanced Technology: Incorporates M10 gallium-doped wafers and 9-busbar technology for superior performance.

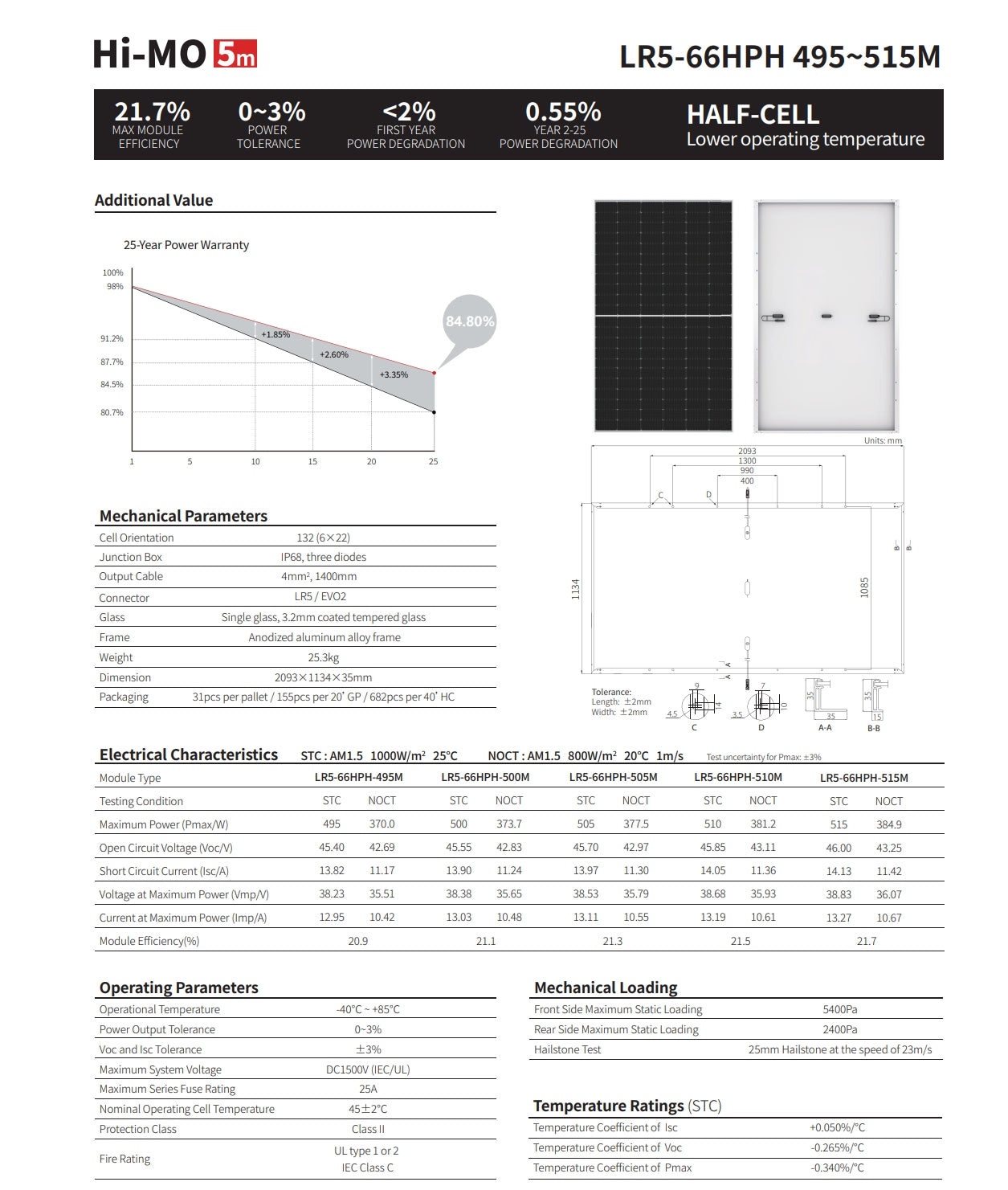

LonGi 515W Datasheet
Mechanical Parameters
- Dimensions: 2093mm x 1134mm x 35mm
- Weight: 25.3kg
- Frame Material: Anodized aluminum alloy
- Glass Type: Single glass, 3.2mm coated tempered glass
- Junction Box: IP68 rated with three diodes
Electrical Characteristics
Parameter | LR5-66HPH 495M | LR5-66HPH 500M | LR5-66HPH 505M | LR5-66HPH 510M | LR5-66HPH 515M |
---|---|---|---|---|---|
Maximum Power (Pmax/W) | 495 | 500 | 505 | 510 | 515 |
Open Circuit Voltage (Voc/V) | 45.40 | 45.55 | 45.70 | 45.85 | 46.00 |
Short Circuit Current (Isc/A) | 13.82 | 13.90 | 13.97 | 14.05 | 14.13 |
Voltage at Maximum Power (Vmp/V) | 38.23 | 38.38 | 38.53 | 38.68 | 38.83 |
Current at Maximum Power (Imp/A) | 12.95 | 13.03 | 13.11 | 13.19 | 13.27 |
Module Efficiency (%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.7 |
Packaging Information

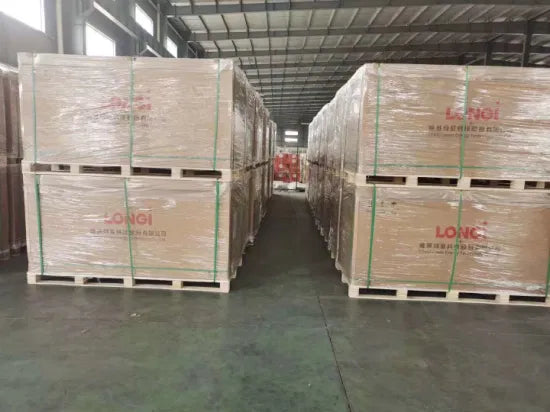

- Packaging Type: 31 pieces per pallet
- Container Capacity: 155 pieces per 20' container / 682 pieces per 40' HC container
Operating Parameters
- Operational Temperature: -40°C to +85°C
- Power Output Tolerance: 0% to +3%
- Maximum System Voltage: DC1500V (IEC/UL)
- Nominal Operating Cell Temperature: 45±2°C
- Protection Class: Class II
Mechanical Loading
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Hailstone Test: 25mm hailstone at the speed of 23m/s
Temperature Ratings
- Temperature Coefficient of Isc: +0.050%/°C
- Temperature Coefficient of Voc: -0.265%/°C
- Temperature Coefficient of Pmax: -0.340%/°C
Certifications
The LonGi 515W Solar Panel complies with international standards, including IEC 61215, IEC 61730, and UL 61730, ensuring high quality and safety.
Warranty
- 12-Year Warranty: For materials and processing.
- 25-Year Warranty: For extra linear power output.

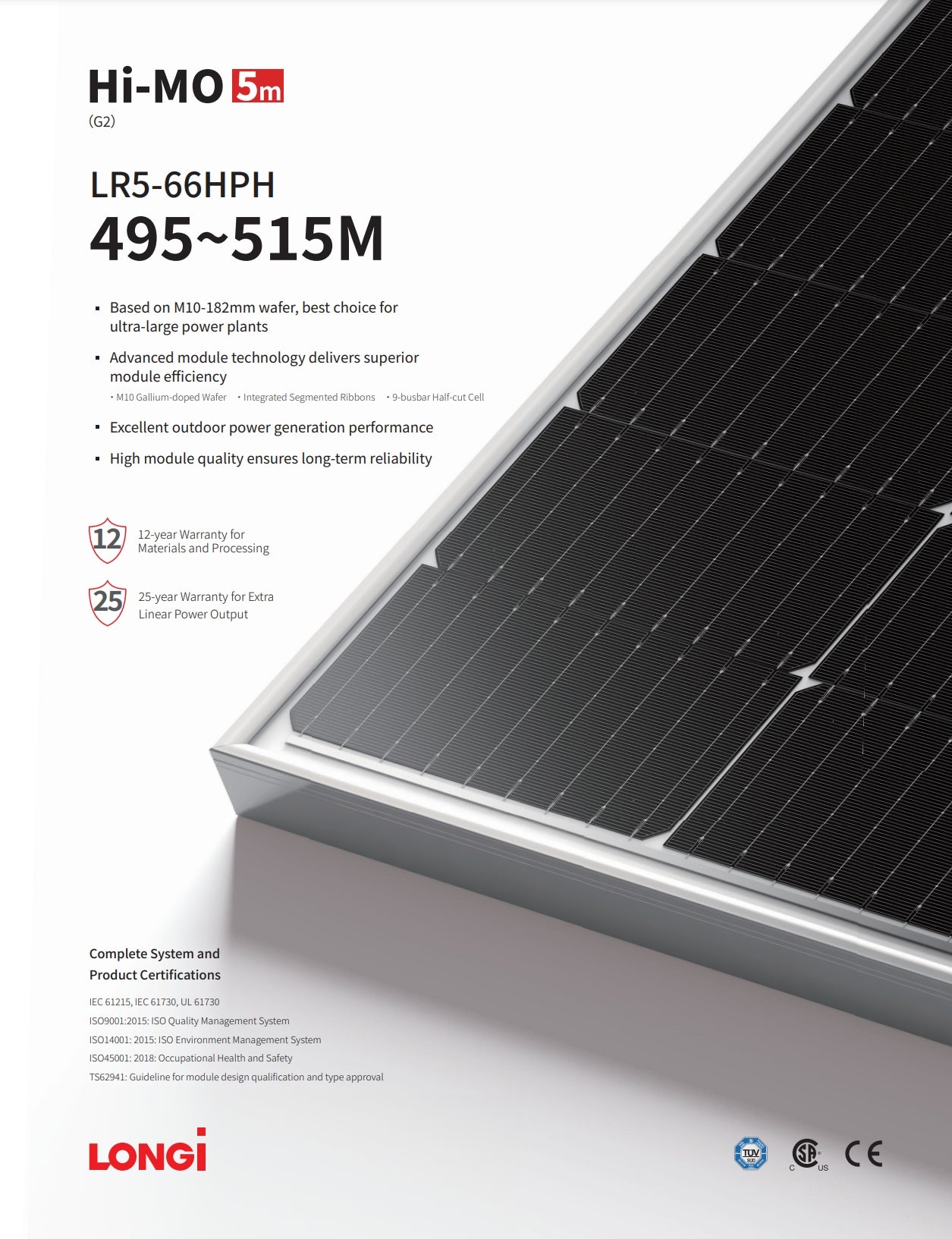

LONGi 515W Solar Panel LR5-66HPH 495-515 Watt. Hi-MO Em (G2) technology delivers superior module efficiency with M1O-182mm wafer and Gallium-doped Wafer Integrated Segmented Ribbons. 9-busbar Half-cut Cell design ensures excellent outdoor power generation performance. The module quality guarantees long-term reliability, backed by a 12-year warranty for materials and processing, as well as a 25-year warranty for extra linear power output.
The LonGi 515W Solar Panel (LR5-66HPH 495-515 Watt) features a high-efficiency module with a power output tolerance of ±3%. It has a maximum power of 495-515 watts and an open-circuit voltage of 45.40V. The panel is designed for outdoor use and has a IP68-rated junction box with three diodes. It also features a single-glass frame and anodized aluminum alloy frame.
