Overview

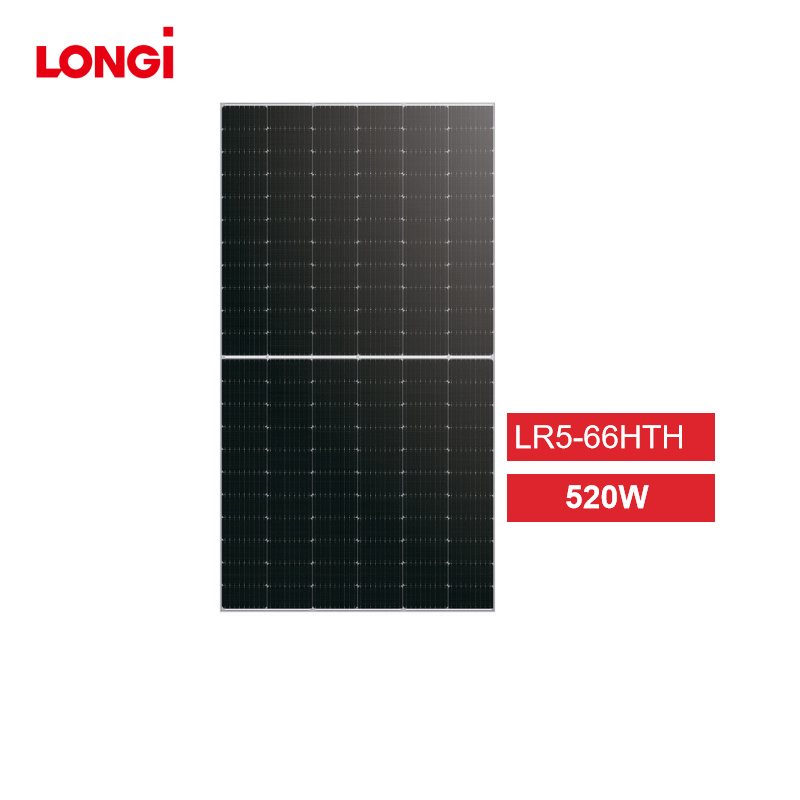

The LonGi 520W Solar Panel (LR5-66HTH) is designed for optimal performance in the distribution market, offering a power output range of 520W to 540W. With a maximum module efficiency of 22.7%, this solar panel features advanced technology to enhance energy generation. Its modern and simple design embodies efficiency and reliability, making the LonGi 520W Solar Panel a prime choice for renewable energy projects.
Product Features
- High Efficiency: Achieves a maximum module efficiency of 22.7%, ensuring superior energy yield.
- Reliable Performance: Constructed for long-term durability, backed by a 25-year power output warranty.
- Robust Design: Capable of withstanding extreme weather with a front-side static load capacity of up to 5400Pa.
- Modern Aesthetic: The simple design of the LonGi 520W Solar Panel combines functionality with contemporary style.
Mechanical Parameters
- Dimensions: 2094mm x 1134mm x 35mm
- Weight: 26.0kg
- Frame Material: Anodized aluminum alloy
- Glass Type: Single glass, 3.2mm coated tempered glass
- Junction Box: IP68 rated with three diodes
- Output Cable: 4mm², customizable up to 1400mm length
Electrical Characteristics
| Parameter | LR5-66HTH 520M | LR5-66HTH 525M | LR5-66HTH 530M | LR5-66HTH 535M | LR5-66HTH 540M |
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 520 | 525 | 530 | 535 | 540 |
| Open Circuit Voltage (Voc/V) | 48.27 | 48.42 | 48.57 | 48.72 | 48.87 |
| Short Circuit Current (Isc/A) | 13.84 | 13.93 | 14.00 | 14.07 | 14.15 |
| Voltage at Maximum Power (Vmp/V) | 39.91 | 40.06 | 40.22 | 40.38 | 40.53 |
| Current at Maximum Power (Imp/A) | 13.03 | 13.11 | 13.18 | 13.25 | 13.33 |
| Module Efficiency (%) | 21.9 | 22.1 | 22.3 | 22.5 | 22.7 |
Packaging Information
- Packaging Type: 31 pieces per pallet
- Container Capacity: 155 pieces per 20' container / 682 pieces per 40' HC container
Operating Parameters
- Operational Temperature: -40°C to +85°C
- Power Output Tolerance: 0% to +3%
- Maximum System Voltage: DC1500V (IEC/UL)
- Nominal Operating Cell Temperature: 45±2°C
- Protection Class: Class II
Mechanical Loading
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Hailstone Test: 25mm hailstone at the speed of 23m/s
Temperature Ratings
- Temperature Coefficient of Isc: +0.050%/°C
- Temperature Coefficient of Voc: -0.230%/°C
- Temperature Coefficient of Pmax: -0.290%/°C
Certifications
The LonGi 520W Solar Panel complies with international standards, including IEC 61215, IEC 61730, and UL 61730, ensuring high quality and safety.
Warranty
- 15-Year Warranty: For materials and processing.
- 25-Year Warranty: For extra linear power output.

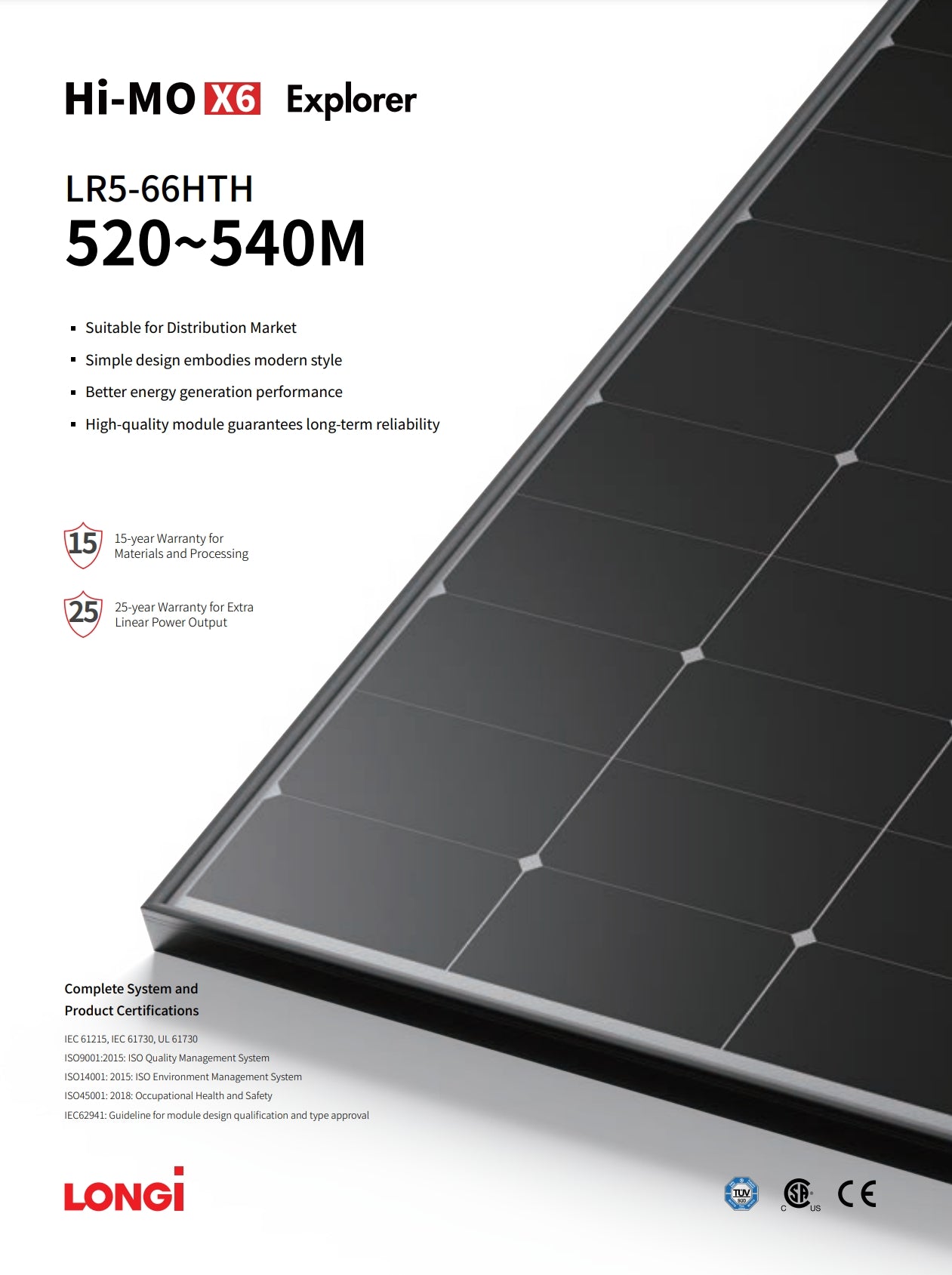

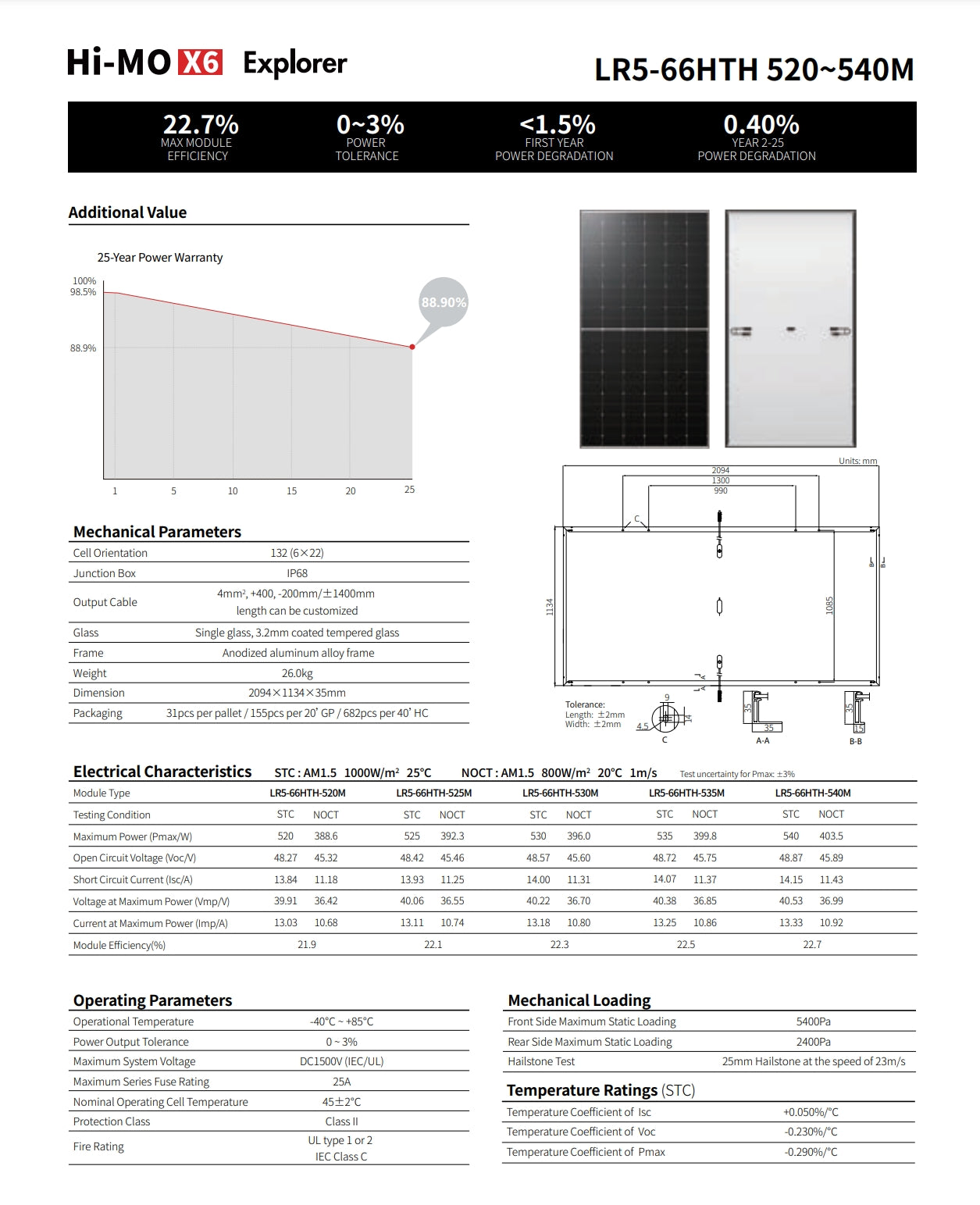

LonGi 520W Datasheet
The Hi-MOX6 Explorer LRS-66HTH 520~540M solar panel is designed for distribution markets. Its simple design embodies modern style and features high-quality modules that ensure long-term reliability. The product comes with a comprehensive warranty, including 15 years for materials and processing, as well as 25 years for extra linear power output. Additionally, the complete system has obtained various certifications such as IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007, and IEC 62941.
