LonGi 525W Solar Panel (LR5-66HTH 520~540M)

LonGi 525W Solar Panel (LR5-66HTH 520~540M)

Regular price $9,100.00 USD
Regular price Sale price $9,100.00 USD
Sale Sold out
Shipping calculated at checkout.

2 orders in last 30 days

Quantity
View full details

Overview

The LonGi 525W Solar Panel (LR5-66HTH) is designed for optimal performance in the distribution market, offering a power output range of 520W to 540W with a maximum module efficiency of 22.7%. This solar panel features advanced technology for improved energy generation and reliability. Its sleek design not only enhances aesthetics but also ensures high performance, making the LonGi 525W Solar Panel an excellent choice for renewable energy applications.

Product Features

  • High Efficiency: Achieves a maximum module efficiency of 22.7%, significantly boosting energy yield.
  • Reliable Performance: Designed for long-term use, with a 25-year power output warranty that guarantees sustained energy generation.
  • Robust Construction: Capable of withstanding extreme weather conditions with a front-side static load capacity of up to 5400Pa.
  • Modern Aesthetic: The simple design of the LonGi 525W Solar Panel combines functionality with contemporary style.

LonGi 525W Datasheet

Mechanical Parameters

  • Dimensions: 2094mm x 1134mm x 35mm
  • Weight: 26.0kg
  • Frame Material: Anodized aluminum alloy
  • Glass Type: Single glass, 3.2mm coated tempered glass
  • Junction Box: IP68 rated with three diodes
  • Output Cable: 4mm², customizable length up to 1400mm

Electrical Characteristics

Parameter LR5-66HTH 520M LR5-66HTH 525M LR5-66HTH 530M LR5-66HTH 535M LR5-66HTH 540M
Maximum Power (Pmax/W) 520 525 530 535 540
Open Circuit Voltage (Voc/V) 48.27 48.42 48.57 48.72 48.87
Short Circuit Current (Isc/A) 13.84 13.93 14.00 14.07 14.15
Voltage at Maximum Power (Vmp/V) 39.91 40.06 40.22 40.38 40.53
Current at Maximum Power (Imp/A) 13.03 13.11 13.18 13.25 13.33
Module Efficiency (%) 21.9 22.1 22.3 22.5 22.7

Packaging Information

  • Packaging Type: 31 pieces per pallet
  • Container Capacity: 155 pieces per 20' container / 682 pieces per 40' HC container

Operating Parameters

  • Operational Temperature: -40°C to +85°C
  • Power Output Tolerance: 0% to +3%
  • Maximum System Voltage: DC1500V (IEC/UL)
  • Nominal Operating Cell Temperature: 45±2°C
  • Protection Class: Class II

Mechanical Loading

  • Front Side Maximum Static Loading: 5400Pa
  • Rear Side Maximum Static Loading: 2400Pa
  • Hailstone Test: 25mm hailstone at the speed of 23m/s

Temperature Ratings

  • Temperature Coefficient of Isc: +0.050%/°C
  • Temperature Coefficient of Voc: -0.230%/°C
  • Temperature Coefficient of Pmax: -0.290%/°C

Certifications

The LonGi 525W Solar Panel complies with international standards, including IEC 61215, IEC 61730, and UL 61730, ensuring high quality and safety.

Warranty

  • 15-Year Warranty: For materials and processing.
  • 25-Year Warranty: For extra linear power output.

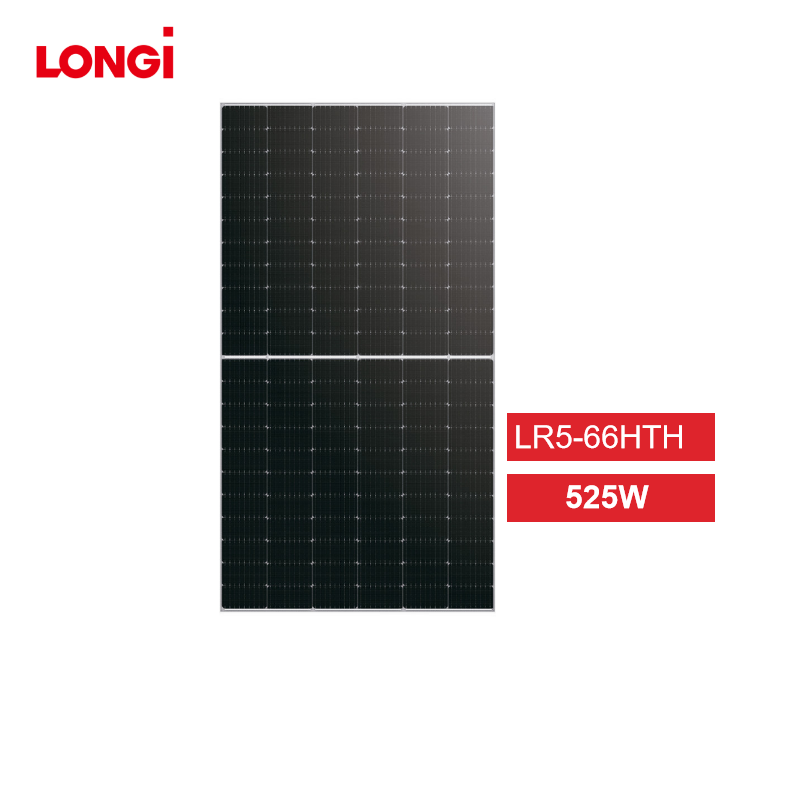

The LonGi 525W Solar Panel has mechanical and electrical characteristics, packaging information, and operating parameters.

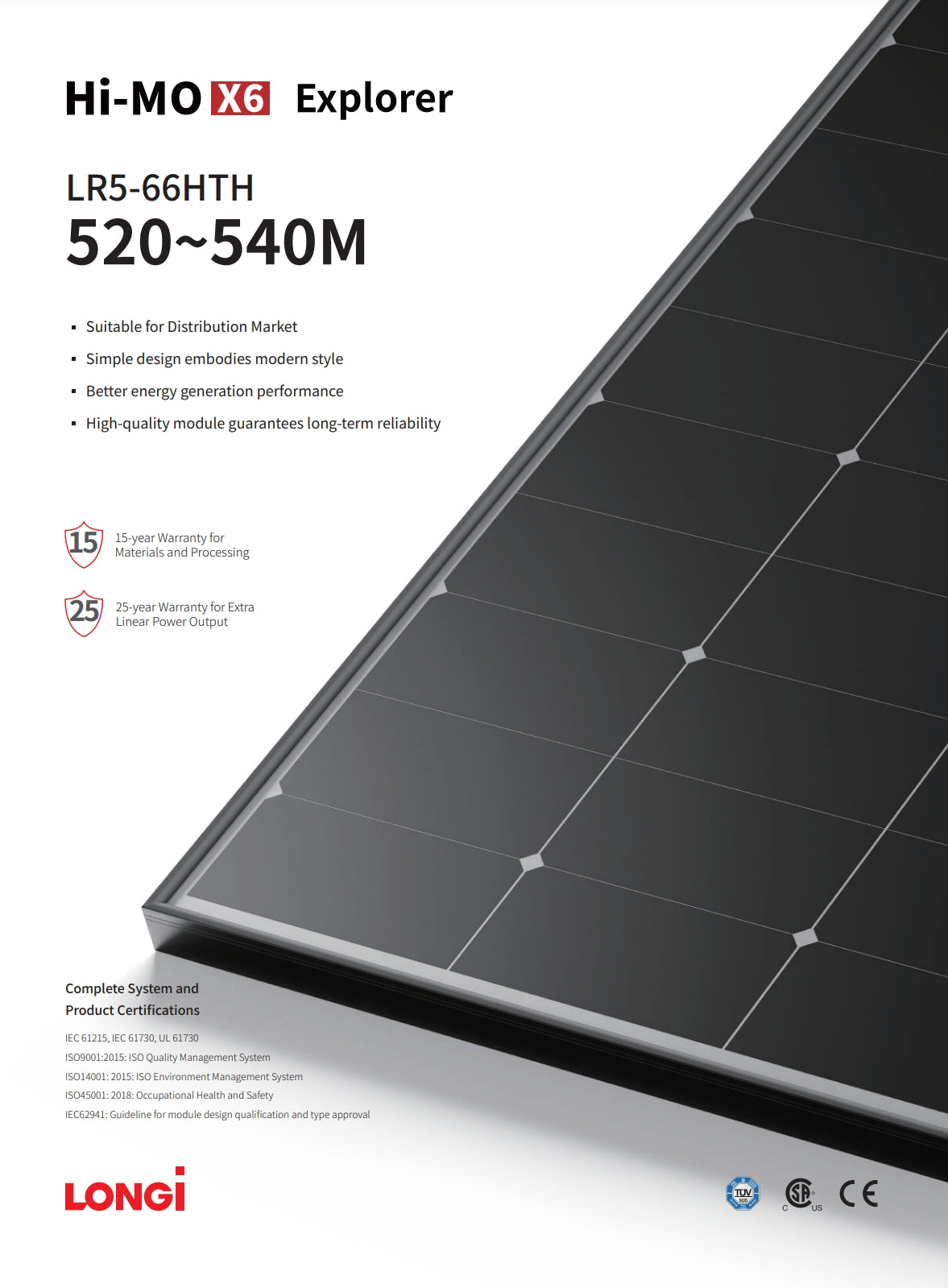

The LonGi 525W Solar Panel features a simple design for better energy generation performance with a 15-25 year warranty.

The LonGi 525W Solar Panel (LR5-66HTH) features a simple design that embodies modern style, providing better energy generation performance. The high-quality module ensures long-term reliability with a 15-year warranty for materials and processing, as well as a 25-year warranty for extra linear power output. Complete system and product certifications include IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, OHSAS 45001:2018, and IEC 62941.

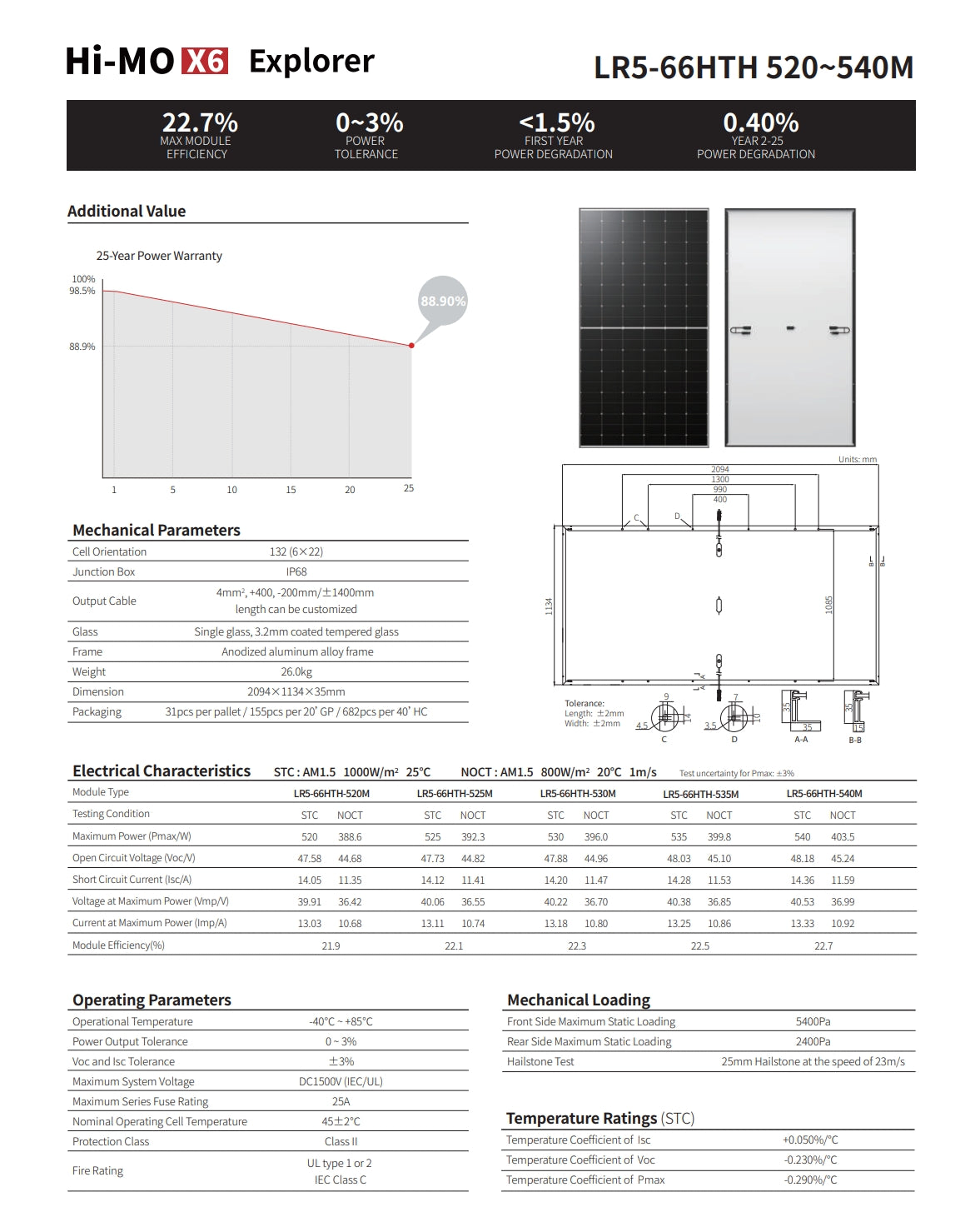

The LonGi 525W solar panel features a maximum module power of 525W and has an efficiency of 22.7%.

LonGi 525W Solar Panel (LR5-66HTH 520~540M) Product Description: The LonGi 525W solar panel features a maximum module power of 525W, with an efficiency of 22.7%. It has a temperature coefficient of Pmax at 0.2909% per °C and a tolerance of ±3%. The panel is designed for high-performance applications and comes with a 25-year power warranty.

LonGi 525W Solar Panel, A 25-year warranty is offered for increased linear power output.
