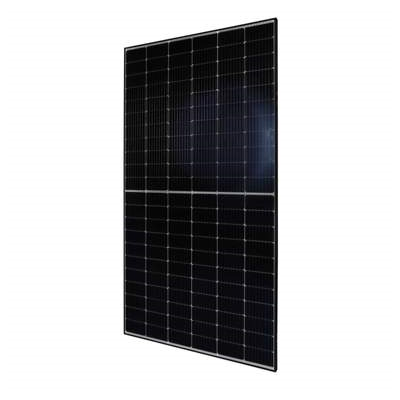

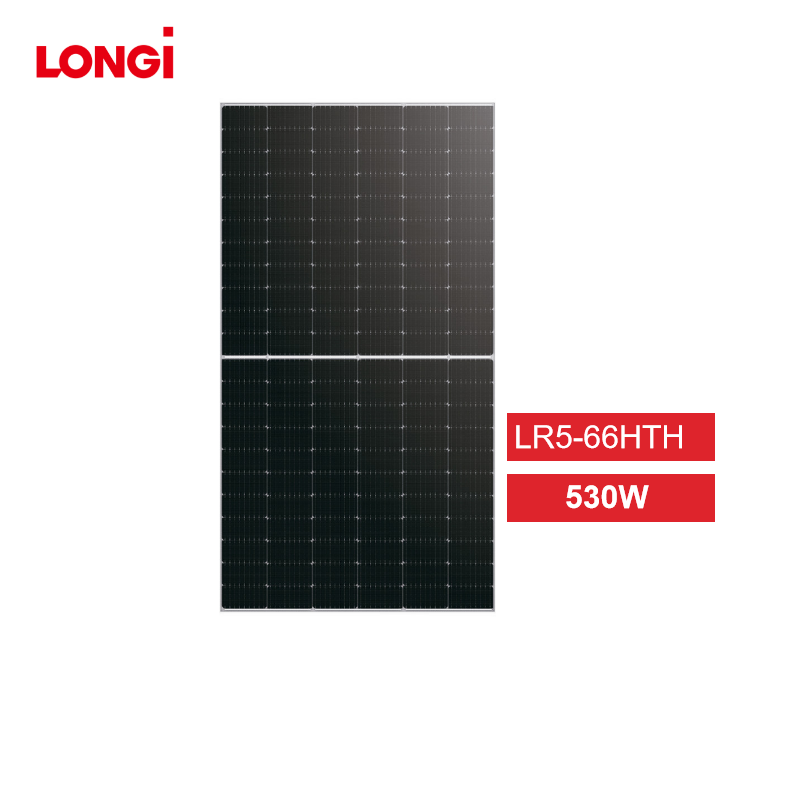

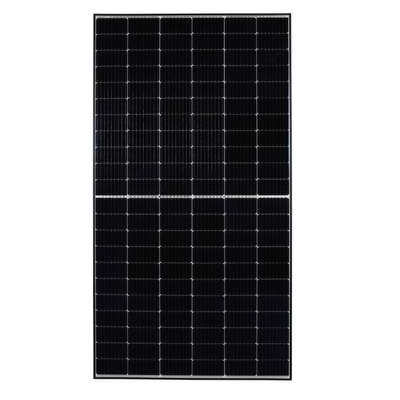

LonGi 530W Solar Panel (LR5-66HTH 520~540M)

LonGi 530W Solar Panel (LR5-66HTH 520~540M)

Regular price $9,100.00 USD
Regular price Sale price $9,100.00 USD
Sale Sold out
Shipping calculated at checkout.

3 orders in last 30 days

Quantity
View full details

Overview

The LonGi 530W Solar Panel (LR5-66HTH) is expertly engineered for high-performance solar energy solutions, boasting a power output range of 520W to 540W. With a maximum module efficiency of 22.7%, this solar panel is designed to optimize energy capture and conversion, making it an ideal choice for various solar installations. The LonGi 530W Solar Panel features innovative technology that ensures superior energy production, making it suitable for both residential and commercial applications.

Key Features

  • Exceptional Efficiency: With a peak module efficiency of 22.7%, this panel maximizes the energy output per square meter.
  • Long-Term Reliability: Supported by a robust 25-year power output warranty, the LonGi 530W Solar Panel is built for durability and sustained performance.
  • Resilient Design: The panel withstands harsh weather with a front-side static load capacity of up to 5400Pa, ensuring longevity and reliability.
  • Sleek Appearance: Its modern design integrates seamlessly into any environment, appealing to both aesthetic and functional needs.


Mechanical Specifications

  • Dimensions: 2094mm x 1134mm x 35mm
  • Weight: 26.0kg
  • Frame Composition: Constructed from anodized aluminum alloy for enhanced strength and corrosion resistance.
  • Glass: Single glass with a thickness of 3.2mm, treated to be tempered and coated for optimal performance.
  • Junction Box: IP68 rated, equipped with three diodes for enhanced safety and performance.

Electrical Specifications

Parameter LR5-66HTH 520M LR5-66HTH 525M LR5-66HTH 530M LR5-66HTH 535M LR5-66HTH 540M
Maximum Power (Pmax/W) 520 525 530 535 540
Open Circuit Voltage (Voc/V) 48.27 48.42 48.57 48.72 48.87
Short Circuit Current (Isc/A) 13.84 13.93 14.00 14.07 14.15
Voltage at Maximum Power (Vmp/V) 39.91 40.06 40.22 40.38 40.53
Current at Maximum Power (Imp/A) 13.03 13.11 13.18 13.25 13.33
Module Efficiency (%) 21.9 22.1 22.3 22.5 22.7

Packaging Details

  • Packaging Configuration: 31 panels per pallet
  • Shipping Capacity: 155 panels per 20-foot container / 682 panels per 40-foot HC container

Operating Parameters

  • Operational Temperature Range: -40°C to +85°C
  • Power Output Tolerance: 0% to +3%
  • Maximum System Voltage: DC1500V (IEC/UL)
  • Nominal Operating Cell Temperature: 45±2°C
  • Protection Class: Class II

Mechanical Load Ratings

  • Maximum Static Loading (Front Side): 5400Pa
  • Maximum Static Loading (Rear Side): 2400Pa
  • Hailstone Resistance: Tested to withstand 25mm hailstones at 23m/s.

Temperature Coefficients

  • Temperature Coefficient of Isc: +0.050%/°C
  • Temperature Coefficient of Voc: -0.230%/°C
  • Temperature Coefficient of Pmax: -0.290%/°C

Compliance and Certification

The LonGi 530W Solar Panel meets rigorous international standards, including IEC 61215, IEC 61730, and UL 61730, ensuring safety and high-quality performance.

Warranty Information

  • 15-Year Warranty: Covering materials and processing.
  • 25-Year Warranty: For additional linear power output, ensuring long-term investment protection.

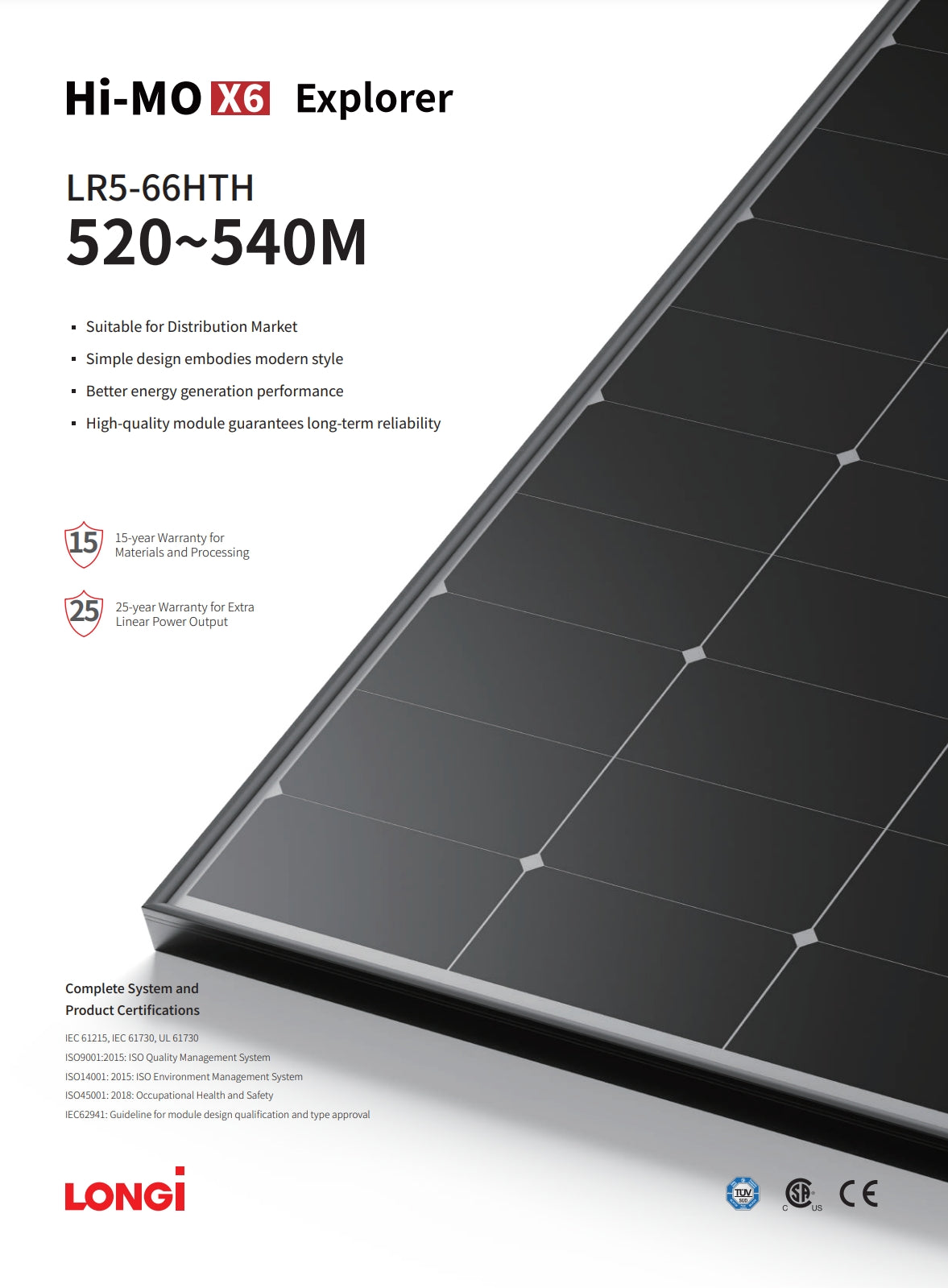

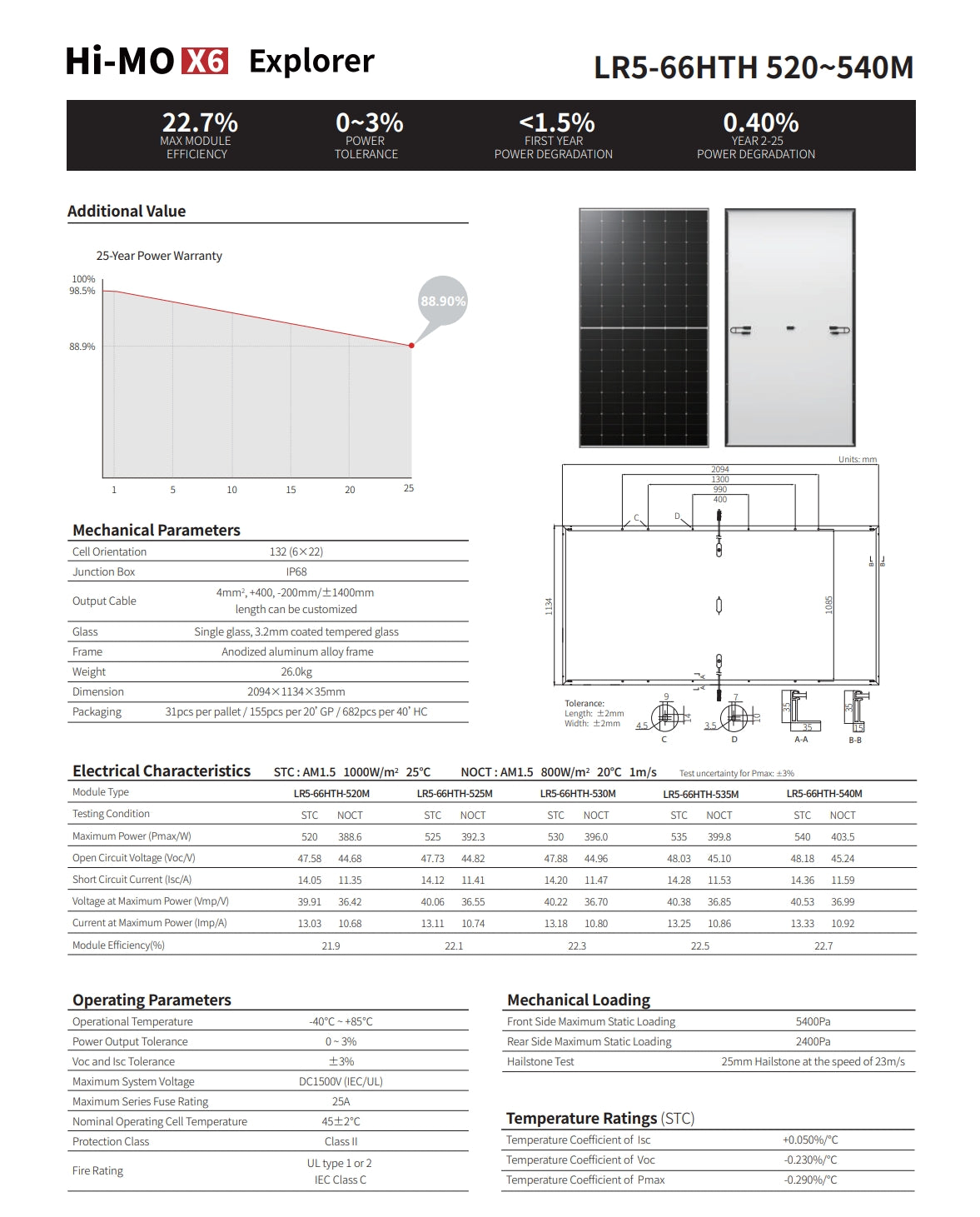

LonGi 530W Datasheet

LonGi 530W Solar Panel, Solar panel with 22.7% max efficiency designed for optimal energy capture and conversion.

The LonGi 530W Solar Panel has temperature coefficients for Isc, Voc, and Pmax, meeting international standards for safety and quality.

LonGi 530W Solar Panel, This solar panel features modern design, high-quality modules, and reliable performance with a 15-year warranty on materials and processing.

LONGi 530W Solar Panel (LR5-66HTH, 520-540M) Product Description: This product is suitable for distribution markets. Its simple design embodies a modern style. It features better energy generation performance and high-quality modules guaranteeing long-term reliability. The product comes with a 15-year warranty for materials and processing, as well as a 25-year warranty for extra linear power output. It also meets various certifications including IEC 61215, IEC 61730, UL 61730, ISO9001:2015, ISO14001:2015, OHSAS 45001:2018, and IEC 62941.

The LonGi 530W solar panel has a max power output of 530W, efficiency rate of 22.7% and 25-year warranty.

LonGi 530W Solar Panel (LR5-66HTH 520~540M) - maximum power output of 530 watts, efficiency rate of 22.7%, and a 25-year warranty.

LonGi 530W Solar Panel, A junction box with IP68 rating and three diodes for safety and performance.
