LonGi 535W Solar Panel (LR5-HTH 520-540 Watt)

LonGi 535W Solar Panel (LR5-HTH 520-540 Watt)

Regular price $9,100.00 USD
Regular price Sale price $9,100.00 USD
Sale Sold out
Shipping calculated at checkout.

2 orders in last 30 days

Quantity
View full details

Overview

The LonGi 535W Solar Panel, part of the Hi-MO 6 Explorer series (Model: LR5-66HTH), delivers high-efficiency energy generation with a power output ranging from 520W to 540W. Engineered for distribution markets, this panel embodies modern design, offering reliable performance and excellent energy conversion. It's backed by a 25-year warranty, ensuring long-term stability and performance, making it ideal for large-scale installations.

Product Features

  • Efficiency: With a maximum module efficiency of 22.7%, this solar panel ensures optimal energy conversion for high-output applications.
  • Durability: The panel features a high-quality anodized aluminum alloy frame and 3.2mm tempered glass, ensuring longevity even in harsh conditions.
  • Power Degradation: The panel is designed to maintain low power degradation rates, less than 1.5% in the first year and a linear rate of 0.4% from year 2 to 25.
  • Certifications: Compliant with key international standards (IEC 61215, IEC 61730), guaranteeing superior reliability and safety.

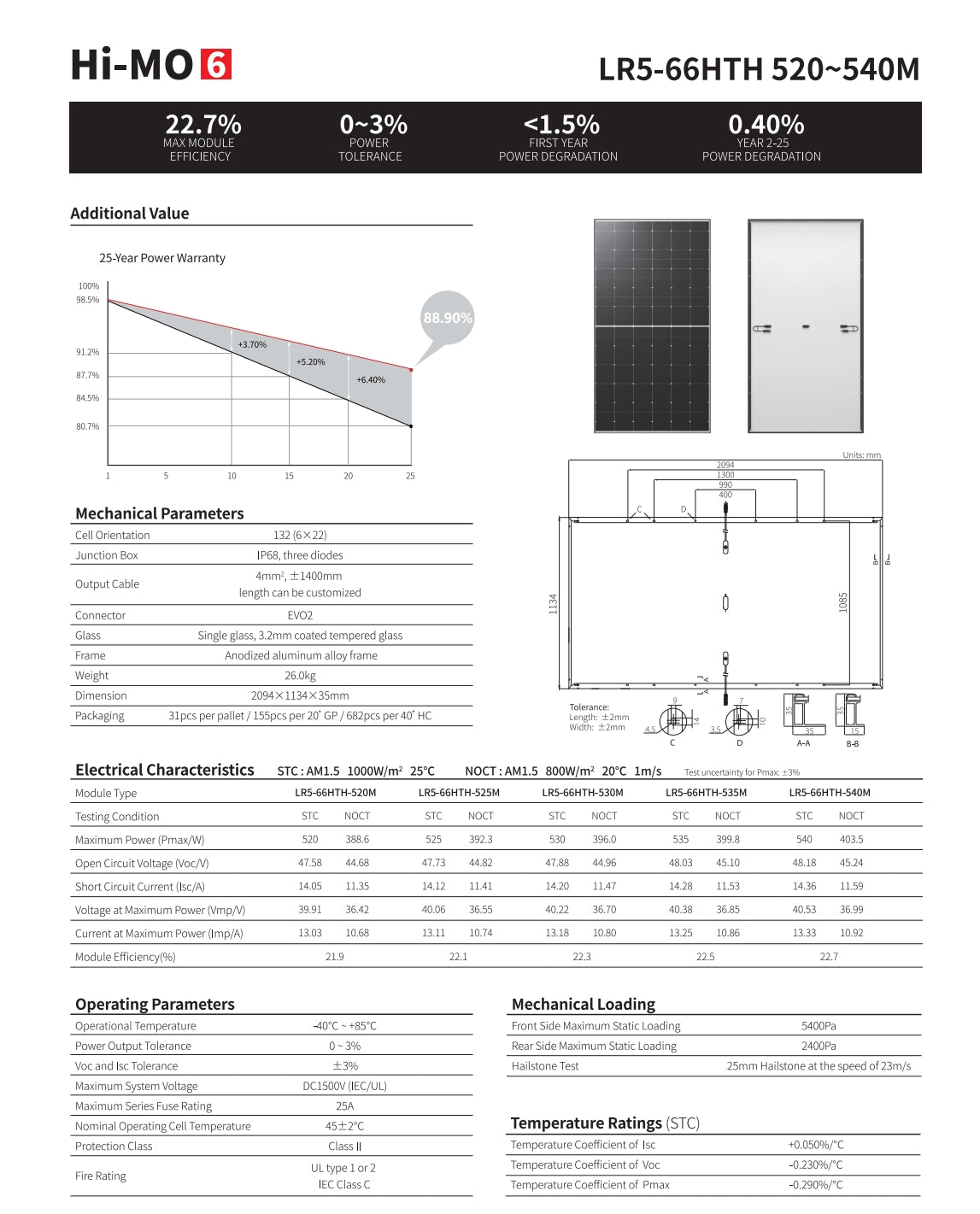

Parameters

Mechanical Parameters

Parameter Value
Cell Orientation 132 cells (6x22)
Dimensions 2094 x 1134 x 35 mm
Weight 26.0 kg
Glass 3.2mm tempered, single-coated
Frame Anodized aluminum alloy
Junction Box IP68, with three diodes
Output Cable 4mm², ± 1400mm, customizable
Connector EVO2

Electrical Characteristics (STC)

Model Max Power (Pmax/W) Open Circuit Voltage (Voc/V) Short Circuit Current (Isc/A) Max Voltage (Vmp/V) Max Current (Imp/A) Efficiency (%)
LR5-66HTH-520M 520 47.58 14.05 39.91 13.03 21.9
LR5-66HTH-525M 525 47.73 14.12 36.42 13.11 22.1
LR5-66HTH-530M 530 47.88 14.20 40.62 13.18 22.3
LR5-66HTH-540M 540 48.18 14.36 40.33 13.33 22.7

Operating Parameters

Parameter Value
Operational Temperature -40°C to +85°C
Power Output Tolerance 0 ~ +3%
Maximum System Voltage 1500V DC (IEC/UL)
Fuse Rating 25A
Temperature Coefficient Isc: +0.05%/°C, Voc: -0.23%/°C, Pmax: -0.29%/°C

Certifications

  • IEC 61215, IEC 61730, UL 61730
  • ISO 9001:2015 (Quality Management)
  • ISO 14001:2015 (Environmental Management)
  • ISO 45001:2018 (Occupational Health and Safety)

Warranty

  • 25-Year Power Warranty for Linear Power Output
  • 25-Year Materials and Processing Warranty

Packaging

  • 31 pieces per pallet
  • 155 pcs per 20' container / 682 pcs per 40' container

Application

This LonGi 535W Solar Panel is designed for large commercial or utility-scale projects, providing reliable power output in a variety of climates. With its high efficiency, robust design, and long-term warranty, it is an ideal solution for solar farms and distributed energy installations.

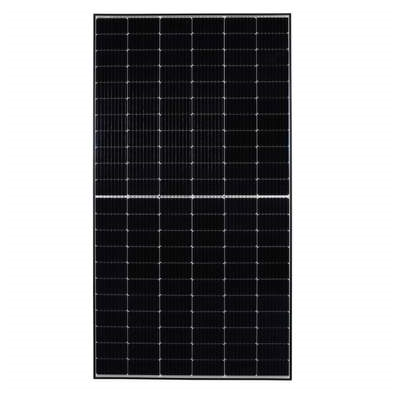

LonGi 535W Solar Panel, The panel has a durable design with anodized aluminum and 3.2mm tempered glass for long-lasting use.

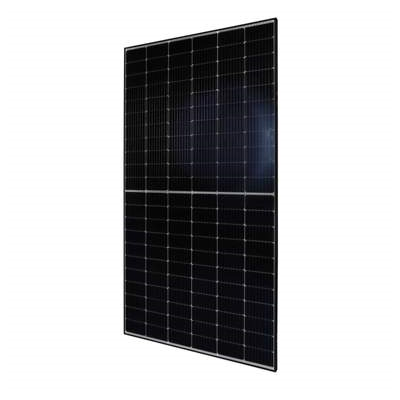

LonGi 535W Solar Panel, Solar panel with modern style, high energy generation performance, and long-term reliability, backed by certifications and warranties.

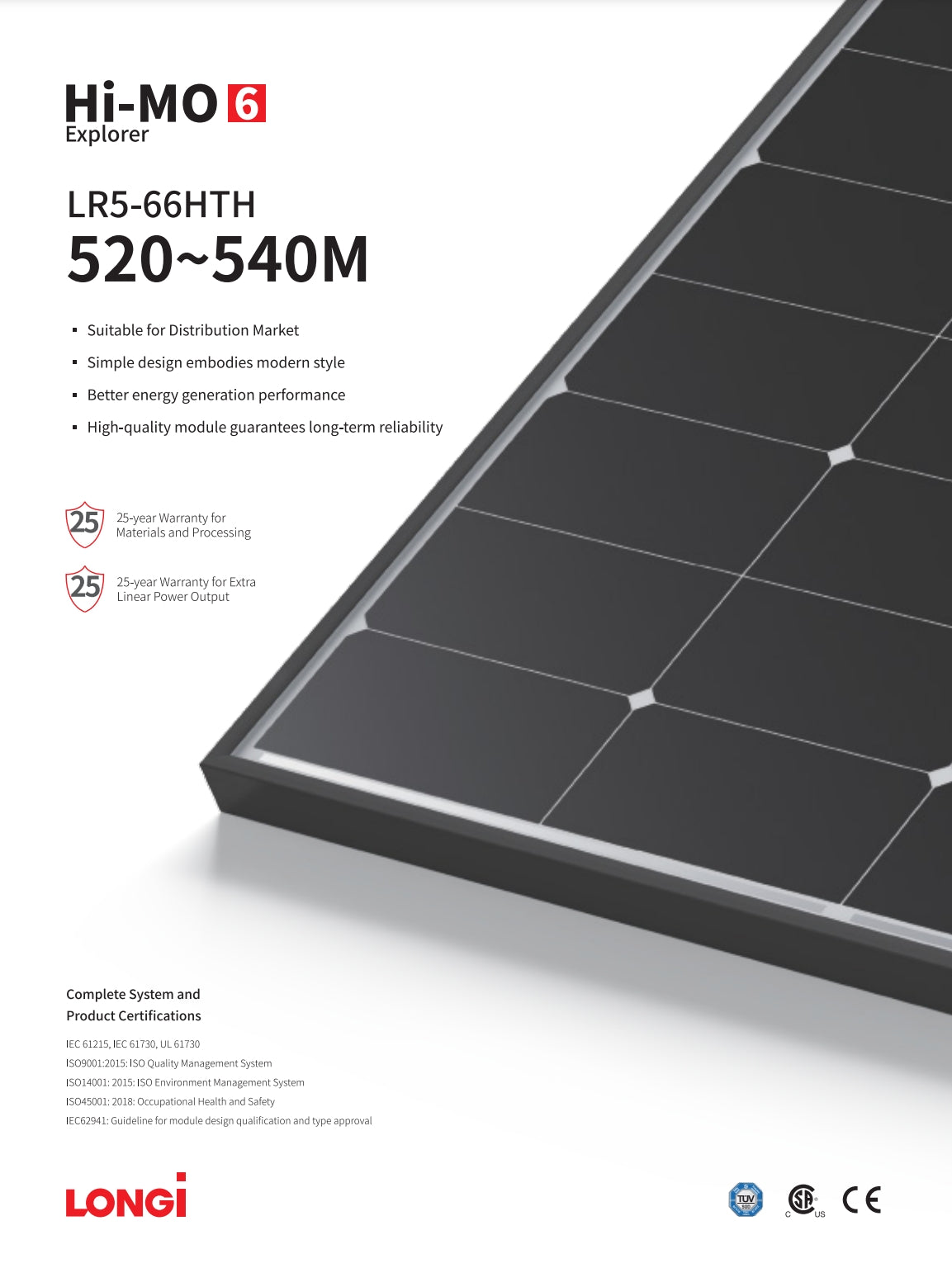

High-efficiency solar panel, suitable for distribution market. Simple design embodies modern style, better energy generation performance. High-quality module guarantees long-term reliability. 25-year warranty for materials processing and extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730. ISO quality management system (ISO 9001:2015), environment management system (ISO 14001:2015), occupational health and safety (ISO 45001:2018). Guideline for module design qualification and type approval.

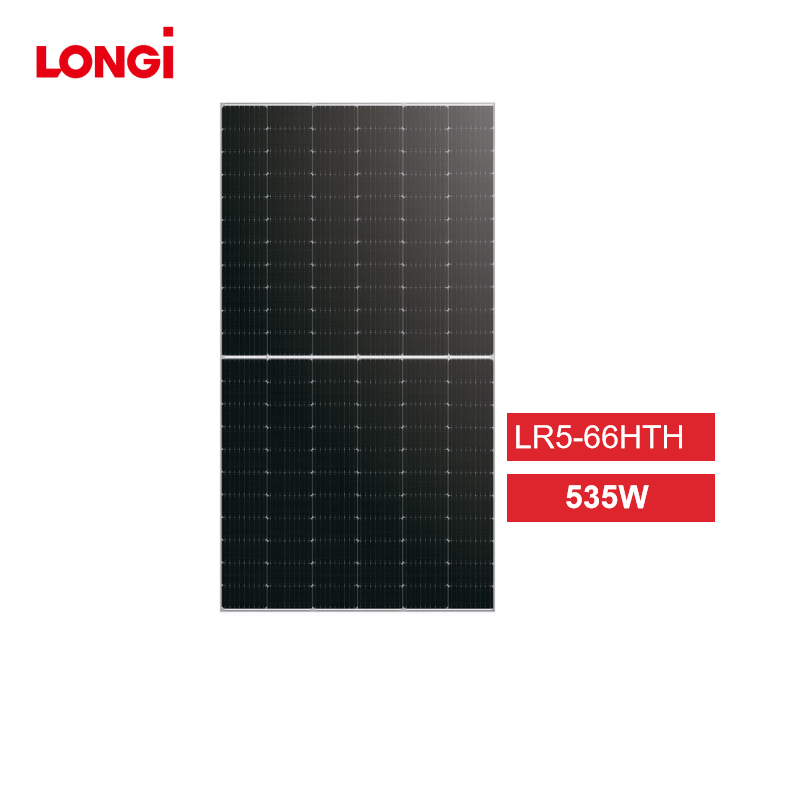

LonGi 535W solar panel with LR5-HTH model and 520-540 watt power output.

LonGi 535W Solar Panel, The solar panel maintains low power degradation rates, below 1.5% for the first year, then gradually increases by 0.4% per year.
