Overview
The LonGi 560W Solar Panel, part of the Hi-MO 5m series (Model: LR5-72HPH), provides superior energy generation with a power output range of 540W to 560W. Built with advanced M10 gallium-doped wafers, segmented ribbons, and a 9-busbar half-cell design, this panel achieves a maximum efficiency of 21.7%, making it ideal for ultra-large power plants and utility-scale projects. The module offers excellent outdoor performance and long-term reliability, backed by a 25-year power warranty.
Product Features
Advanced Efficiency
- Efficiency: Reaching up to 21.7% module efficiency, this panel ensures high-output performance, ideal for large-scale installations.
- Technology: Incorporates M10 gallium-doped wafers, integrated segmented ribbons, and a 9-busbar half-cell design for optimized energy conversion.
Low Power Degradation
- Degradation: With less than 2% degradation in the first year and only 0.55% degradation per year from years 2 to 25, the panel ensures consistent power output over time.
Outdoor Performance
- Temperature Coefficient: Features a low temperature coefficient of Pmax -0.34%/°C, allowing the panel to maintain high performance even in hot climates.

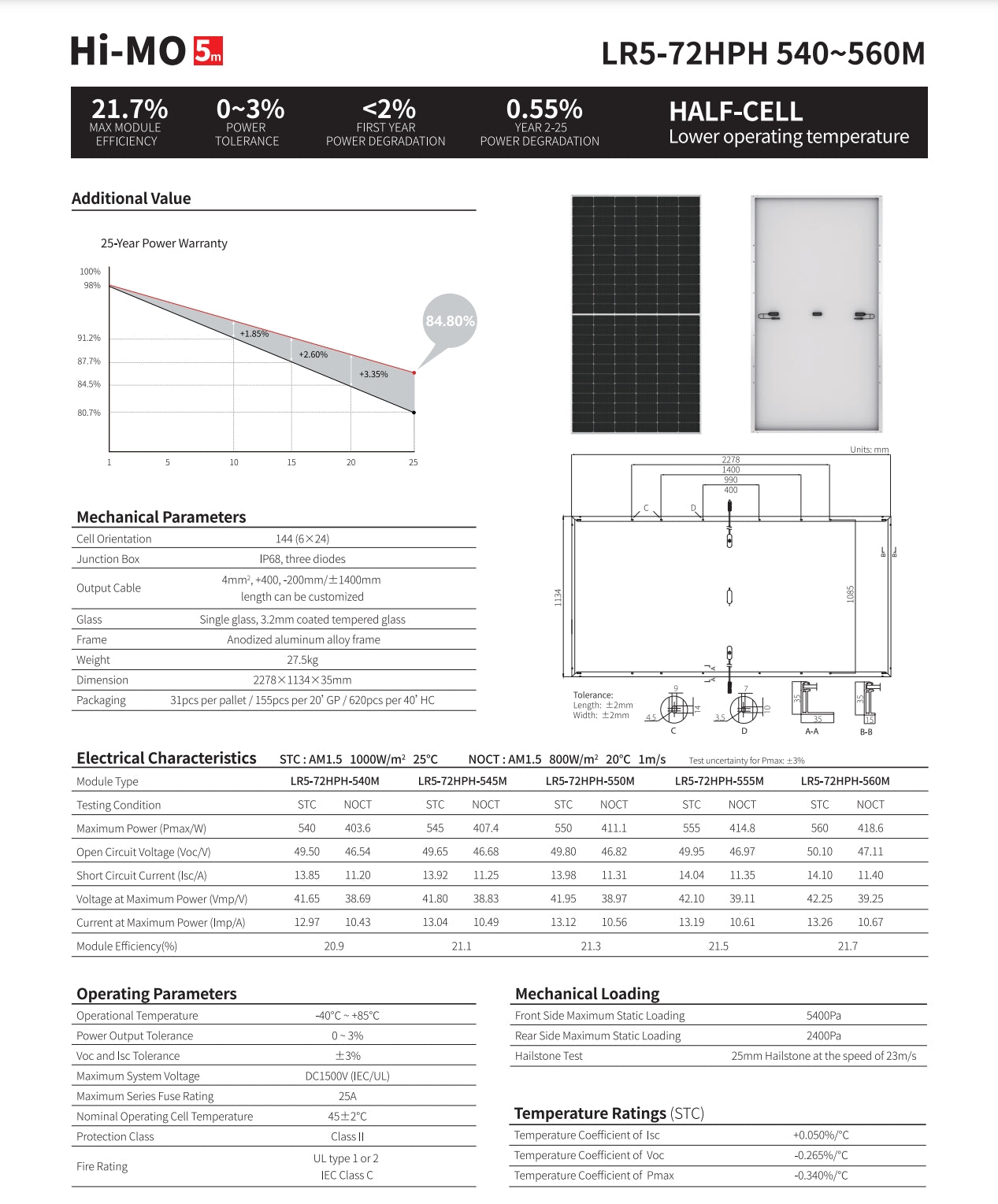

LonGi 560W Datasheet
Mechanical Parameters
| Parameter | Value |
|---|---|
| Cell Orientation | 144 cells (6x24) |
| Dimensions | 2279 x 1134 x 35 mm |
| Weight | 27.5 kg |
| Glass | Single glass, 3.2mm tempered |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, with three diodes |
| Output Cable | 4mm², ±400 to ±1400mm customizable |
| Connector | EVO2 |
Electrical Characteristics (STC)
| Model | Max Power (Pmax/W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency (%) |
|---|---|---|---|---|---|---|
| LR5-72HPH-540M | 540 | 49.50 | 13.85 | 41.65 | 13.04 | 20.9 |
| LR5-72HPH-545M | 545 | 49.65 | 13.92 | 41.80 | 13.10 | 21.1 |
| LR5-72HPH-550M | 550 | 49.90 | 13.98 | 42.00 | 13.12 | 21.3 |
| LR5-72HPH-555M | 555 | 50.15 | 14.05 | 42.20 | 13.19 | 21.5 |
| LR5-72HPH-560M | 560 | 50.40 | 14.10 | 42.35 | 13.26 | 21.7 |
Operating Parameters
| Parameter | Value |
|---|---|
| Operational Temperature | -40°C to +85°C |
| Power Output Tolerance | 0 ~ +3% |
| Maximum System Voltage | 1500V DC (IEC/UL) |
| Fuse Rating | 25A |
| Temperature Coefficient | Isc: +0.05%/°C, Voc: -0.26%/°C, Pmax: -0.34%/°C |
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Occupational Health and Safety)
- IEC 62941 (Module design qualification and type approval)
Warranty
- 12-Year Warranty for Materials and Processing
- 25-Year Linear Power Warranty
Packaging
- 31 pieces per pallet
- 155 pcs per 20' container
- 620 pcs per 40' container
Application
The LonGi 560W Solar Panel is perfect for ultra-large solar power plants and utility-scale installations. With high efficiency and long-term durability, it delivers reliable power output in various environments, ensuring sustainable energy generation for large-scale projects.

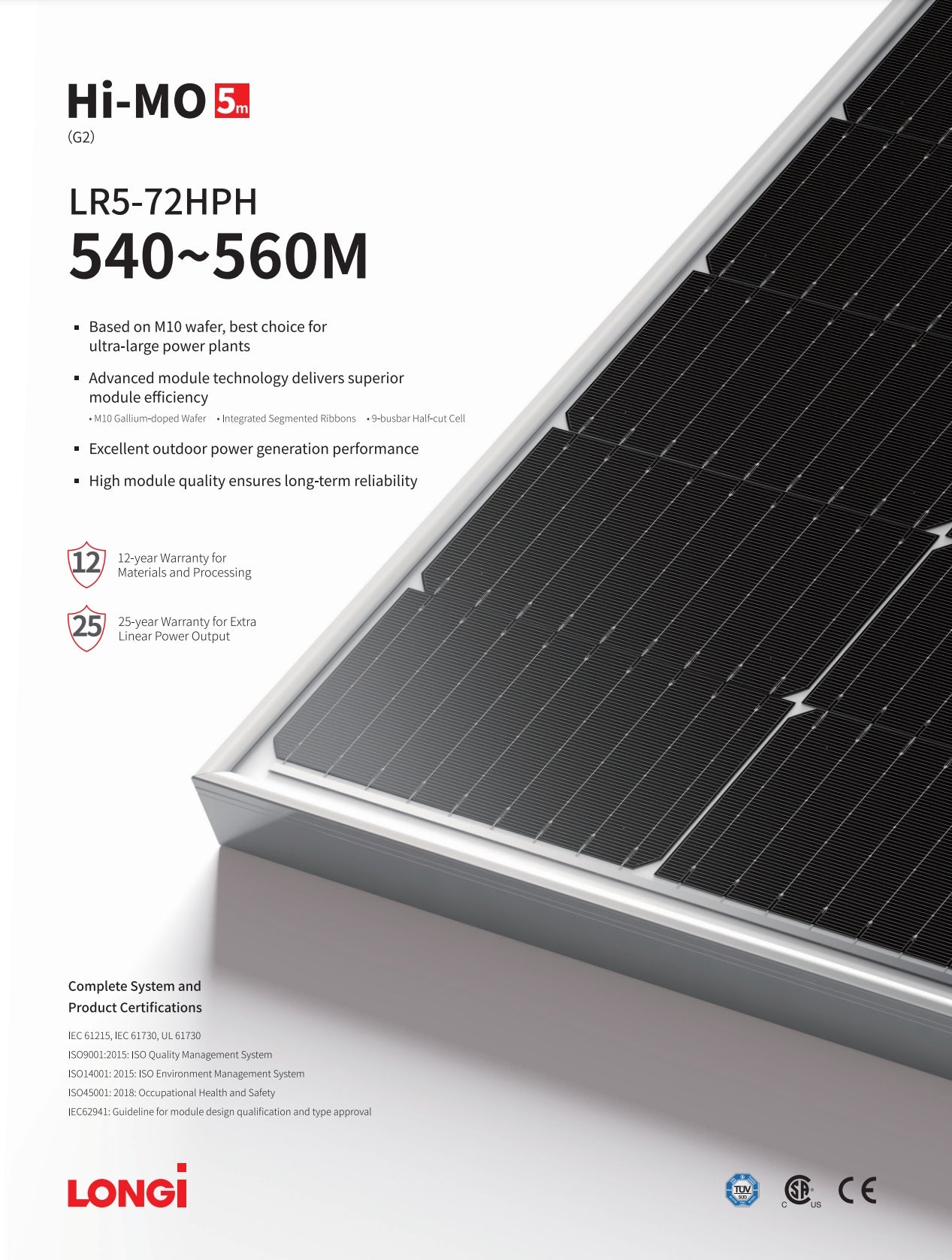

Longi Solar Panel (LR5-72HPH, 540-560W) features M1O wafer technology, ideal for ultra-large power plants. Advanced module tech delivers high efficiency. High-quality design ensures long-term reliability, backed by a 12-year warranty for materials and a 25-year warranty for extra linear power output. The product meets IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2018, and OHS guidelines.
LonGi 560W Solar Panel (LR5-72HPH-540~560M) - High-efficiency solar panel with 21.7% efficiency, half-cell maximum module power: 540-560 watts, additional value: lower operating temperature and 25-year power warranty, mechanical parameters: cell orientation: 144 (6x24), junction box: IP68, three diodes, output cable length can be customized, frame: anodized aluminum alloy frame, weight: 27.5kg, dimension: 2278 x 1134 x 35mm
