Overview

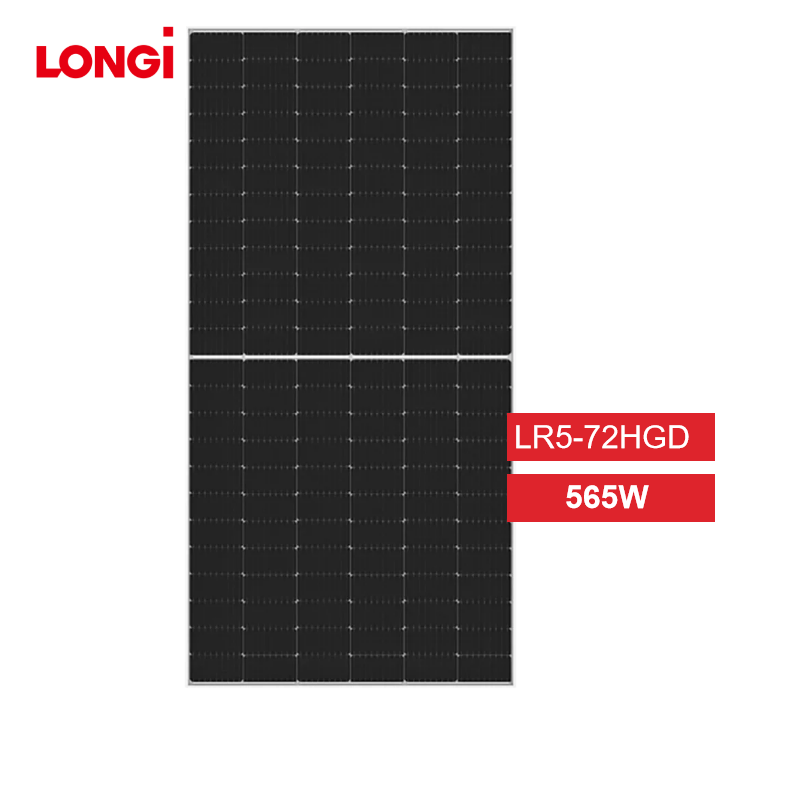

The LonGi 565W Solar Panel, part of the Hi-MO 7 series (Model: LR5-72HGD), delivers high performance with a power output ranging from 560W to 590W. Featuring advanced HPDC cell technology, this bifacial solar panel maximizes energy yields with superior efficiency, offering up to 22.8% module efficiency. It is designed for utility-scale solar power plants, ensuring long-term reliability with a 30-year linear power output warranty and excellent bifacial energy generation.
Product Features
Advanced Efficiency
- Module Efficiency: Up to 22.8%, ensuring high energy yields and optimized performance for large installations.
- HPDC Cell Technology: Incorporates cutting-edge High-Performance Dual Cell (HPDC) technology for improved energy conversion efficiency.
Bifacial Design

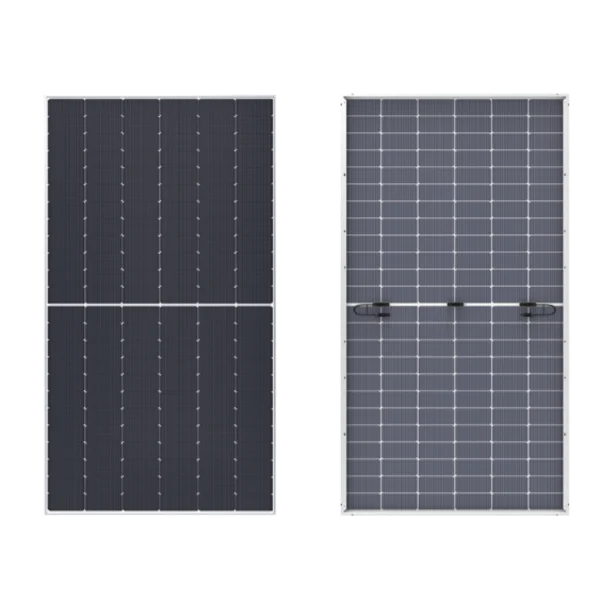

- Bifaciality: With 80 ± 5% bifaciality, this panel captures sunlight from both sides, increasing power generation.
- Temperature Coefficient: Low temperature coefficient of Pmax -0.28%/°C, ensuring consistent performance even in high temperatures.
Superior Durability
- Durability: Built with a robust anodized aluminum alloy frame and dual glass design (2.0+2.0mm heat-strengthened glass), the panel is engineered to withstand harsh environmental conditions.

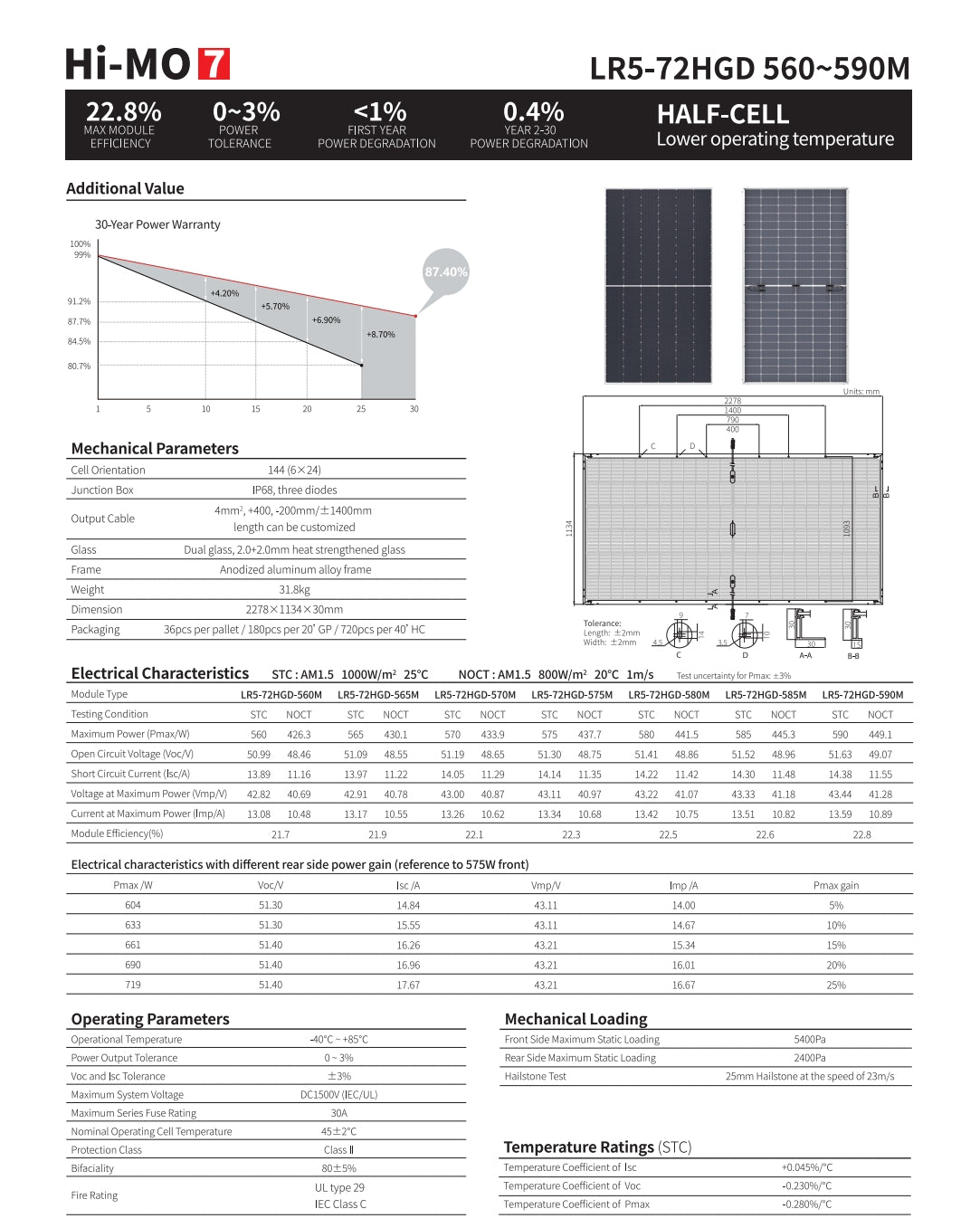

LonGi 565W Datasheet
Mechanical Parameters
Parameter | Value |
---|---|
Cell Orientation | 144 cells (6x24) |
Dimensions | 2278 x 1134 x 30 mm |
Weight | 31.6 kg |
Glass | Dual glass, 2.0+2.0mm heat strengthened |
Frame | Anodized aluminum alloy |
Junction Box | IP68, with three diodes |
Output Cable | 4mm², ±400 to ±1400mm customizable |
Connector | EVO2 |
Electrical Characteristics (STC)
Model | Max Power (Pmax/W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency (%) |
---|---|---|---|---|---|---|
LR5-72HGD-560M | 560 | 50.09 | 13.99 | 42.82 | 13.08 | 21.7 |
LR5-72HGD-565M | 565 | 50.35 | 14.05 | 42.97 | 13.17 | 21.9 |
LR5-72HGD-570M | 570 | 50.61 | 14.10 | 43.12 | 13.26 | 22.1 |
LR5-72HGD-580M | 580 | 50.87 | 14.18 | 43.37 | 13.38 | 22.3 |
LR5-72HGD-590M | 590 | 51.09 | 14.30 | 43.61 | 13.48 | 22.8 |
Operating Parameters
Parameter | Value |
---|---|
Operational Temperature | -40°C to +85°C |
Power Output Tolerance | 0 ~ +3% |
Maximum System Voltage | 1500V DC (IEC/UL) |
Fuse Rating | 30A |
Temperature Coefficient | Isc: +0.045%/°C, Voc: -0.260%/°C, Pmax: -0.280%/°C |
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Occupational Health and Safety)
- IEC 62941 (Module design qualification and type approval)
Warranty
- 12-Year Warranty for Materials and Processing
- 30-Year Linear Power Warranty
Packaging
- 36 pieces per pallet
- 180 pcs per 20'GP container
- 720 pcs per 40'HC container
Application
The LonGi 565W Solar Panel is designed for utility-scale solar power plants, providing high bifacial energy yields and long-term reliability. With advanced HPDC technology and a robust build, it ensures sustainable energy generation in challenging environmental conditions, making it an ideal choice for large-scale projects.

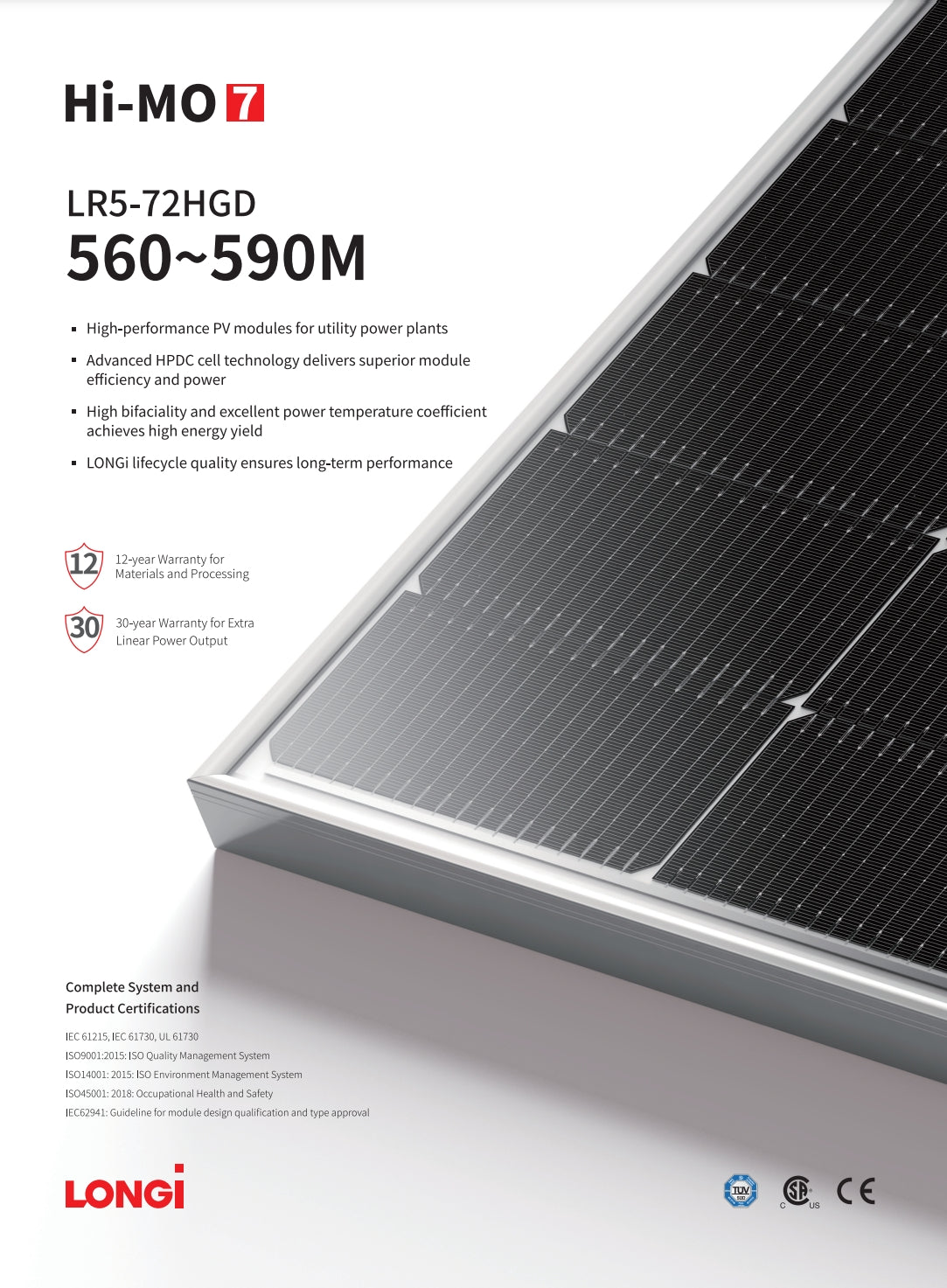

Longi LR5-72HGD Solar Panel (560~590M, Bifacial) High-performance PV modules for utility power plants. Advanced HPDC cell technology delivers superior module efficiency and power. High bifaciality and excellent power temperature coefficient achieves high energy yield. Longi lifecycle quality ensures long-term performance. 12-year warranty for materials and processing. 30-year warranty for extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730. ISO 9001:2015 (Quality Management System). ISO 14031:2015 (Environmental Management System). OHSAS 18001:2007 (Occupational Health and Safety). IEC 62941 (Guideline for module design qualification and type approval).
High-efficiency, bifacial solar panel with maximum power output of 565W. Operating temperature range: -40°C to +85°C. Module efficiency: 22.8%. Front-side and rear-side power gain: 80.7%. Frame material: Anodized aluminum alloy. Weight: 31.8kg. Dimensions: 2278 x 1134 x 30mm. Packaging: 36pcs per pallet.
