Overview
The LonGi 570W Solar Panel, part of the Hi-MO 6 Explorer series (Model: LR5-72HTH), is designed for high energy generation, with a power output range of 560W to 580W. This panel is optimized for the distribution market, combining modern style with superior energy generation performance. With a maximum efficiency of 22.5%, this module guarantees reliable long-term performance backed by a 25-year linear power warranty.
Product Features
High Efficiency
- Maximum Module Efficiency: Reaching up to 22.5%, this solar panel offers enhanced energy output in various conditions.
- Design Optimization: Its simple, modern design ensures the best performance in distribution markets, while maintaining a sleek appearance.
Durability and Performance
- Power Degradation: Designed to keep power degradation under 1.5% in the first year and maintain low degradation at 0.4% per year for the next 25 years, ensuring long-term power generation.
- Reliable Energy Output: Optimized for better energy generation, with low temperature coefficients and high-quality materials for better reliability.
LonGi 570W Datasheet
Mechanical Parameters
Parameter | Value |
---|---|
Cell Orientation | 144 cells (6x24) |
Dimensions | 2278 x 1134 x 35 mm |
Weight | 27.5 kg |
Glass | Single glass, 3.2mm coated tempered |
Frame | Anodized aluminum alloy frame |
Junction Box | IP68, with three diodes |
Output Cable | 4mm², ±400 to ±1400mm customizable |
Connector | EVO2 |
Electrical Characteristics (STC)
Model | Max Power (Pmax/W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency (%) |
---|---|---|---|---|---|---|
LR5-72HTH-560M | 560 | 51.48 | 13.64 | 42.26 | 13.03 | 21.7 |
LR5-72HTH-565M | 565 | 51.76 | 13.71 | 42.47 | 13.10 | 21.9 |
LR5-72HTH-570M | 570 | 51.91 | 13.75 | 42.70 | 13.13 | 22.1 |
LR5-72HTH-575M | 575 | 52.06 | 13.80 | 42.95 | 13.17 | 22.3 |
LR5-72HTH-580M | 580 | 52.21 | 13.85 | 43.10 | 13.20 | 22.5 |
Operating Parameters
Parameter | Value |
---|---|
Operational Temperature | -40°C to +85°C |
Power Output Tolerance | 0 ~ +3% |
Maximum System Voltage | 1500V DC (IEC/UL) |
Fuse Rating | 25A |
Temperature Coefficient | Isc: +0.05%/°C, Voc: -0.23%/°C, Pmax: -0.29%/°C |
Certifications
- IEC 61215, IEC 61730, UL 61730
- ISO 9001:2015 (Quality Management)
- ISO 14001:2015 (Environmental Management)
- ISO 45001:2018 (Occupational Health and Safety)
- IEC 62941 (Module design qualification and type approval)
Warranty
- 15-Year Warranty for Materials and Processing
- 25-Year Linear Power Warranty
Packaging
- 31 pieces per pallet
- 155 pcs per 20' container
- 620 pcs per 40'HC container
Application
The LonGi 570W Solar Panel is perfect for distribution markets, offering superior energy performance, modern design, and long-term reliability. It is suitable for various applications, ensuring high energy output and dependable operation in a range of environmental conditions.

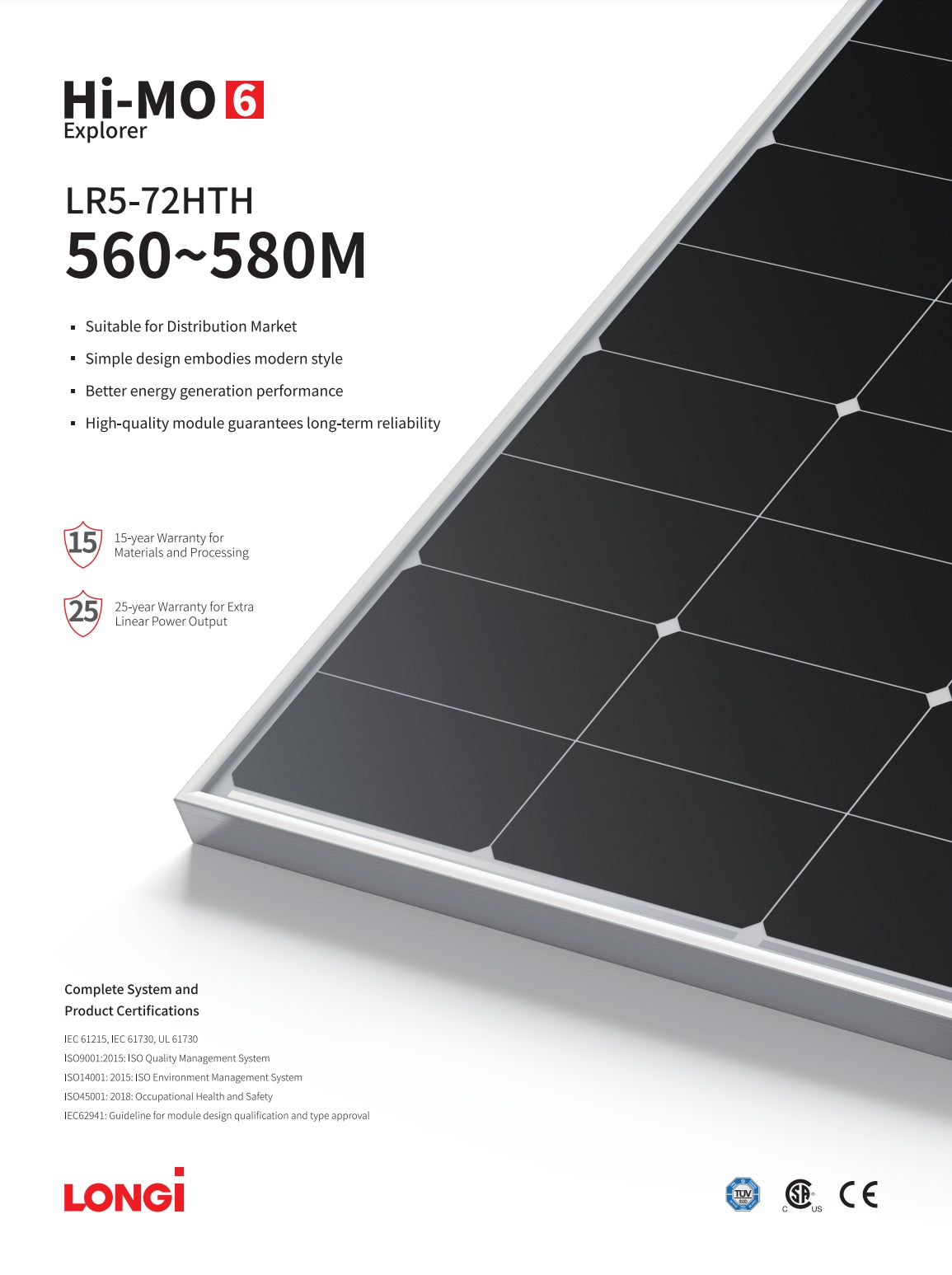

Longi Solar Panel 570W (LR5-72HTH, 560-580M) Product Image. Suitable for Distribution Market. Simple design embodies modern style. Better energy generation performance. High-quality module guarantees long-term reliability. 15-year warranty for materials and processing. 25-year warranty for extra linear power output. Complete system and product certifications: IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, Occupational Health and Safety.

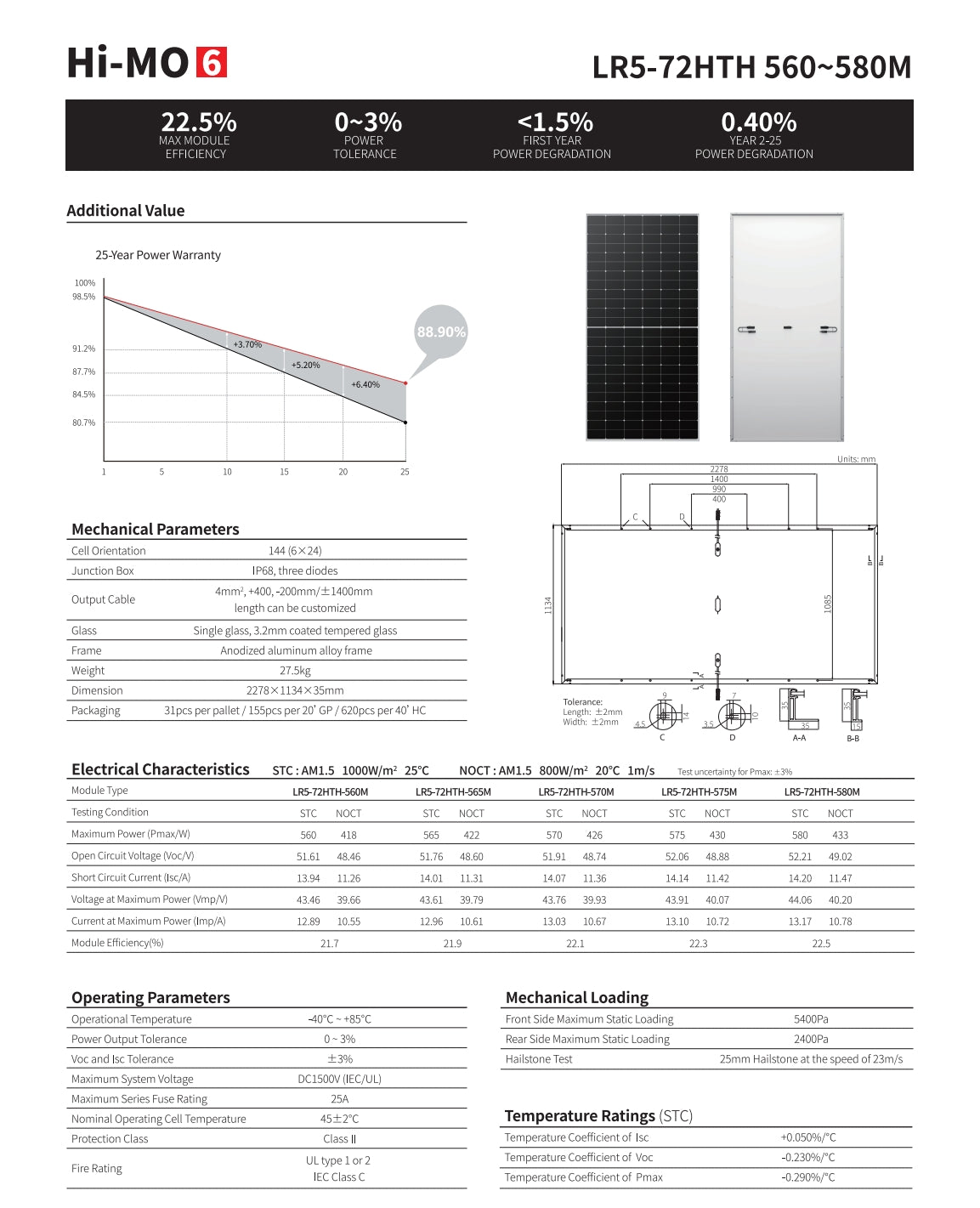

LonGi 570W Solar Panel (LR5-72HTH 560~580M) features a high-efficiency module with a maximum power output of 570W. The panel has an efficiency rate of 22.3% and a temperature coefficient of Isc +0.0509%/°C. It is designed for long-term reliability with a 25-year power warranty. The module has a single-glass tempered cover and an anodized aluminum alloy frame, weighing 27.5kg. Dimensions are 2278 x 1134 x 38mm, with a tolerance of ±5%. The panel comes in three types: LRS-T2HTH-S6OM, LRS-72HTH-S6SM, LRS-72HTH-ZSOM, and LRS-72HTH-57SM.

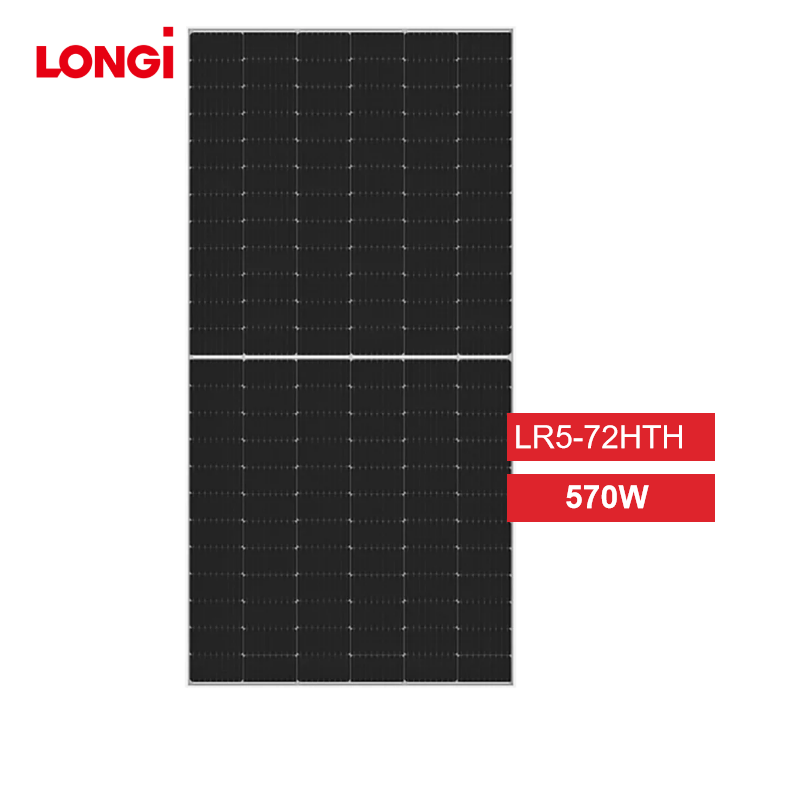

LonGi 570W Solar Panel, LR5-72HTH series, high-efficiency module with power output range of 560-580M, suitable for residential and commercial solar energy systems.
